Overview

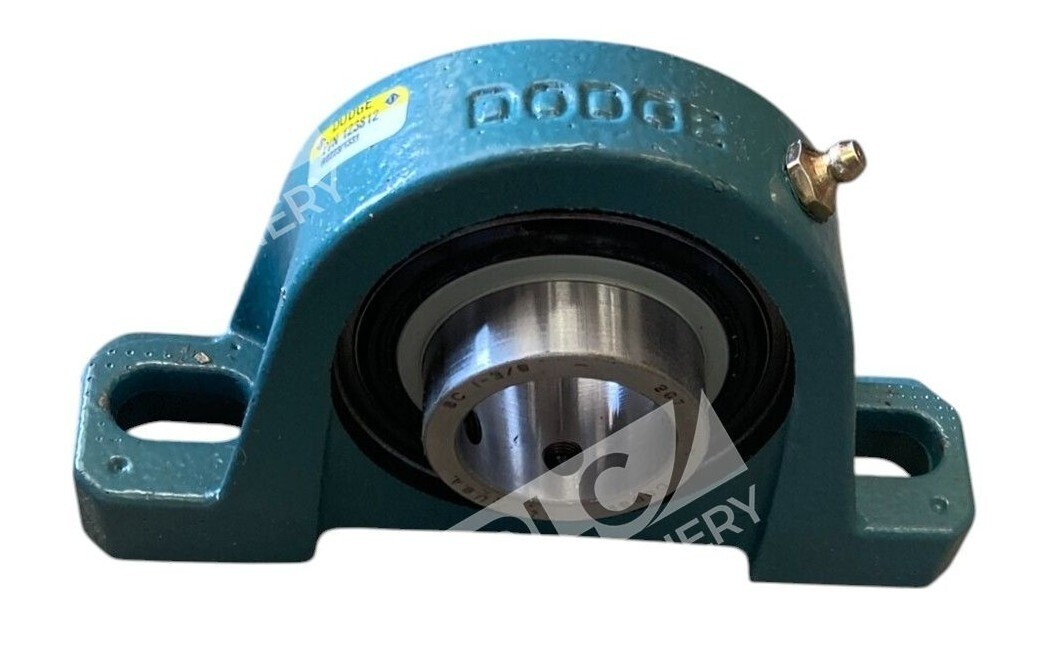

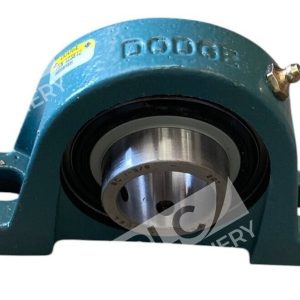

The Dodge P2B-SC-106 pillow block bearing (RBC 123812) is a standard duty mounted ball bearing designed for fixed shaft positioning in industrial machinery. With a 1-3/8″ (34.925mm) bore, 65° set screw locking, standard duty cast iron housing, non-expansion design, 207 series ball bearing insert, and DualGuard seal with flingers, this bearing provides reliable support for conveyor systems, mechanical drives, and production equipment.
Key Features
- 65 degree set screw angle ensures maximum grip onto the shaft
- Two-bolt base, cast iron housing with set screw locking
- Non-expansion bearing for fixed shaft applications
- DualGuard seal with flingers for contamination protection
- 207 series ball bearing insert for standard duty service
- Pre-lubricated with Unirex N2 grease
Technical Specifications
The P2B-SC-106 bearing meets industrial performance standards with the following verified specifications:
- Bore Diameter: 1-3/8 in (1.375″)
- Mounting Type: Two-bolt pillow block base
- Bore Length: 1.71 in
- Overall Length (OAL): 6-1/2 in
- Overall Height (OAH): 3-3/4 in
- Bolt Center-to-Center Length: 4.68 to 5.44 in
- Base to Bore Centerline: 1.88 in
- Housing Material: Cast iron, powder coated
- Locking Device: Set screw (65° angle)
- Series: 207 (normal duty)
- Radial Dynamic Load Capacity: 5759 lbf
- Radial Static Load Capacity: 3461 lbf
- Maximum Speed: 3500 rpm
- Operating Temperature Range: 225 to 400 °F
- Seal Type: Single-lip contact
- Lubrication: Grease (Unirex N2)
- UPC: 782475113903
Typical Applications
SC/SCM/SL bearings are used in industries such as air handling; food and beverage; chemical, oil, and gas; pharmaceutical; paper and forest; and unit and baggage handling. Common applications include conveyors, mechanical drives, and extreme duty environments. The set screw design makes installation and field adjustment straightforward without requiring shaft removal.
Compatibility & Replacements
Compatible With
- Two-bolt pillow block mounting applications
- Fixed shaft positioning systems
- Conveyors and power transmission systems
- Industrial gear drives and mechanical equipment
- Standard industrial lubrication systems (Unirex N2 or equivalent grease)
Replaces / Drop-In Replacement For
- Other Dodge 207 series 1-3/8″ bore set screw pillow blocks with compatible bolt patterns
- Verify compatibility with your system integrator before ordering for exact dimensional and speed matches
Works With
- Two-bolt base mounting standards (metric and imperial)
- 1-3/8″ diameter shafts with set screw locking
- Industrial-grade lubricants and grease (Unirex N2 or ISO 220 equivalent)
- Standard power transmission equipment and machinery
