Overview

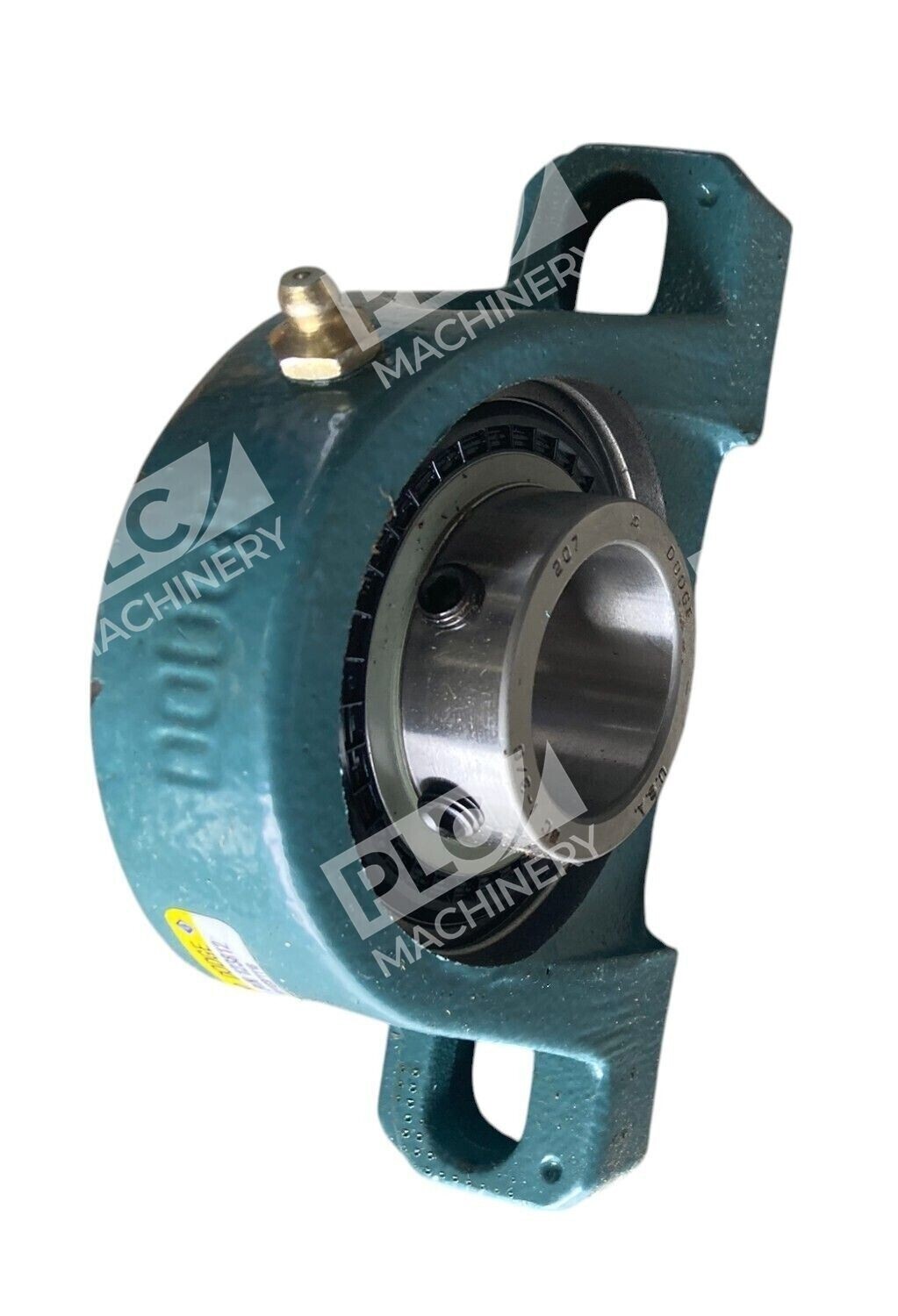

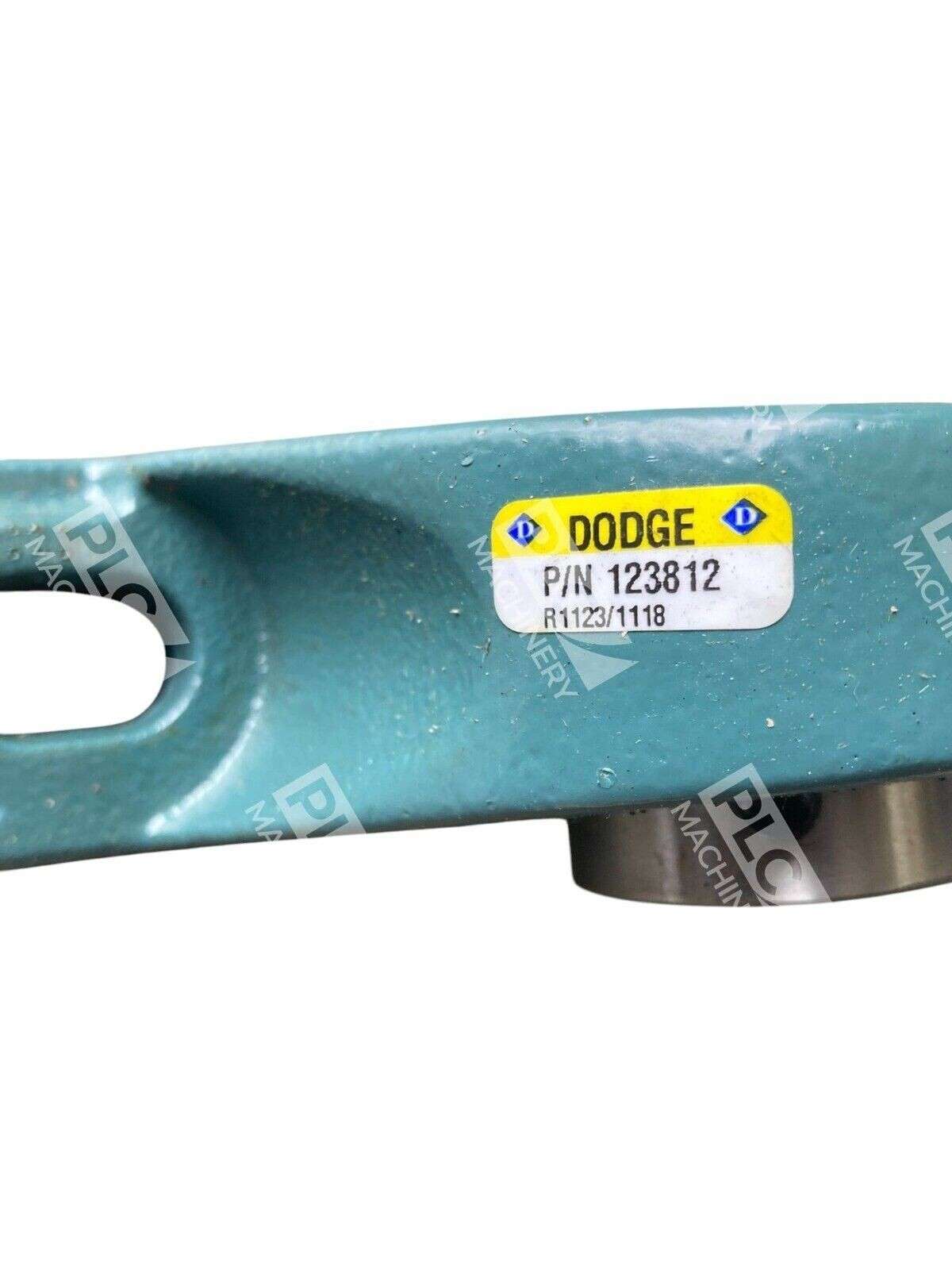

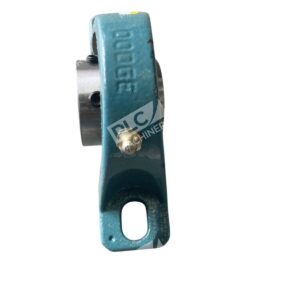

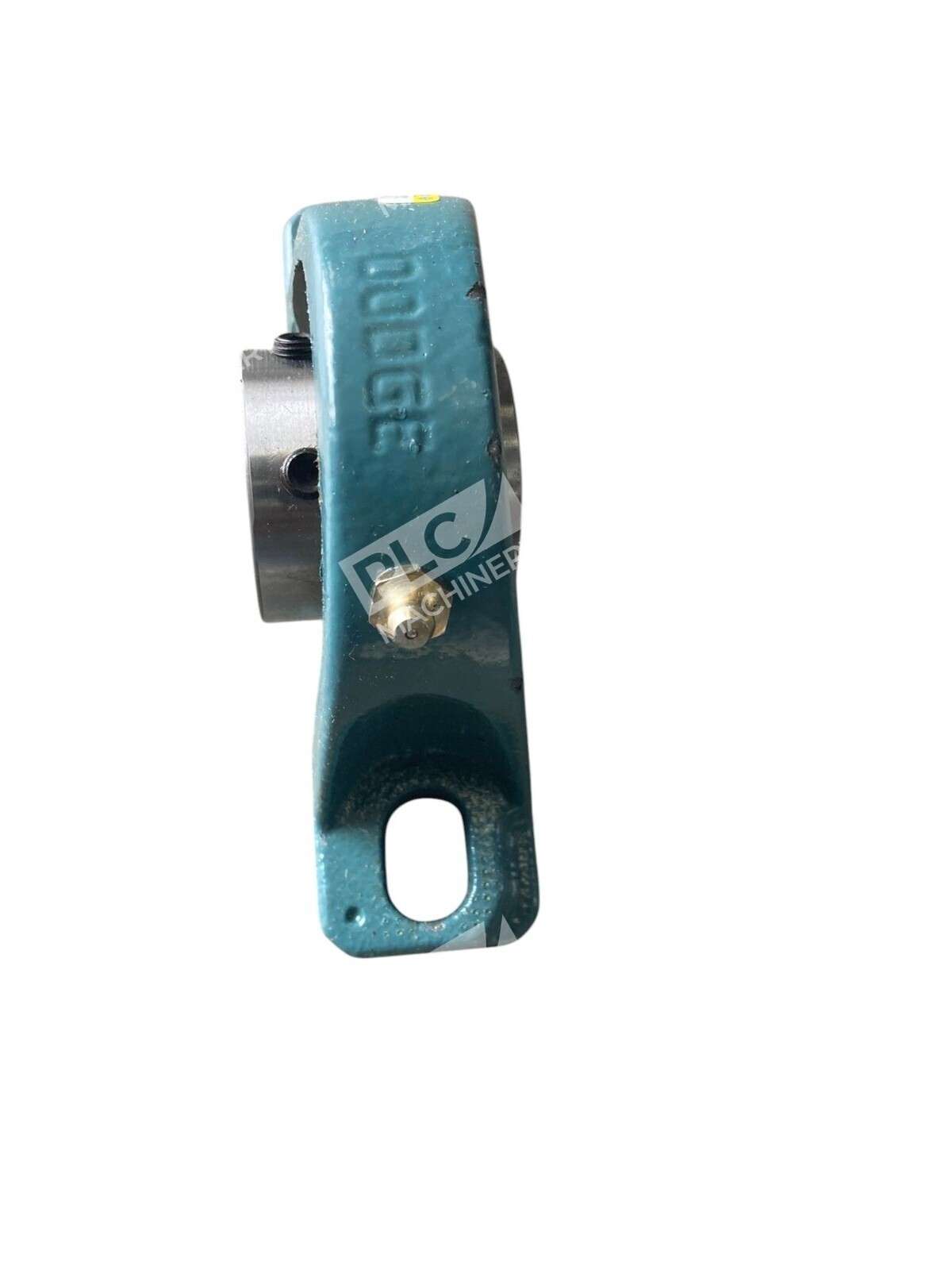

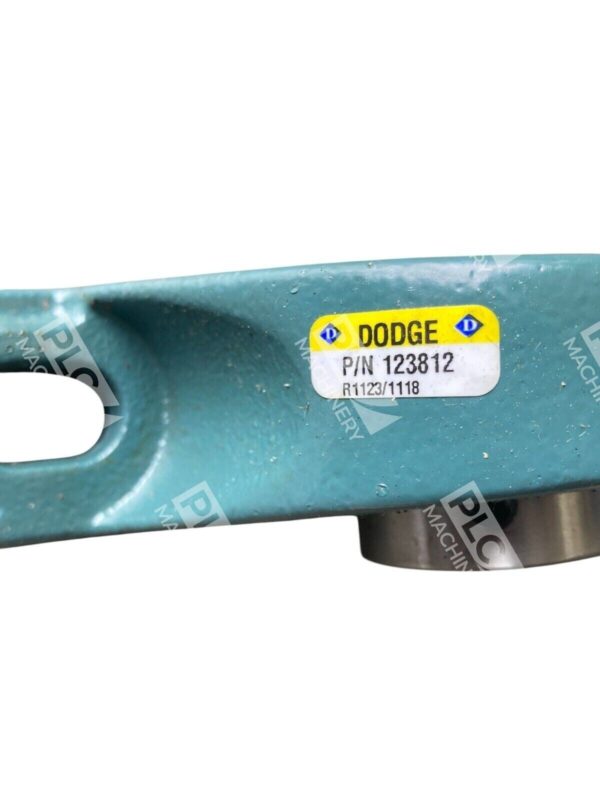

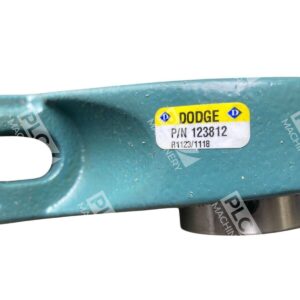

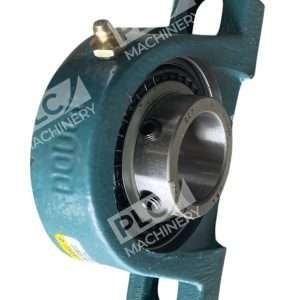

The Dodge 123812 P2B-SC-106 is a non-expansion, two-bolt pillow block bearing designed for fixed-shaft applications across industrial automation and motion control systems. Manufactured by Dodge, a leader in mounted bearing solutions, the P2B-SC-106 combines proven 207 series ball bearing technology with cast iron housing construction to deliver reliable, long-service life in demanding applications. The unit features setscrew locking with a 65° angle for maximum grip and simple installation.
Key Features
- Two-bolt base mount for standard industrial frame sizes
- Set screw locking device with 65° angle for secure shaft attachment

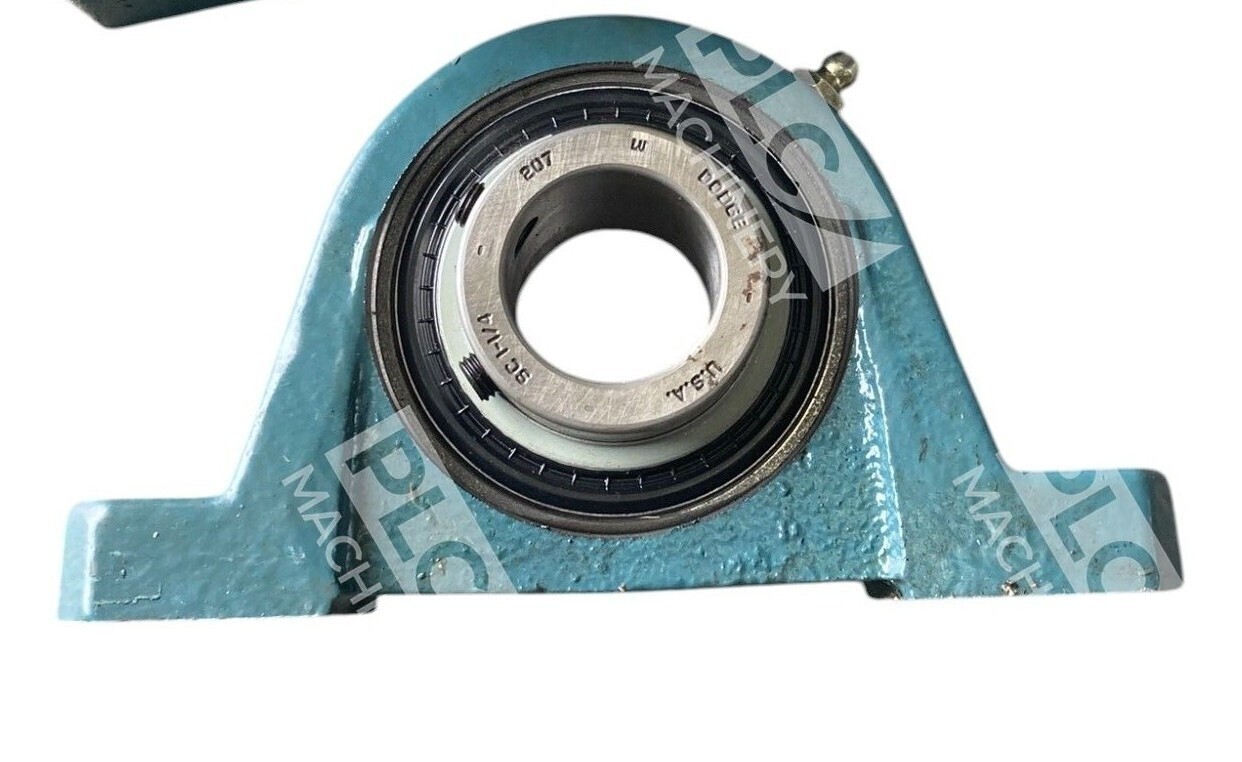

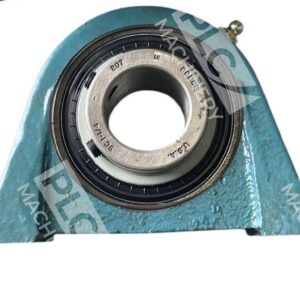

- 207 series ball bearing insert for standard duty operation
- Single-lip contact seal with DualGuard flingers for extended bearing life
- Cast iron housing, powder-coated for corrosion resistance
- Non-expansion design for fixed-position shaft support
- Unirex N2 grease pre-lubricated; relubricatable for field maintenance
Technical Specifications
The Dodge 123812 delivers performance metrics designed for standard-duty industrial service with dynamic load capacity of 5,759 lbf and static capacity of 3,461 lbf.
Typical Applications
The P2B-SC-106 is widely specified in:
- Conveyor systems and belt drives
- Mechanical power transmission equipment
- Food and beverage processing lines
- Chemical, oil, and gas industry machinery
- Pharmaceutical equipment and handling systems
- Paper and forest products processing
- Unit and baggage handling systems
Compatibility & Replacements
Compatible With
- Standard industrial equipment with 2-bolt pillow block mounting
- Shafts from 1.25″ to 1.5″ nominal diameter
- Conveyor frames requiring LD-20 or TS-250 take-up sizing
- Power transmission systems requiring Unirex N2 grease compatibility
Replaces / Drop-In Replacement For
- Most standard-duty 1-3/8″ bore two-bolt pillow blocks with comparable 207 series inserts
- Original equipment bearing units on legacy conveyor and drive systems
- Verify with your system integrator or OEM documentation for specific interchangeability before ordering
Works With
- Standard ISO 9001 industrial mounting interfaces
- AGMA-rated mechanical drive systems
- Unirex N2 grease and compatible lubricants
- Common shaft materials including steel and stainless steel (verify locking adequacy for specific shaft hardness)
