Overview

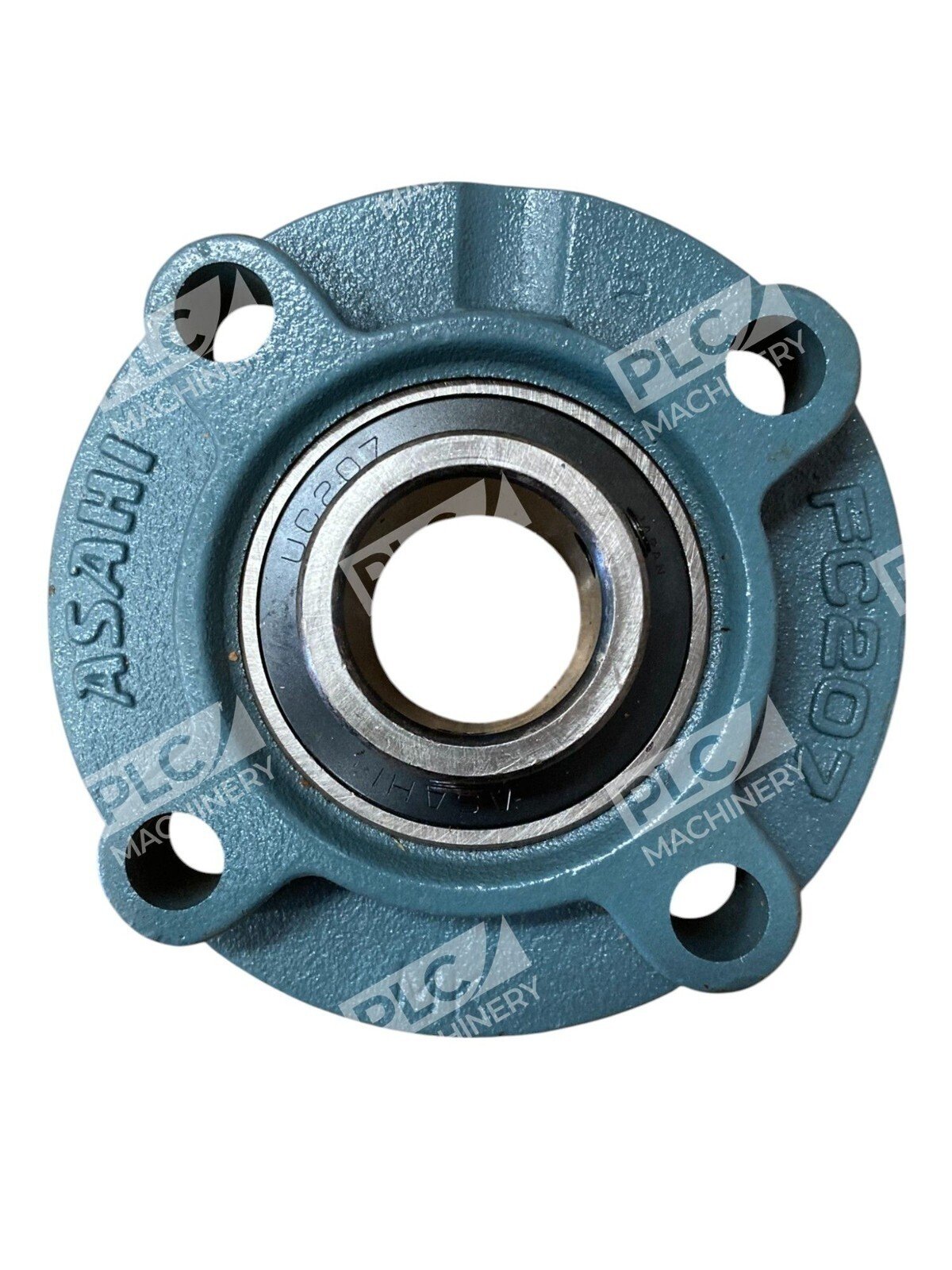

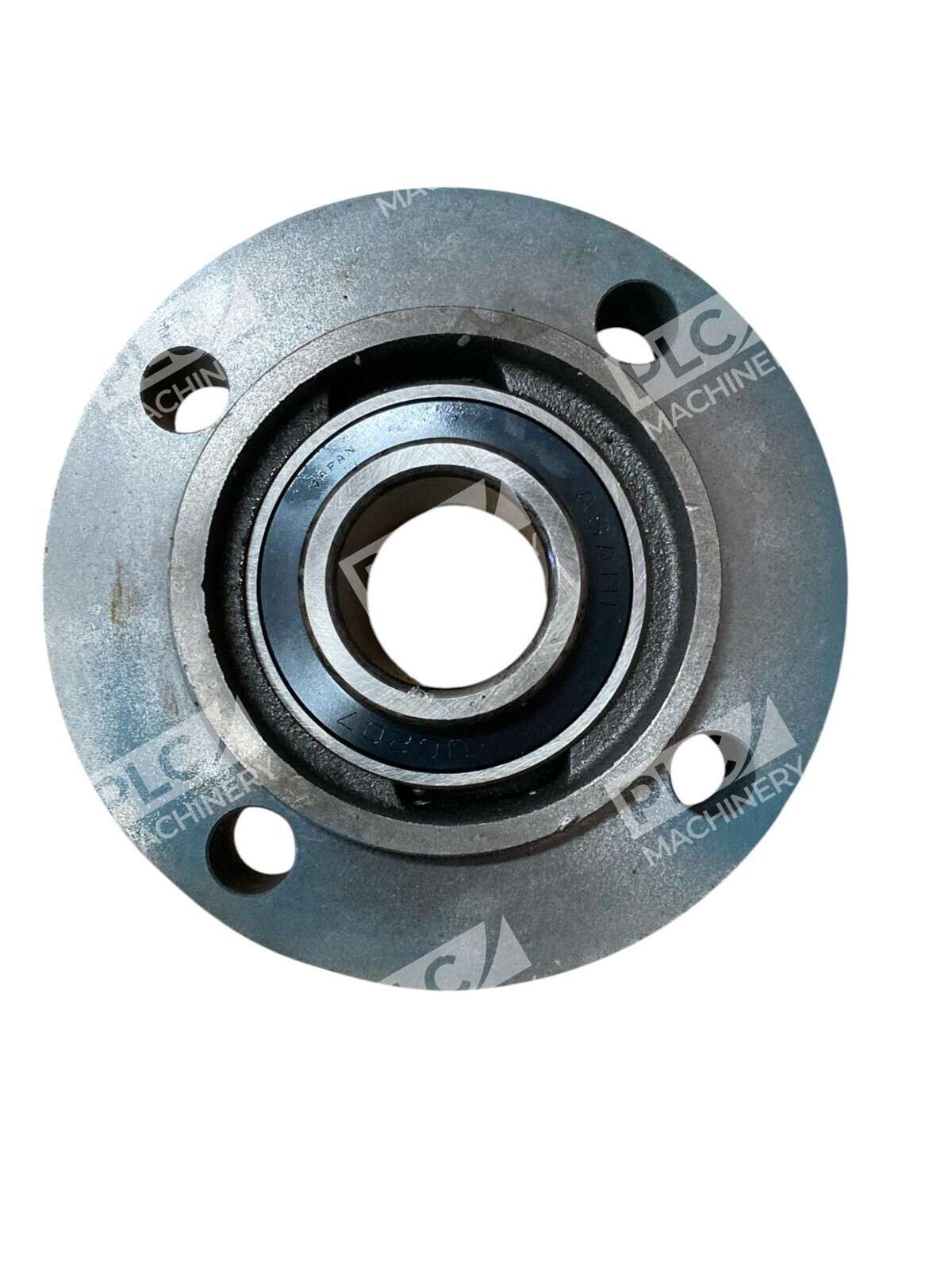

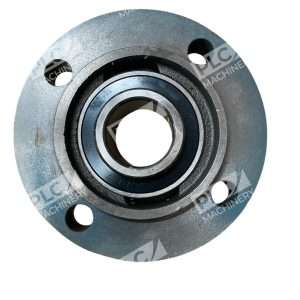

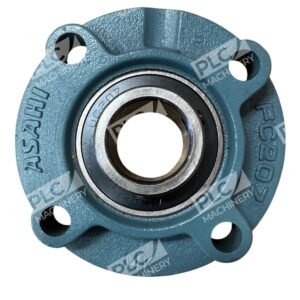

The Asahi UC207 insert bearing is a precision-engineered bearing unit designed for industrial machinery and power transmission applications. This assembly combines an Asahi UC207 bearing insert with an FC207 cast iron flange housing, delivering dependable performance in moderate to heavy-duty environments. The 4-bolt flange mount configuration provides secure mounting on standard equipment frames and shafts.
Key Features
- UC207 insert bearing with 35mm cylindrical bore and set screw locking mechanism
- FC207 cast iron housing with 4-bolt square flange mount
- Self-aligning ball bearing design reduces friction and accommodates minor shaft misalignment
- Durable construction rated for industrial machinery, conveyor systems, and transmission equipment
- Easy maintenance and field replacement of bearing inserts
Technical Specifications
- Bearing Type: Insert bearing (UC207) with cast iron housing (FC207)
- Bore Diameter: 35mm (1.378 inches)
- Mounting Style: 4-bolt square flange
- Locking Method: Set screw
- Housing Material: Cast iron
- Flange Width: 117mm (4.606 inches)
- Bolt Size: M12 (1/2 inch)
- Weight: Approximately 1.4 kg
- Operating Temperature Range: Standard industrial use
- Lubrication: Grease-lubricated
Typical Applications
The Asahi UC207 find widespread use in:
- Belt and chain conveyor systems
- Agricultural machinery and equipment
- Industrial blowers and fan assemblies
- Drive shafts and transmission systems
- Material handling and processing equipment
- General machinery requiring precise shaft support with self-alignment capability
Compatibility & Replacements
Compatible With
- Standard machinery frames with 4-bolt flange mount provisions
- 35mm input and output shafts
- Systems requiring self-aligning insert bearings
- Grease-lubricated bearing maintenance schedules
Replaces / Drop-In Replacement For
- UCFC207-22 (with FC207 housing variant)
- Equivalent UC207-series bearings from major manufacturers
- Direct replacement for original Asahi UC207/FC207 assemblies
Works With
- Standard industrial greases (lithium complex, EP-rated lubrication)
- M12 fasteners and standard mounting brackets
- Industry-standard shaft couplings and pulleys
- Drive belts and sprockets on 35mm bore equipment
