Overview

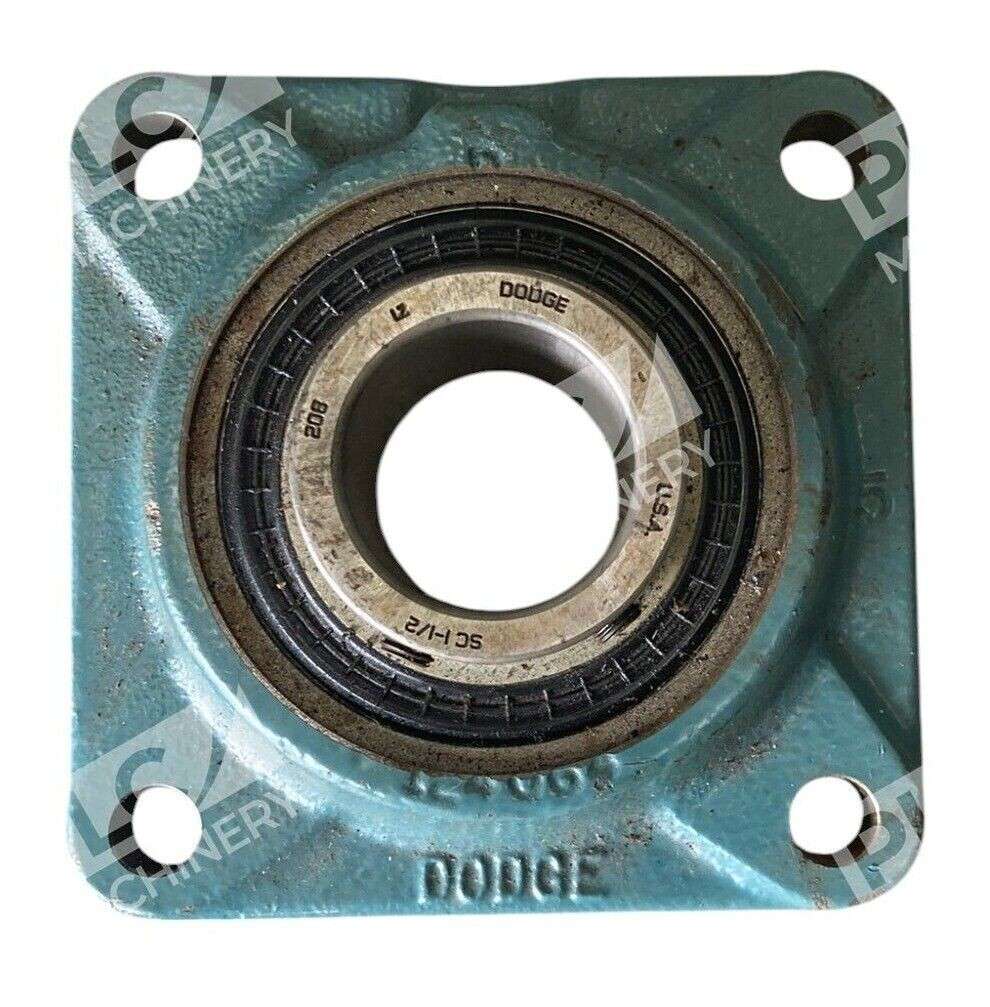

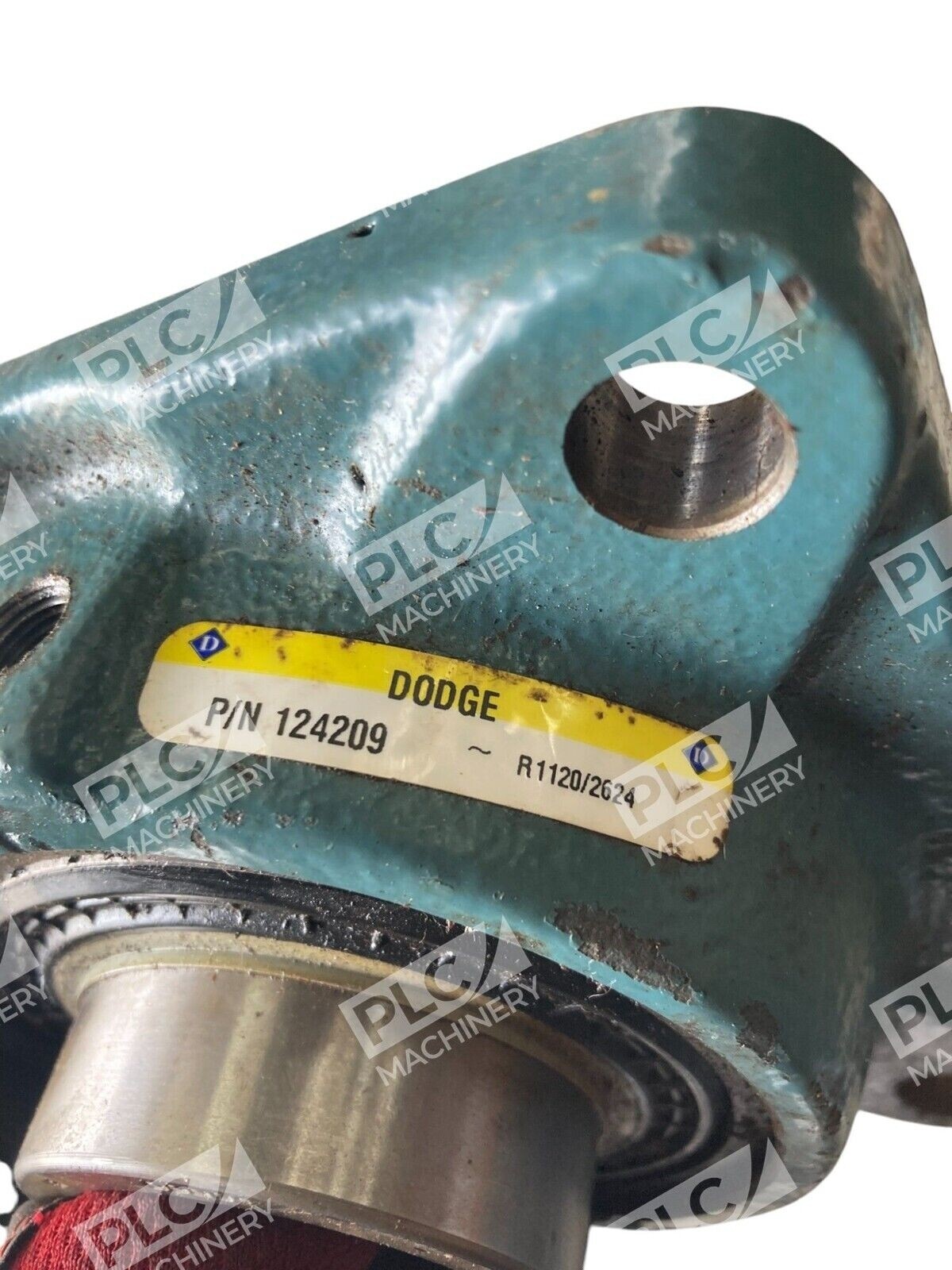

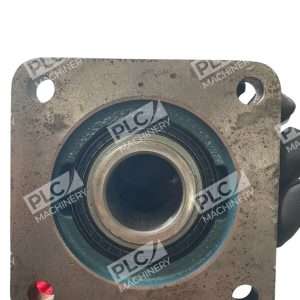

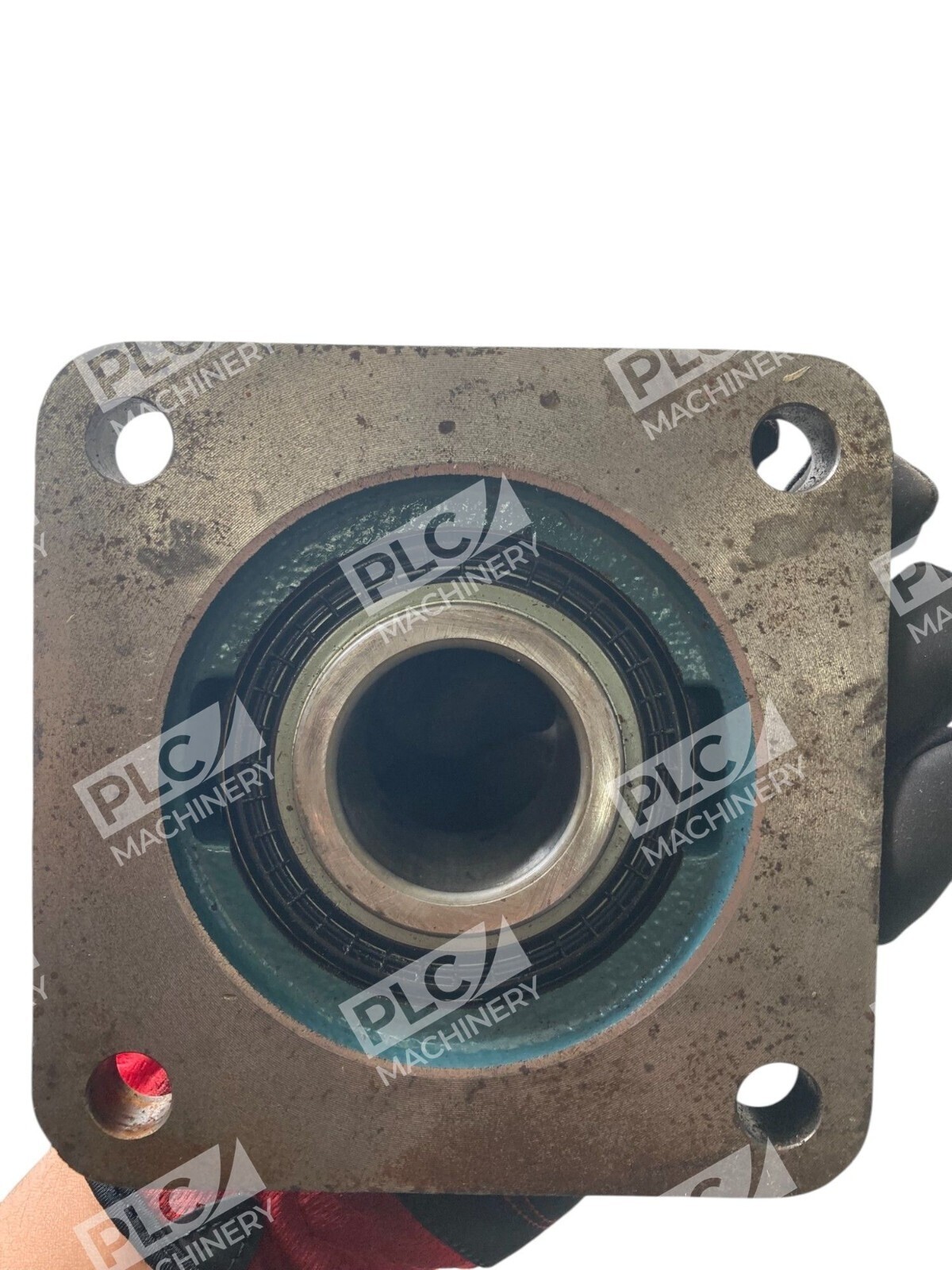

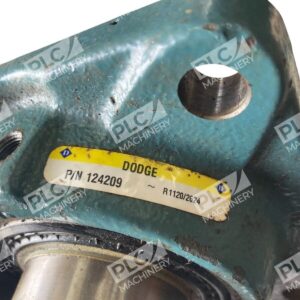

The Dodge 124209 (model F4B-SC-108) is a normal duty, non-expansion, single-lip flange-mount ball bearing unit widely used in machinery, conveyor systems, and industrial drive applications. This bearing features a 1-1/2 inch bore diameter and a cast iron housing with four mounting bolt holes, providing robust mechanical support and straightforward installation.
Key Features
- Superior locking force: Dodge uses 65º setscrew spacing for optimum balance between locking force and inner ring stress
- Reinforced cage design: SC-series ball cage made of heat-stabilized nylon with fiberglass reinforcement for durability and flexibility
- Anti-rotation pin: Simplified anti-rotation device prevents outer race rotation within the housing
- Patented DualGuard seal: Advanced sealing system provides maximum protection in tough, contaminated environments
- Cast iron housing: Durable, powder-coated construction suitable for standard industrial duty applications
Technical Specifications
- Bore diameter: 1-1/2 inch
- Housing material: Cast iron, powder coated
- Bearing type: Ball bearing with set screw locking device
- Series: 208 (normal duty, non-expansion)
- Mounting: 4-bolt base flange mount
- Bolt center-to-center length: 4.0 inches
- Bolt hole diameter: 0.5 inch
- Overall length/diameter: 5.13 inches
- Overall depth: 1.98 inches
- Overall height: 5.13 inches
- Dynamic load capacity: 7,332 lbs
- Static load capacity: 4,475 lbs
- Maximum speed: 5,000 rpm
- Operating temperature range: 225–400°F
- Seal type: Nitrile rubber
Typical Applications
The Dodge 124209 is ideal for general-purpose industrial machinery including:
- Conveyor systems and belt-driven equipment
- Fan and blower assemblies
- Pump systems and hydraulic drives
- Motor-driven machinery and gearbox housings
- Standard industrial duty compressors and drive shafts
Compatibility & Replacements
Compatible With
- Standard 1-1/2″ shaft sizes
- Industrial motor couplings and drive assemblies
- Conveyor frames and mounting pads requiring 4-bolt flange configuration
- Machinery operating at up to 5,000 rpm with normal duty loads
Replaces / Drop-In Replacement For
- Dodge F4B-SC-108 (direct equivalent by part number)
- Other 1-1/2″ 4-bolt flange bearing units in the 208 series
Works With
- Standard mechanical power transmission systems
- 4-bolt flange mounting pads and housings
- Industrial lubricants rated for 225–400°F bearing temperatures
- Shaft collars and locking devices compatible with 1-1/2″ bore specifications
