Overview

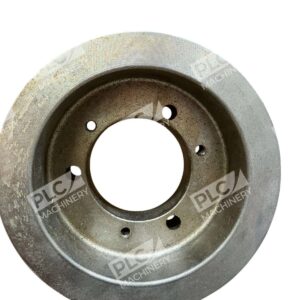

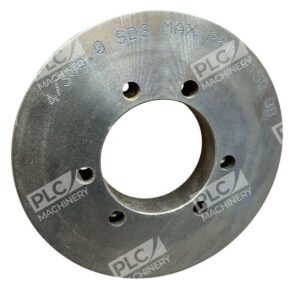

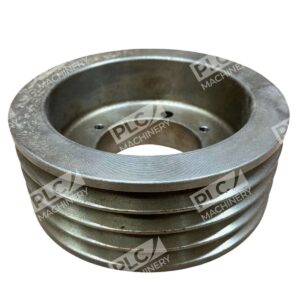

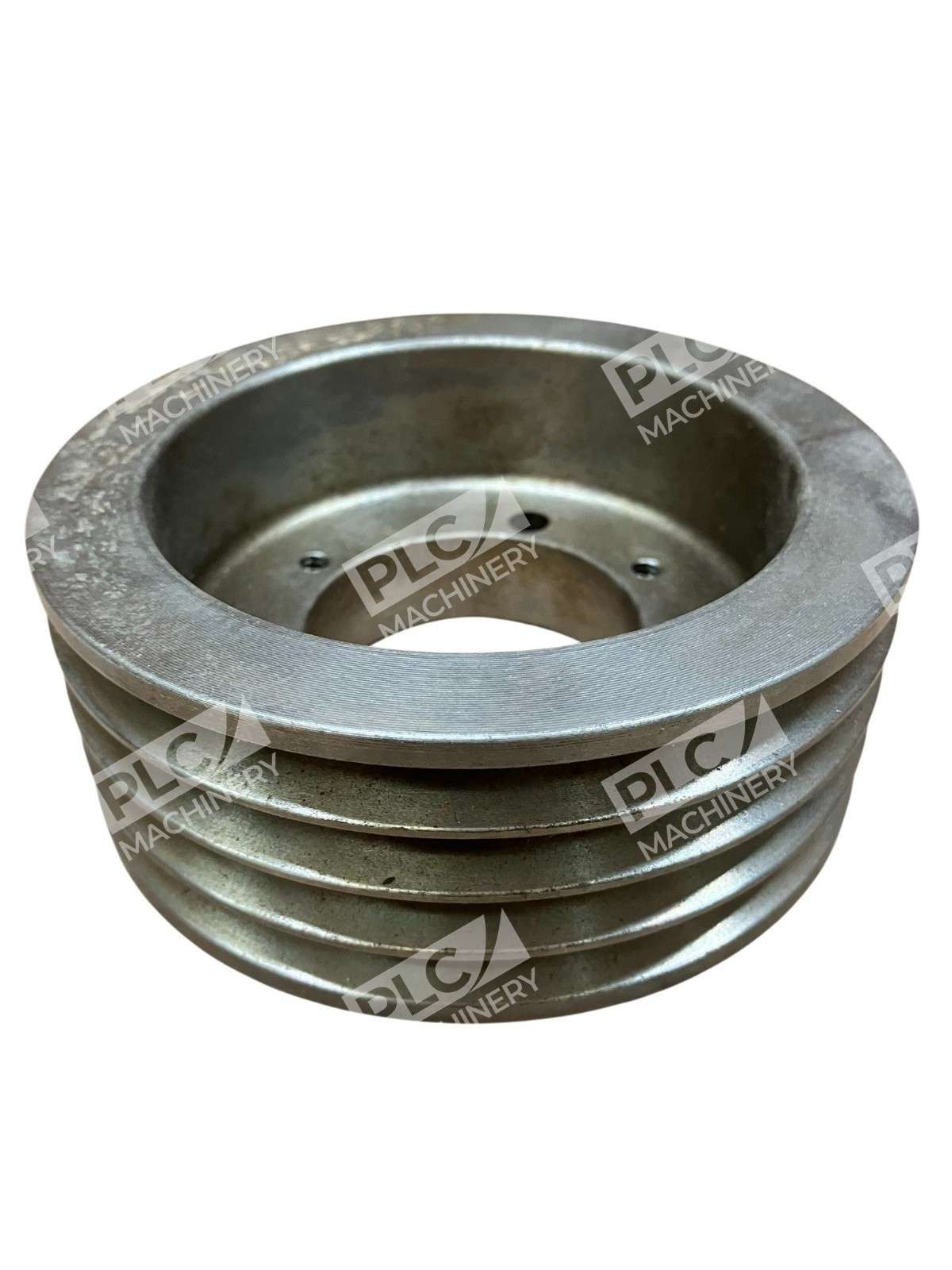

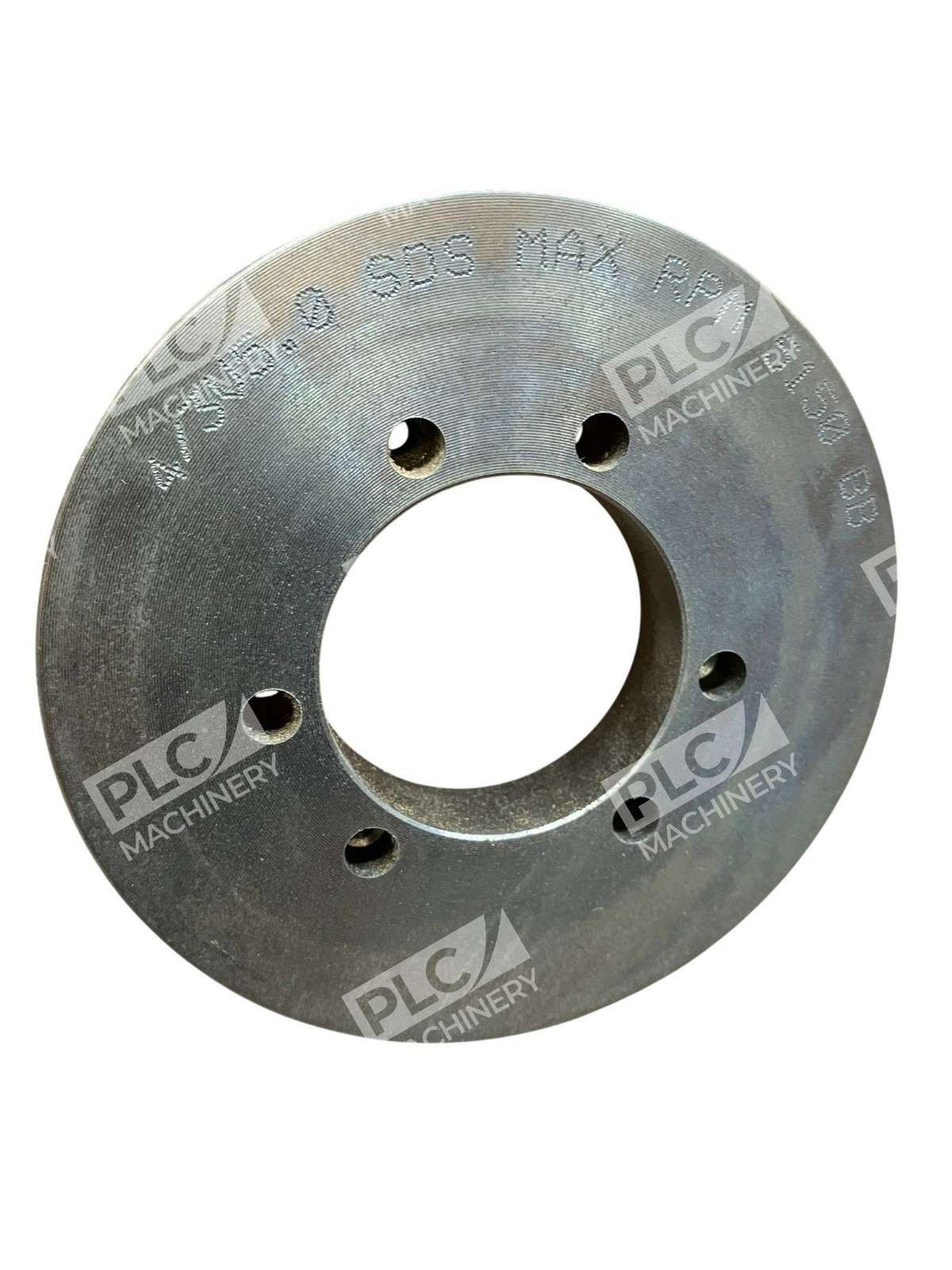

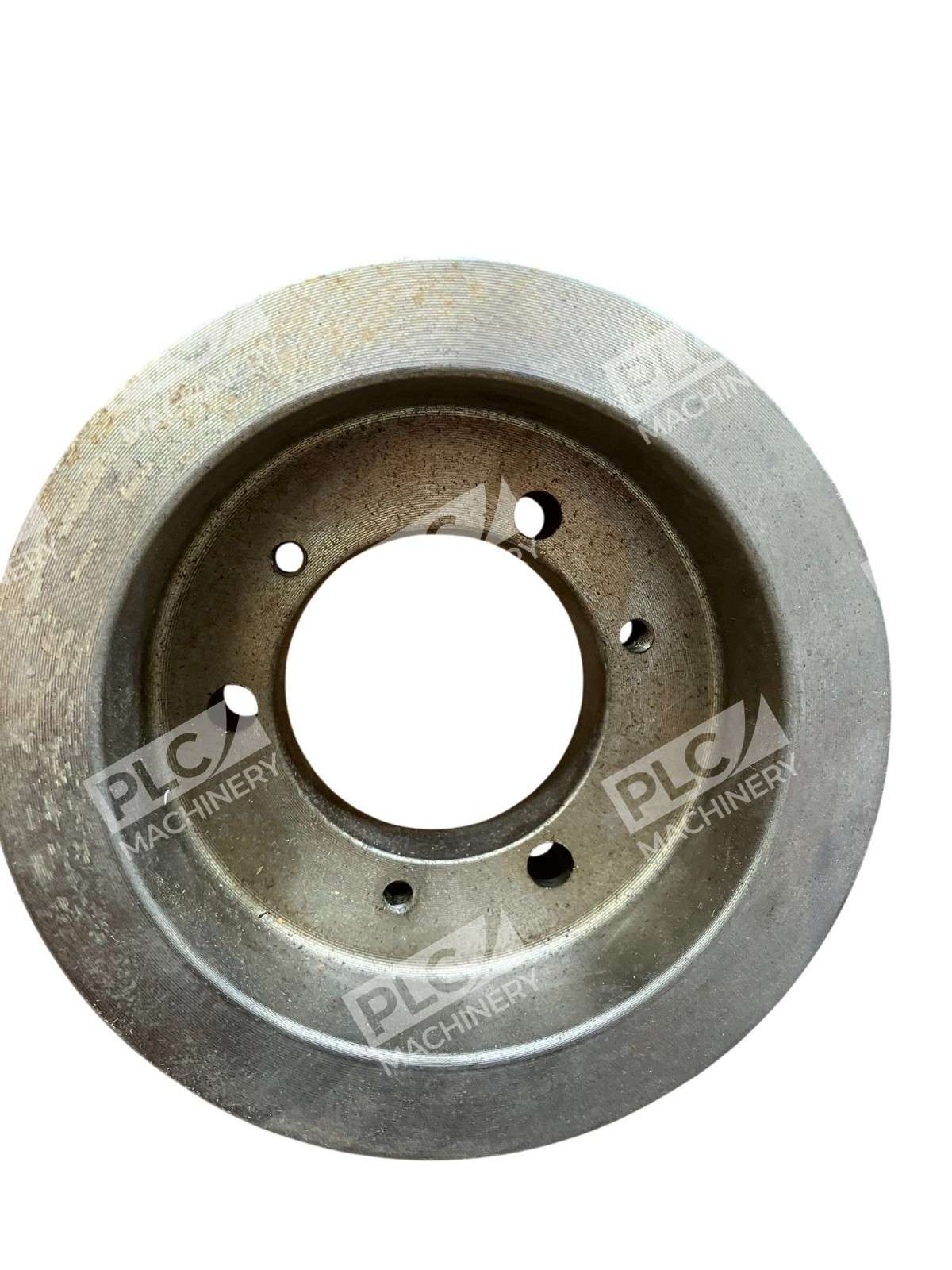

Dodge 455176 is a precision-manufactured Type A1 sheave engineered for reliable mechanical power transmission in industrial applications. This 4-3V5.00-SDS model delivers smooth operation and extended belt life through ISO 9002-certified manufacturing and precision machining. The Taper-Lock bore design accommodates shaft sizes from 7/16 to 2 inches diameter, providing flexibility across diverse motion control systems.
Key Features
- Quick Disconnect & SDS Bushing: SDS split-taper bushing enables rapid installation and removal for minimal downtime
- ISO 9002 Manufacturing: Dodge v-drive sheaves are manufactured to ISO 9002 quality standards with precision machining that meets or exceeds joint RMA/MPTA industry standards
- Shock Load Isolation: Isolates shock loads and vibration with minor misalignment capability for clean, quiet operation
- Gray Iron Construction: DODGE stock sheaves are manufactured from high quality gray iron and are given a corrosion-resistant finish before packaging and shipping
- Low Maintenance Design: Drive ratios of 6:1 or more possible with low maintenance requirements
Technical Specifications
- Model Number: 4-3V5.00-SDS (Dodge 455176)
- Sheave Type: Type A1, Taper-Lock bore

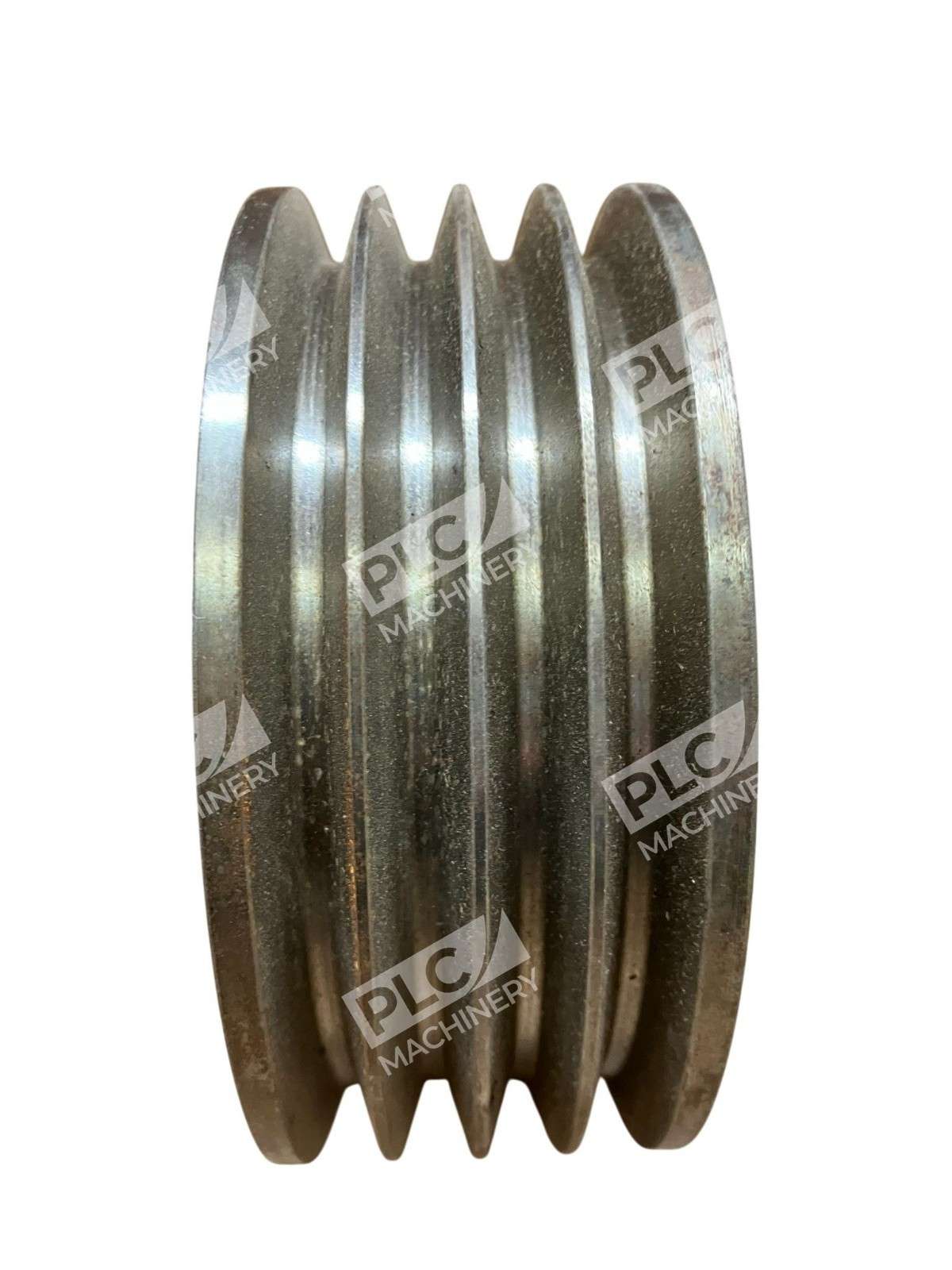

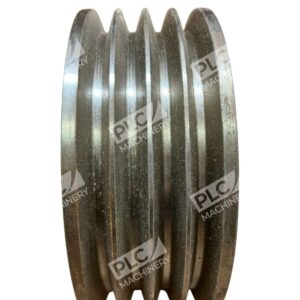

- Groove Count: 4 grooves
- Outside Diameter: 5 inches
- Pitch Diameter: 4.95 inches
- Face Width: 1.91 inches
- Bore Range: 7/16 to 2 inches diameter
- Bushing Type: SDS (Split-taper)
- Belt Section: 3V (narrow profile)
- Material: Gray cast iron with corrosion-resistant finish
- Mounting: Taper-Lock bushing system
- Balance: Static balance suitable for rim speeds to 6500 FPM
- Quality Certification: ISO 9002
Typical Applications
The Dodge 455176 sheave serves industrial automation, HVAC systems, agricultural equipment, and general industrial machinery requiring reliable belt-drive power transmission. Its shock-isolation properties and compact 5-inch OD make it ideal for confined spaces with moderate to high-speed applications. Standard interface options including Taper-Lock designs enable direct interchangeability across most industry applications. Common uses include fan drives, pump drives, conveyor systems, and machine tool applications.
Compatibility & Replacements
Compatible With
- 3V cross-section V-belts (narrow profile)
- Taper-Lock bushing systems (standard industry interface)
- SDS split-taper bushings for quick-disconnect mounting
- Industrial AC and DC motor shafts (7/16″ to 2″ diameter)
- ANSI/ARPM standards-compliant power transmission systems
Replaces / Drop-In Replacement For
Dodge sheaves conform to ANSI and ARPM industry standards, ensuring interchangeability for groove profiles and bushing types with other standards-compliant manufacturers’ products. Verify exact dimensional fit (groove angle, outside diameter, hub length, and bore) before ordering as a replacement. Consult your equipment documentation or system integrator to confirm compatibility with your current sheave model.
Works With
- Narrow-profile V-belt drives (3V belt section)
- Taper-Lock and split-taper bushing assemblies
- Industrial power transmission networks (pumps, fans, compressors)
- Motor bases with adjustable mounting (for drive alignment)
- Standard industry tools (shaft couplers, bearing blocks, motor bases)
[{“label”:”Model Number”,”value”:”4-3V5.00-SDS (Dodge 455176)”},{“label”:”Sheave Type”,”value”:”Type A1, Taper-Lock”},{“label”:”Grooves”,”value”:”4″},{“label”:”Outside Diameter”,”value”:”5 inches”},{“label”:”Pitch Diameter”,”value”:”4.95 inches”},{“label”:”Face Width”,”value”:”1.91 inches”},{“label”:”Bore Range”,”value”:”7/16 to 2 inches”},{“label”:”Bushing Type”,”value”:”SDS (Split-taper)”},{“label”:”Belt Section”,”value”:”3V (Narrow Profile)”},{“label”:”Material”,”value”:”Gray Cast Iron”},{“label”:”Maximum Rim Speed”,”value”:”6500 FPM (static balance)”},{“label”:”Quality Standard”,”value”:”ISO 9002″},{“label”:”Condition”,”value”:”New in Box”}]
