Overview

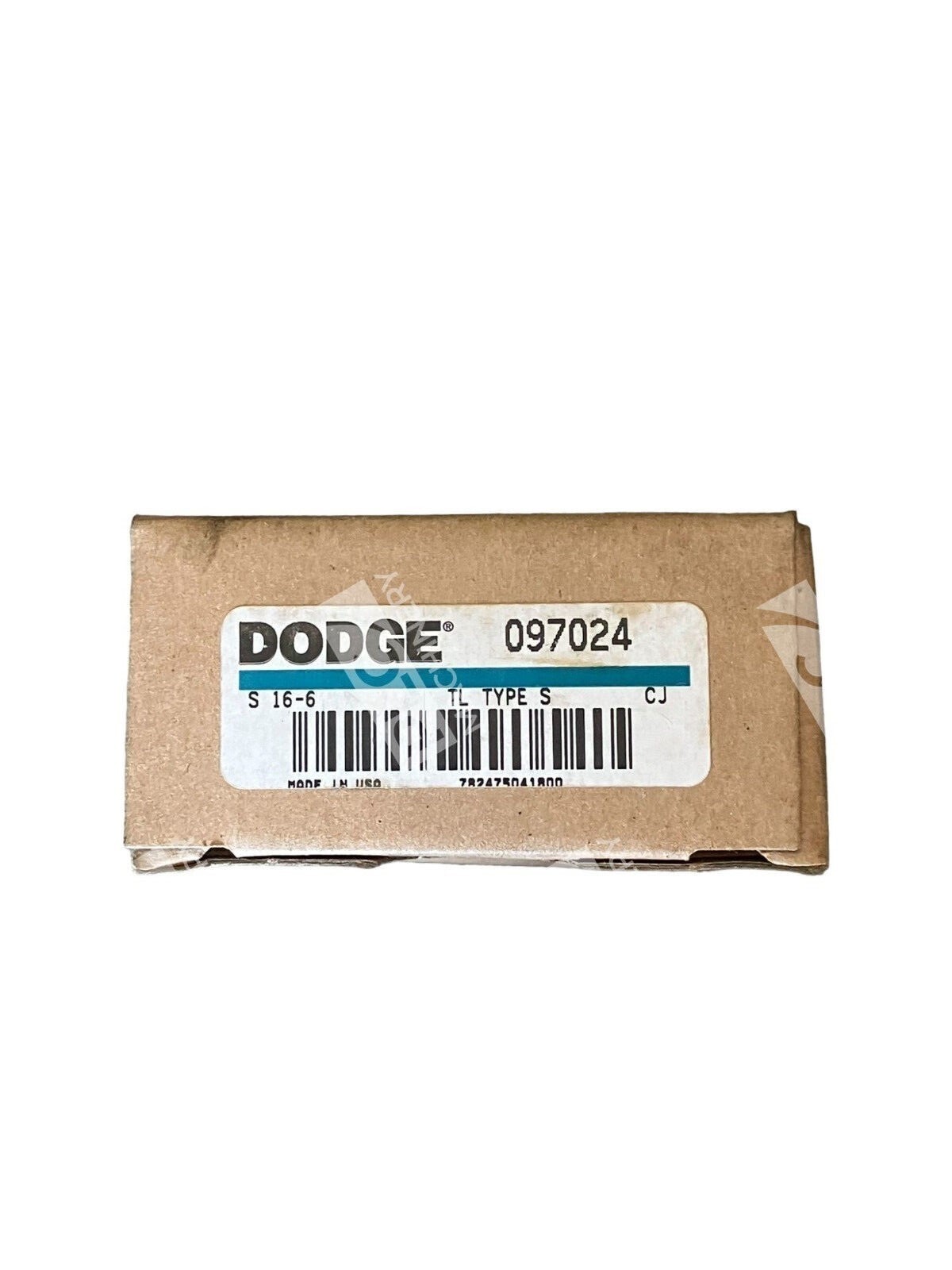

The Dodge 097024 S16-6 TL is a precision Taper-Lock Type S weld-on hub designed for industrial power transmission applications. This hub features taper-lock technology for reliable, repeatable shaft engagement without keyways or set screws. Constructed from 1015–1025 steel and drilled with taper bores, it mounts directly to shafts through the standardized Taper-Lock bushing interface.
Key Features
- Taper-Lock Type S design—low-profile, suitable for smaller sprockets and lighter-duty applications
- 1015–1025 steel construction for durability and weldability
- Drilled, tapped, and taper-bored for direct Taper-Lock bushing installation
- No keyway or set screws required—clean, reliable engagement
- Pre-drilled for easy welding into fan rotors, pulleys, and plate sprockets
- New in Box condition—factory fresh, ready to install
Technical Specifications
- Bore Diameter: 2-1/4 in
- Outside Diameter: 3 in
- Pilot Diameter: 2-7/8 in
- Bolt Circle Diameter: 2.13 in
- Number of Bolt Holes: 2
- Overall Length (OAL): 1 in
- Material: Steel (1015–1025)
- Bushing Type: Taper-Lock
- Hub Style: Type S Weld-On
- Part Number: 097024
- Manufacturer: Dodge / Baldor
Typical Applications
The Dodge 097024 is commonly used in machinery where compact, low-cost shaft mounting is required:
- Fan rotor assembly and replacement
- Pulley mounting and retrofit
- Plate sprocket welding
- Conveyor roller systems
- Industrial fan drive systems
- Power transmission equipment requiring fixed, sealed shaft connection
Compatibility & Replacements
Compatible With
- Dodge / Baldor Taper-Lock bushings (S16-6 size designation)
- Standard industrial shafts from 1-13/16 in to 2-1/2 in nominal diameter
- Power transmission systems using Dodge couplings and mechanical power transfer components
- Fan, pulley, and sprocket assemblies designed for Taper-Lock Type S hubs
- OEM equipment originally equipped with Dodge 097024 hubs
Replaces / Drop-In Replacement For
- Equivalent Dodge S16-6 TL weld-on hubs from stock clearance or OEM applications
- Direct replacement for 097024 hubs in fan, pulley, and sprocket assemblies
- Verify coupling assembly compatibility with your specific motor or drive system before ordering
Works With
- Dodge Taper-Lock bushings (all standard sizes in the S16-6 range)
- Dodge Para-Flex flexible couplings and mechanical drive systems
- Industrial electric motors with standard C-face or direct-coupled drive requirements
- Power transmission assemblies using rigid or flexible coupling methods
- Baldor and Dodge-compatible power transmission ecosystems
