Overview

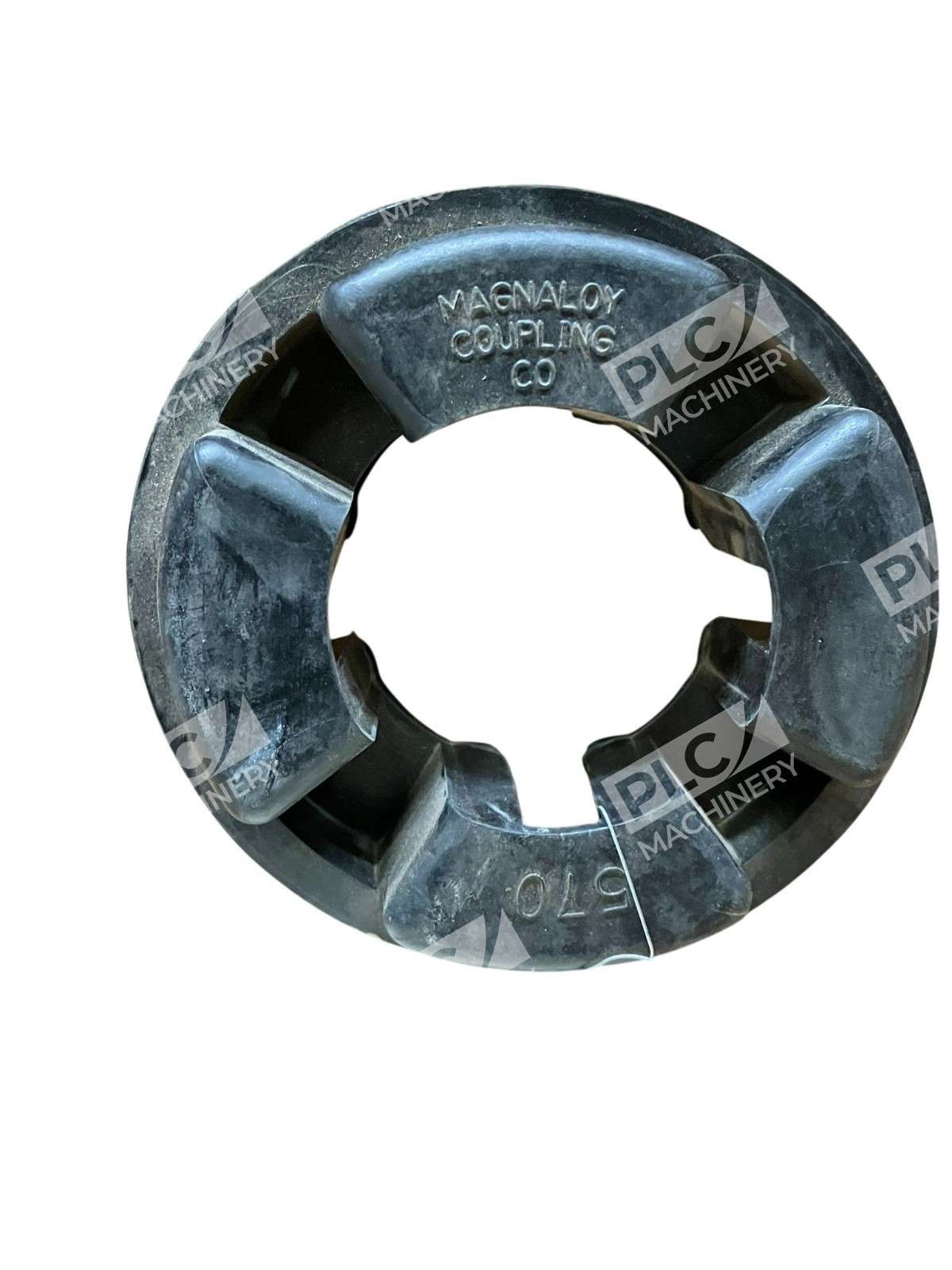

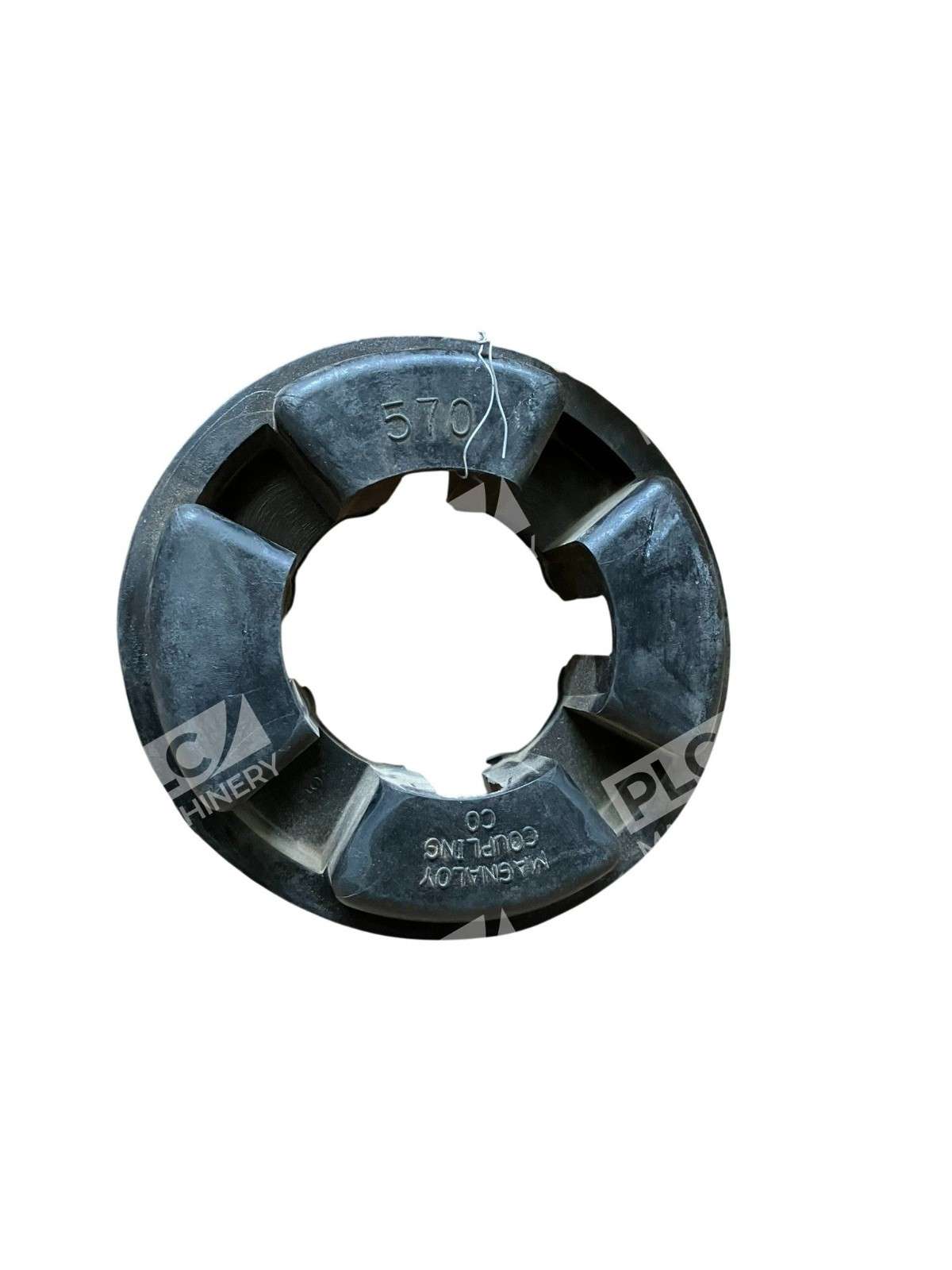

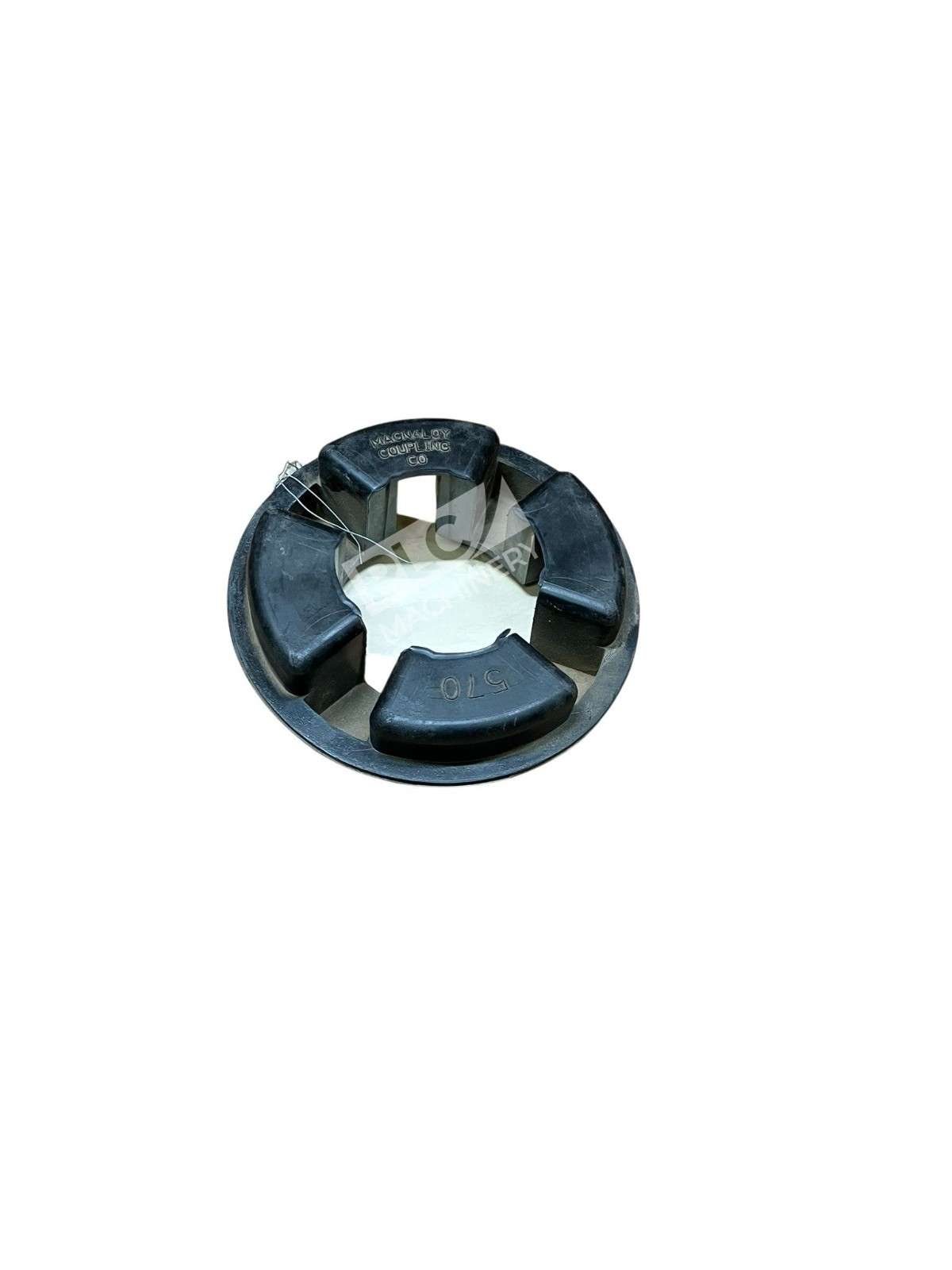

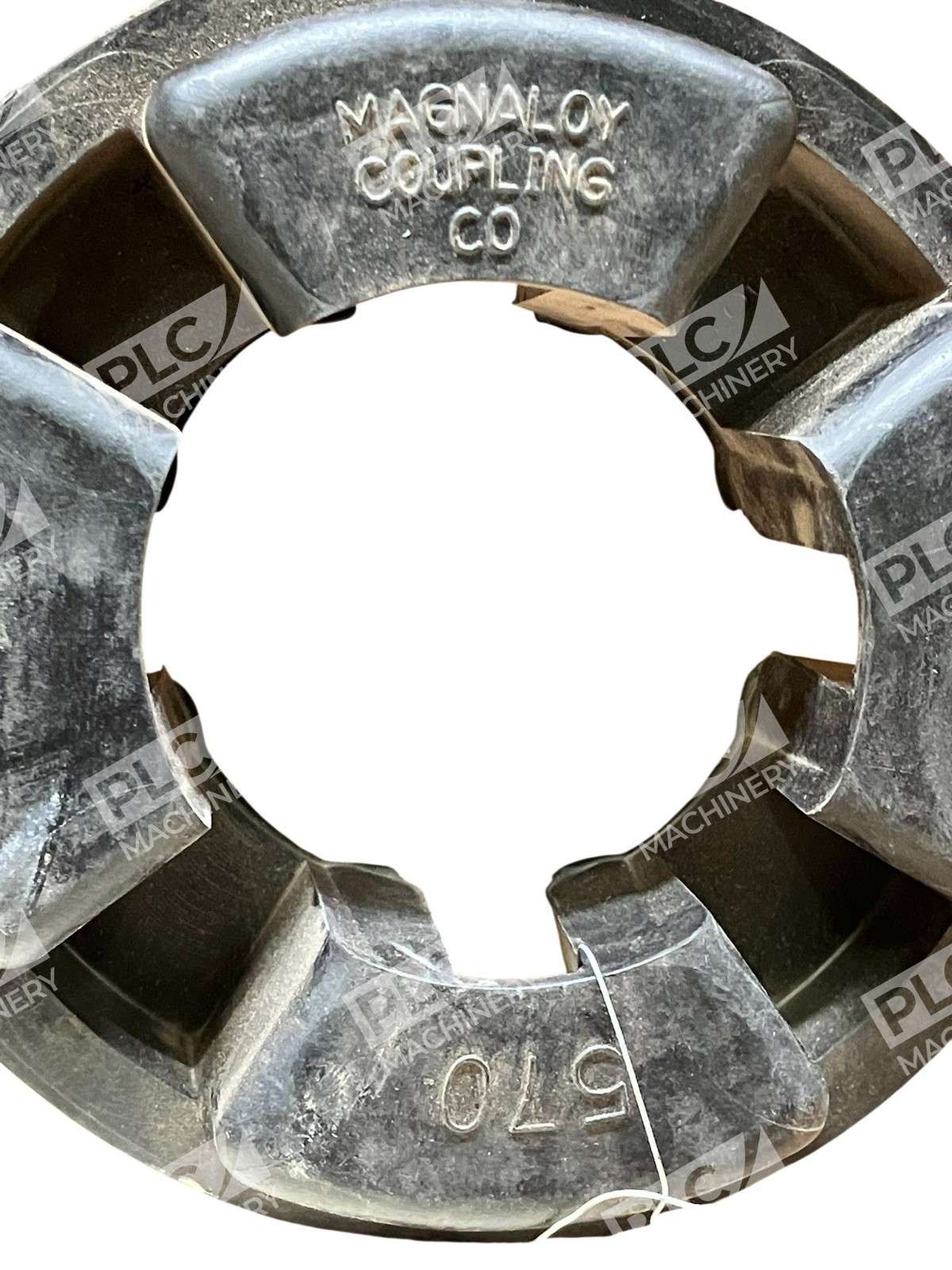

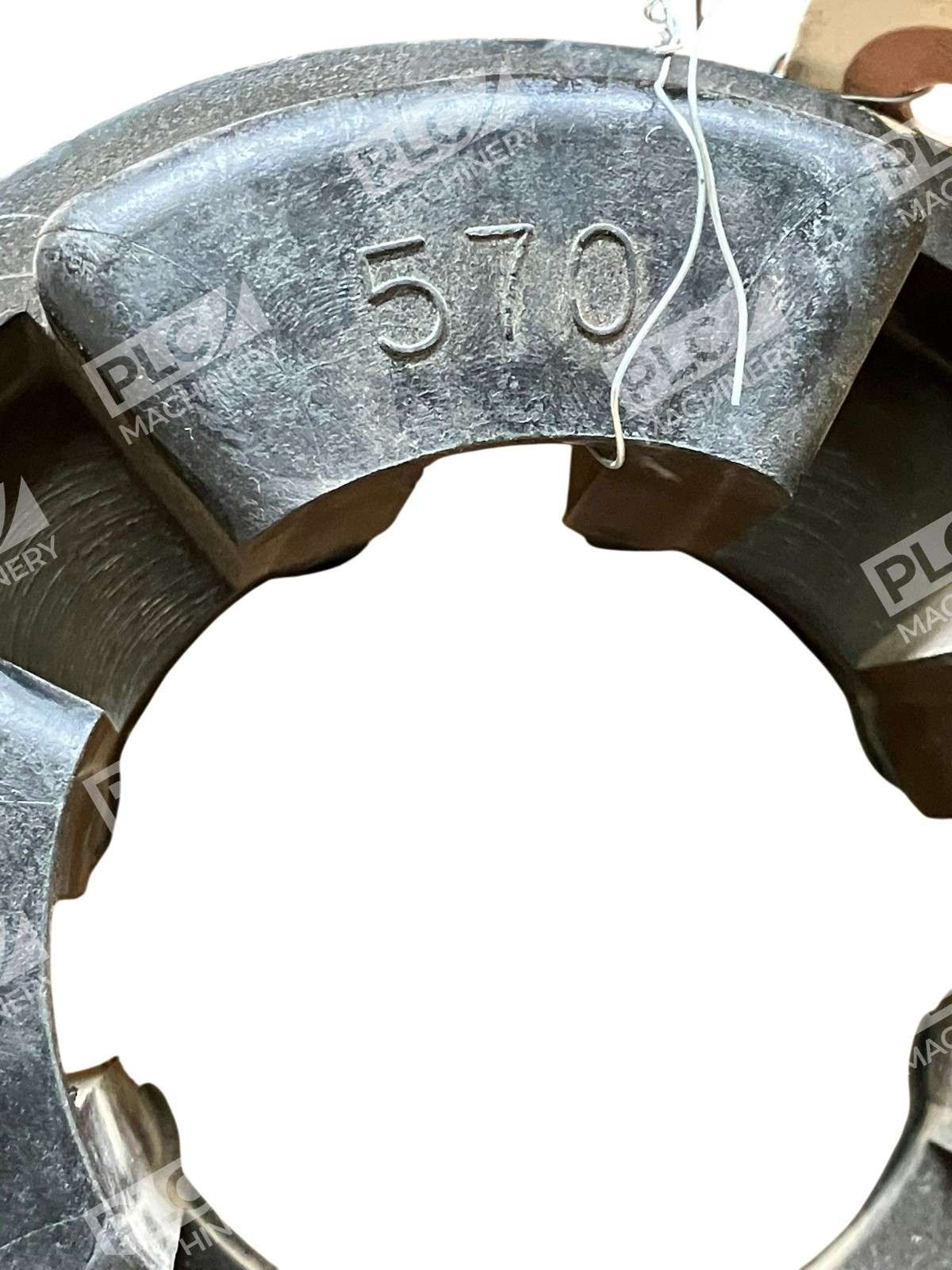

The Magnaloy 570 flexible coupling insert is an elastomeric element engineered to provide flexible, vibration-damping connections between rotating shafts in industrial equipment. As an elastomeric spider or element, it transmits torque while accommodating angular and parallel misalignment, protecting downstream components from shock loads and torsional vibrations.
Key Features
- Elastomeric construction for vibration isolation and damping
- Flexible power transmission with misalignment accommodation
- Fail-safe design—jaw coupling hubs continue to transmit torque if elastomer wears
- Compact, lightweight element replacement for jaw-type couplings
- Durable material selection for extended service life
Technical Specifications
This elastomeric coupling insert is designed for use in standard jaw coupling assemblies. Typical applications operate within -40°F to +180°F (-40°C to +82°C) temperature ranges, though specific operating limits depend on elastomer compound selection and equipment duty cycle.
Typical Applications
The Magnaloy 570 is commonly used in:
- Pump and motor drive assemblies
- Industrial machinery requiring vibration dampening
- Rotating shaft connections with minor misalignment
- HVAC and refrigeration equipment
- General mechanical power transmission systems
Compatibility & Replacements
Compatible With
- Magnaloy jaw coupling hubs and assemblies
- Standard two-piece jaw coupling hub configurations
- Industrial rotating shaft drive systems
- OEM coupling assemblies using elastomeric spiders
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering. The Magnaloy 570 is a replacement element for Magnaloy jaw coupling assemblies requiring elastomeric spider replacement.
Works With
- Jaw coupling hub assemblies
- Standard mechanical power transmission systems
- Industrial equipment requiring flexible shaft connections
