Overview
The Dixon F07-200A is a Series 1 miniature compressed air filter engineered for compact pneumatic applications. With a maximum pressure rating of 150PSIG, this filter combines reliable performance with space-efficient design, making it ideal for OEM equipment, portable tools, and industrial control systems where footprint matters. The automatic drain mechanism removes liquid and solid contaminants automatically, reducing maintenance labor and preventing system downtime.
Key Features
- Automatic drain function—eliminates manual condensate removal
- 5 micron filtration element for effective liquid and solid separation

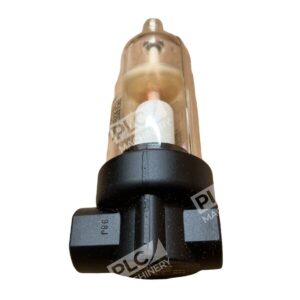

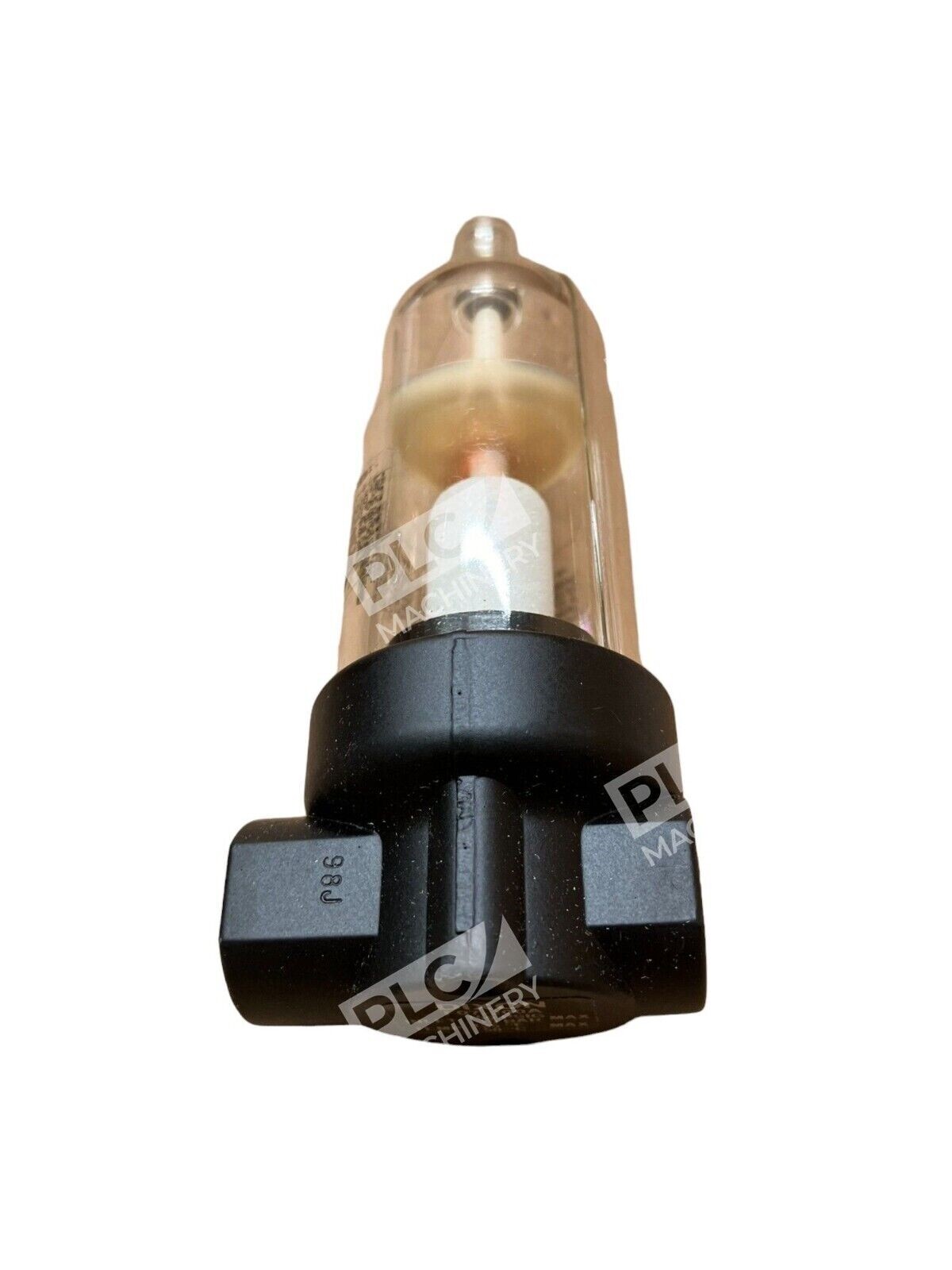

- Polycarbonate transparent bowl for easy visual inspection
- 1 oz. reservoir capacity for condensate collection
- Compact design: 4.1″ overall length, 0.35 lbs weight
- Operating temperature range: -30°F to +125°F
Technical Specifications

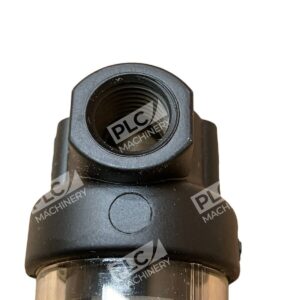

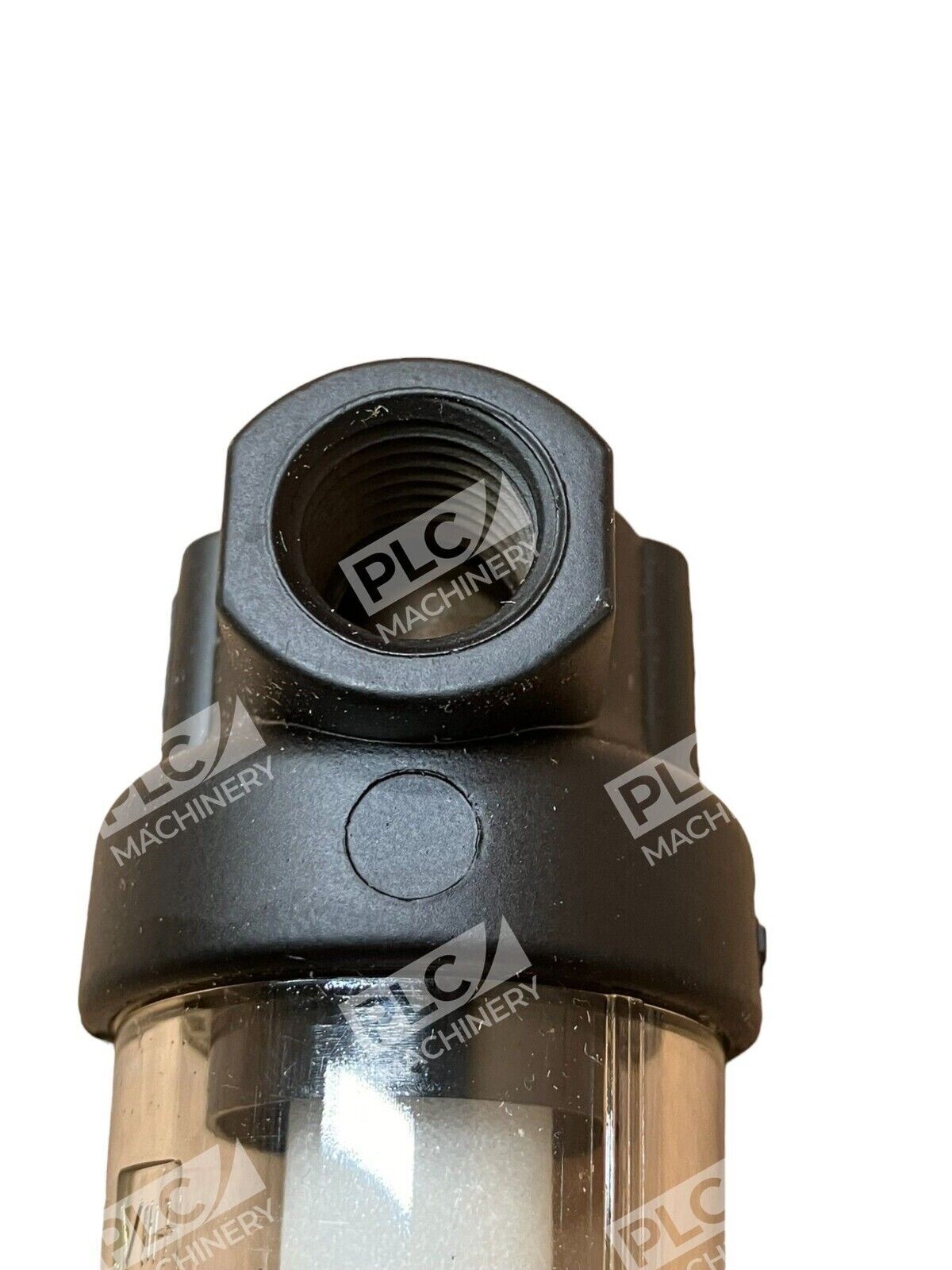

- Port Size: 1/4″ NPT
- Flow Rating: 24 SCFM @ 90 PSIG inlet pressure
- Maximum Pressure: 150 PSIG
- Filtration: 5 micron element
- Reservoir: 1 oz.
- Bowl Material: Polycarbonate (transparent)
- Housing Material: Zinc
- Temperature Range: -30°F to +125°F (-22°C to +51°C)
- Overall Length: 4.1 inches
- Weight: 0.35 lbs
- Drain Type: Automatic
- Series: Series 1 F07
Typical Applications
The Dixon F07-200A is commonly used in:
- Portable pneumatic tools and equipment
- Industrial automation and control systems
- OEM pneumatic assemblies
- Lightweight manufacturing and assembly lines
- Instrumentation air lines requiring compact filtration
- Mobile and field-service pneumatic systems
Compatibility & Replacements
Compatible With
- 1/4″ NPT pneumatic ports and systems
- Compressed air supply lines rated for 150 PSIG maximum
- Standard pneumatic tool couplings and fittings
- Industrial pneumatic circuits using 90 PSIG inlet pressure or lower
Replaces / Drop-In Replacement For
- Norgren F07-200-A1TA (cross-reference equivalent)
- Other Series 1 F07 miniature filters with 1/4″ ports
Works With
- Pneumatic FRL assemblies (Filter-Regulator-Lubricator combinations)
- Standard 1/4″ NPT pneumatic hose and fittings
- Industrial pneumatic regulators and lubricators
- Compressed air systems operating at or below 150 PSIG
