Overview

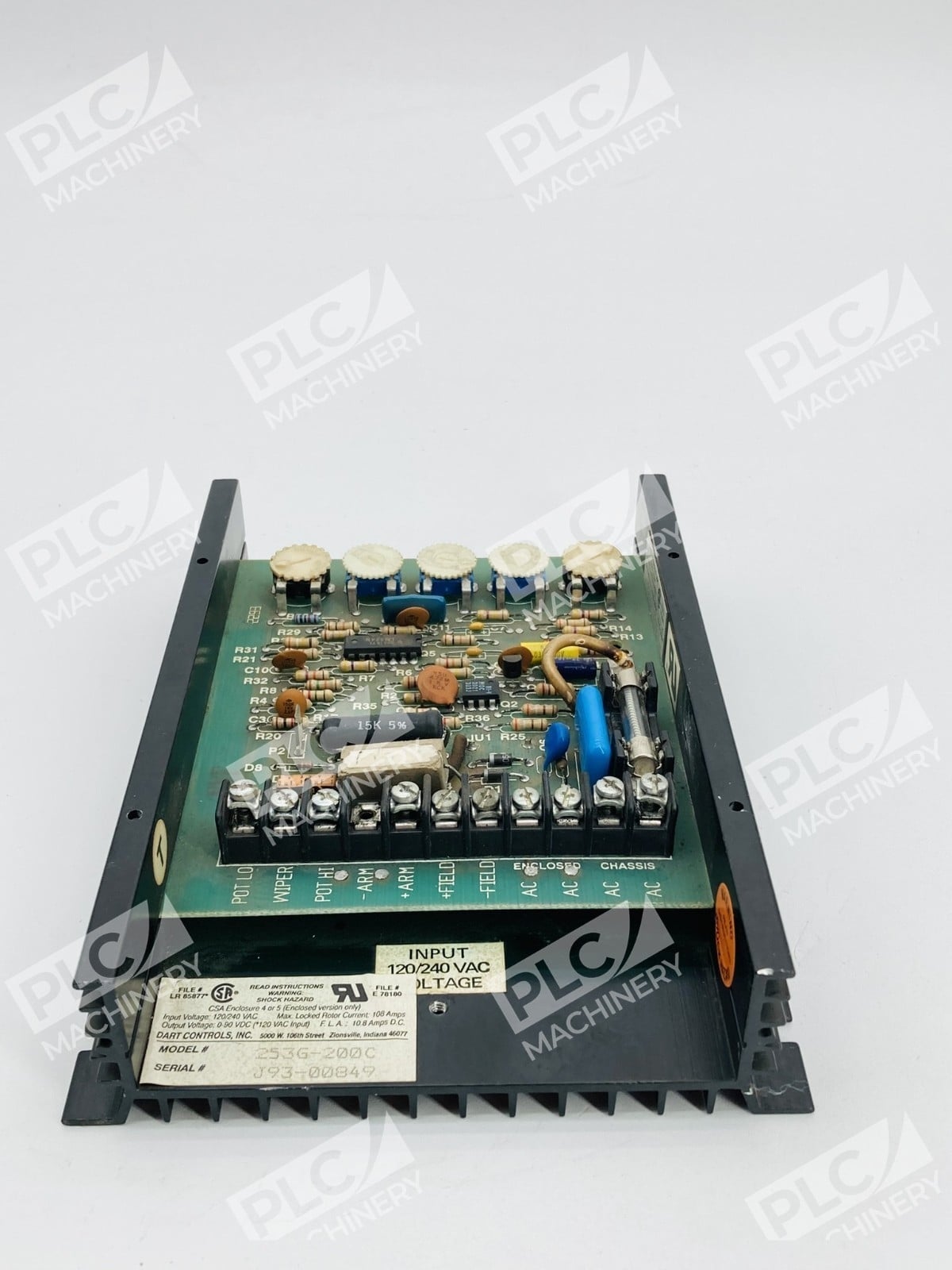

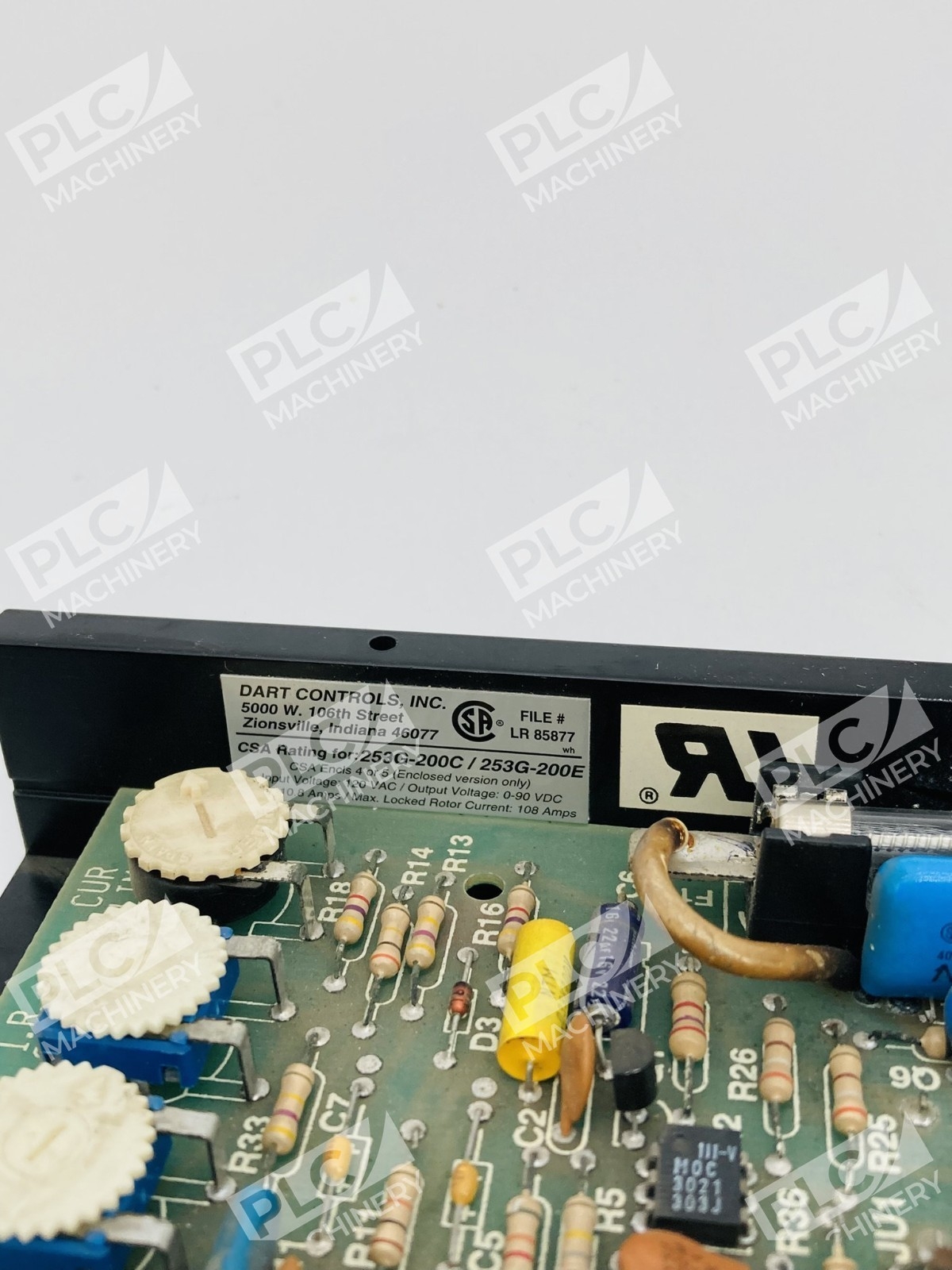

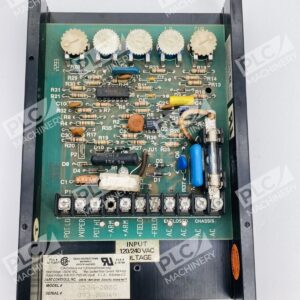

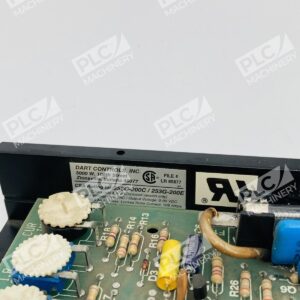

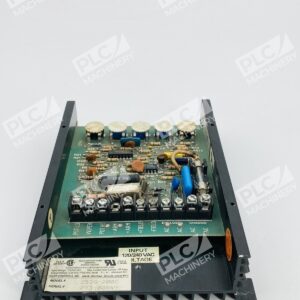

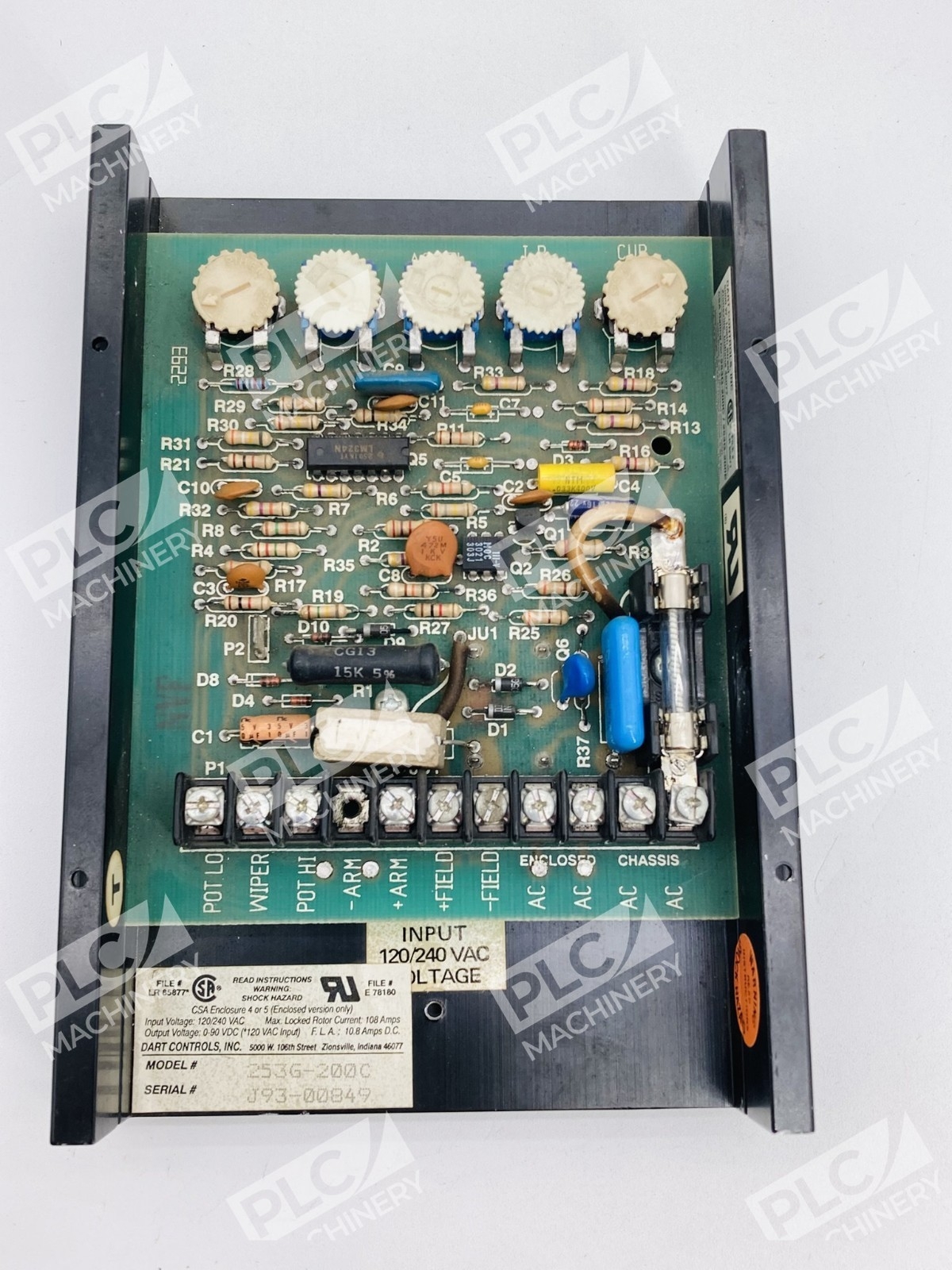

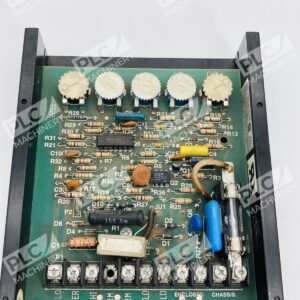

The Dart Controls 253G-200C is an economical, single-phase DC motor speed controller designed for industrial automation and motion control applications. Rated for motors from 1/8 to 2.0 horsepower, this open-chassis unit provides dual voltage input (120/240 VAC) and delivers a 0–180 VDC output with wide speed adjustment capability. The 253G-200C is part of the Dart Controls 250 Series, recognized for reliability and versatility in variable-speed DC motor applications.
Key Features
- Dual voltage input (120/240 VAC, 50/60 Hz) allows flexibility in power supply configuration
- Adjustable horsepower settings (1/50 through 1/8 and 1/8 through 2 HP) accommodate various motor ratings
- Fully rated to 2 HP with no auxiliary heat sink required—integrated thermal protection

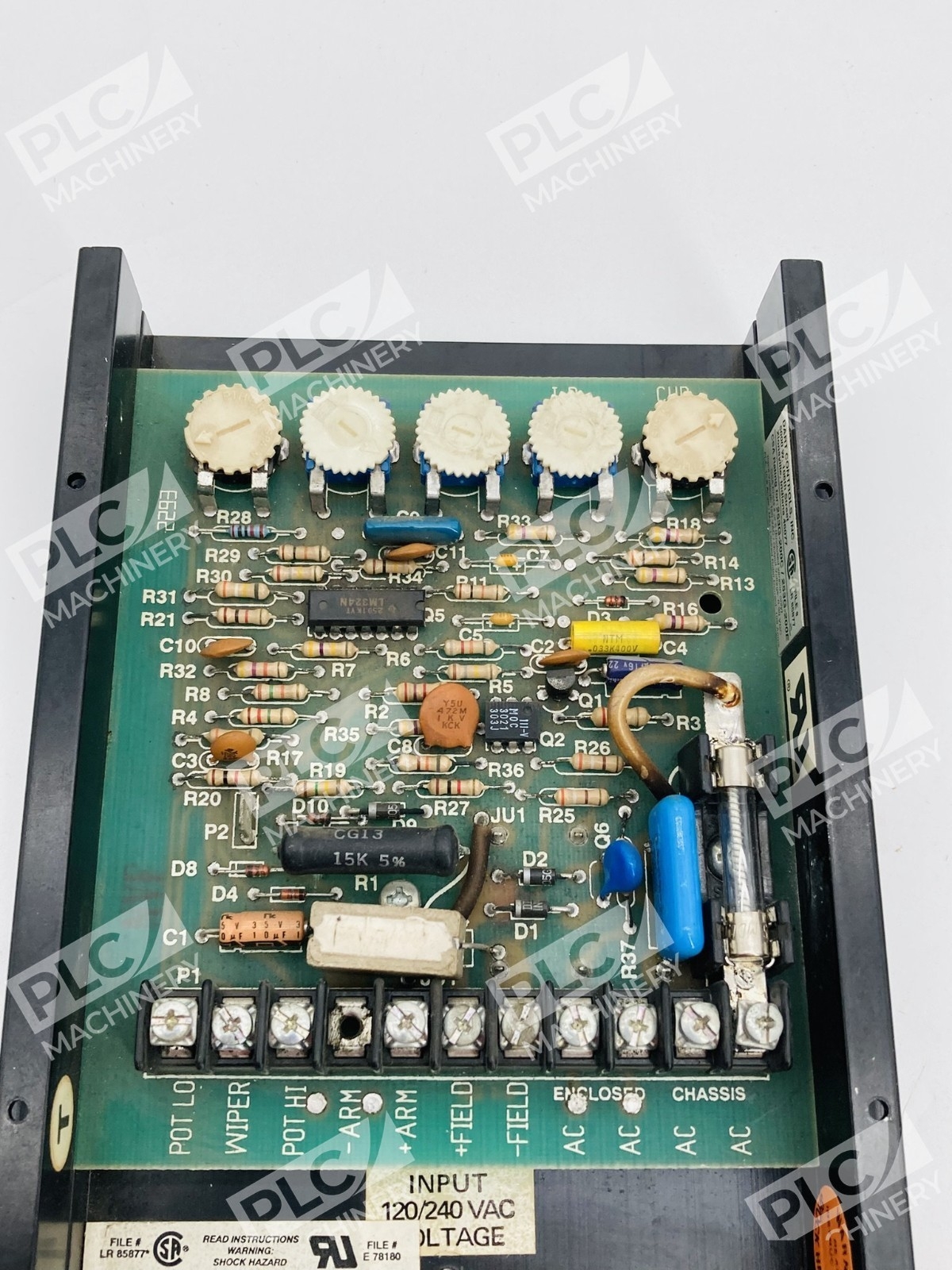

- Packaged power bridge and barrier terminal strip for simplified installation and maintenance
- Speed control potentiometer with knob and dial plate included
- Current limit trim potentiometer eliminates the need for plug-in resistors
- Suitable for open-chassis or NEMA 4/12 enclosure mounting

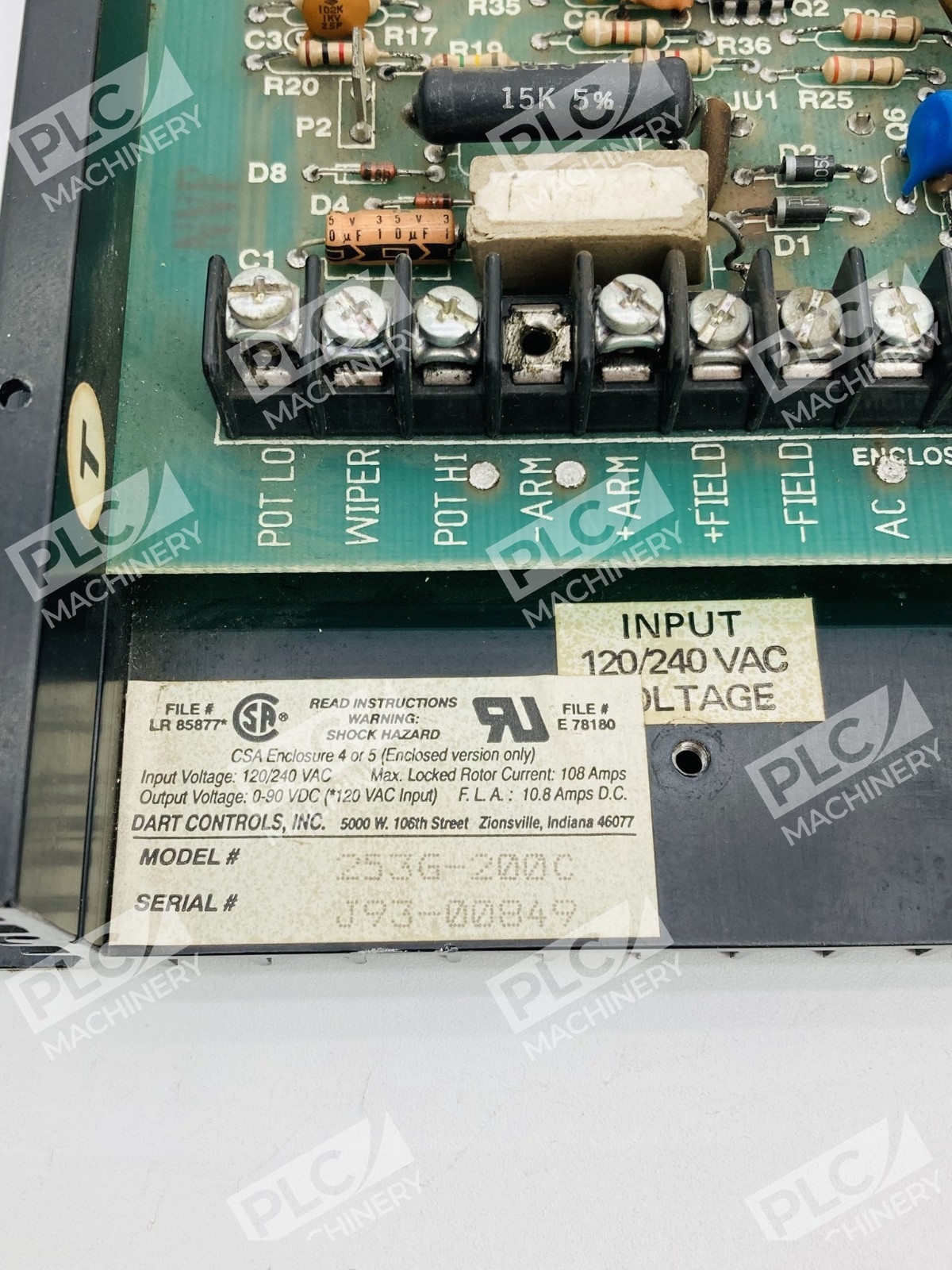

Technical Specifications
- Motor Rating: 1/8 to 2.0 HP
- Input Voltage: 120/240 VAC single phase, ±10% rated line voltage
- Input Frequency: 50/60 Hz
- Output Voltage: 0–180 VDC (adjustable)
- Output Current: 10A maximum (DC armature)
- Operating Temperature Range: −10°C to +45°C
- Chassis Dimensions (inches): 5.53″ W × 7.00″ L × 1.63″ D
- Chassis Weight: 14.25 oz (404 g)
- Series: Dart Controls 250 Series
- Configuration: Open chassis (NEMA 4/12 enclosure option available)
- Certifications: RoHS compliant
Typical Applications
The 253G-200C is commonly deployed in industrial automation environments including conveyors, fans, pump drives, material handling equipment, and other variable-torque and variable-speed DC motor applications. Adjustable horsepower settings make it suitable for retrofit installations where motor ratings vary slightly. The dual voltage input simplifies facility integration in areas with either 120 VAC or 240 VAC power distribution.
Compatibility & Replacements
Compatible With
- DC motors rated 1/8 to 2.0 horsepower
- Single-phase 120 VAC and 240 VAC power systems (50 or 60 Hz)
- Standard industrial power distribution and control panels
- External 4–20 mA signal followers (via optional modules)
- Dynamic brake systems (chassis-only option available)
Replaces / Drop-In Replacement For
The 253G-200C is the successor model in the 250 Series line. Verify compatibility with your system integrator before ordering if replacing legacy equipment, as mounting configurations and terminal strip layouts may vary between similar Dart Controls models.
Works With

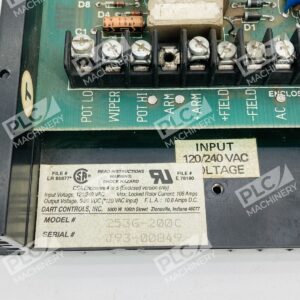

- Barrier terminal strips for direct wire connections
- Isolated signal follower modules for remote speed command (optional −7 variant with 4–20 mA input)
- Standard industrial control relays and contactor logic
- Heat sinks and mounting brackets (if extended cooling required)
- Speed control potentiometers and dial plates (included)
