Overview

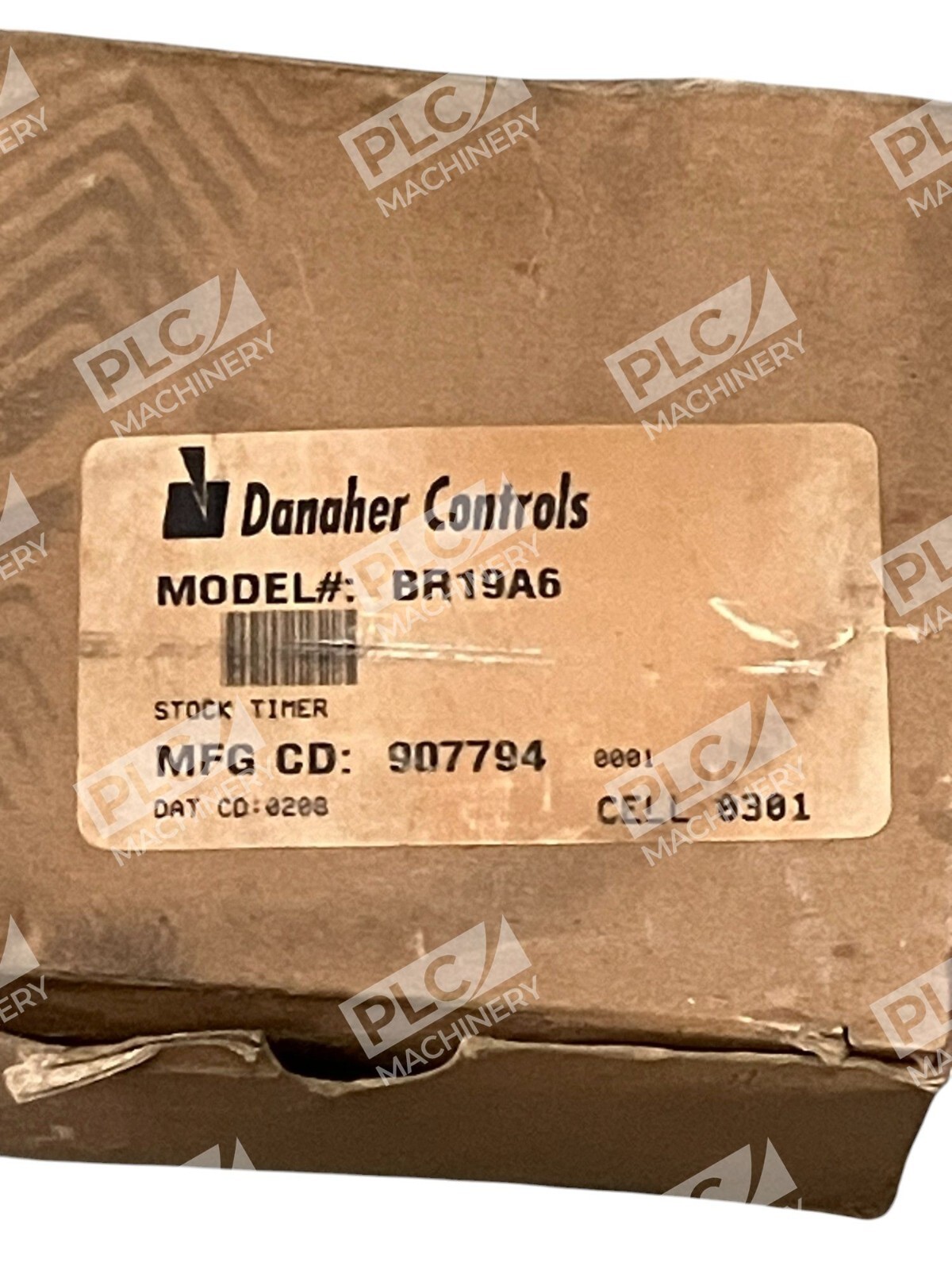

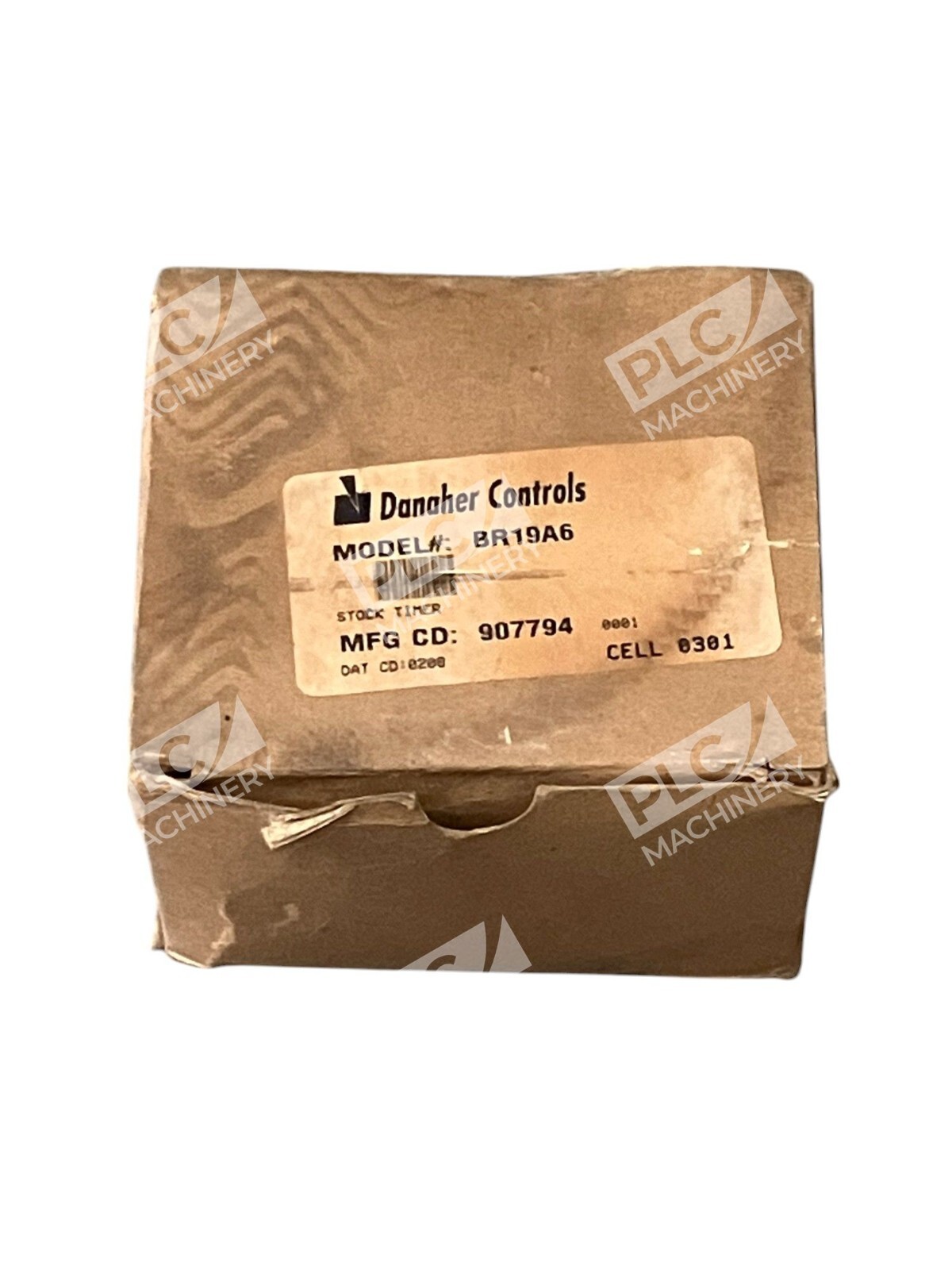

The Danaher Controls BR19A6 is a reliable industrial-grade electric reset timer designed for preset timing control in automation and process applications. Manufactured as part of the Eagle Signal Controls series within the Danaher Controls portfolio, this unit delivers accurate time-delay functionality with a maximum preset capacity of 30 minutes and simple analog dial display.
Key Features
- SPDT Relay Output: Form-C contacts rated 15A at 125/250/480VAC or 0.5A at 125VDC and 0.25A at 250VDC for flexible circuit integration
- 30-Minute Maximum Preset: Analog dial control with preset capacity up to 99,999 counts for extended operational flexibility
- Geared Drive Mechanism: 1:1 gear ratio with 1/4-inch (6.35 mm) shaft diameter and 2500 RPM maximum speed ensures precise timing
- Surface-Mount Design: Base-mounted with rear switch placement for easy panel integration and reliable electrical connections
- Durable Construction: Zamak case material provides corrosion resistance and protection in demanding industrial environments
- Screw Termination: Industry-standard screw terminals support quick and secure wiring connections
Technical Specifications
- Model Number: BR19A6
- Manufacturer: Danaher Controls (Eagle Signal)
- Operating Voltage: 120VAC
- Contact Rating (AC): 15A at 125/250/480VAC
- Contact Rating (DC): 0.5A at 125VDC; 0.25A at 250VDC
- Output Type: SPDT (Single-Pole Double-Throw) Relay
- Maximum Time Preset: 30 Minutes
- Display Type: Analog Dial
- Mounting: Surface Mount (Base-Mounted)
- Termination: Screw
- Gear Ratio: 1:1
- Shaft Diameter: 1/4 inch (6.35 mm)
- Maximum Speed: 2500 RPM
- Case Material: Zamak
- Weight: 1.16 kg (2.56 lbs)
- Dimensions: 4.25 in × 2.68 in × 3.75 in (approximately 108 mm × 68 mm × 95 mm)
- Approvals: UL, CSA
- Static Torque (Maximum): 4 oz-in (2.83 N·cm)
- Frequency: 50–60 Hz
Typical Applications
- Industrial process control and automation systems requiring preset time delays
- Machine cycle timing and dwell-time control in manufacturing environments
- Panel-mounted control circuits for motor starting and stopping sequences
- Equipment warm-up timing, shut-down delays, and operational sequencing
- General-purpose relay applications in legacy and modern control systems
- AC and DC circuit timing where multi-voltage compatibility is required
Compatibility & Replacements
Compatible With
- Standard 120VAC industrial control circuits and motor control panels
- AC and DC timing applications with appropriate voltage settings
- Mechanical timing systems requiring relay logic and electrical switching
- Legacy automation systems using preset timer modules
- UL/CSA-certified control cabinets and enclosures
Replaces / Drop-In Replacement For
- Eagle Signal Controls BR19A6 (same unit; Eagle Signal is part of Danaher Controls)
- Similar Danaher timer models in the same series requiring 30-minute timing function
Works With
- Mechanical relay logic circuits and hardwired control systems
- PLC input/output modules using relay interfaces
- Pneumatic and hydraulic control systems requiring electrical timing signals
- Motor starters, contactors, and solenoid valve controllers
- Industrial power distribution and UPS systems compatible with 120VAC input
