Overview

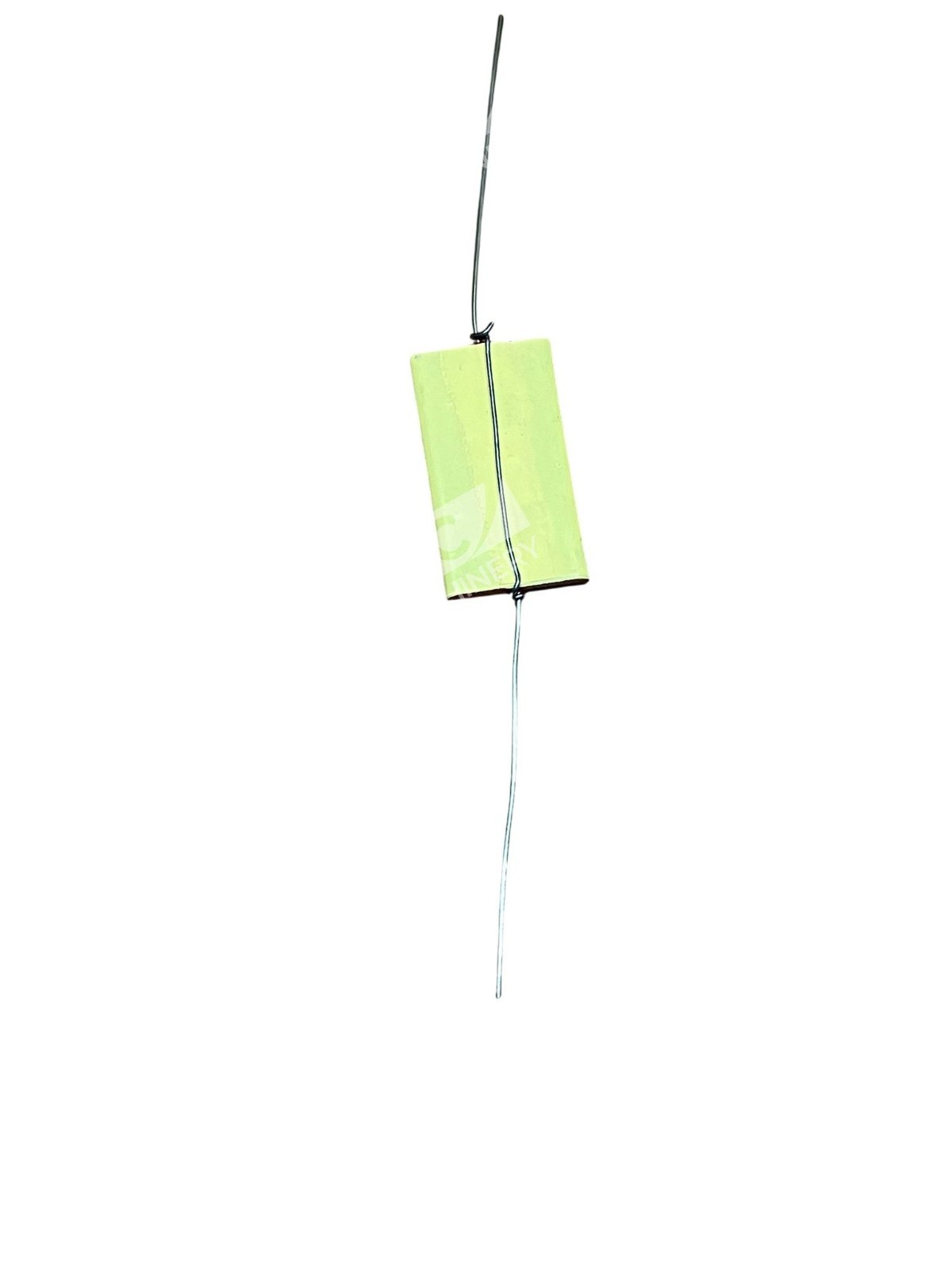

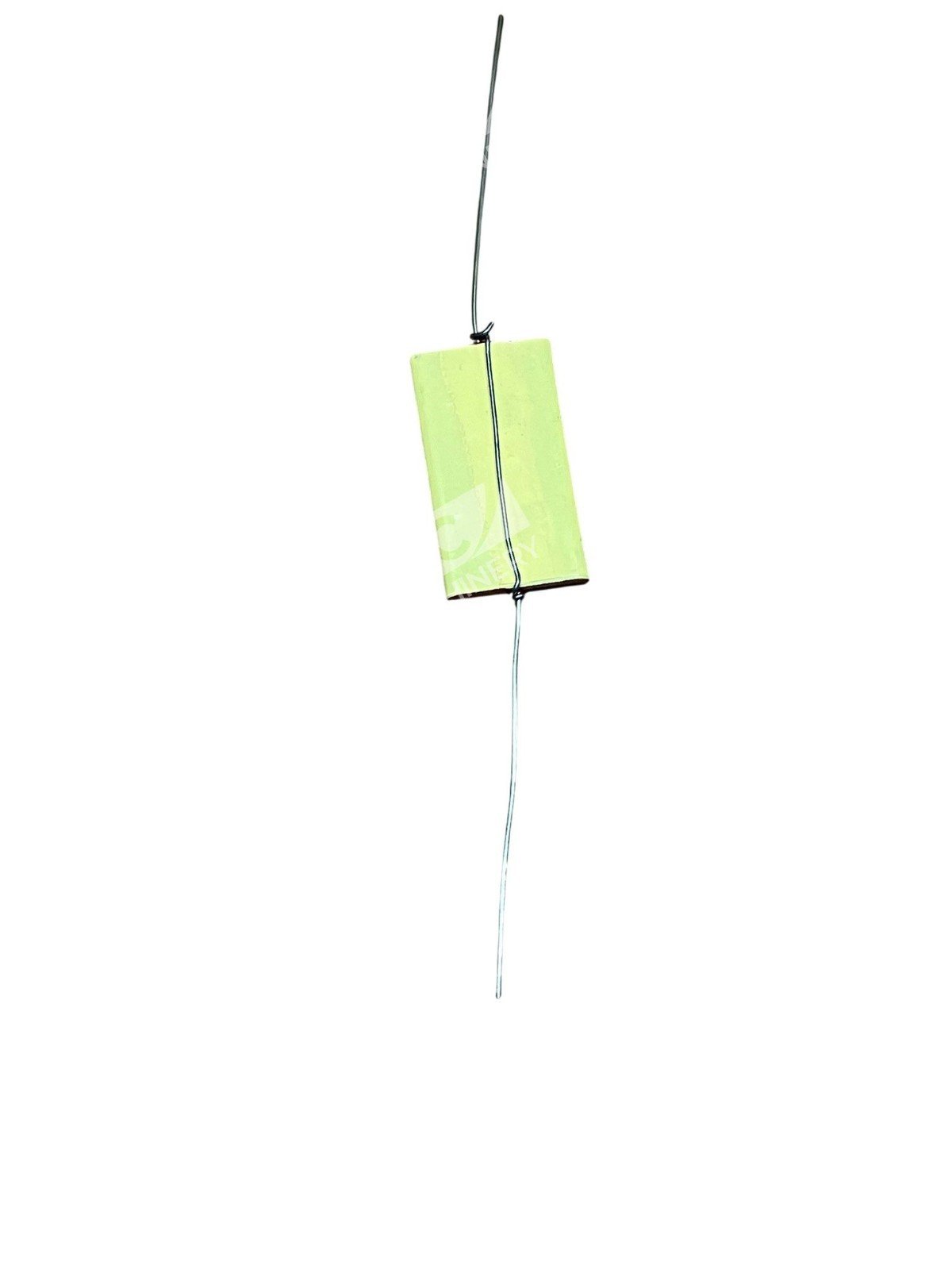

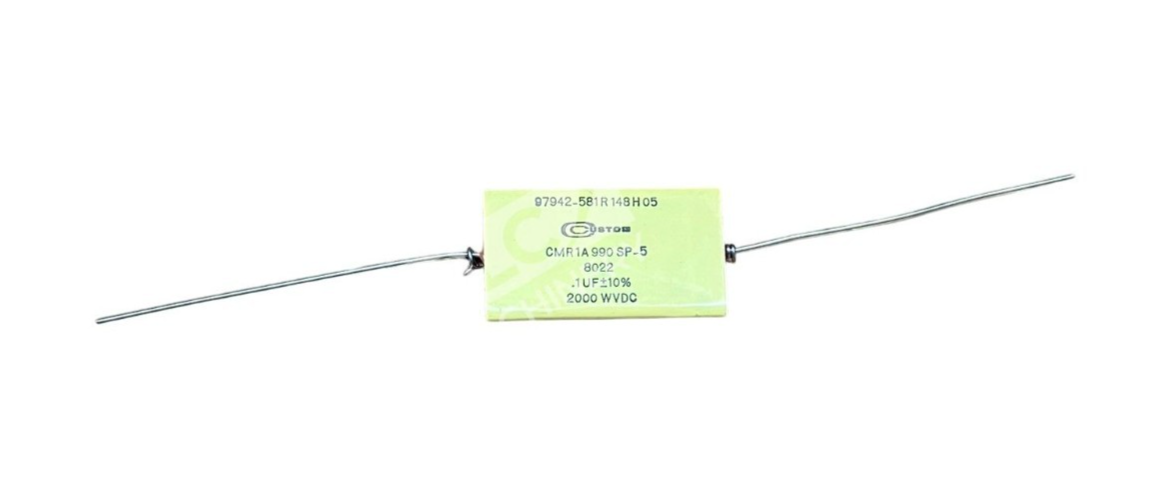

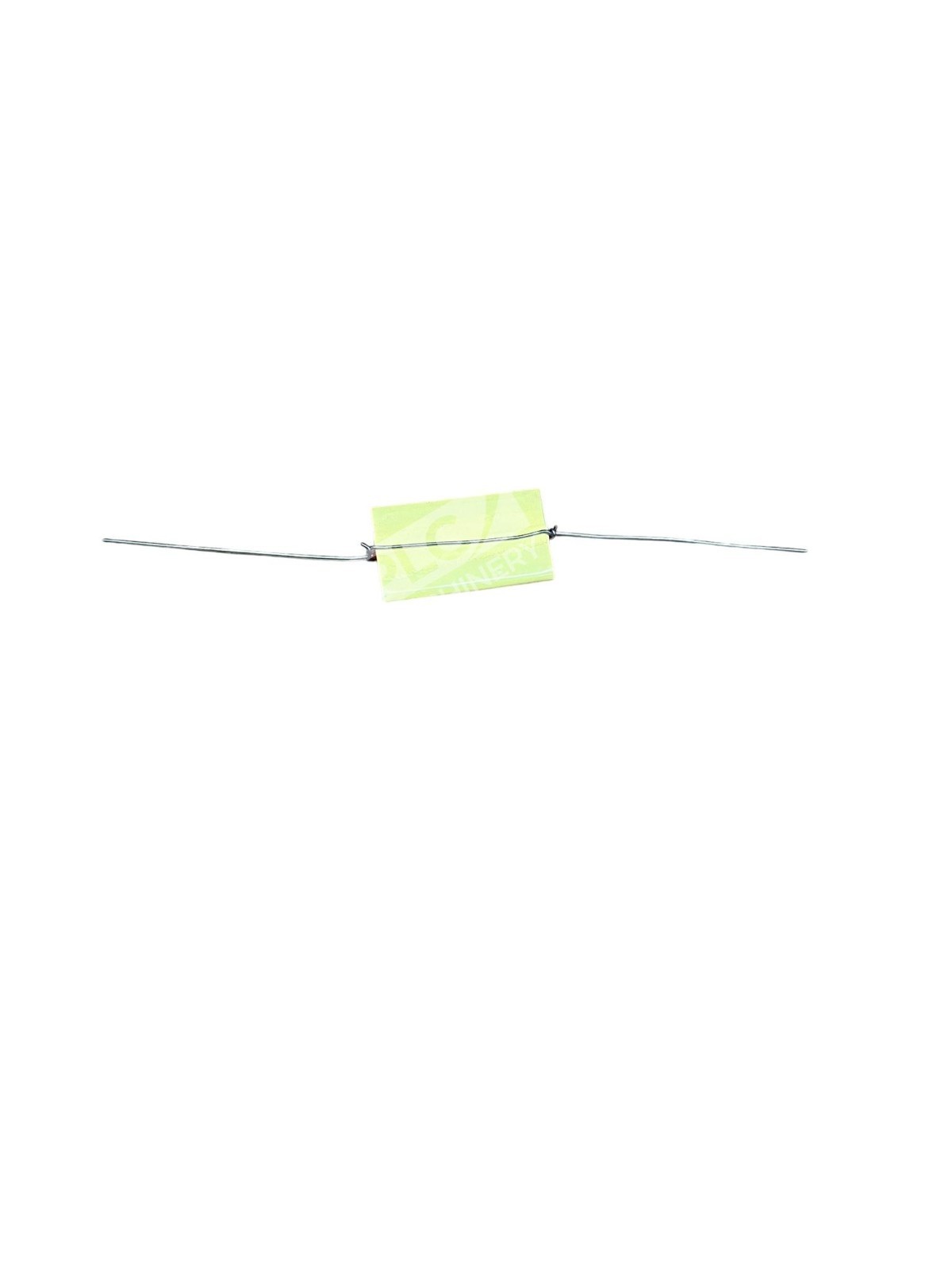

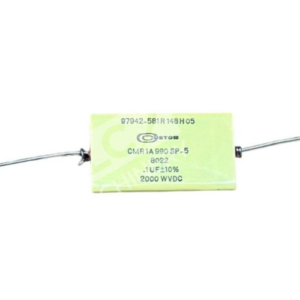

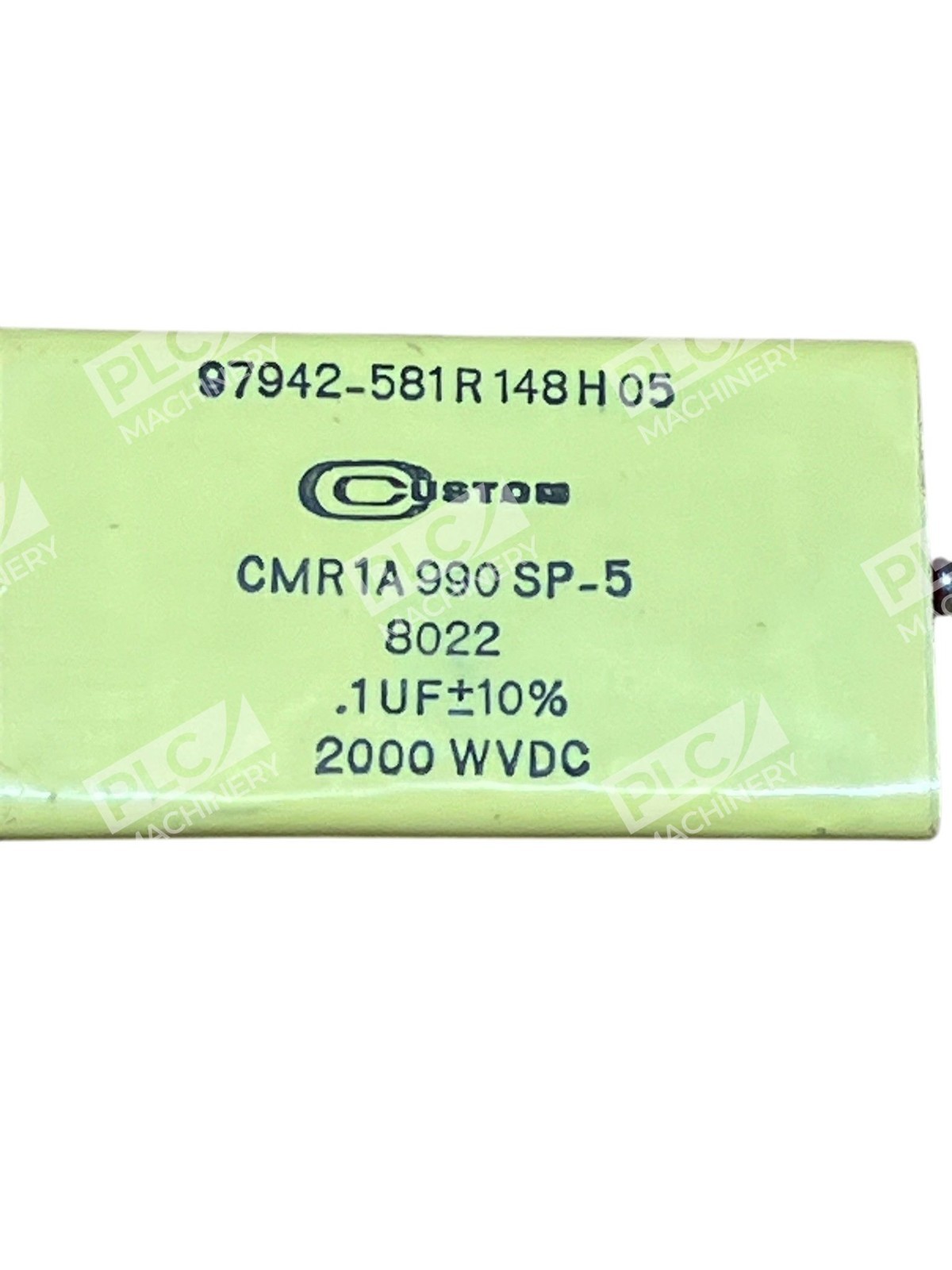

The Custom CMR1A990SP-5 0.1uF 2000WVDC capacitor (part number 97942-581R148H05 8022) is a premium film capacitor engineered for high-voltage industrial and electronic applications. With a rated voltage of 2000WVDC and capacitance value of 0.1µF, this component delivers stable performance in demanding circuits requiring voltage regulation, filtering, and power factor correction in industrial control systems, power supplies, and semiconductor equipment.
Key Features
- Capacitance: 0.1µF — suitable for filtering and coupling applications
- Voltage Rating: 2000WVDC — high-voltage industrial and laboratory equipment
- Tolerance: ±10% — meets general-purpose industrial specifications
- Film Dielectric — reliable long-term stability and low ESR
- New condition — tested and ready for immediate installation
Technical Specifications
Key electrical and physical parameters:
- Capacitance: 0.1µF
- Voltage Rating: 2000WVDC
- Tolerance: ±10%
- Dielectric Type: Film (polypropylene or similar)
- Series: CMR1A990SP
- Condition: New
Typical Applications
This capacitor is widely used in:
- High-voltage power supplies and rectifier circuits
- Industrial control systems and automation equipment
- Semiconductor testing and measurement instruments
- Laboratory test equipment requiring stable voltage reference
- Filtering and voltage regulation in industrial power distribution
Compatibility & Replacements
Compatible With
- Industrial power supply circuits (single or three-phase)
- Semiconductor test and characterization equipment
- Control panel and cabinet installations
- Laboratory high-voltage experimental setups
Replaces / Drop-In Replacement For
For drop-in replacement compatibility with legacy or equivalent models, verify the exact voltage rating, capacitance, tolerance, and physical dimensions with your equipment manufacturer or system integrator before ordering.
Works With
- Standard industrial PCB layouts and through-hole mounting
- Custom high-voltage circuit designs
- OEM repair and refurbishment applications
