<h2>Overview</h2>

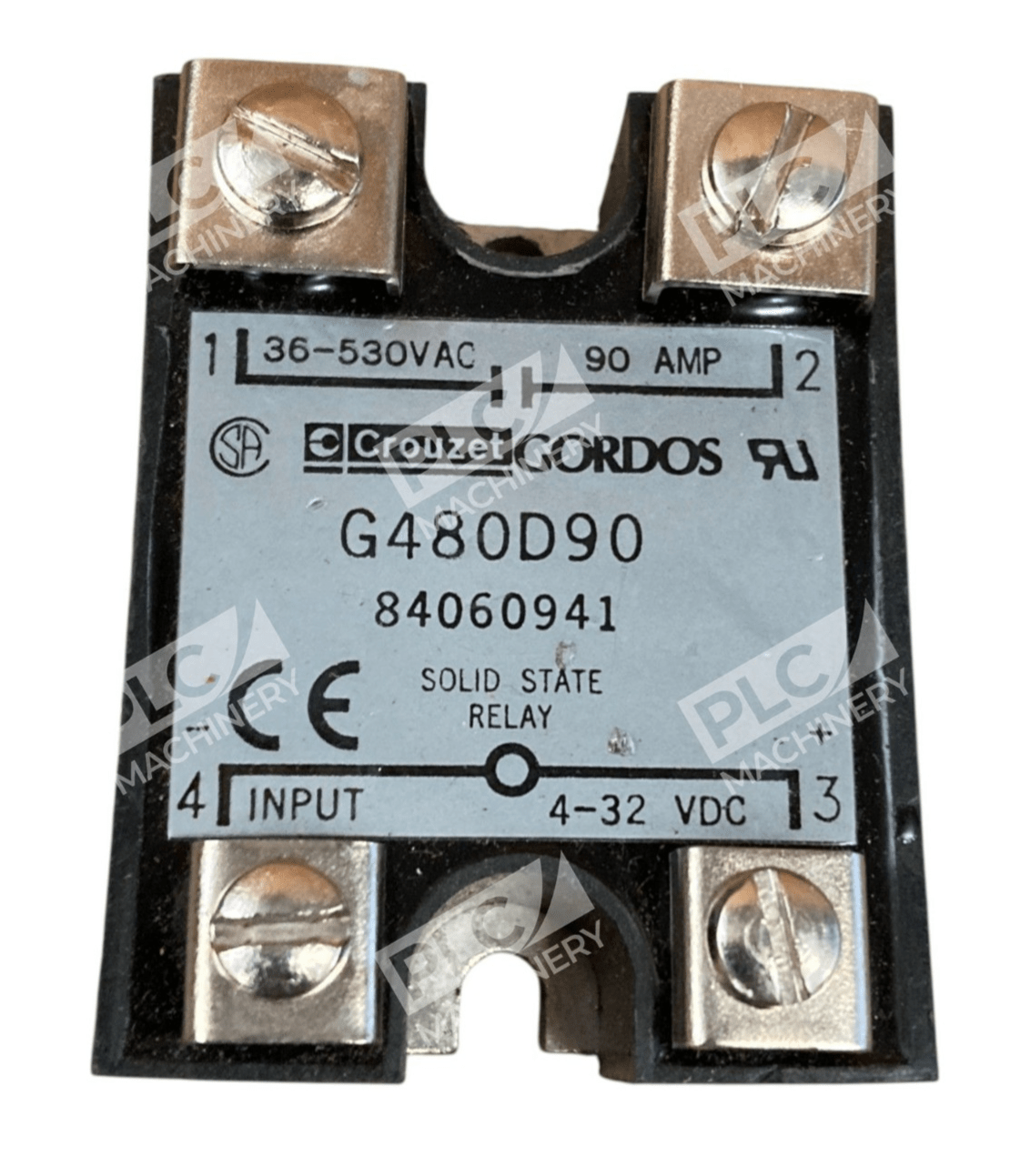

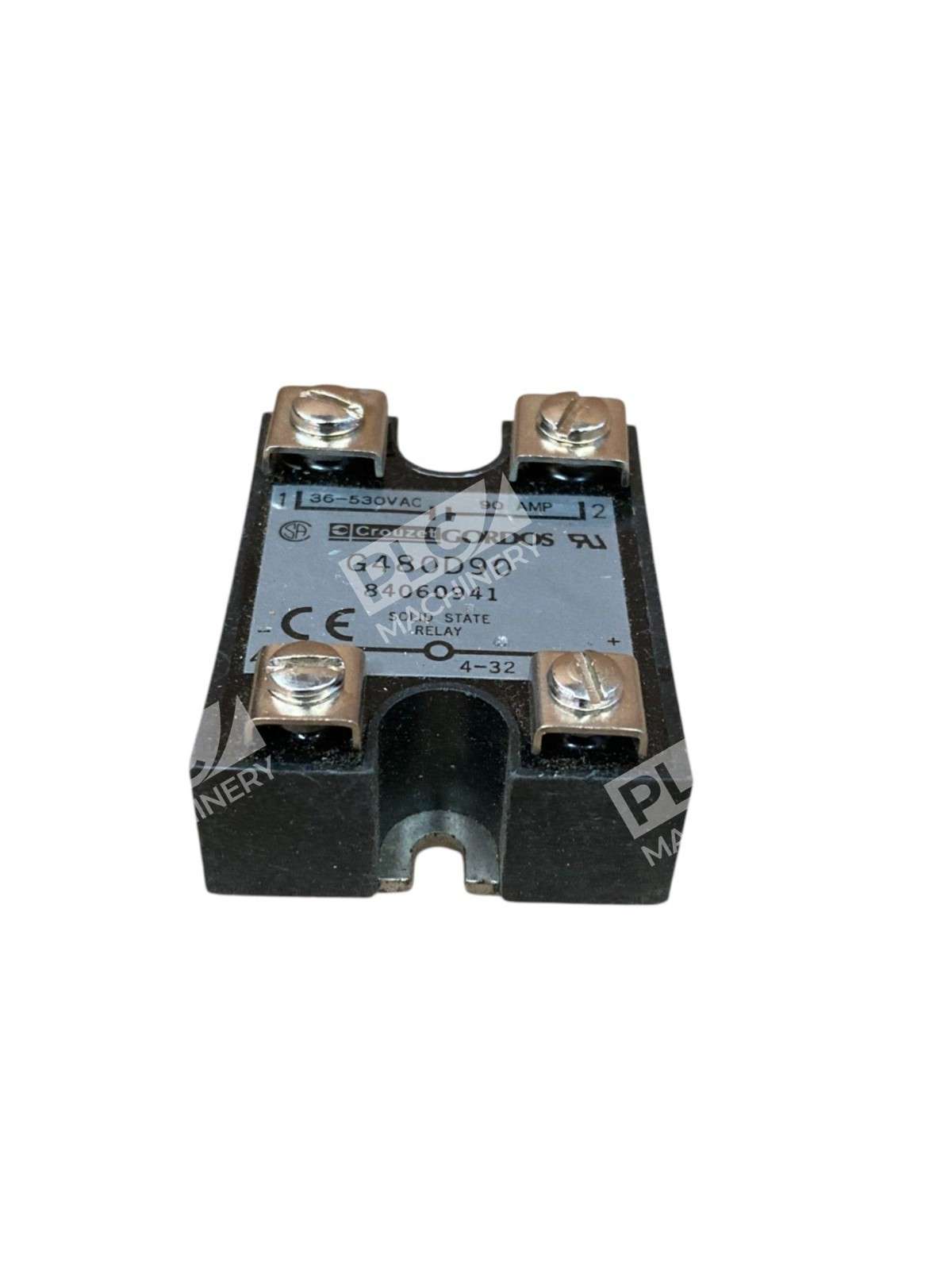

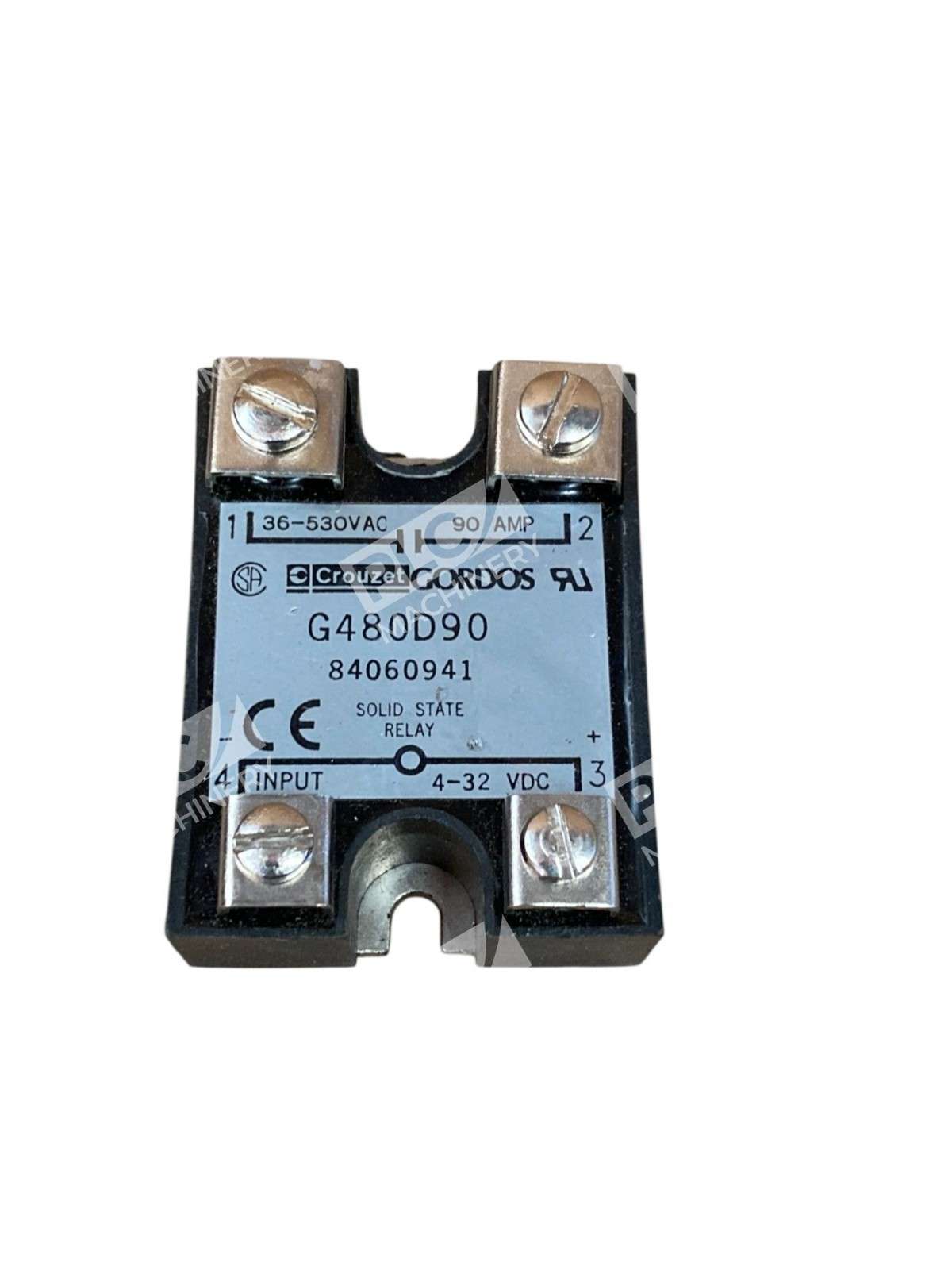

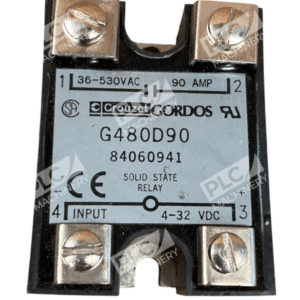

<p>The <strong>Crouzet G480D90</strong> (Order Code 84060941) is a rugged panel-mount solid state relay engineered for high-current industrial and commercial applications. With a rated output of 90A and voltage range of 36–530VAC, this relay is built to handle demanding loads reliably in harsh environments.</p>
<h2>Key Features</h2>
<ul>
<li>90A continuous output current rating</li>
<li>36–530VAC output voltage range</li>
<li>Panel mount form factor for easy integration</li>
<li>Lightweight, compact design</li>
<li>Very long operational life expectancy</li>
<li>Integrated removable cover for both IP00 and IP20 configurations</li>
<li>Input and output overvoltage protection standard</li>
<li>Zero-cross switching capability</li>
</ul>
<h2>Technical Specifications</h2>
<ul>
<li><strong>Output Current:</strong> 90A (continuous)</li>
<li><strong>Output Voltage:</strong> 36–530VAC</li>
<li><strong>Voltage Type:</strong> AC output</li>
<li><strong>Switching Mode:</strong> Zero-cross</li>
<li><strong>Mounting Style:</strong> Panel mount</li>
<li><strong>Protection:</strong> Input and output overvoltage protection</li>
<li><strong>Enclosure Rating:</strong> IP00/IP20 (with removable cover)</li>
<li><strong>Operating Temperature:</strong> –30°C to +80°C</li>
<li><strong>Load Types:</strong> Resistive, inductive, capacitive</li>
<li><strong>Certifications:</strong> CE, cUL, VDE, EAC</li>
<li><strong>Series:</strong> Gordos G480</li>
<li><strong>Order Code:</strong> 84060941</li>
</ul>
<h2>Typical Applications</h2>
<ul>
<li>Industrial heating element control</li>
<li>Motion and servo drive switching</li>
<li>Lighting systems and dimming</li>
<li>HVAC and process heating</li>
<li>Load switching in harsh industrial environments</li>
<li>Machine tool and production automation</li>
</ul>
<h2>Compatibility & Replacements</h2>
<h3>Compatible With</h3>
<ul>
<li>Standard industrial control circuits (36–530VAC output)</li>
<li>PLC and controller outputs</li>
<li>Manual and automated switching systems</li>
<li>Heating and motion load circuits</li>
</ul>
<h3>Replaces / Drop-In Replacement For</h3>
<ul>
<li>Other Crouzet Gordos G480 series 90A SSRs with matching output voltage and current ratings</li>
<li>Verify compatibility with your system integrator before ordering to ensure identical input control specifications.</li>
</ul>
<h3>Works With</h3>
<ul>
<li>Standard AC control voltage inputs (verify input rating with system design)</li>
<li>Industrial automation platforms with solid state relay switching modules</li>
<li>Thermal and motor load management systems</li>
<li>Zero-cross switching protocols for resistive and light inductive loads</li>
</ul>
