Overview

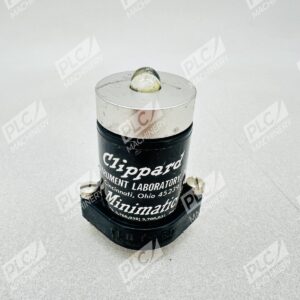

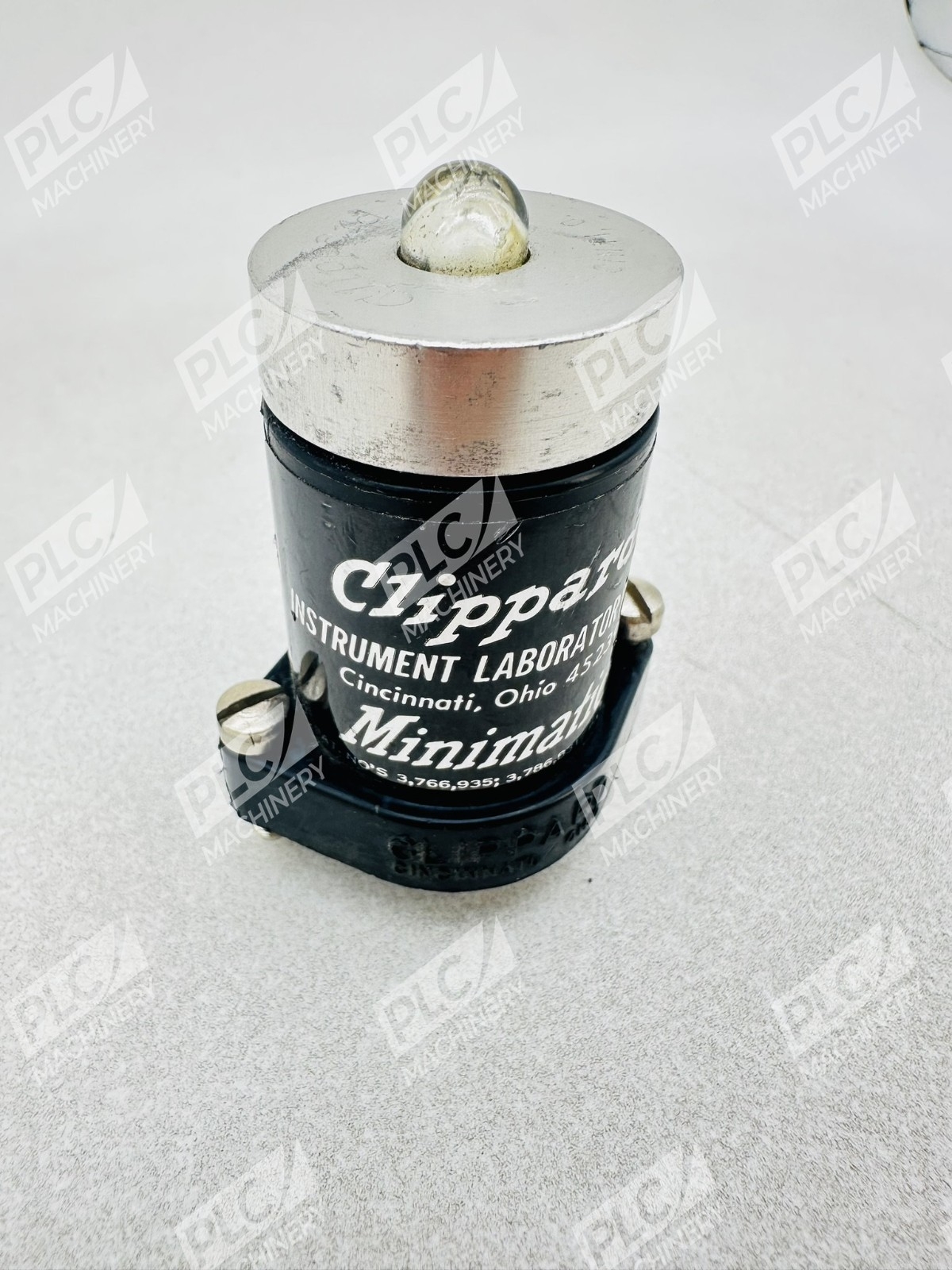

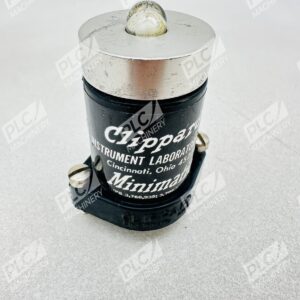

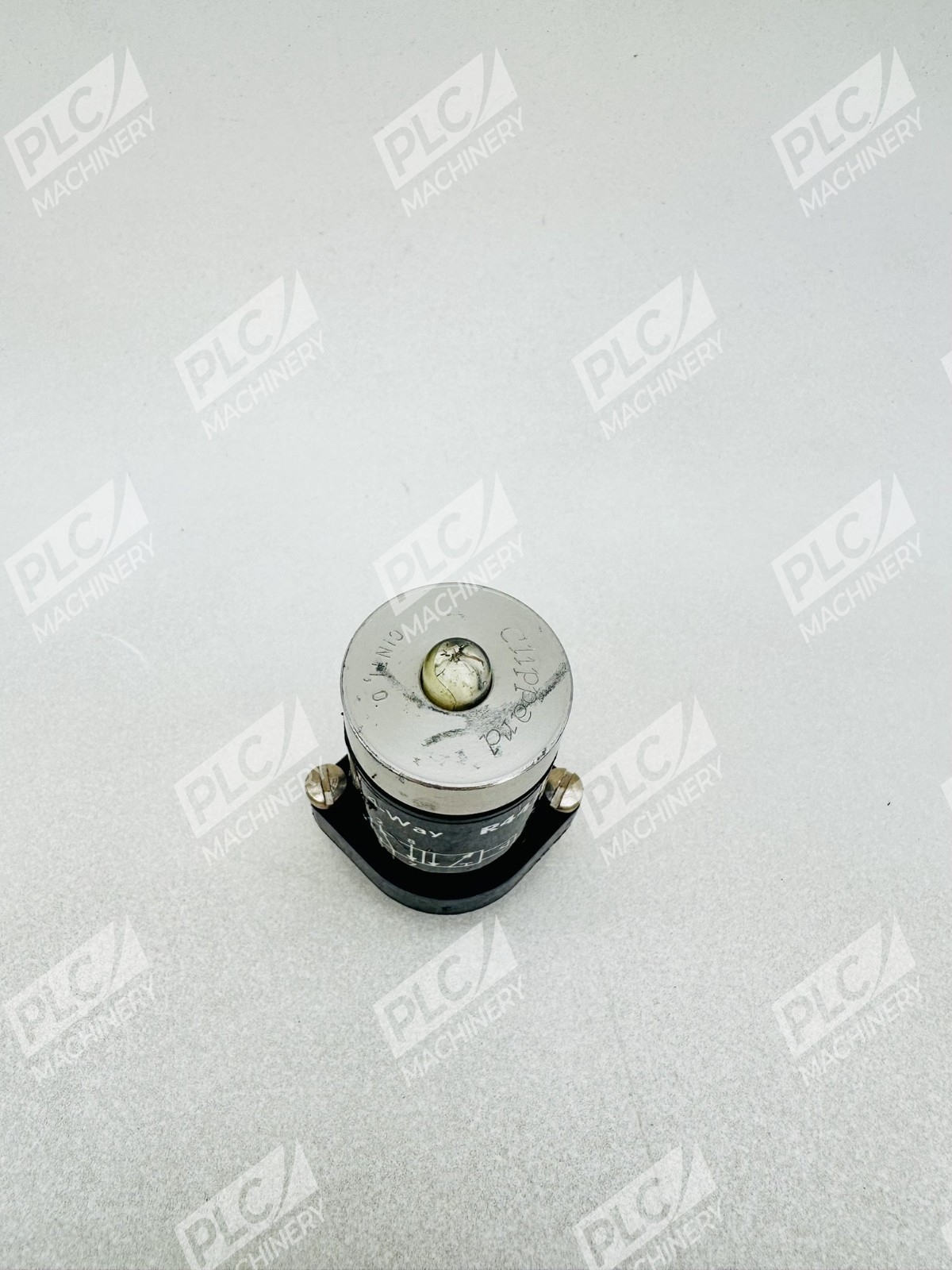

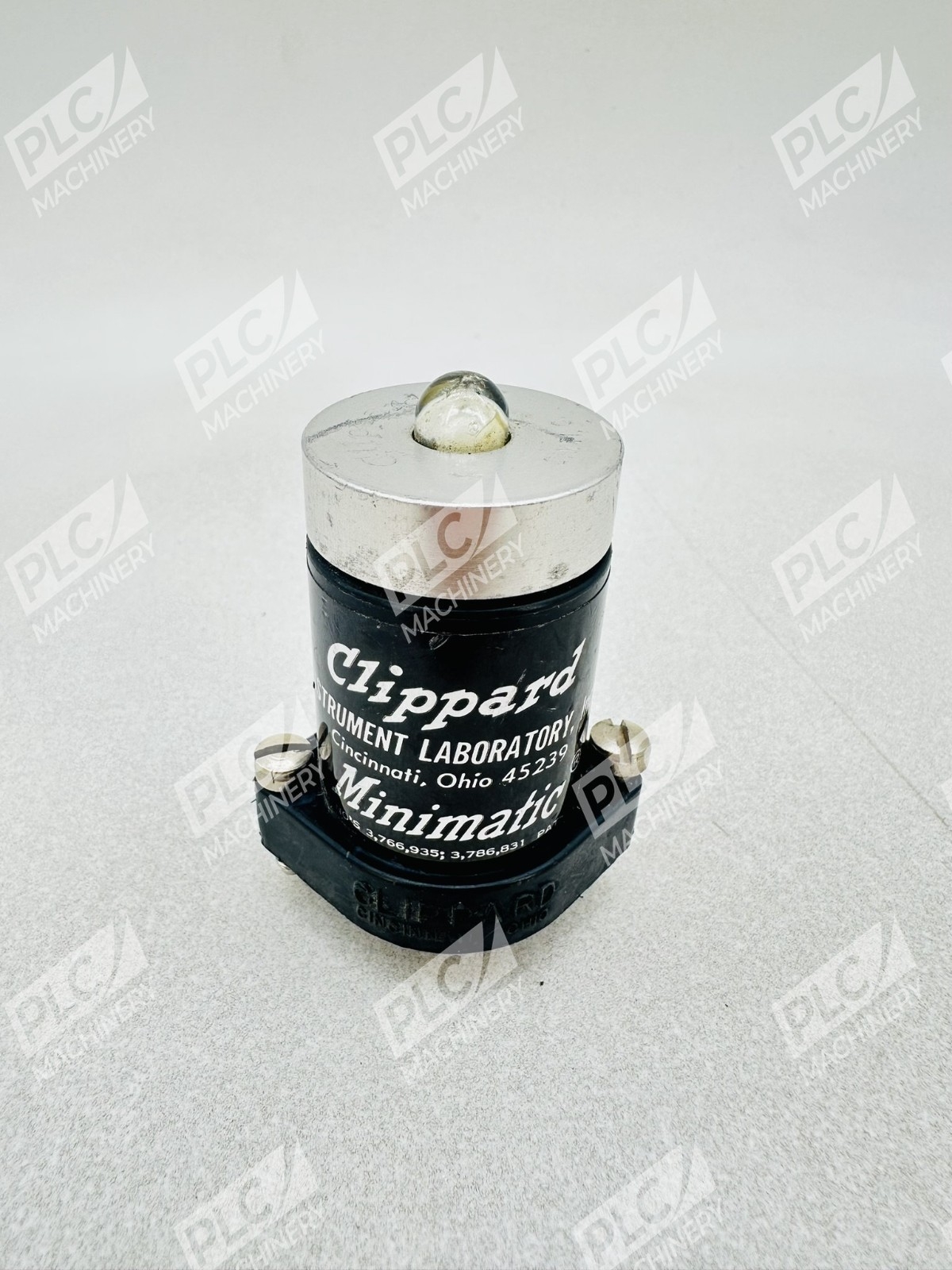

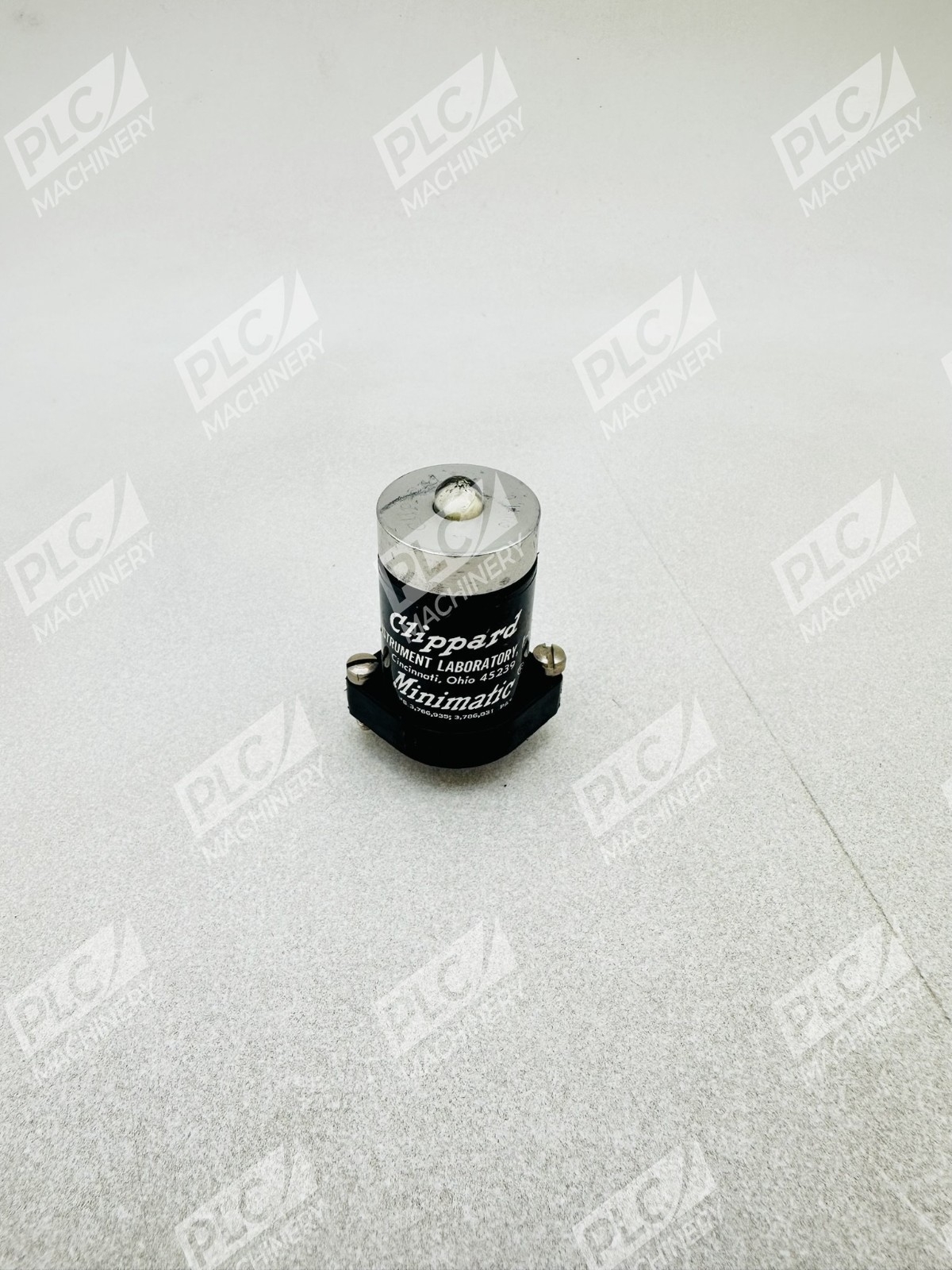

The Clippard R441 is a 4-way, spring return, vent piloted valve engineered for pneumatic control systems requiring simple, low-force sensor actuation. As a fully ported 5-port valve, the R441 maintains independent vent and inlet pressure paths, making it ideal for logic circuits, sequencing applications, and precision fluid control. This lot of 3 units is fully functional and ready for deployment in OEM or retrofit installations.
Key Features
- 4-way, spring-return configuration for fail-safe operation
- Vent piloted design with independent pilot supply for responsive control
- Fully ported 5-port valve structure for maximum flexibility
- Low actuation force requirement compatible with simple sensors and switches
- Part of Clippard’s proven Minimatic® line for miniature pneumatic component reliability
Technical Specifications
The R441 operates within the Clippard Minimatic® pneumatic component family, offering precision control and minimal internal leakage. All specifications comply with Clippard’s quality and performance standards for miniature pneumatic valves.

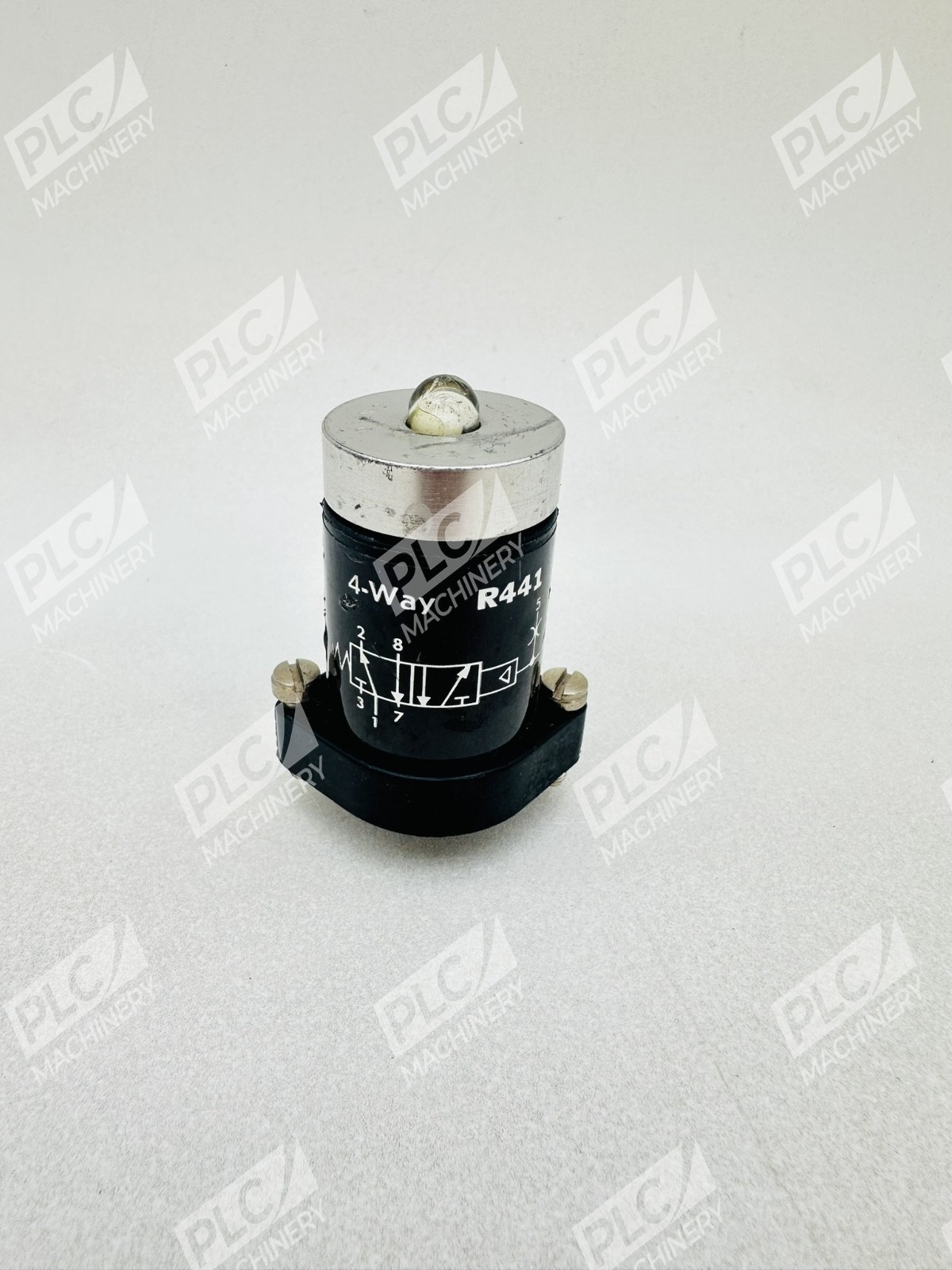

- Valve Type: 4-way, spring return, vent piloted
- Port Configuration: 5-port fully ported
- Pilot Supply: Independent (separate from inlet pressure)
- Actuation Type: Vent piloted
- Typical Use: Low-force sensor applications
- Series: Minimatic®

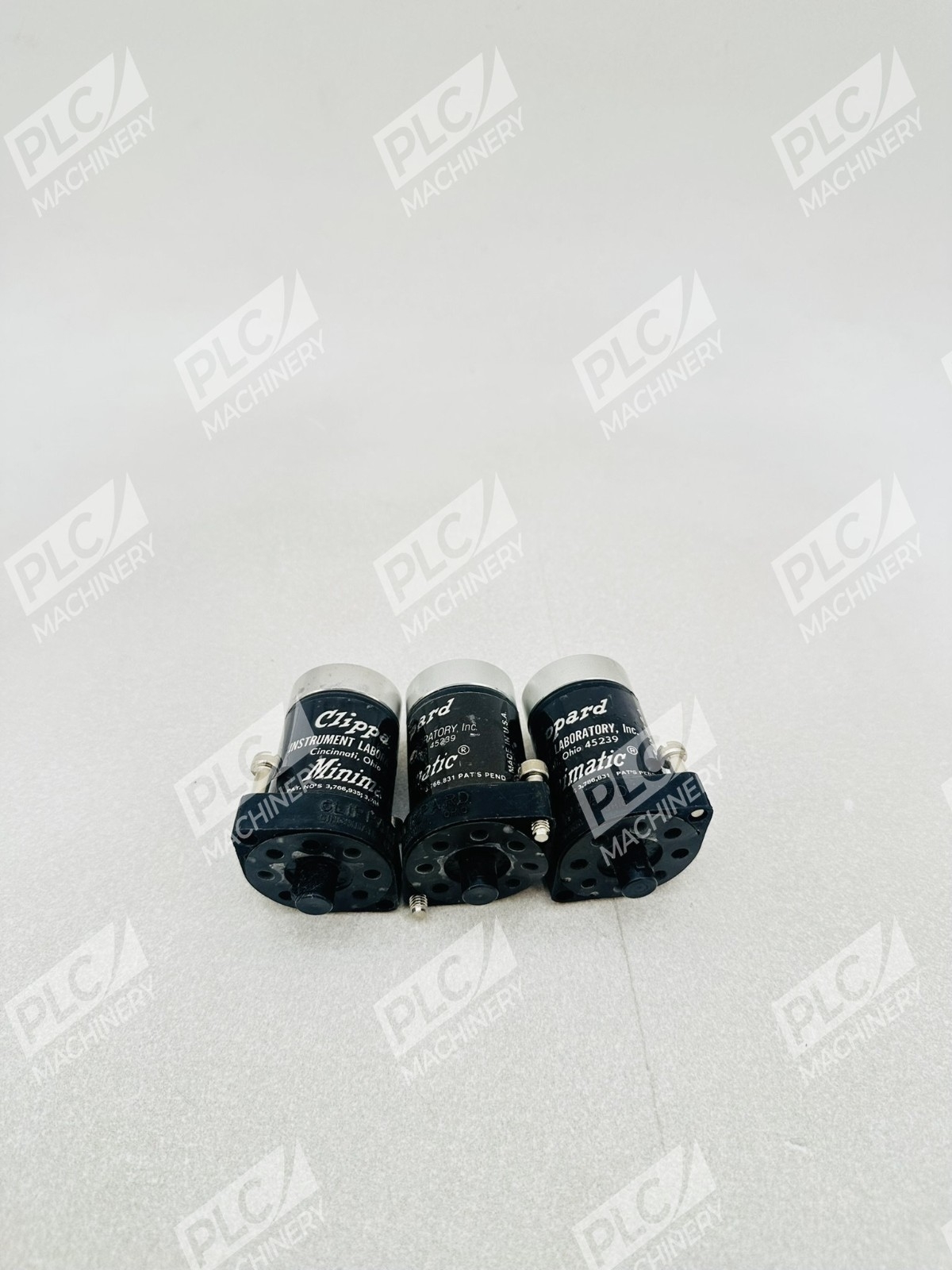

- Quantity in Lot: 3 units
- Condition: Used – Fully functional
Typical Applications
- Pneumatic logic circuits and control sequencing
- Low-force sensor-driven valve actuation
- OEM equipment control systems
- Test and measurement automation
- Precision fluid delivery and switching
- Medical and laboratory equipment pneumatics
Compatibility & Replacements
Compatible With
- Clippard Minimatic® pneumatic system networks
- Standard compressed air systems (verify pressure rating compatibility)
- Logic control circuits using pilot-operated valves
- Low-force actuator and sensor assemblies
- Modular pneumatic manifold systems
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering. The R441 may be compatible with other Clippard Minimatic 4-way spring-return designs in similar series configurations.
Works With
- Compressed air supply systems (standard industrial PSI/bar ratings)
- Pneumatic tubing and quick-disconnect fittings
- Sensor inputs: proximity switches, pressure switches, logic sensors
- Modular Clippard valve stacks and integrated control assemblies
