Overview

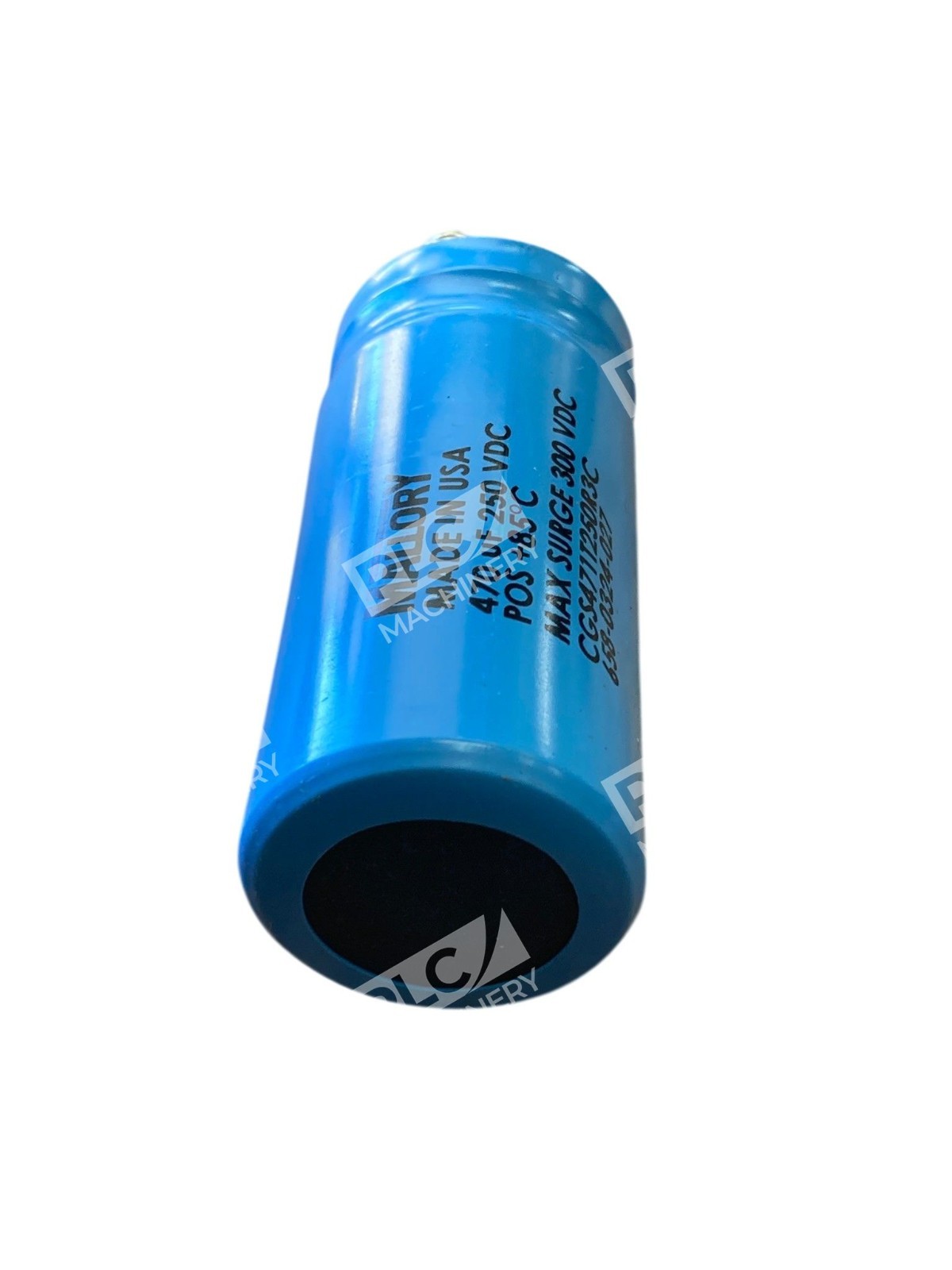

The Mallory CGS471T250R3C is a high-capacity, computer-grade screw terminal aluminum electrolytic capacitor rated at 470µF and 250V. Manufactured by Cornell Dubilier for Mallory Products, this component is engineered for demanding industrial automation, power filtering, and control circuit applications where stable capacitance and low impedance are critical.
Key Features
- Screw terminal connection for secure, reliable mounting and wiring
- Computer-grade design with tight tolerances and consistent performance
- High capacitance-to-size ratio optimized for space-constrained assemblies
- Low ESR (equivalent series resistance) for efficient power conditioning
- Rated for industrial temperature ranges and extended operational life
- RoHS-compliant construction for modern system integration
Technical Specifications
- Capacitance: 470µF
- Voltage Rating: 250V DC

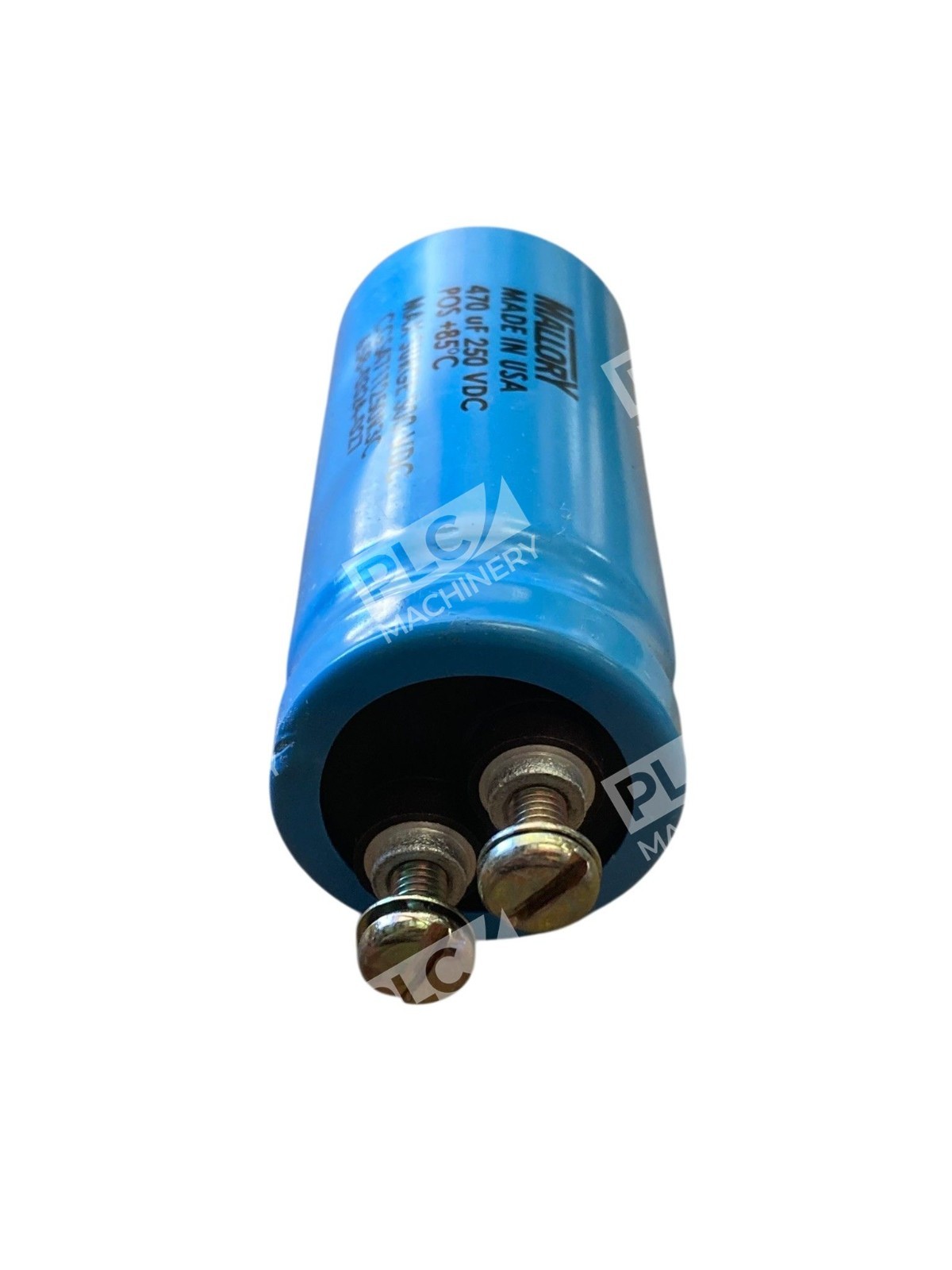

- Terminal Type: Screw terminal
- Case Size: Computer-grade housing
- Technology: Aluminum electrolytic
- Operating Temperature: -55°C to +105°C (standard industrial range)

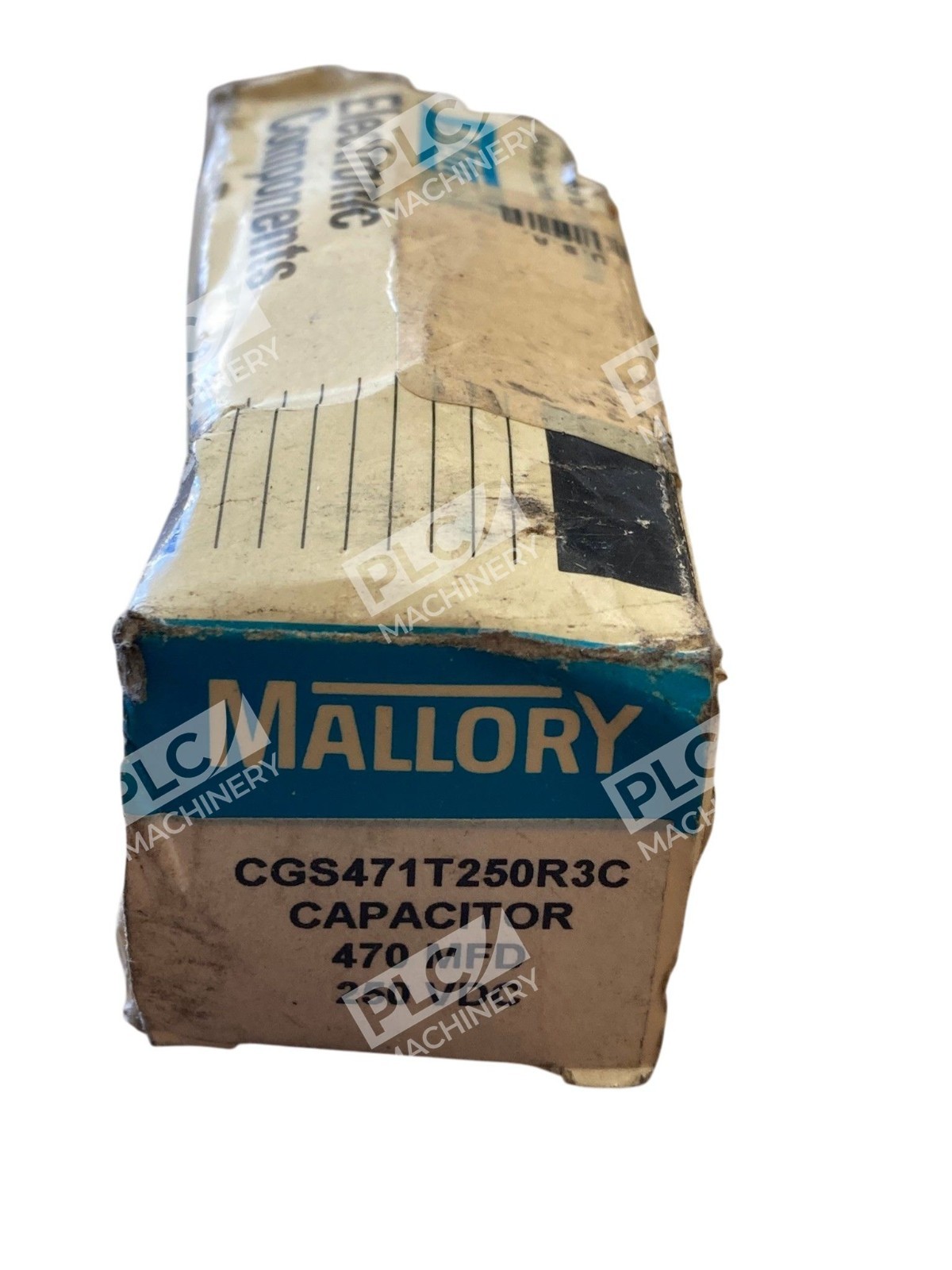

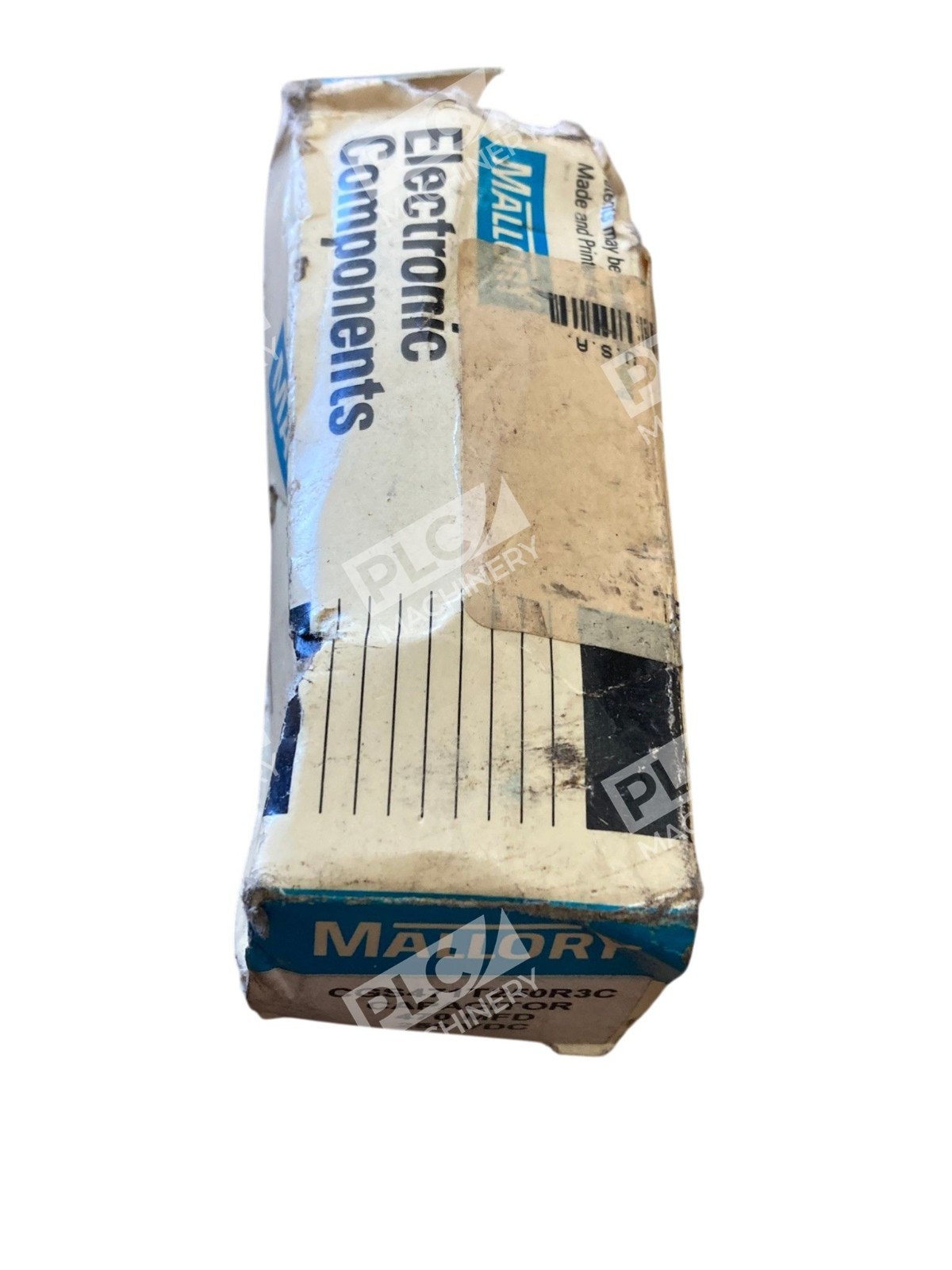

- Condition: New in box
- Manufacturer: Cornell Dubilier (Mallory Products division)
Typical Applications
- Power supply filtering and bulk energy storage
- Industrial motor drives and soft starters
- PLC and automation control module power conditioning
- DC bus stabilization in frequency converters and rectifier circuits
- Uninterruptible power supply (UPS) and backup power systems
- Industrial equipment with surge voltage requirements
Compatibility & Replacements
Compatible With
- Industrial power conditioning circuits rated 250V DC and below
- Motor control centers and variable frequency drives
- Programmable logic controllers and automation modules
- Power distribution and switching cabinets
- DC power supplies and rectifier systems
- Industrial automation panels requiring filtered power rails
Replaces / Drop-In Replacement For
The CGS471T250R3C is designed to replace other 470µF 250V screw terminal capacitors in the same footprint and rating. Verify mechanical fit and screw terminal spacing with your original component before substitution. Consult the original equipment documentation or contact your system integrator to confirm interchangeability with legacy designs.
Works With
- Industrial control systems and automation platforms
- Allen-Bradley, Siemens, Mitsubishi, and Omron motor drives
- Custom power conditioning and filtering circuits
- Standard 250V industrial DC bus architectures
- PCB and chassis-mounted power conditioning modules
