Overview

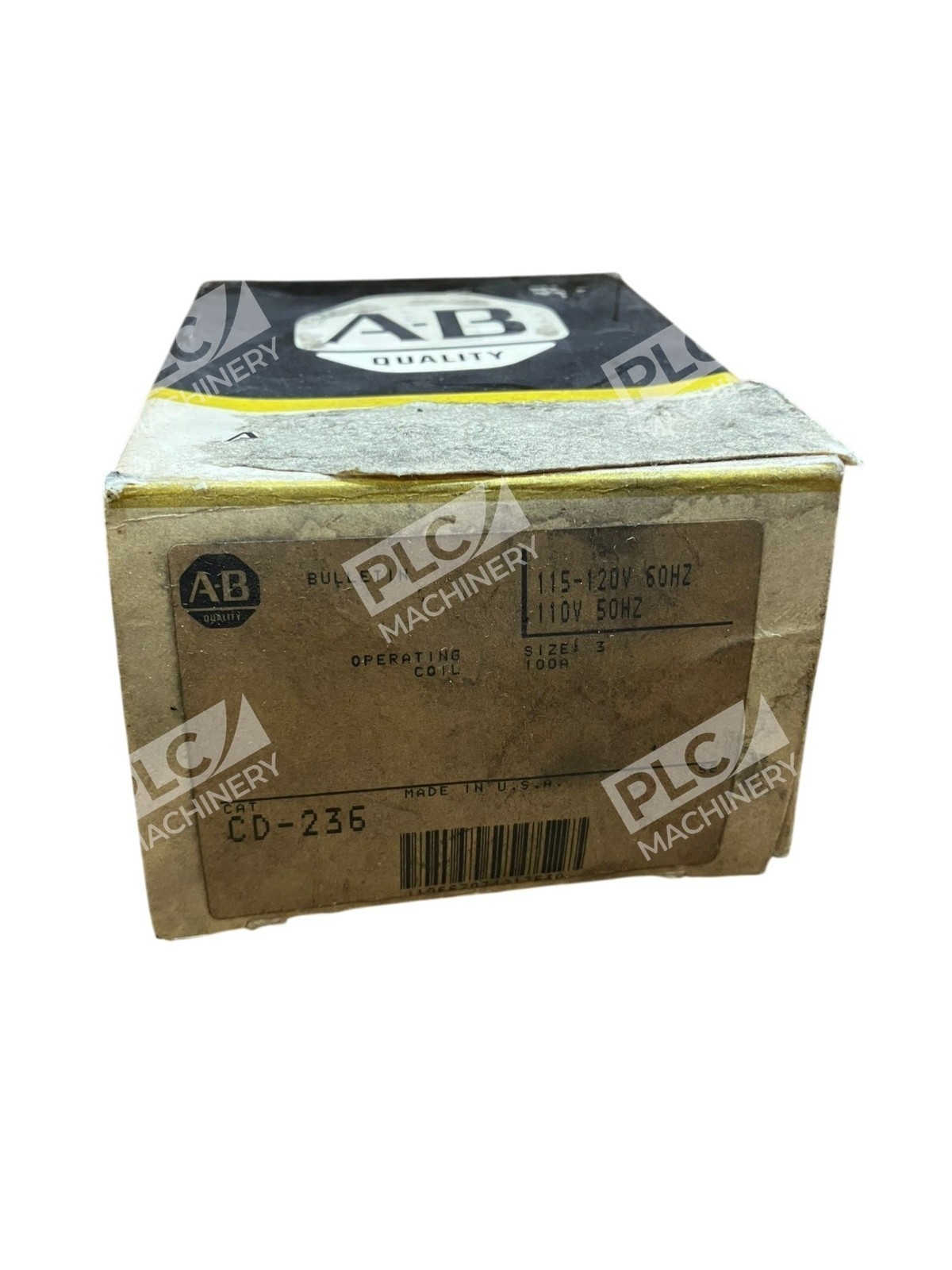

The Allen-Bradley CD-236 is a magnetic operating coil designed for NEMA Size 3 contactors and motor starters. This industrial-duty coil is rated for 115-120V AC at 60Hz operation and serves as a direct replacement component for control circuit applications. New in box condition ensures factory specifications and immediate deployment in manufacturing, HVAC, pump control, and general industrial automation environments.
Key Features
- NEMA Size 3 contactor/starter coil configuration
- Dual voltage rating: 115-120V AC (60Hz) and 110V (50Hz) compatibility
- 100A contact rating capability in associated contactors
- Electromagnetic design for reliable on/off control switching
- Drop-in replacement for existing NEMA Size 3 installations
- New in box condition with factory packaging
Technical Specifications
- Coil Voltage (Primary): 115-120V AC, 60Hz
- Coil Voltage (Secondary): 110V AC, 50Hz
- NEMA Size Rating: Size 3
- Associated Contactor Rating: 100A
- Product Type: Magnetic Operating Coil
- Mounting: Screw terminal connection
- Condition: New in Box
- Manufacturer: Allen-Bradley (Rockwell Automation)
Typical Applications
- Motor starter coil replacement in industrial production lines
- HVAC system contactor control circuits
- Pump and fan motor control panels
- General factory automation control systems
- Machinery and equipment motor circuits (under 100A)
- Retrofit and maintenance of existing NEMA Size 3 starters
Compatibility & Replacements
Compatible With
- NEMA Size 3 contactors and motor starters
- Allen-Bradley 500-series motor starters
- Rockwell Automation control circuits
- Standard industrial 115-120V AC control systems
- 50Hz and 60Hz industrial power systems
Replaces / Drop-In Replacement For
- NEMA Size 3 contactor coil applications
- Original equipment manufacturer (OEM) coil specifications
- Standard-duty operating coils in comparable motor starter frames
Works With
- Screw-terminal contactor cabinets and control panels
- Standard industrial control systems using 115-120V AC logic
- Electromechanical motor starters and contactors
- Manual and automatic transfer switch assemblies
