<h2>Overview</h2>

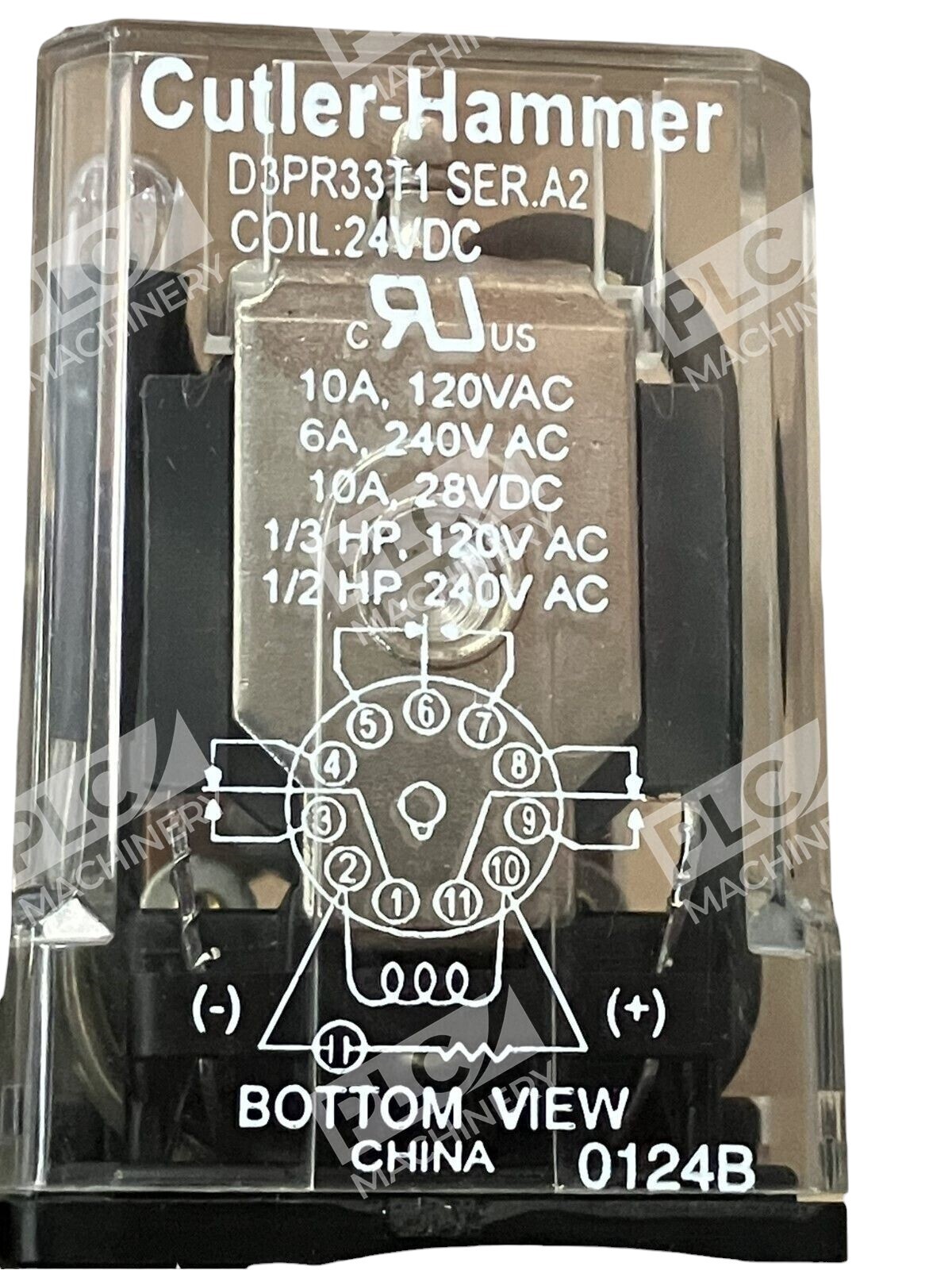

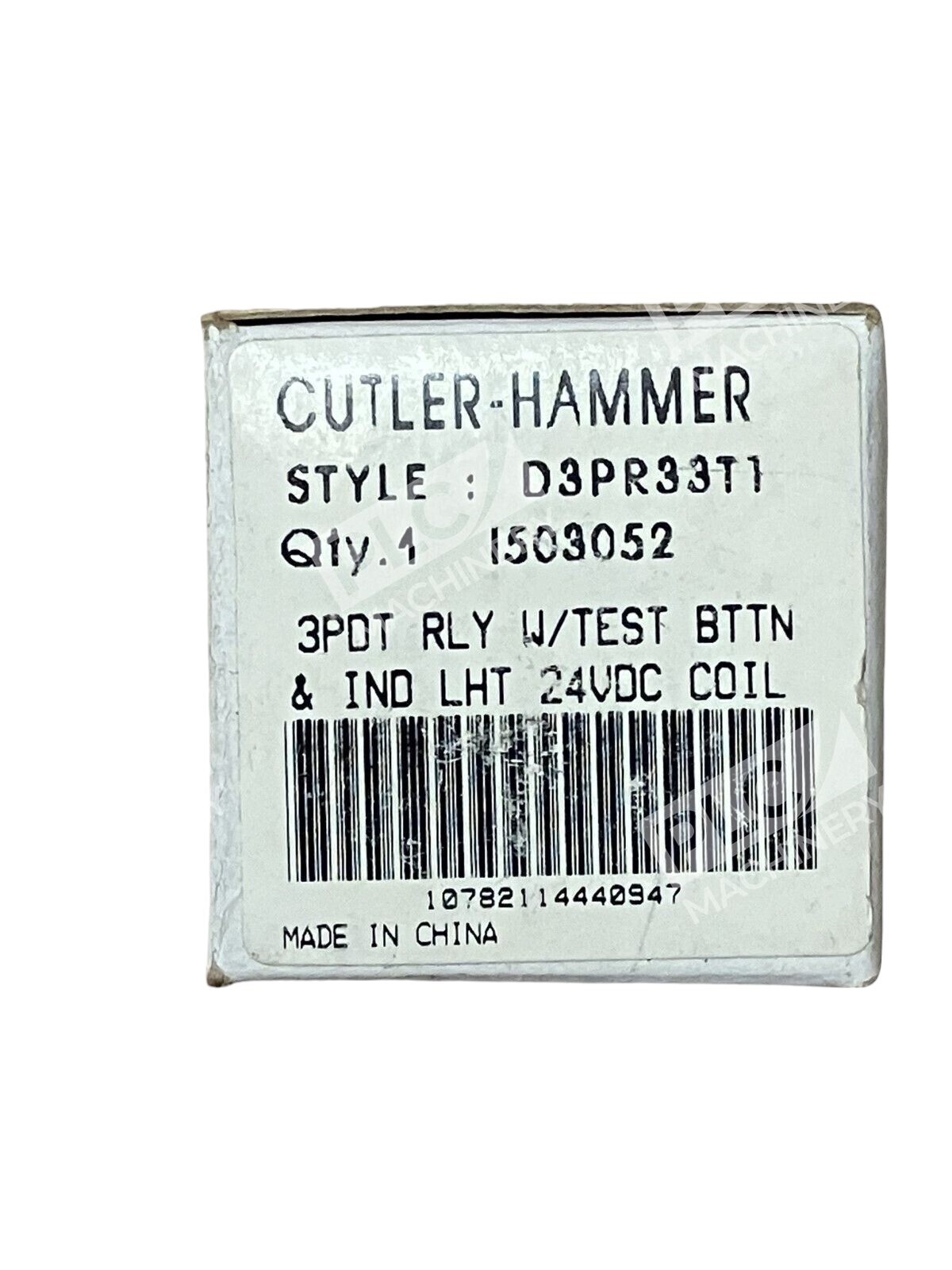

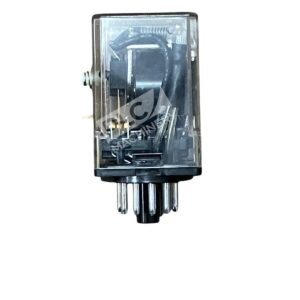

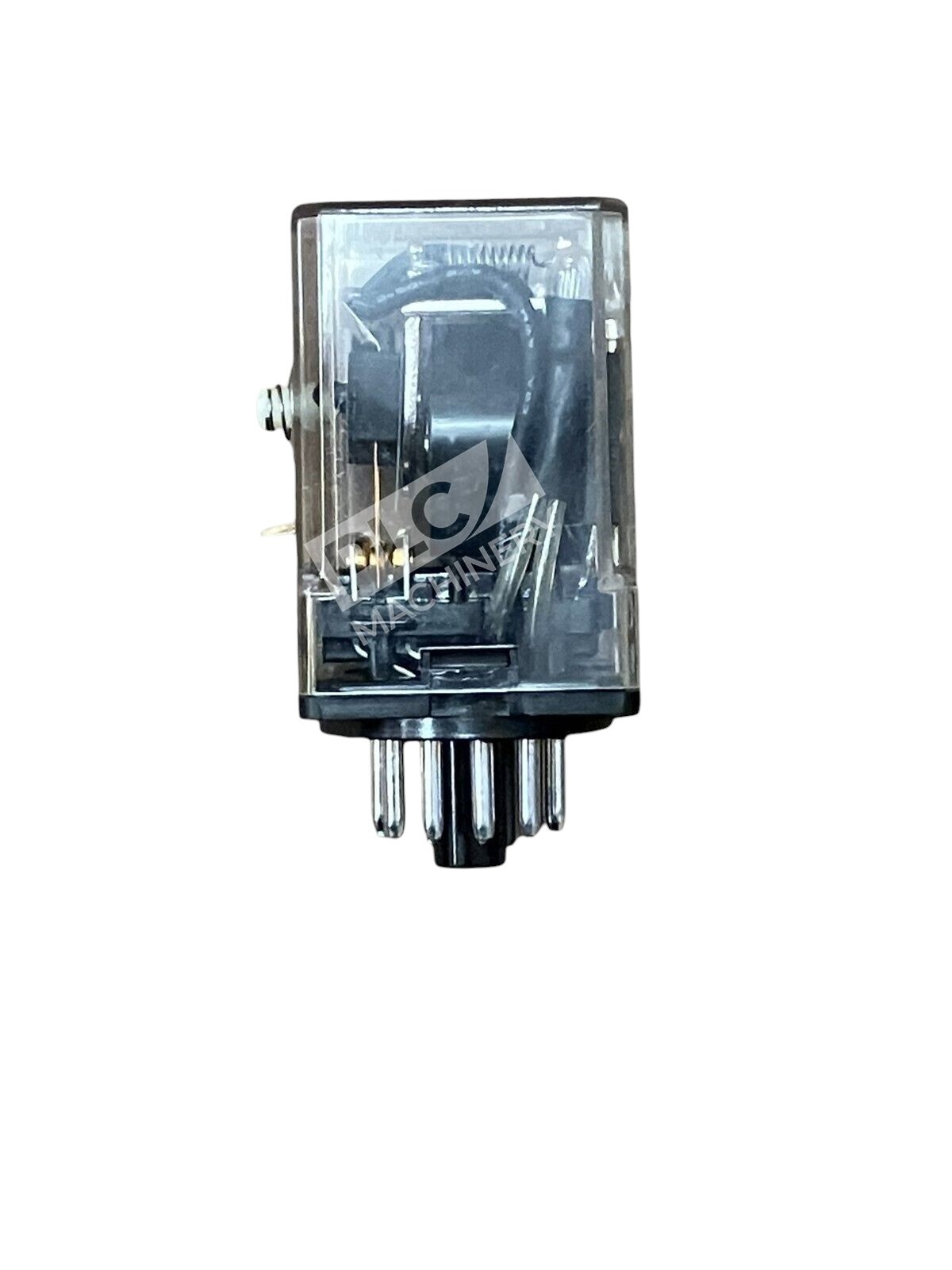

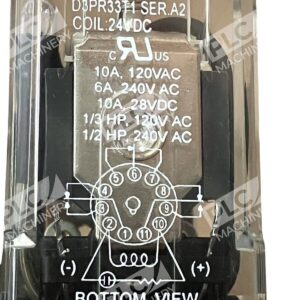

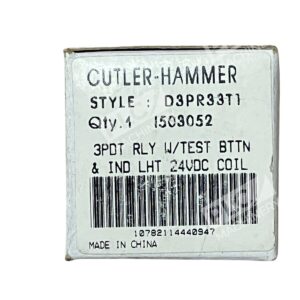

<p>The <strong>Cutler Hammer D3PR33T1 /A2</strong> is a standard D3 series general-purpose relay designed for industrial control and automation applications. This 3PDT (triple pole, double throw) relay operates from a 24VDC coil and features an integral test button and indicator light for easy field diagnostics. The unit is housed in an IP40 enclosure with an 11-pin male connection for secure mounting on standard relay sockets.</p>
<h2>Key Features</h2>
<ul>
<li>3PDT contact configuration (triple pole, double throw) for flexible switching logic</li>
<li>Integral test button enables field verification without de-energizing the coil</li>
<li>Indicator light provides visual confirmation of relay status</li>
<li>24VDC coil voltage for compatibility with standard PLC and control system power supplies</li>
<li>11-pin octal base for plug-in mounting on D3-series relay sockets</li>
<li>Silver alloy contacts rated for industrial duty</li>
</ul>
<h2>Technical Specifications</h2>
<ul>
<li><strong>Coil Voltage:</strong> 24VDC</li>
<li><strong>Contact Configuration:</strong> 3PDT (triple pole, double throw)</li>
<li><strong>Pin Configuration:</strong> 11-pin octal terminal</li>
<li><strong>Series:</strong> D3 Standard General Purpose</li>
<li><strong>Contact Material:</strong> Silver alloy</li>
<li><strong>Enclosure Rating:</strong> IP40</li>
<li><strong>Test Button:</strong> Yes</li>
<li><strong>Indicator Light:</strong> Yes</li>
</ul>
<h2>Typical Applications</h2>
<p>The D3PR33T1 /A2 relay is commonly used in industrial automation, PLC process control, machinery control circuits, and HVAC systems where 24VDC switching with multi-pole configurations is required. The integrated test button and indicator light make it ideal for maintenance-intensive environments where field troubleshooting is frequent.</p>
<h2>Compatibility & Replacements</h2>
<h3>Compatible With</h3>
<ul>
<li>D3-series relay sockets and bases</li>
<li>24VDC control systems and PLC processors</li>
<li>Industrial control panels and switchgear</li>
<li>Standard 11-pin octal relay mounts</li>
</ul>
<h3>Replaces / Drop-In Replacement For</h3>
<p>Verify compatibility with your system integrator or controls engineer before ordering to confirm exact replacement eligibility for legacy equipment.</p>
<h3>Works With</h3>
<ul>
<li>Allen-Bradley PLCs (5000 series and classic platforms)</li>
<li>Siemens S7 and S5 controllers</li>
<li>Mitsubishi FX series processors</li>
<li>24VDC control logic and relay-based systems</li>
<li>Any industrial control system requiring general-purpose 3PDT switching</li>
</ul>
