Overview

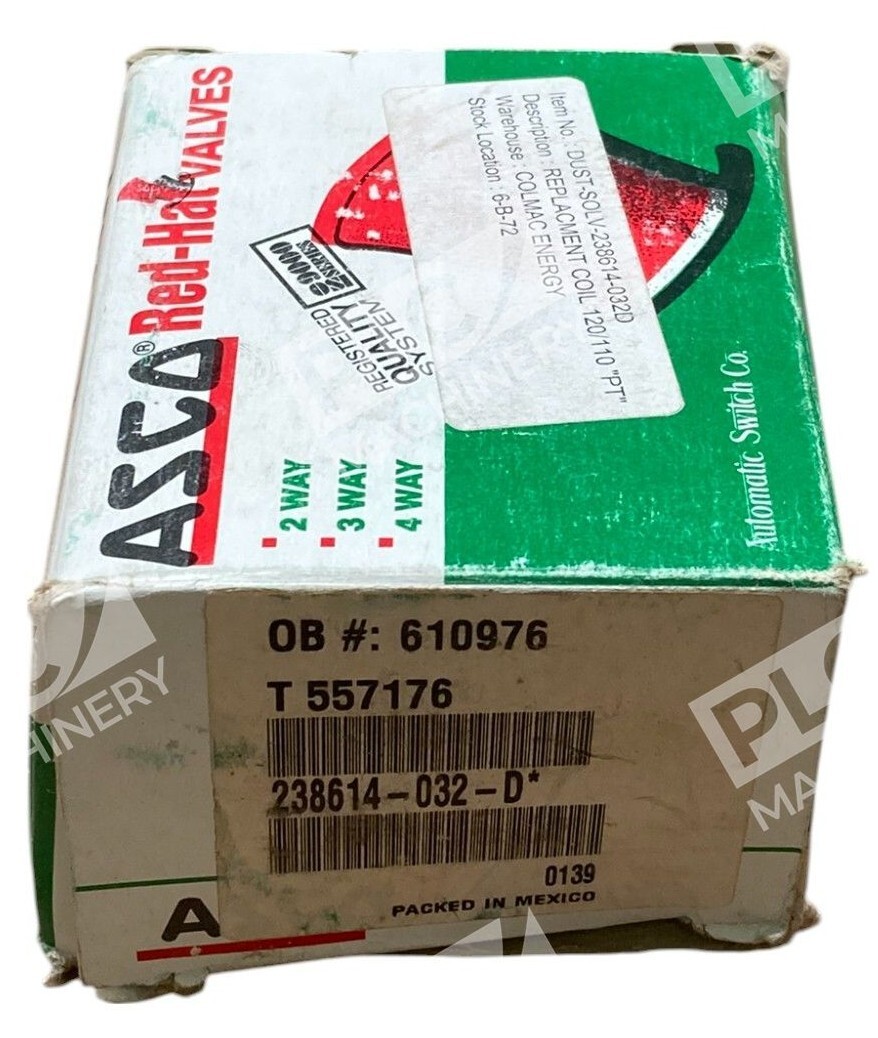

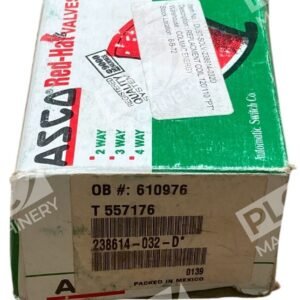

The ASCO 238614-032D solenoid coil (model MP-C-089-238614-032D) is a Type 7 explosion-proof replacement coil designed for hazardous-location solenoid valve installations. This coil combines dual voltage capability (120/60VAC and 110/50FT) with robust Class F insulation, making it suitable for industrial fluid control systems where safety and reliability are critical. Built for 1/4″ solenoid valve assemblies, the 238614-032D is an essential component for maintenance and repair in oil, gas, chemical, and general industrial applications.
Key Features
- Type 7 Explosion Proof Rating: Safe for hazardous gas and dust atmospheres (Class I, Division 1 environments)
- Dual Voltage/Frequency: 120/60VAC and 110/50FT compatibility for North American and international systems
- 10.1-watt output provides adequate electromagnetic force for 1/4″ valve actuation
- Class F Insulation: Stable thermal performance across industrial duty cycles

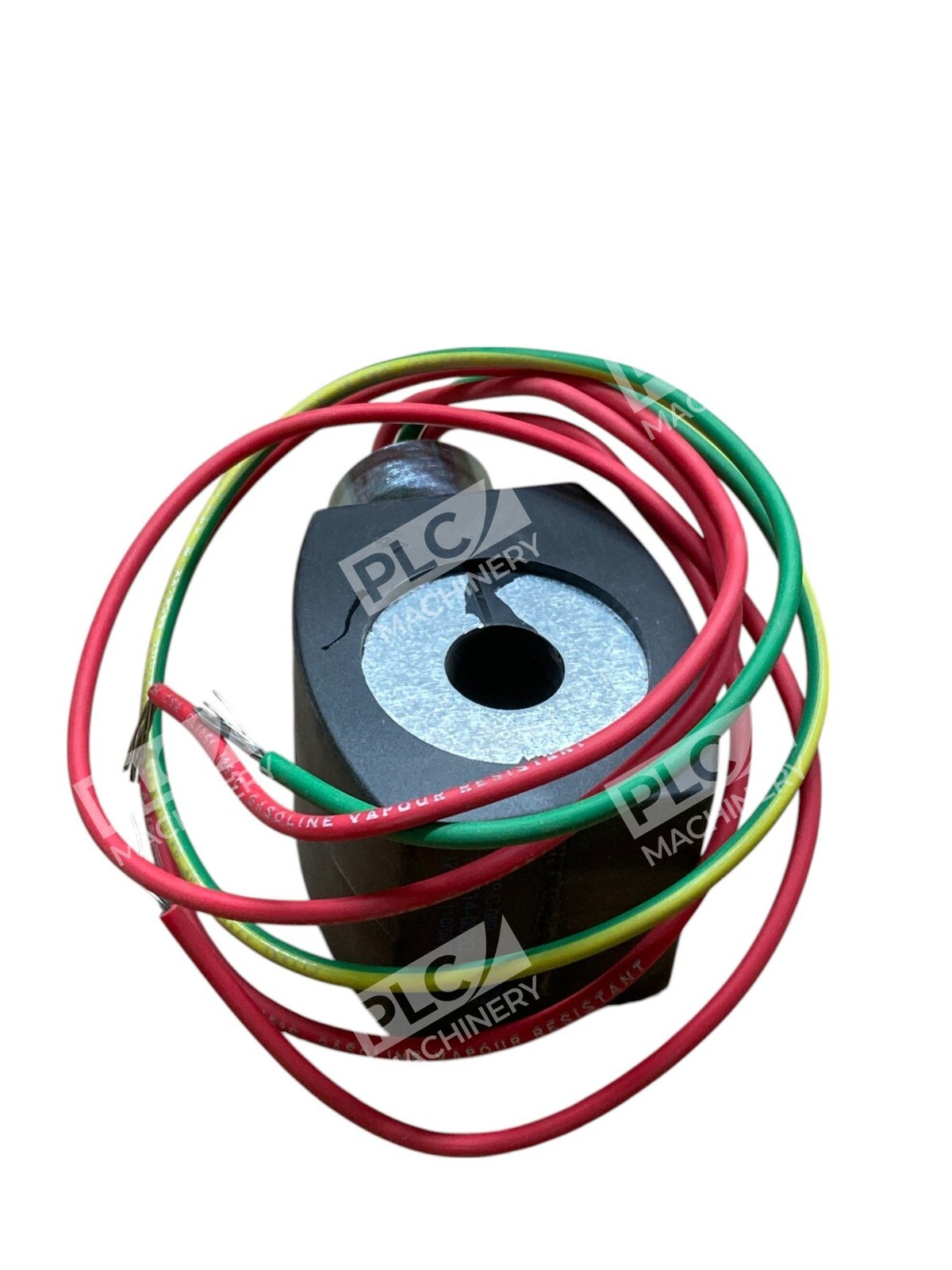

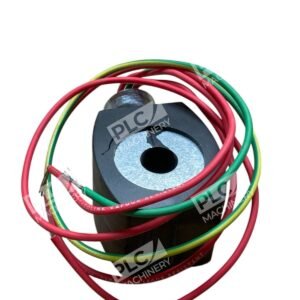

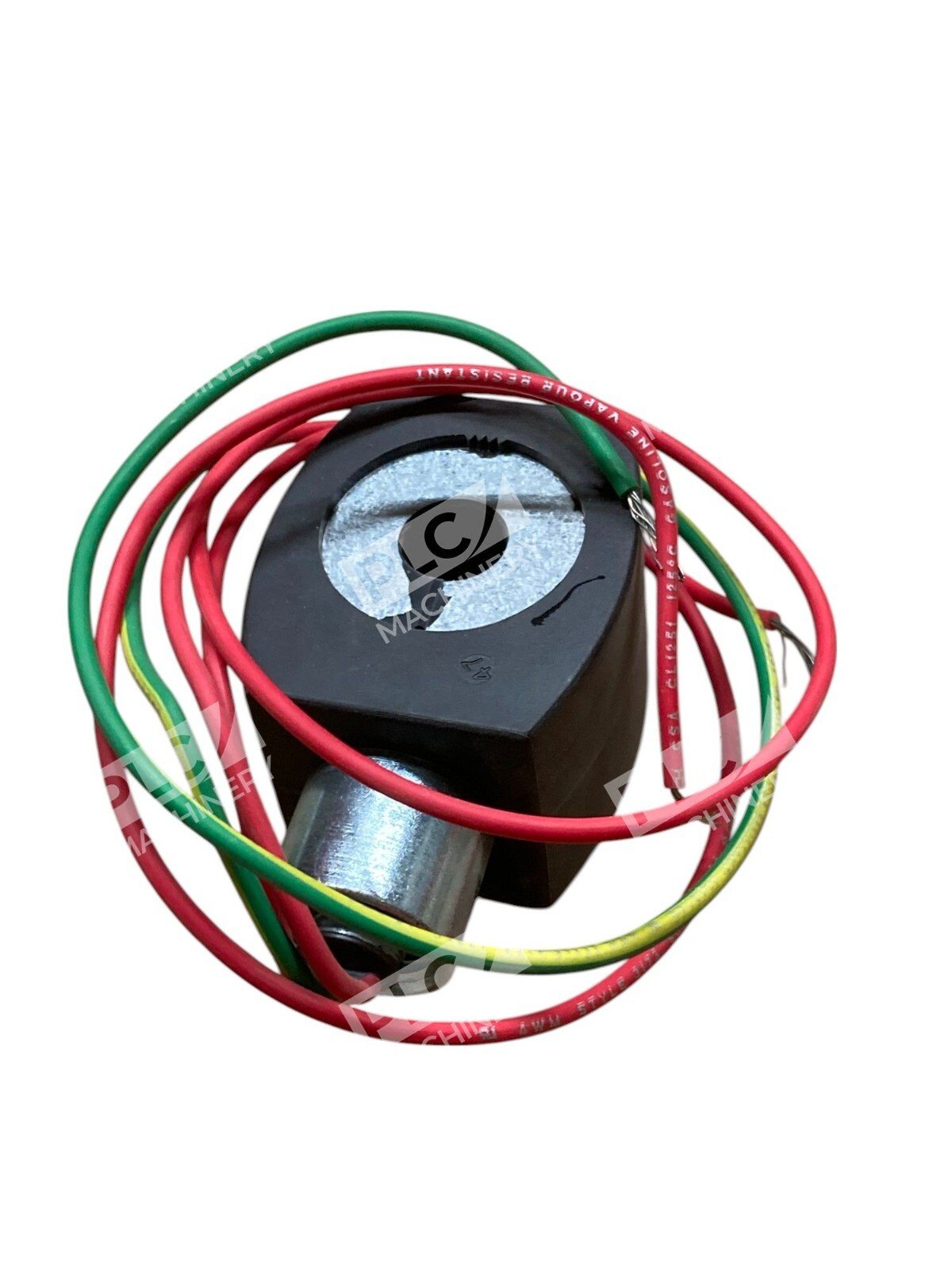

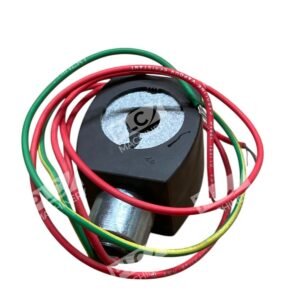

- 18-inch lead pigtails for straightforward conduit termination and wiring integration
- Compact, lightweight design (1.10 lbs) simplifies field replacement and handling
Technical Specifications
Key performance metrics for specification matching and system compatibility:

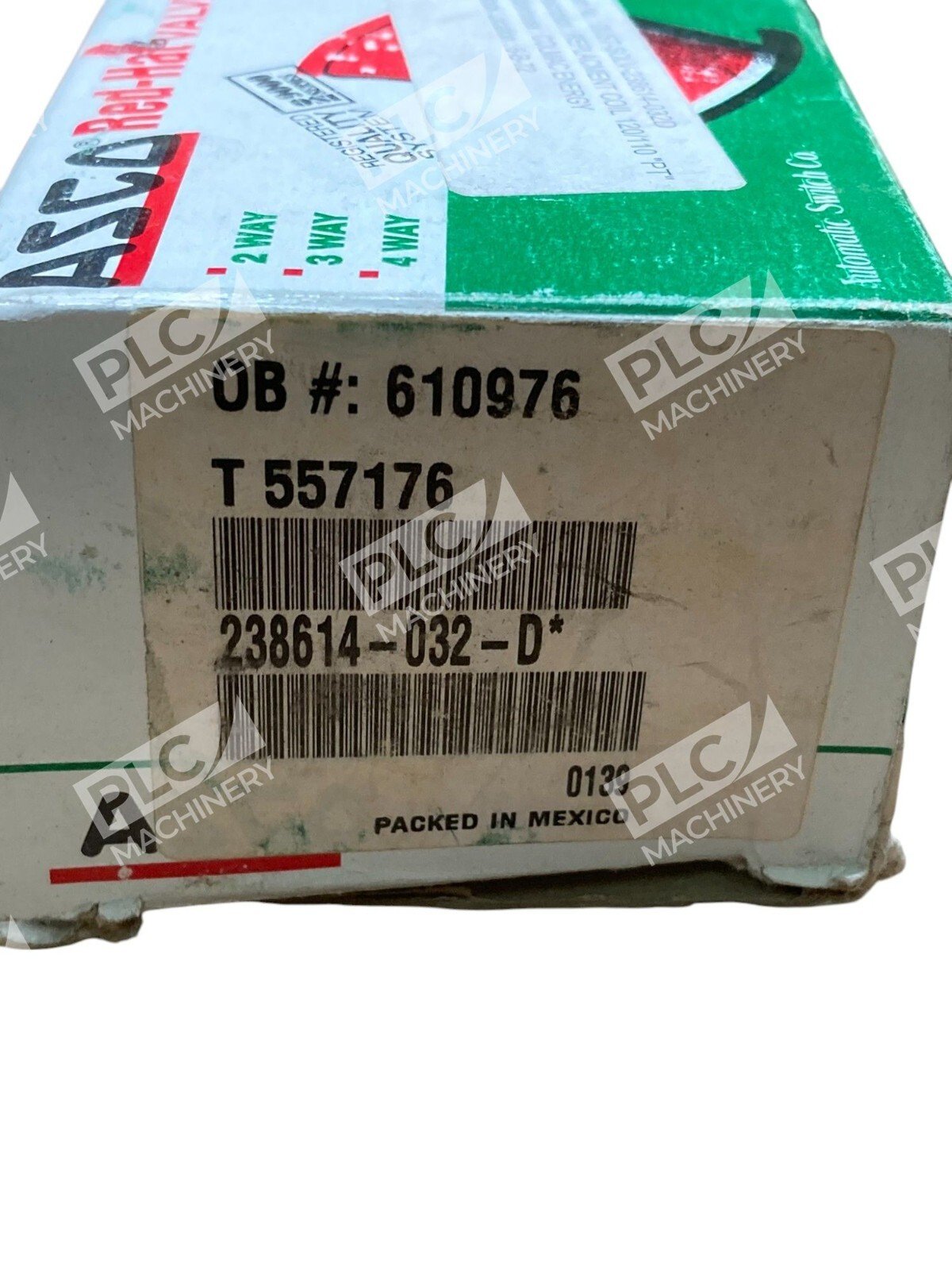

- Part Number: 238614-032D / MP-C-089-238614-032D
- Input Voltage: 120VAC @ 60Hz / 110VAC @ 50Hz
- Power Rating: 10.1 Watts
- Insulation Class: F
- Certification: Type 7 Explosion Proof
- Lead Configuration: 18-inch pigtails (Lead-style termination)
- Weight: 1.10 lbs
- Valve Size Compatibility: 1/4″ solenoid valve assemblies
- Configuration: 2/2 Normally Closed (NC)
Typical Applications
The ASCO 238614-032D is widely used in demanding industrial environments where explosion-proof operation is mandatory:
- Oil and gas production systems (valve control in classified zones)
- Petrochemical processing plants (hazardous fluid routing)
- Fuel transfer and storage systems (safety-critical actuation)
- Chemical manufacturing (classified atmosphere compliance)
- Mining and extraction operations (dust and explosive gas zones)
- General industrial fluid control (pneumatics, hydraulics, liquid flow)
Compatibility & Replacements
Compatible With
- ASCO 2-way solenoid valve assemblies with 1/4″ porting
- ASCO RedHat solenoid valve platforms (general replacement compatibility)
- Systems rated 120/60VAC and 110/50FT international power standards
- Class I, Division 1 hazardous location environments (NEC/CEC compliance)
- Explosion-proof valve installations in oil, gas, and chemical industries
Replaces / Drop-In Replacement For
The ASCO 238614-032D replaces OEM coils in 1/4″ 2/2 normally closed ASCO solenoid valve assemblies. Verify your specific valve body casting before ordering. Part supersedes legacy ASCO coil designs where 10.1W @ 120/110VAC output is specified.
Works With
- ASCO pneumatic and hydraulic control systems
- Fluid transfer and flow-control manifolds
- AC solenoid valve wiring harnesses and conduit terminations
- Industrial PLC/automation control systems (24V pilot solenoid applications)
- Hazardous area electrical installations compliant with NEC Article 500
