Overview

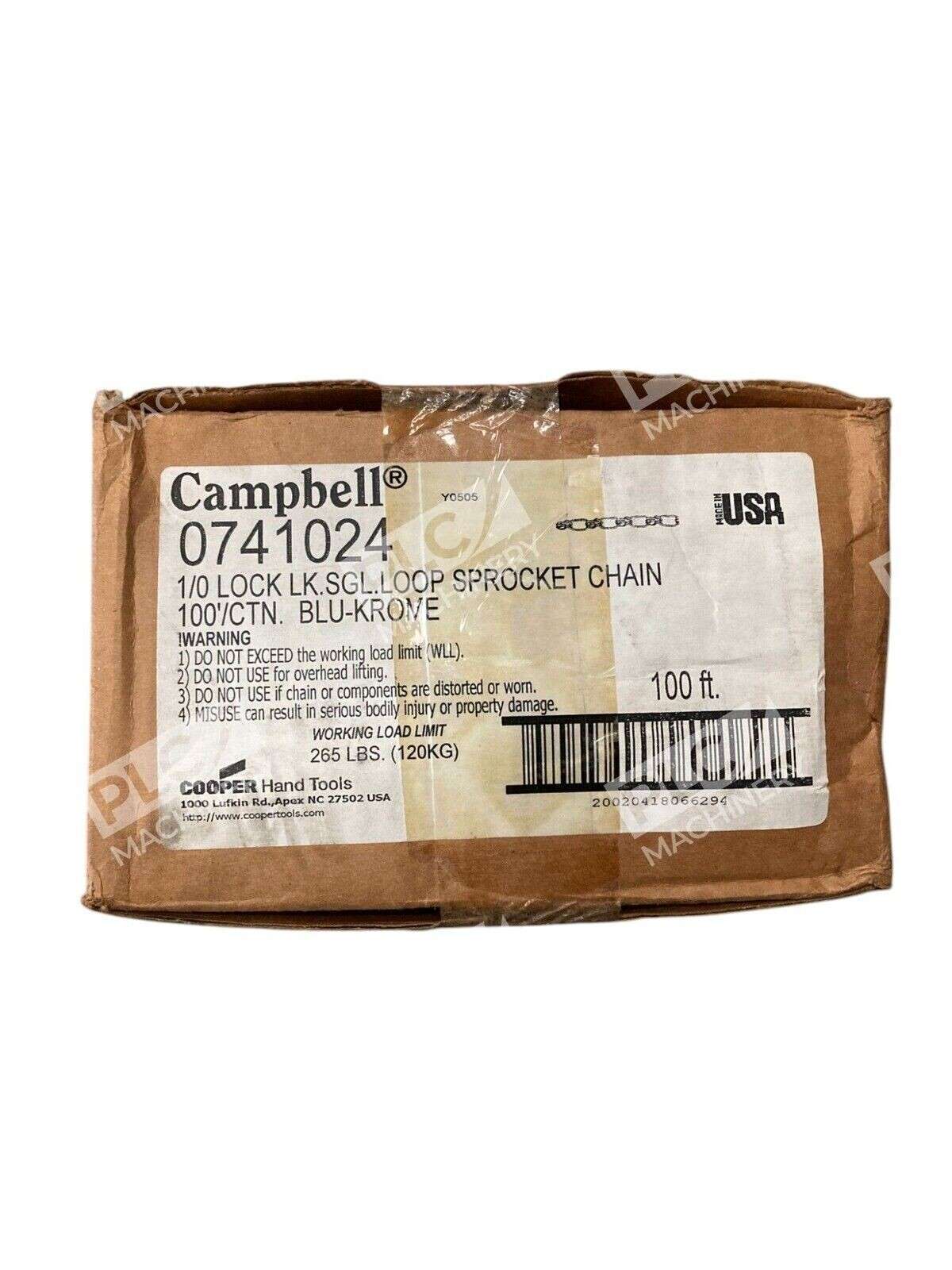

The Campbell 741024 is a heavy-duty 100-foot coil of 1/0 pitch lock link chain designed for industrial sprocket and power transmission applications. Featuring a single loop link design with lock link technology, this zinc-plated chain delivers secure, reliable operation in demanding conditions. The Campbell 741024 lock link chain is rated for 265 lb safe working load and comes wrapped and ready for immediate deployment.
Key Features
- Single loop lock link design for improved security and reliability
- 1/0 trade pitch dimension for standard sprocket compatibility
- Zinc plating provides corrosion resistance for indoor/outdoor use
- 265 lb safe working load (SWL) suitable for light to moderate duty applications
- 100-foot carton length eliminates short-length splicing
- Wrapped ends for safe handling and storage
Technical Specifications
- Model/Part Number: T0741024 (also 741024)
- Chain Pitch: 1/0 (#1/0 Trade)
- Length: 100 feet per coil
- Safe Working Load (SWL): 265 lbs
- Link Type: Single Loop Lock Link
- Finish: Zinc Plated
- Packaging: Wrapped End Carton
- Manufacturer: Campbell Chain and Fittings
Typical Applications
The Campbell 741024 lock link chain is commonly used in:
- General industrial power transmission and conveyor systems
- Sprocket-driven machinery and equipment
- Light to moderate duty lifting and rigging (within SWL limits)
- Agricultural and farm equipment
- Marine and outdoor environments (zinc-plated protection)
Compatibility & Replacements
Compatible With
- Standard 1/0 pitch sprockets (ANSI B29.1 compliant)
- Industrial conveyor and drive systems
- Power transmission equipment using 1/0 chain pitch
- Outdoor and wet environments (zinc-plated protection)
Replaces / Drop-In Replacement For
The Campbell 741024 directly replaces other 1/0 lock link chains of equivalent specification. Verify exact sprocket compatibility with your equipment before ordering.
Works With
- ANSI B29.1 standard 1/0 pitch sprockets
- Campbell sprocket wheels and power transmission components
- Industrial chain drives and conveyors
- Zinc-plated chain compatible drive systems
