Overview

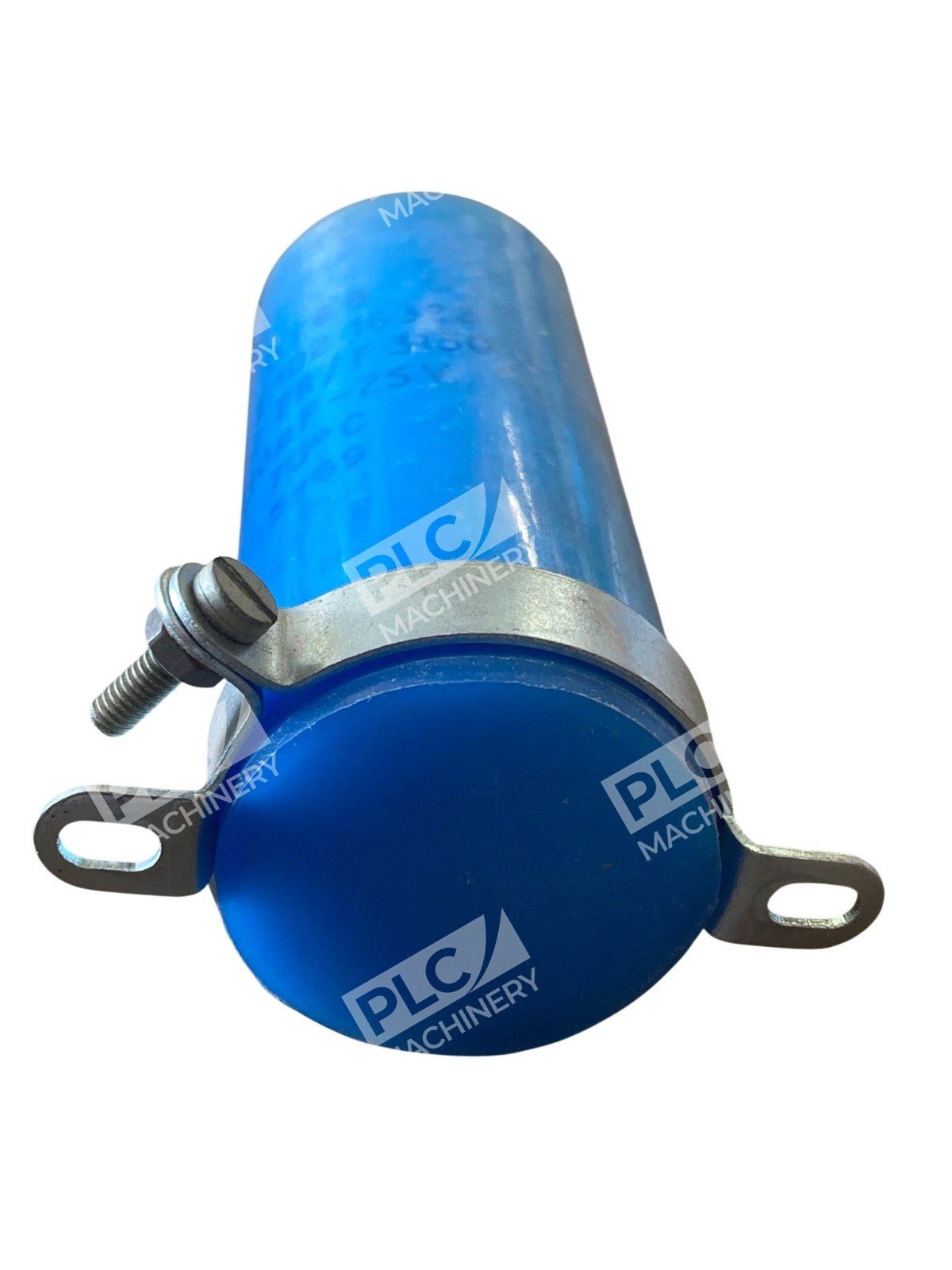

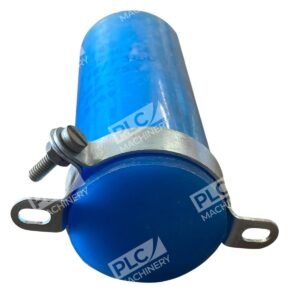

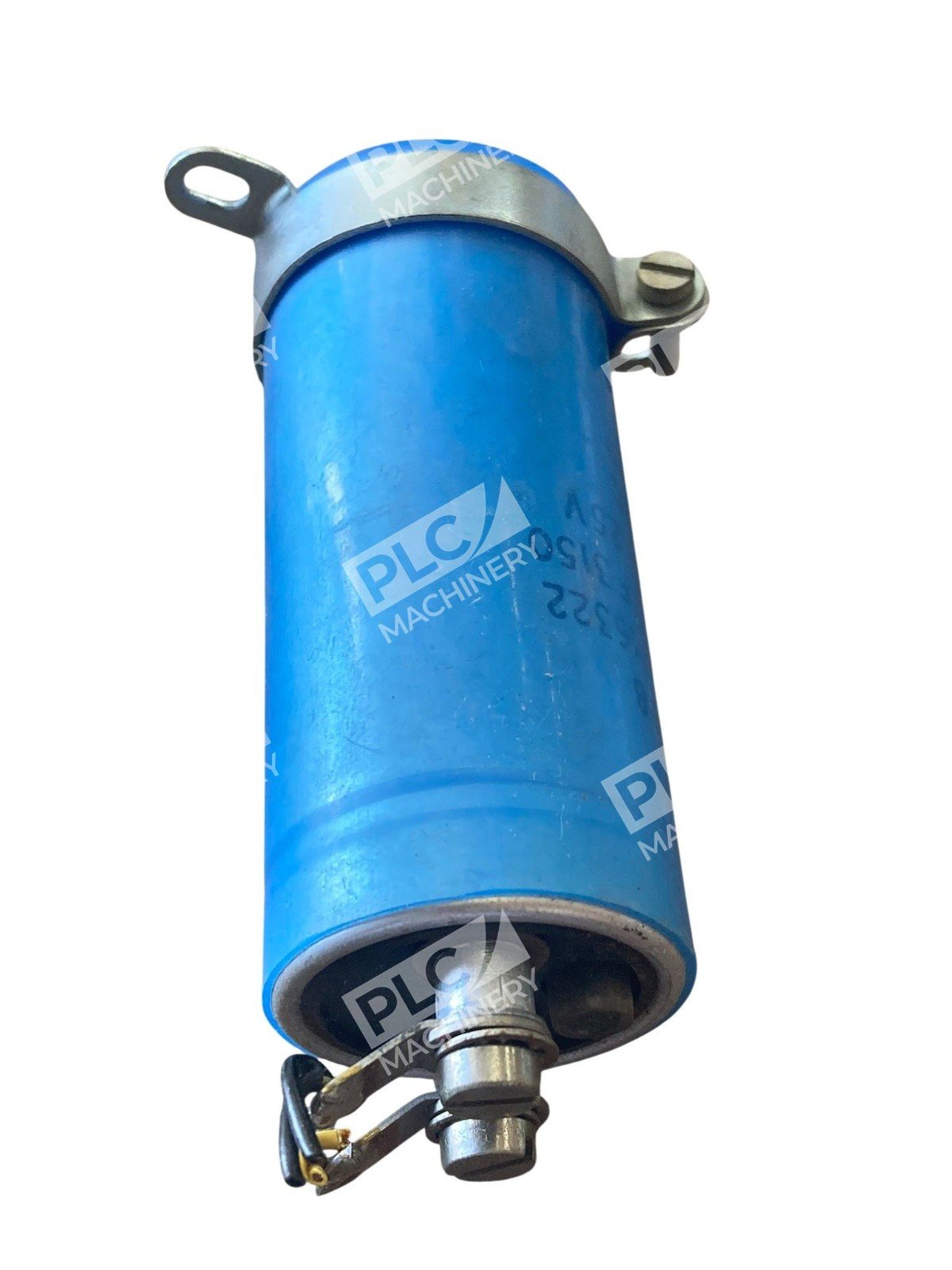

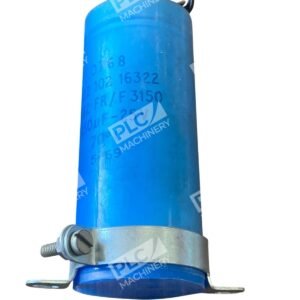

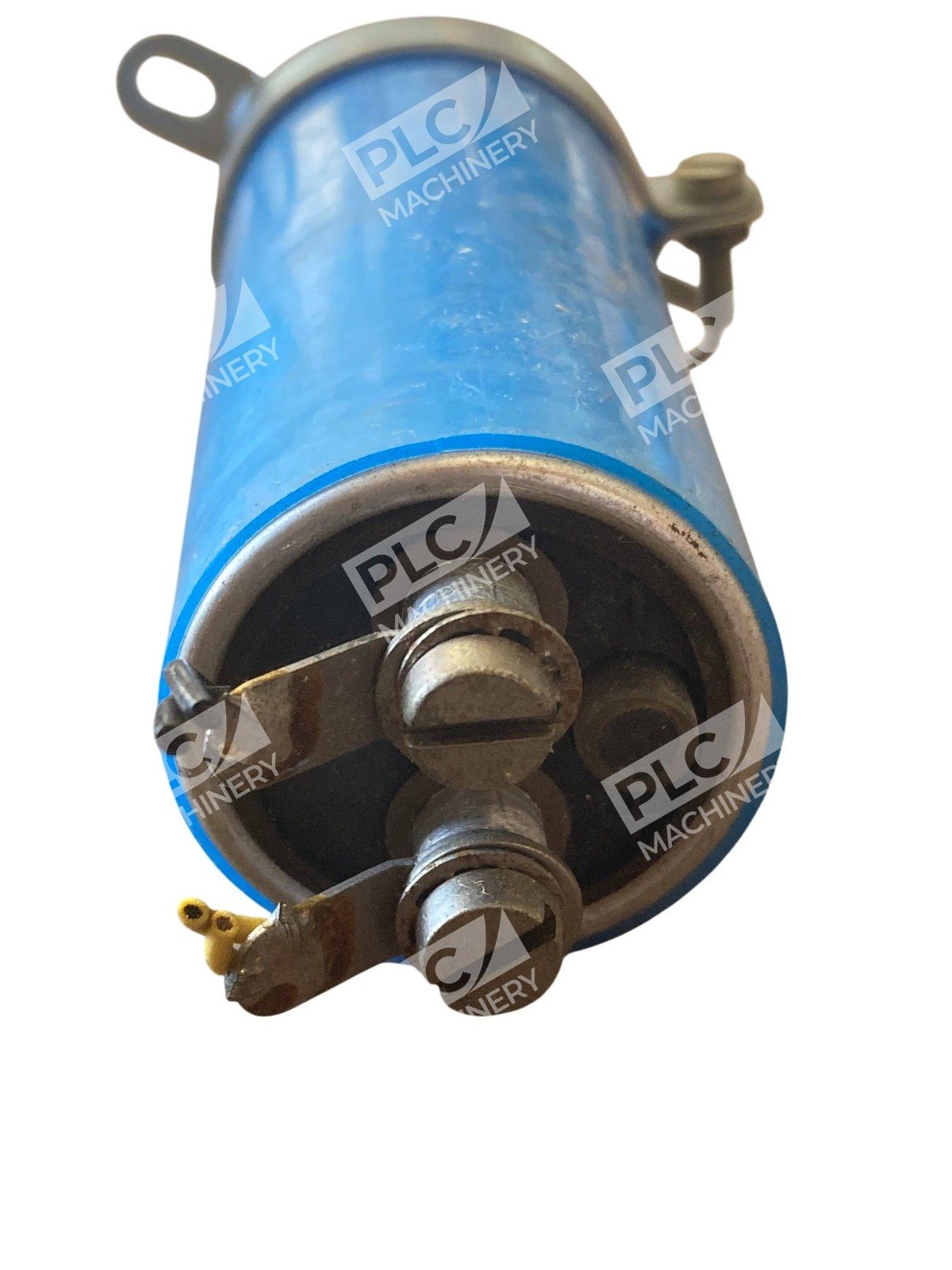

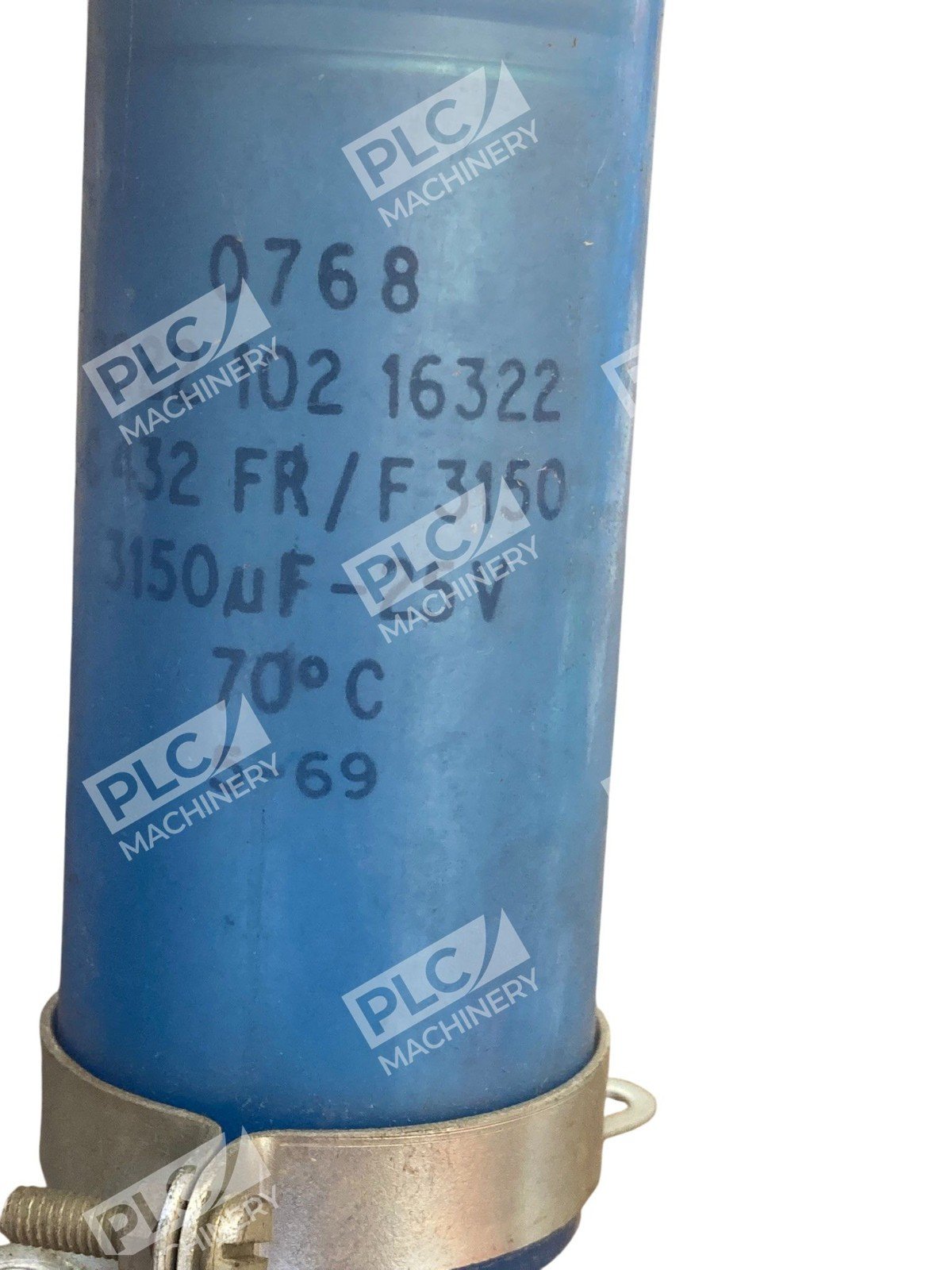

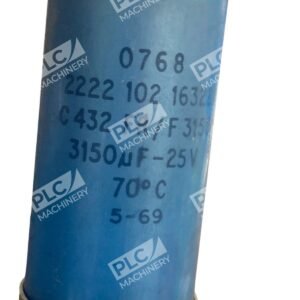

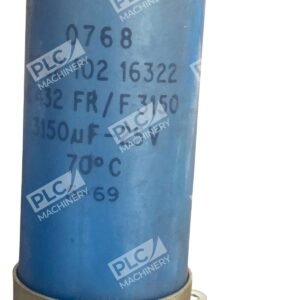

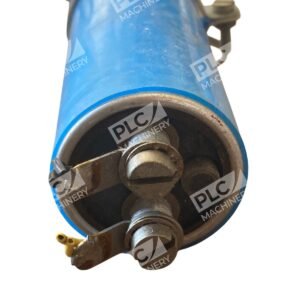

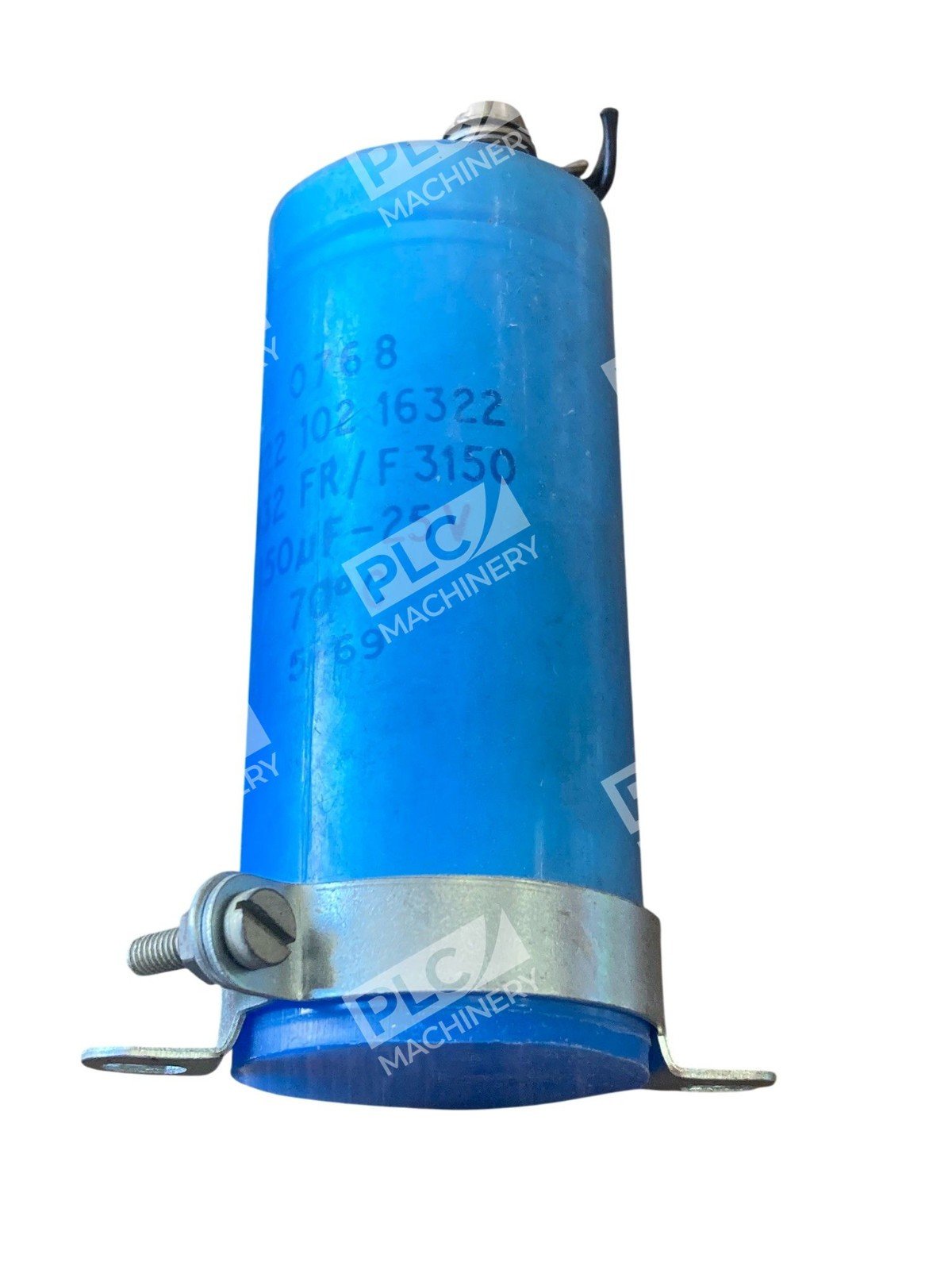

The Panasonic C432 FR 3150uF 25V aluminum electrolytic capacitor is a radial-leaded passive component designed for reliable energy storage in industrial control systems, power supplies, and commercial audio equipment. This capacitor features a large 3150µF capacitance rating with a 25V working voltage, making it suitable for applications requiring sustained energy buffering and filtering in moderate-voltage circuits. The unit is in used condition and has been tested for full functionality.
Key Features
- Large 3150µF capacitance for high-capacity energy storage
- 25V rated voltage suitable for industrial power supply applications
- Aluminum electrolytic construction ensures stable performance across temperature ranges
- Radial-leaded design for through-hole PCB mounting
- Panasonic FR series reliability with proven operational endurance
- Used condition—tested and fully functional for replacement and retrofit applications
Technical Specifications
- Capacitance: 3150µF
- Voltage Rating: 25V DC
- Capacitor Type: Aluminum Electrolytic, Radial Leaded
- Series: Panasonic FR
- Part Number: C432 FR/F3150
- Mounting Style: Through-hole, Radial
- Condition: Used, Tested, Fully Functional
- Quantity: 1 unit
Typical Applications
- Industrial control system power supplies and filtering circuits
- Audio amplifier power supply buffering and stability
- Switchmode power supply (SMPS) output filtering
- Motor drive and servo system DC link capacitance
- Industrial equipment repair and retrofit projects
- Energy storage in moderate-voltage electronic systems
Compatibility & Replacements
Compatible With
- Industrial power supply and UPS circuits rated for 25V DC
- Audio equipment amplifier designs requiring large capacitive buffering
- Motor control and variable frequency drive (VFD) DC link circuits
- Through-hole PCB layouts with standard radial capacitor footprints
- Industrial retrofit and repair applications requiring high-capacity energy storage
Replaces / Drop-In Replacement For
- Direct mechanical and electrical replacement for equivalent Panasonic FR 3150µF 25V capacitors
- Compatible with other 3150µF 25V aluminum electrolytic capacitors featuring radial leads and similar case dimensions
- Verify compatibility with your system integrator before ordering for critical applications
Works With
- Standard through-hole PCB assembly processes and equipment
- Industrial power supply and audio equipment design standards
- Motor control and drive systems requiring DC link filtering
- Commercial and industrial electronics repair workflows
