Overview

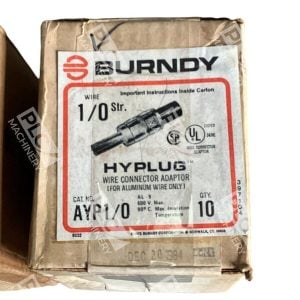

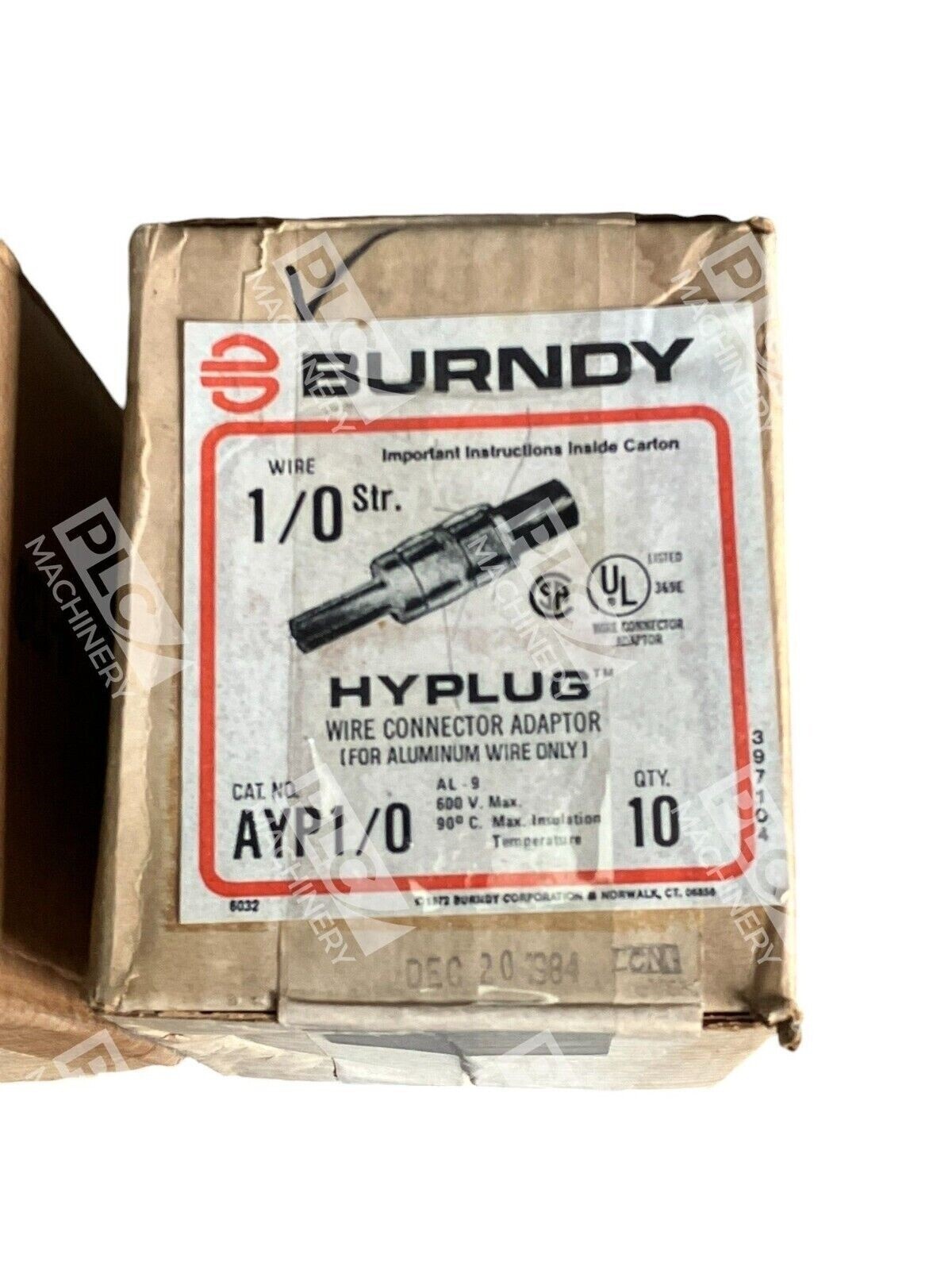

The Burndy AYP1/0 Hyplug compression pin adapter is an aluminum inline connector designed for terminating 1/0 AWG stranded copper or aluminum conductors. This type AYPO straight compression adapter features all-aluminum electro-tin plated construction that eliminates bi-metallic corrosion and provides reliable, air-tight connections in high-voltage equipment, meter sockets, panel boards, and molded-case circuit breakers.
Key Features
- All-aluminum electro-tin plated design — eliminates bi-metallic corrosion and extends service life
- Pre-filled with PENETROX® — oxide-inhibiting compound with conductive particles for air-tight connections between conductor strands
- Compact connector length — shortest design possible for easy installation in tight equipment spaces
- Solid aluminum plug with equivalent cross-sectional area — permits use of larger aluminum wire while maintaining electrical integrity
- Rated 600–35,000 VAC — suitable for low-voltage to high-voltage distribution and utility applications
- EPDM rubber covers included — rated 600V; supplied with each connector to eliminate manual taping
Technical Specifications
- Conductor Size: 1/0 AWG stranded (aluminum or copper)
- Pin Diameter: 0.29 inches
- Pin Length: 0.84 inches
- Overall Length: 2.01 inches
- Barrel Length: 1 inch
- Wire Strip Length: 1-1/16 inches
- Cover Length: 1.78 inches
- Material: Aluminum, electro-tin plated
- Voltage Rating: 600–35,000 VAC
- Max Operating Temperature: 194°F
- Connector Type: Inline pin (straight, type AYPO)
- Die Code: 296 Element A
- Color Code: Tan
- Finish: Electro-tin plated
Typical Applications
- Aluminum and copper wire termination in mechanical connectors
- Molded-case circuit breakers and panel board equipment
- Meter socket connections
- Distribution equipment with limited working space
- High-voltage utility and industrial switchgear
- Power distribution and metering installations
Compatibility & Replacements
Compatible With
- Molded-case circuit breaker terminals accepting 1/0 AWG inline pins
- Panel board equipment and meter sockets rated for 1/0 AWG connections
- High-voltage switchgear and distribution equipment (600–35,000 VAC)
- Both aluminum and copper 1/0 AWG stranded conductors
- Standard compression termination equipment using die code 296
Replaces / Drop-In Replacement For
- Other Burndy inline compression pin adapters for 1/0 AWG (verify die compatibility)
- Legacy aluminum pin adapter models with equivalent 0.29″ pin diameter and 0.84″ length
- OEM equipment-specific inline pin connectors rated for the same voltage and conductor size
Works With
- Burndy and third-party compression crimping tools rated for die code 296
- Standard electrical inspection and certification practices (USA manufactured, Buy American compliant)
- EPDM rubber covers supplied for 600V insulation and protection
- Equipment compliance with National Electrical Code (NEC) and utility standards
