Overview

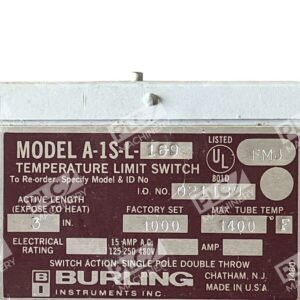

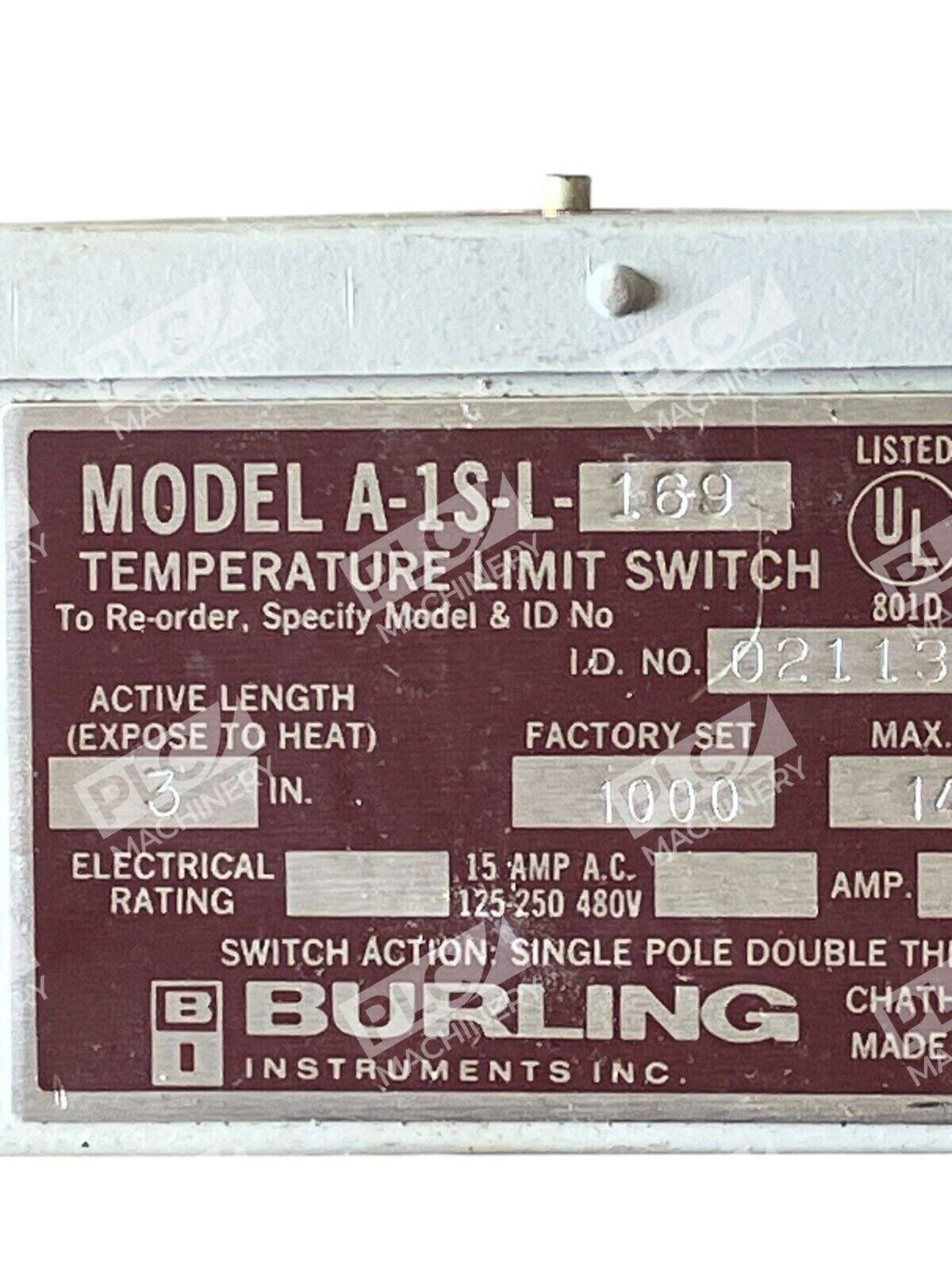

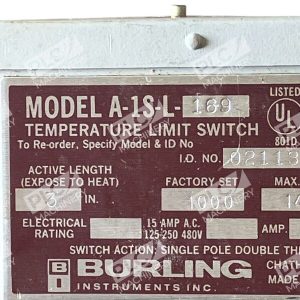

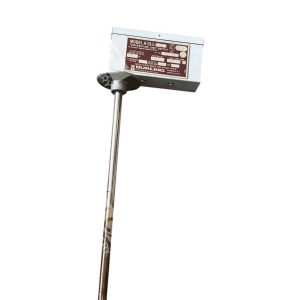

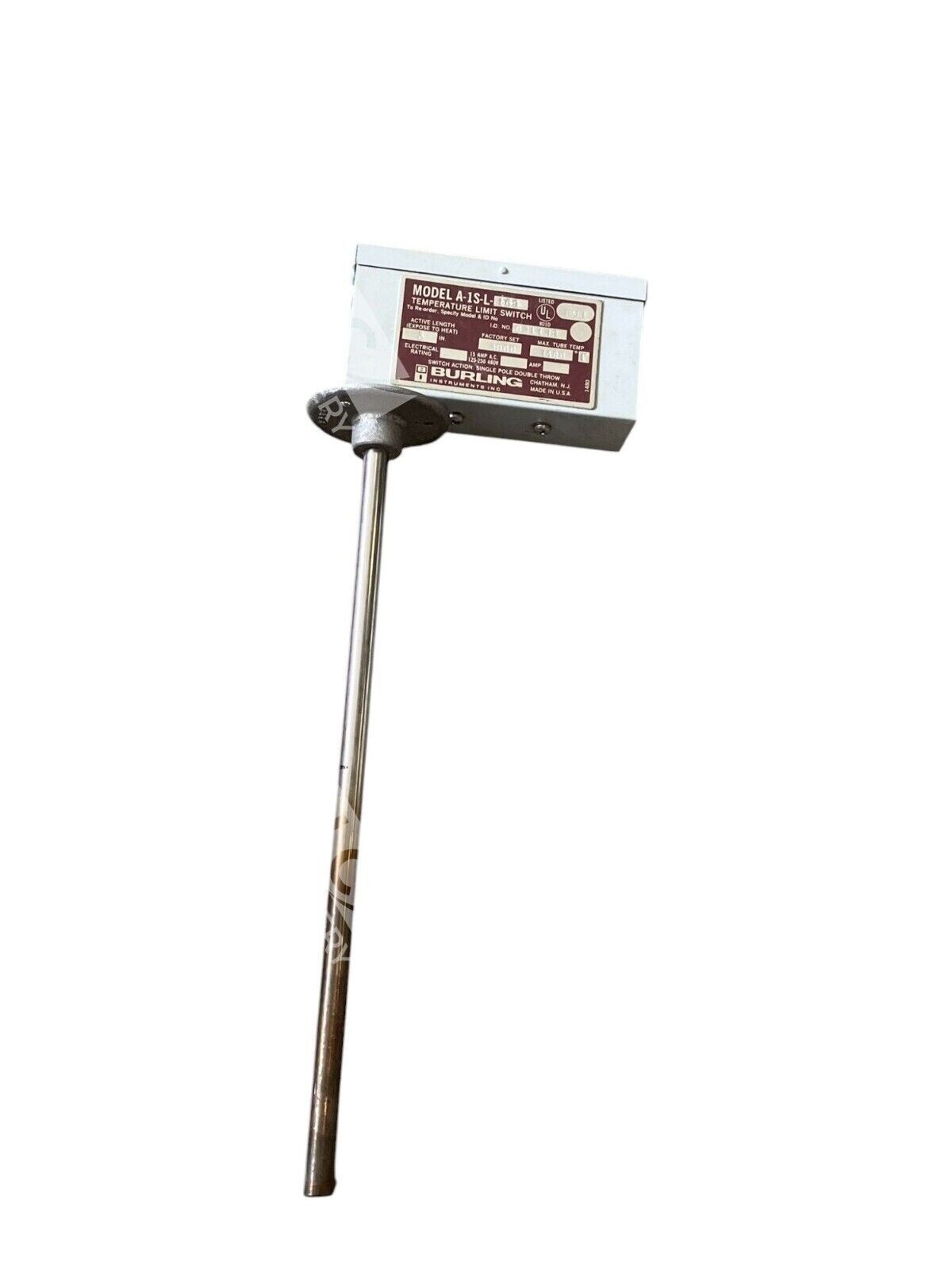

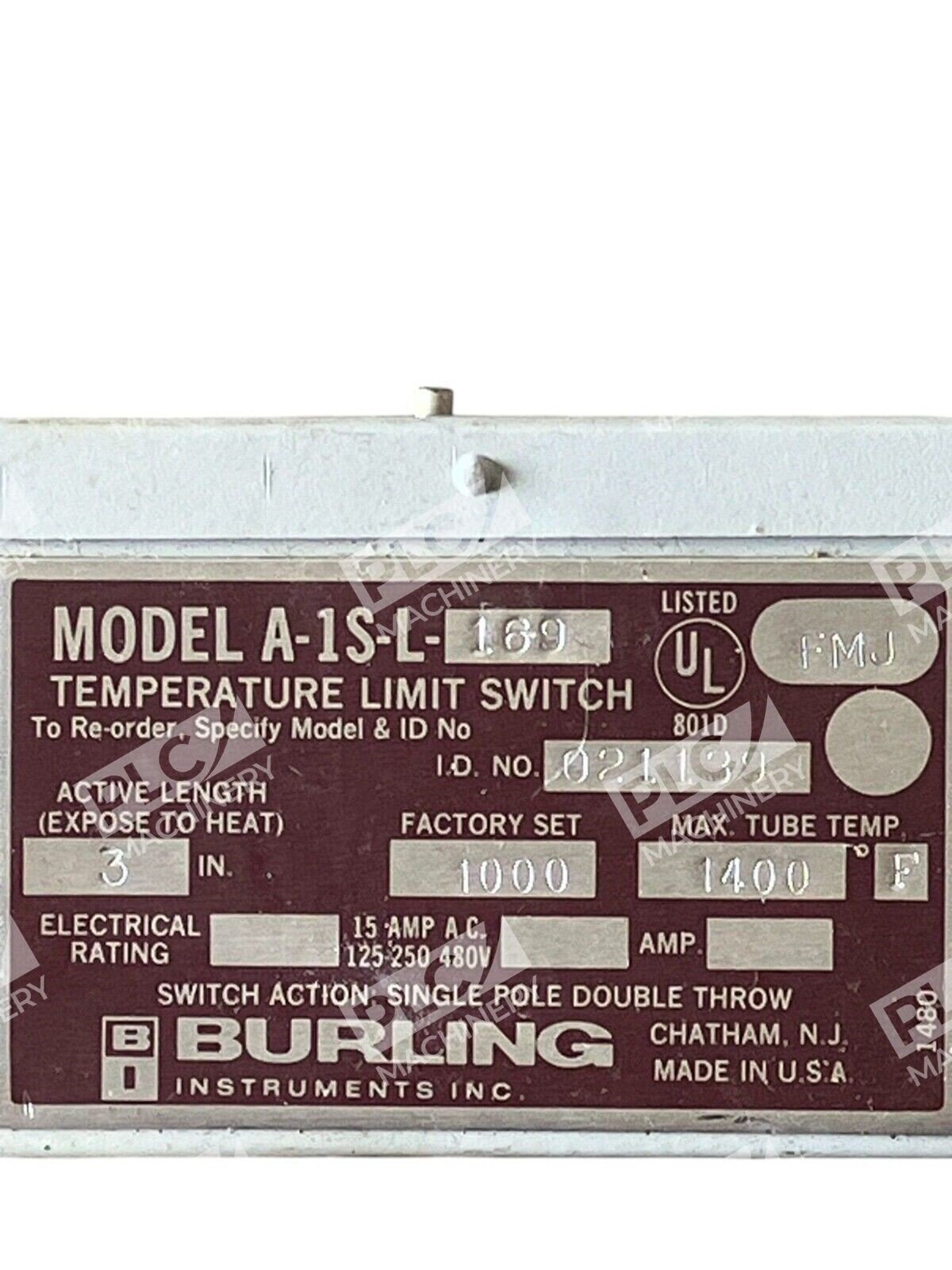

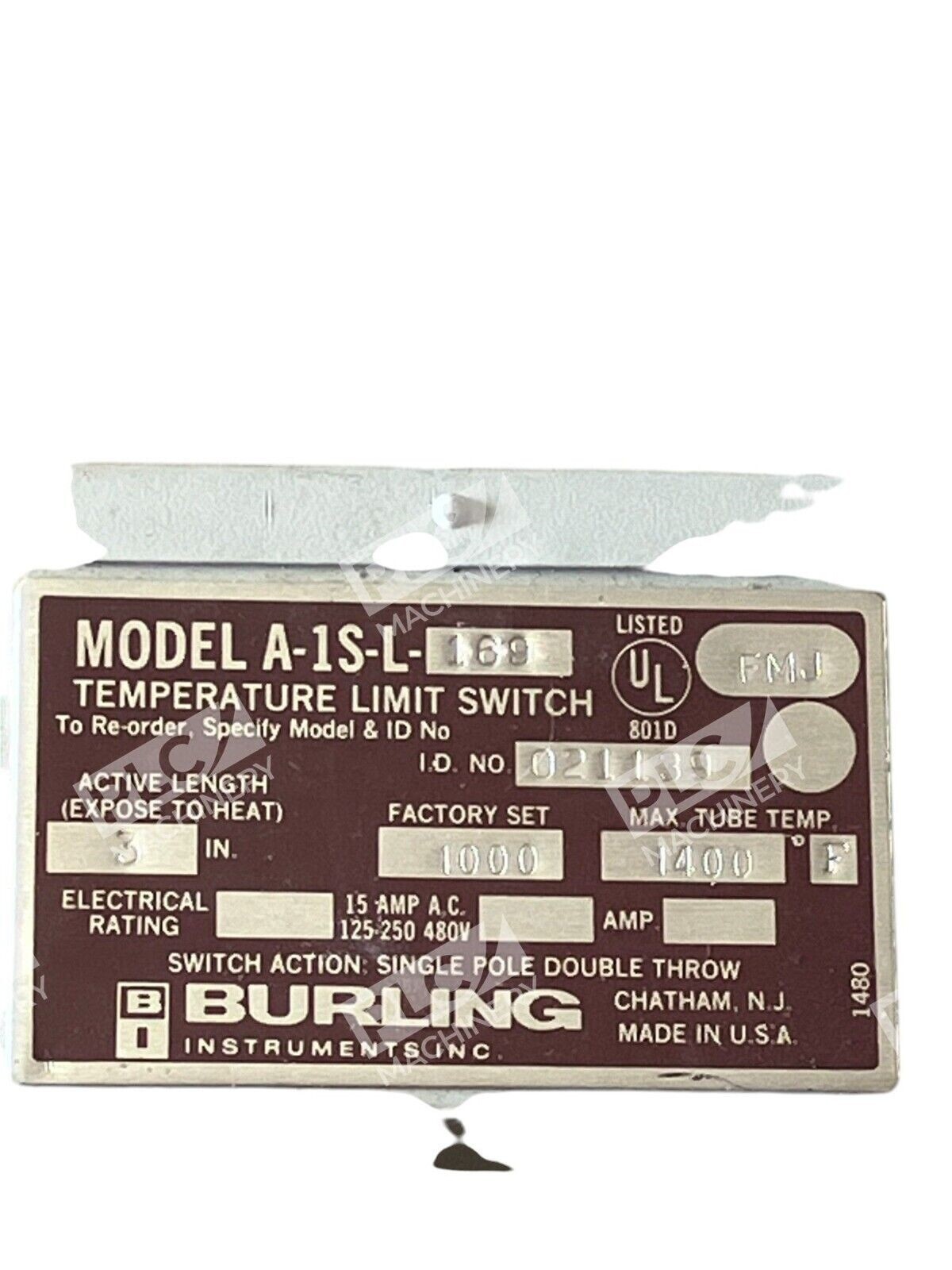

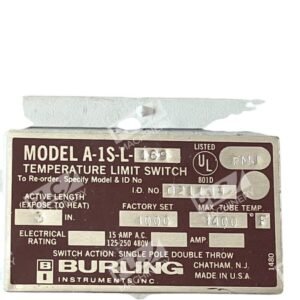

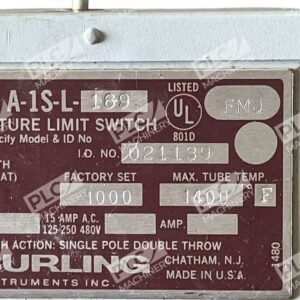

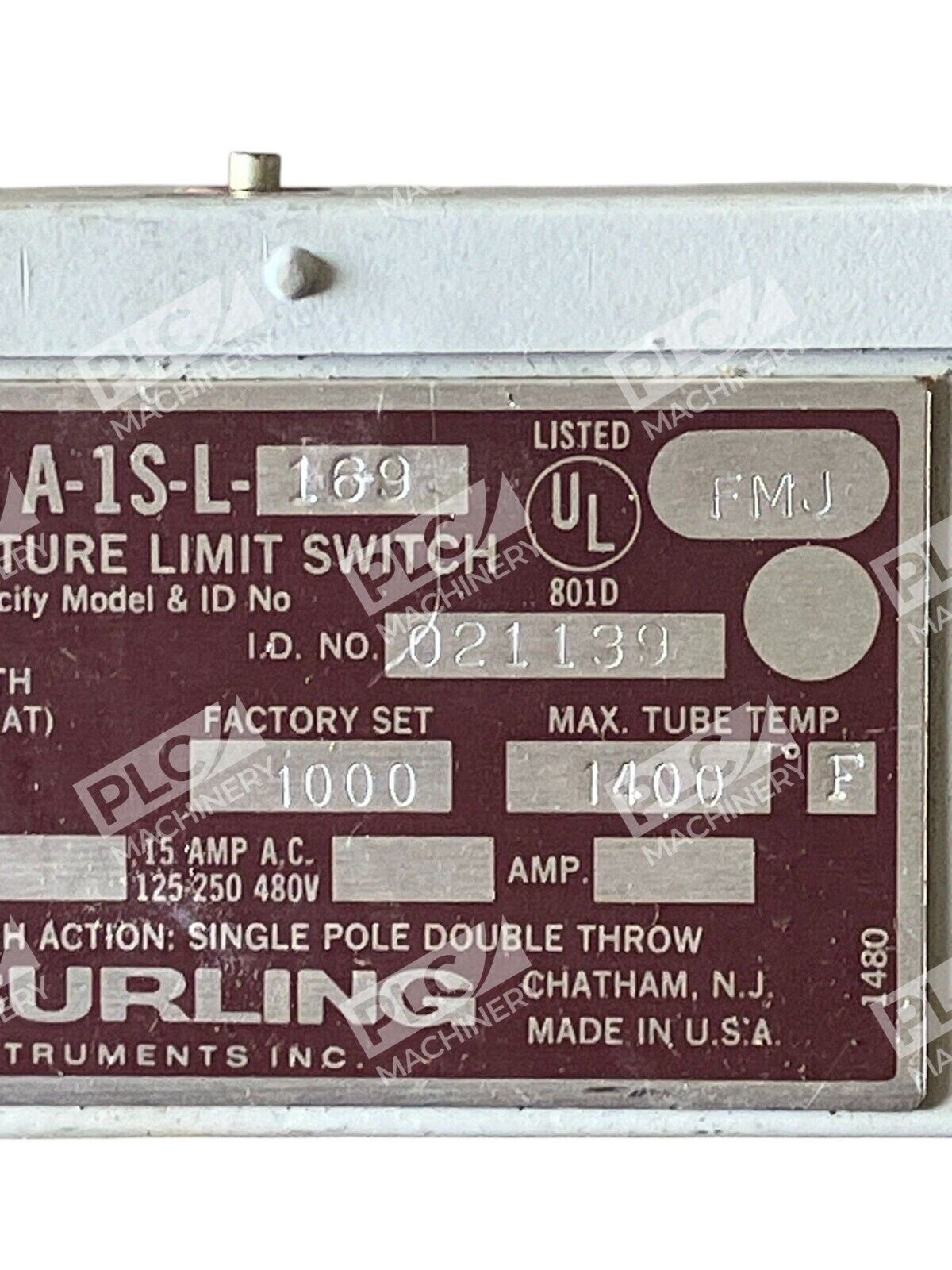

The Burling A-1S-L-169 temperature limit switch is a robust electro-mechanical safety control device designed for critical thermal cutoff applications. This unit is rated for 15 amps at 125/250/480V with a 3-inch probe, making it suitable for direct integration into industrial heating and temperature-critical circuits. The Differential Expansion “DE” product line represents the standard electro-mechanical safety temperature limit switch against which all others are measured, and the Burling design is field-proven across decades of service.
Key Features
- 15-amp rated contact for reliable switching in industrial circuits
- Multi-voltage compatibility: 125V, 250V, and 480V operation
- 3-inch temperature probe for responsive thermal detection
- Differential expansion switch mechanism—time-tested, mechanical design
- Used condition: fully functional and ready for integration
Technical Specifications
This temperature limit switch combines robust construction with straightforward electrical ratings:
Typical Applications
- Furnace and oven thermal safety cutoff
- Industrial heating equipment temperature shutdown
- Thermal protection in fluid heating systems
- Process control and equipment safeguarding
- Maintenance and retrofit of existing temperature-critical equipment
Compatibility & Replacements
Compatible With
- 115V, 230V, 460V single-phase and three-phase industrial power
- Direct-wired thermal control circuits
- Legacy and modern heating system installations
- Equipment using differential expansion or bimetallic temperature sensing
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator or control design before ordering. The A-1S-L-169 is a direct replacement for like-for-like Burling differential expansion models with identical electrical and mechanical specifications.
Works With
- Industrial control panels and motor starters
- Electro-mechanical relay circuits
- Hardwired safety interlocks
- Legacy temperature-monitoring systems
