Overview

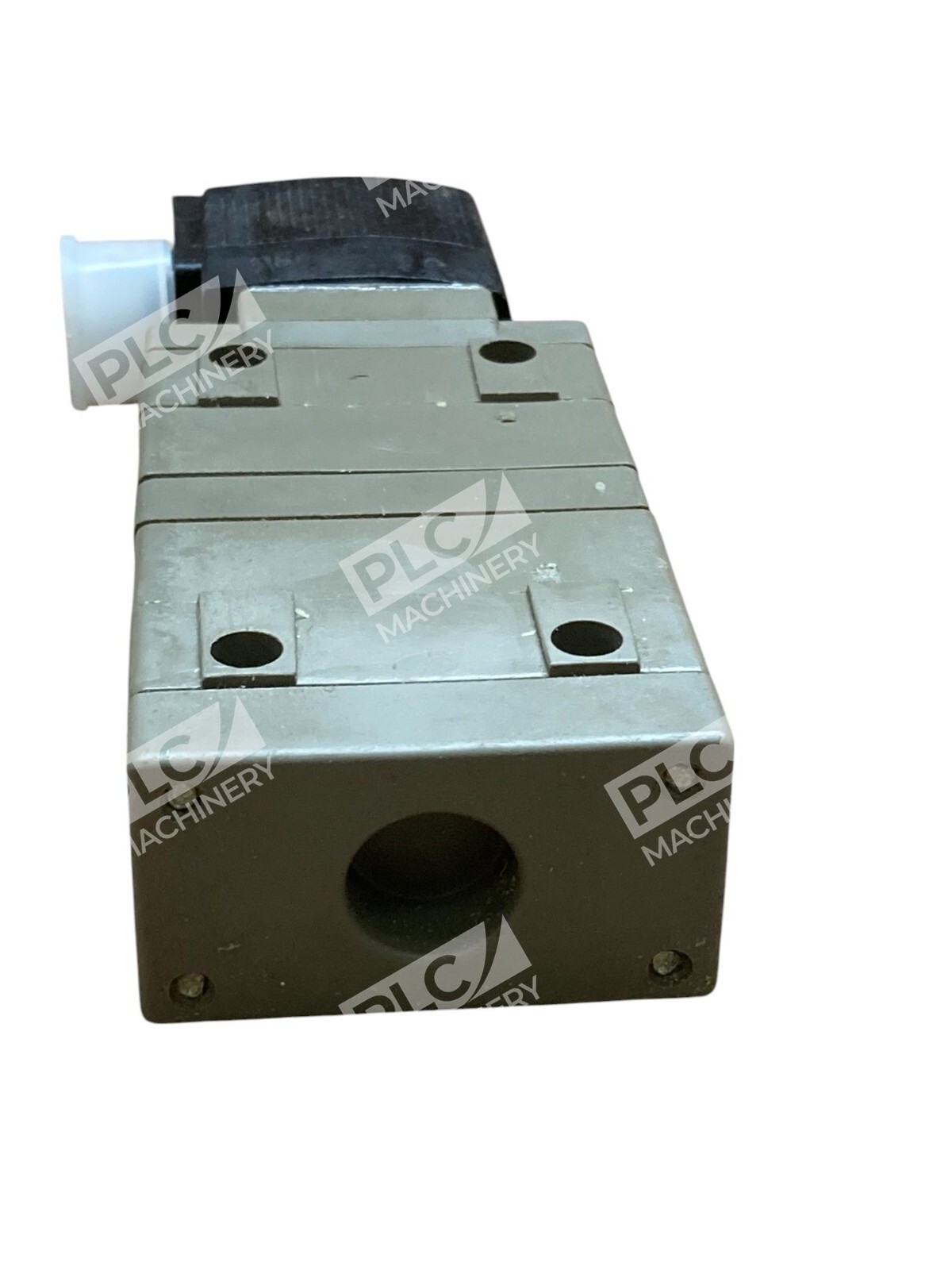

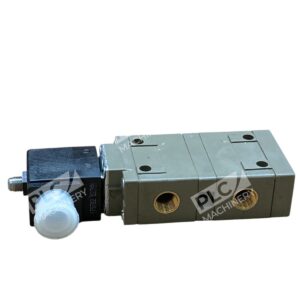

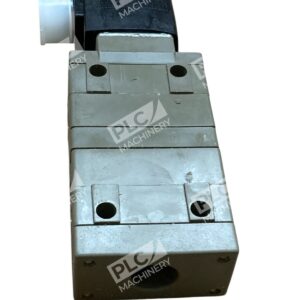

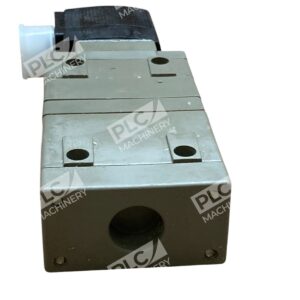

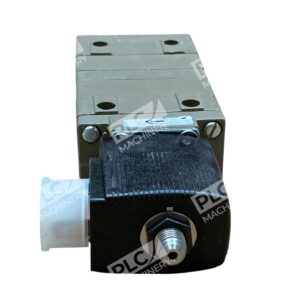

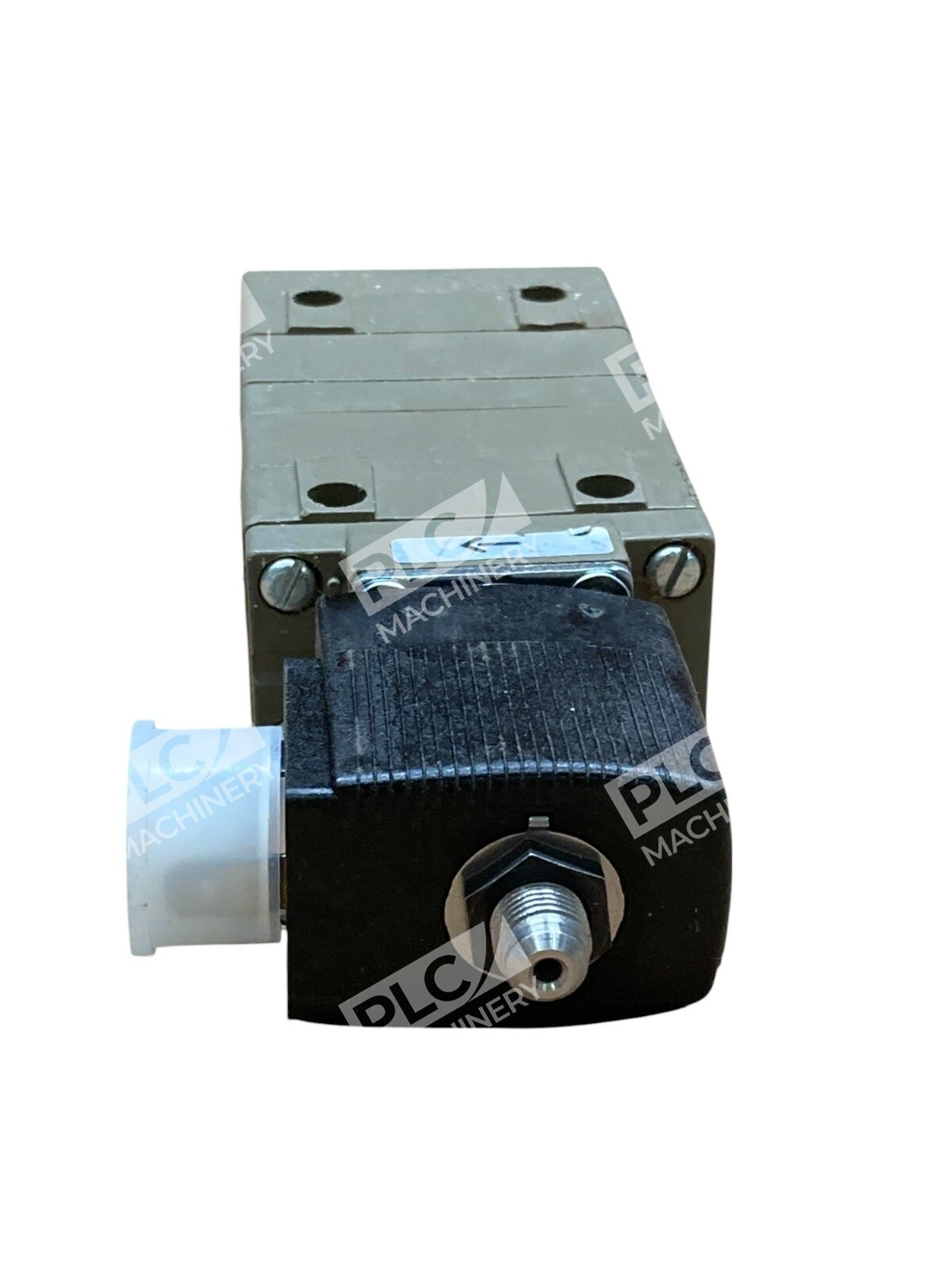

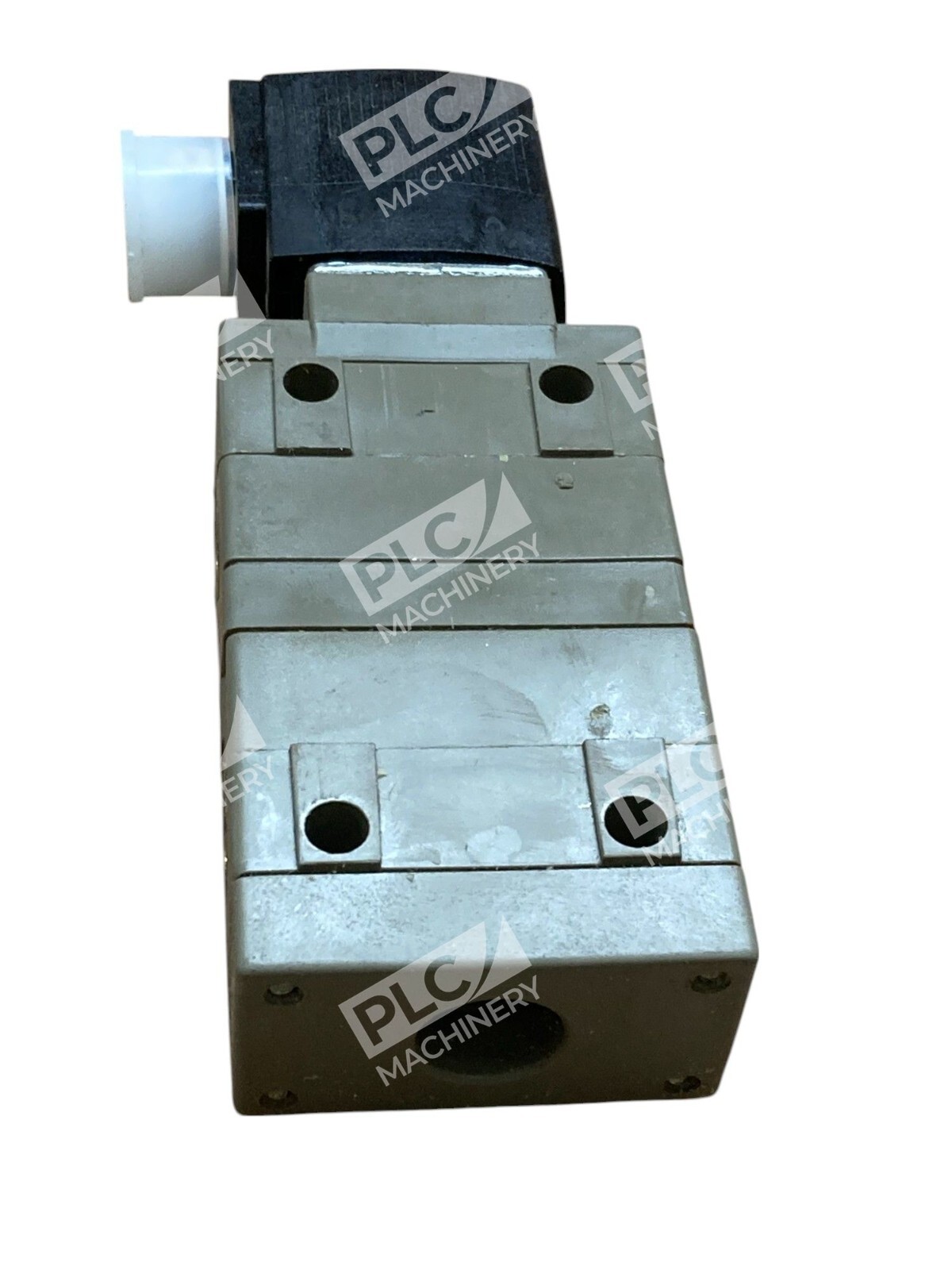

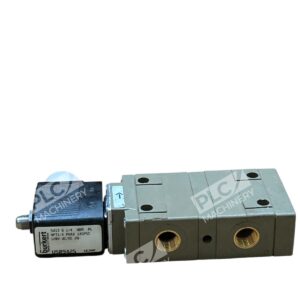

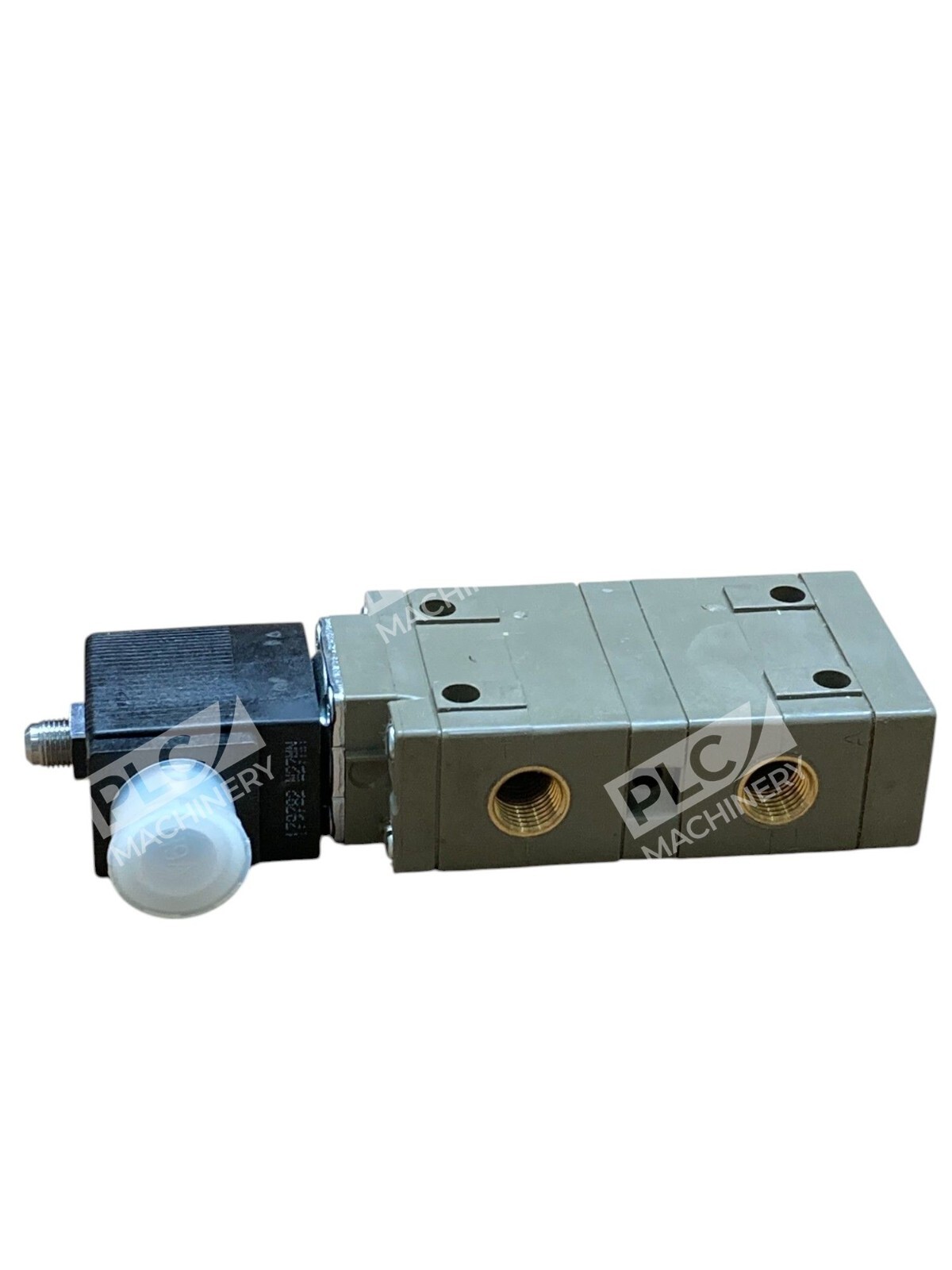

The Burkert US09425 5413 G 1/4 NPT solenoid valve is a compact pilot-operated 4/2-way directional valve engineered for pressurized air and inert gas control in industrial automation. Type 5413 is a pilot operated 4/2-way solenoid valve with manual override as standard. With 1/4 NPT ports and a maximum inlet pressure rating of 145 PSI, this valve provides reliable actuation for pneumatic cylinders and similar load applications. The NBR seal material ensures compatibility with standard industrial fluids.
Key Features
- Pilot-operated design minimizes solenoid coil power draw and enables high-flow switching
- Manual override allows emergency manual control without electrical power
- 1/4 NPT threaded ports for direct pipeline integration
- Internally piloted configuration with 1 bar minimum pressure differential for switching
- Compact mounting footprint with M4 tapped hole installation pattern
- Suitable for air, inert gas, and low-viscosity fluid control
Technical Specifications

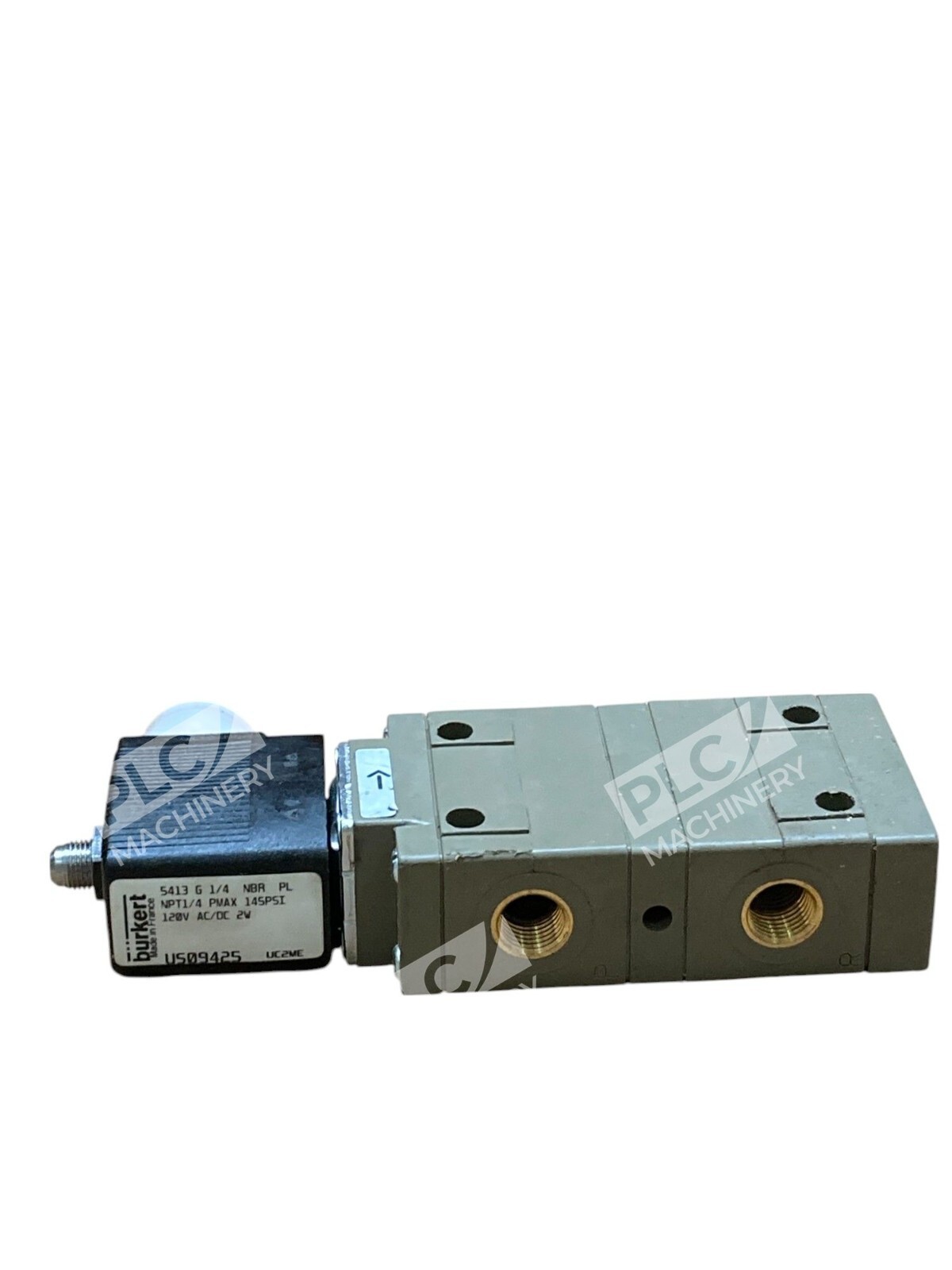

- Model: Burkert 5413 G 1/4 NBR PL (US09425)
- Valve Type: 4/2-way solenoid valve, internally piloted
- Port Configuration: 1/4 NPT (G thread)
- Maximum Inlet Pressure: 145 PSI (10 bar)
- Minimum Pilot Pressure Differential: 1 bar (14.5 PSI)
- Seal Material: NBR (nitrile butadiene rubber)
- Electrical Supply: 120 VAC/DC (coil voltage per label)
- Manual Override: Yes, integral manual lever
- Mounting: Four M4 x 8 mm tapped holes (valve underside)
- Operating Temperature Range: Ambient to 104 °F (40 °C); Fluid to 140 °F (60 °C)
- Body Material: Zinc die-cast or ductile iron (per configuration)
Typical Applications
- Pneumatic cylinder actuation and directional control
- Automated packaging and assembly machinery
- Compressed air distribution networks
- Industrial automation and process control systems
- Machine tool and CNC equipment pilot control
- Inert gas and nitrogen line switching
Compatibility & Replacements
Compatible With
- Standard 120 VAC/DC control circuits and PLC outputs
- Pneumatic and low-pressure hydraulic systems
- Burkert directional valve manifold blocks
- Air compressor and pressure regulator networks
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering. The Burkert Type 5413 replaces earlier pilot-operated 4/2-way directional valves from Burkert with 1/4 NPT connections and similar pressure ratings.
Works With
- Pneumatic and vacuum systems
- Proportional and on/off solenoid control coils
- Industrial relay and PLC control circuits
- Standard ISO 4401 NG10 and NG16 manifolds (cavity dependent)
