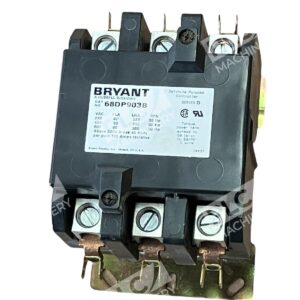

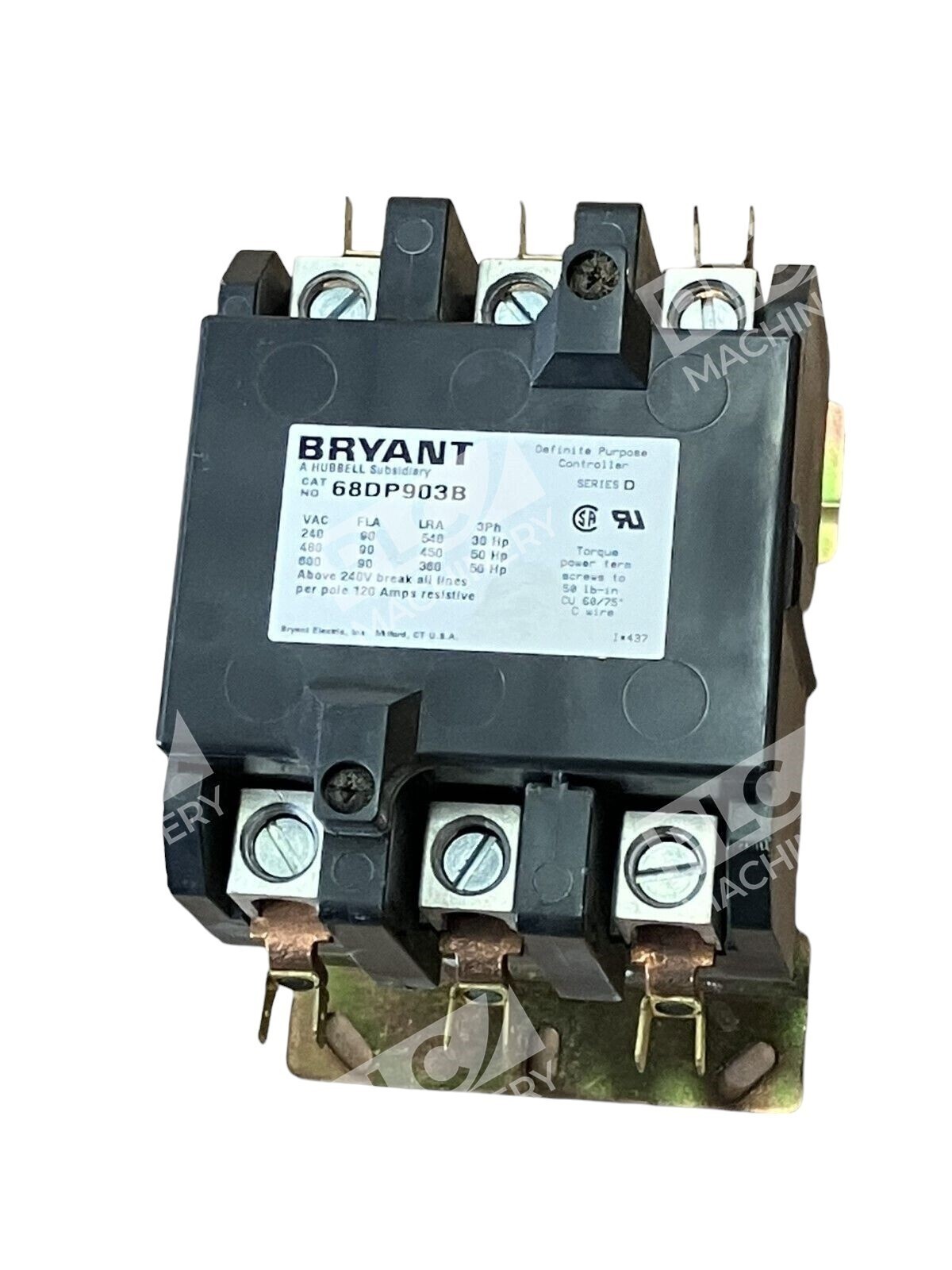

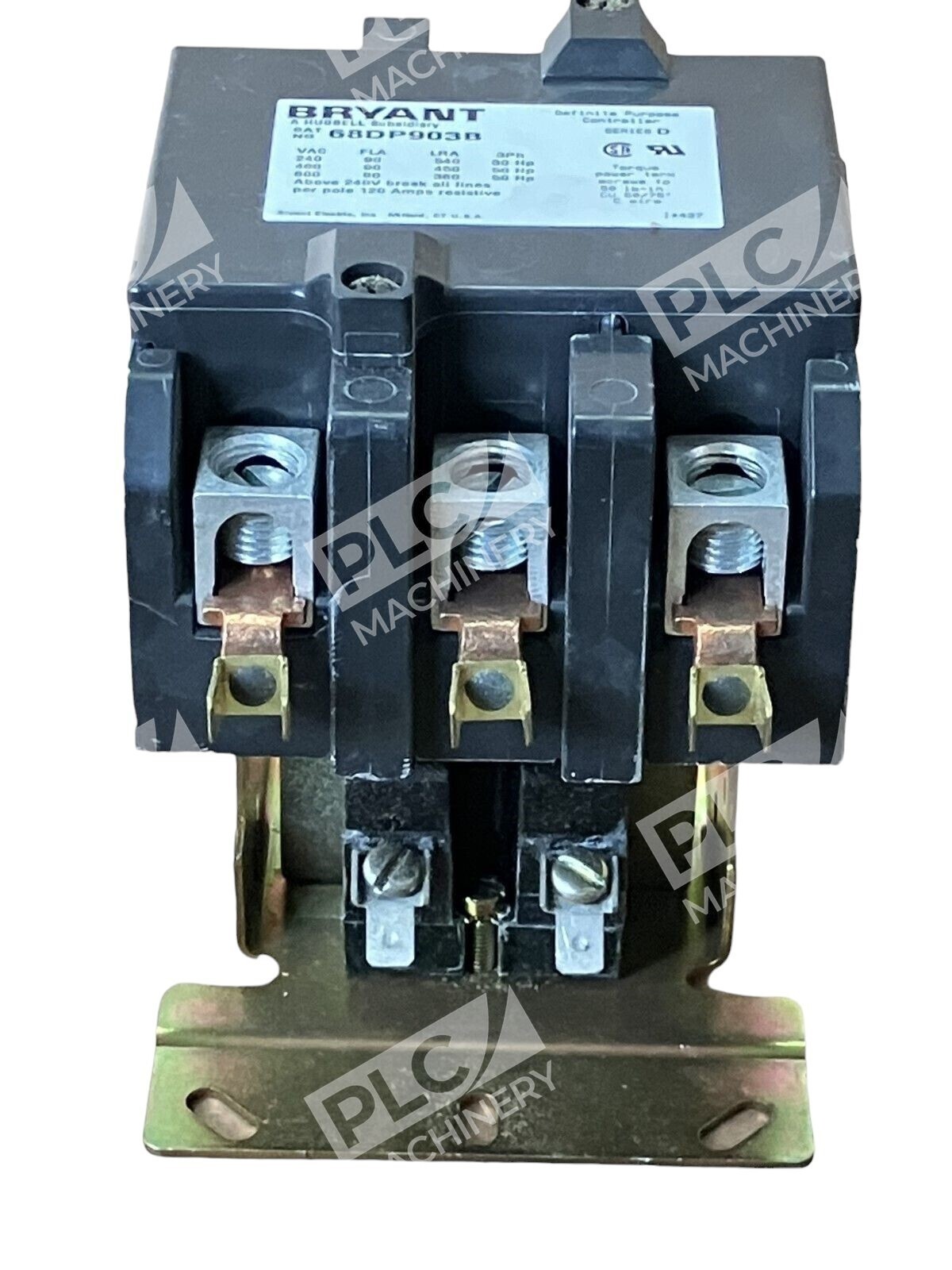

Bryant 68DP903B /D Definite Purpose Contactor

The Bryant 68DP903B/D is a robust definite purpose contactor designed for reliable performance in various industrial applications.

Key Features

• Poles: 3-Pole configuration for versatile application.
• Amperage: Rated for 90 Amps, suitable for high-current loads.
• Voltage: Operational up to 600V AC, accommodating a range of voltage requirements.

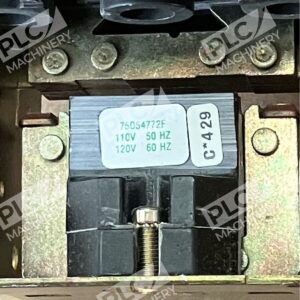

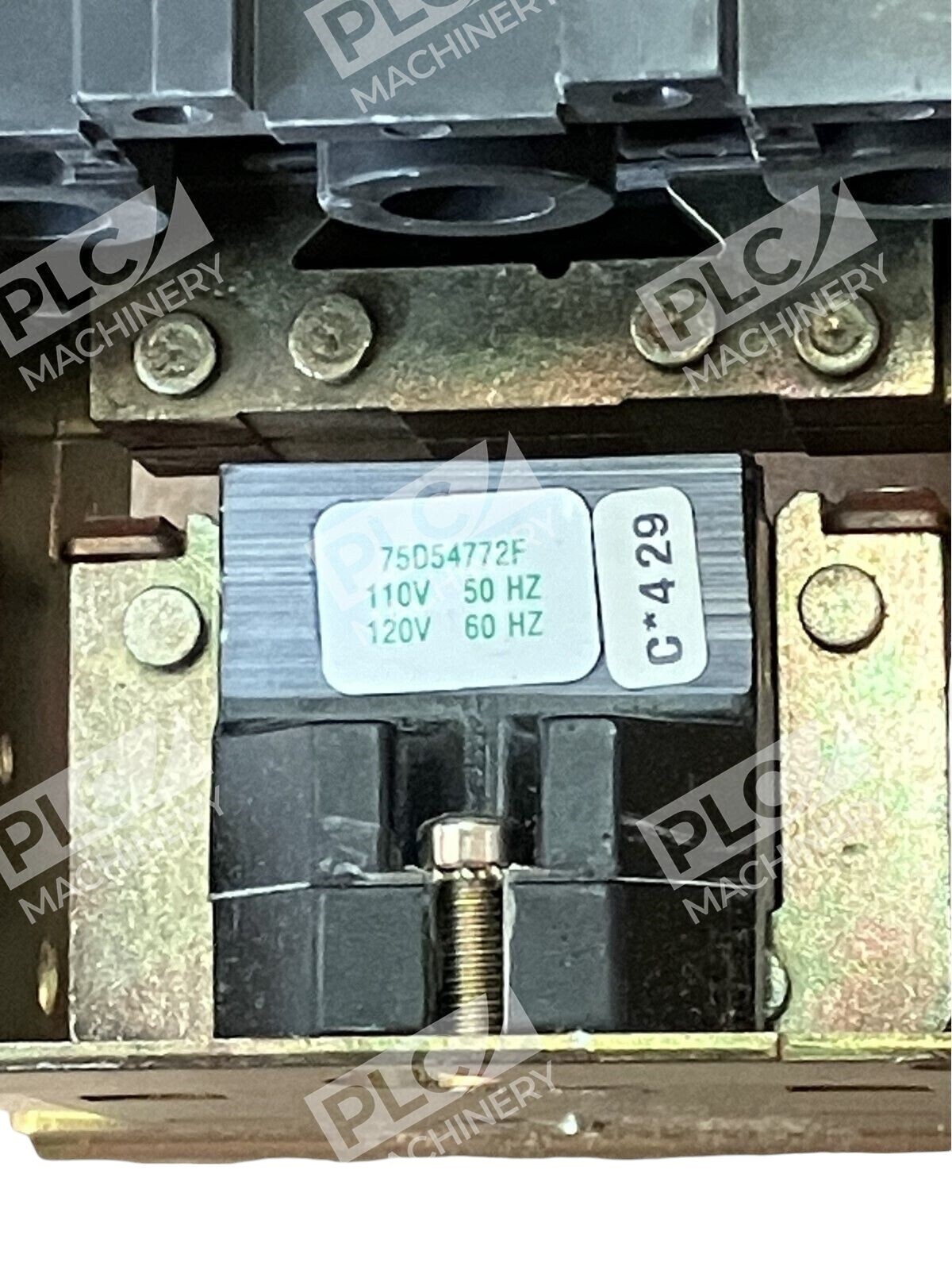

• Control Circuit Voltage: Compatible with 120V AC at 60 Hz and 110V AC at 50 Hz control circuits.

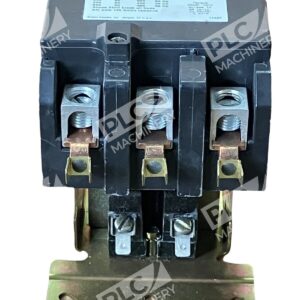

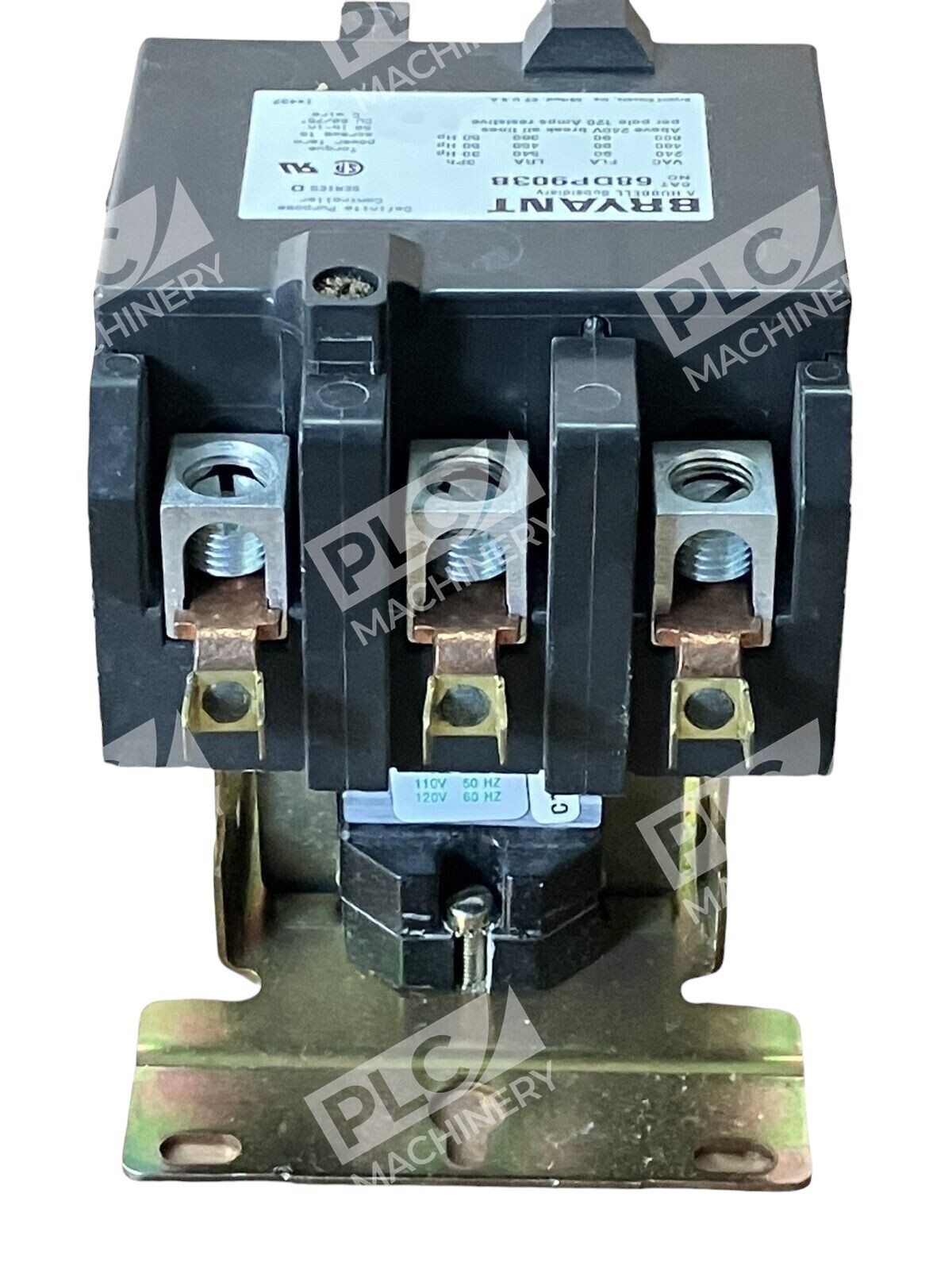

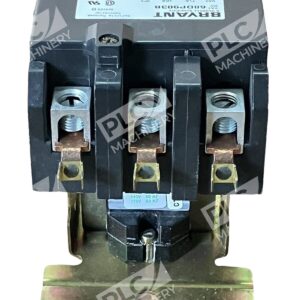

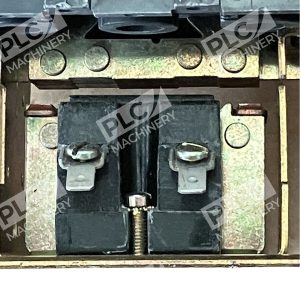

• Mounting: Designed for easy installation with quick-connect terminals and box lugs.

Performance Specifications

• Locked Rotor Rated Current: 360A at 277V AC, 300A at 460V AC, and 240A at 575V AC.
• Horsepower Ratings:
  • 5 HP at 115V AC (Single Phase)
  • 10 HP at 230V AC (Single Phase)
  • 25 HP at 230V AC (Three Phase)
  • 30 HP at 460V AC (Three Phase)
  • 30 HP at 575V AC (Three Phase)

Environmental and Compliance

• Certifications: UL Recognized and CSA Certified, ensuring adherence to safety and performance standards.

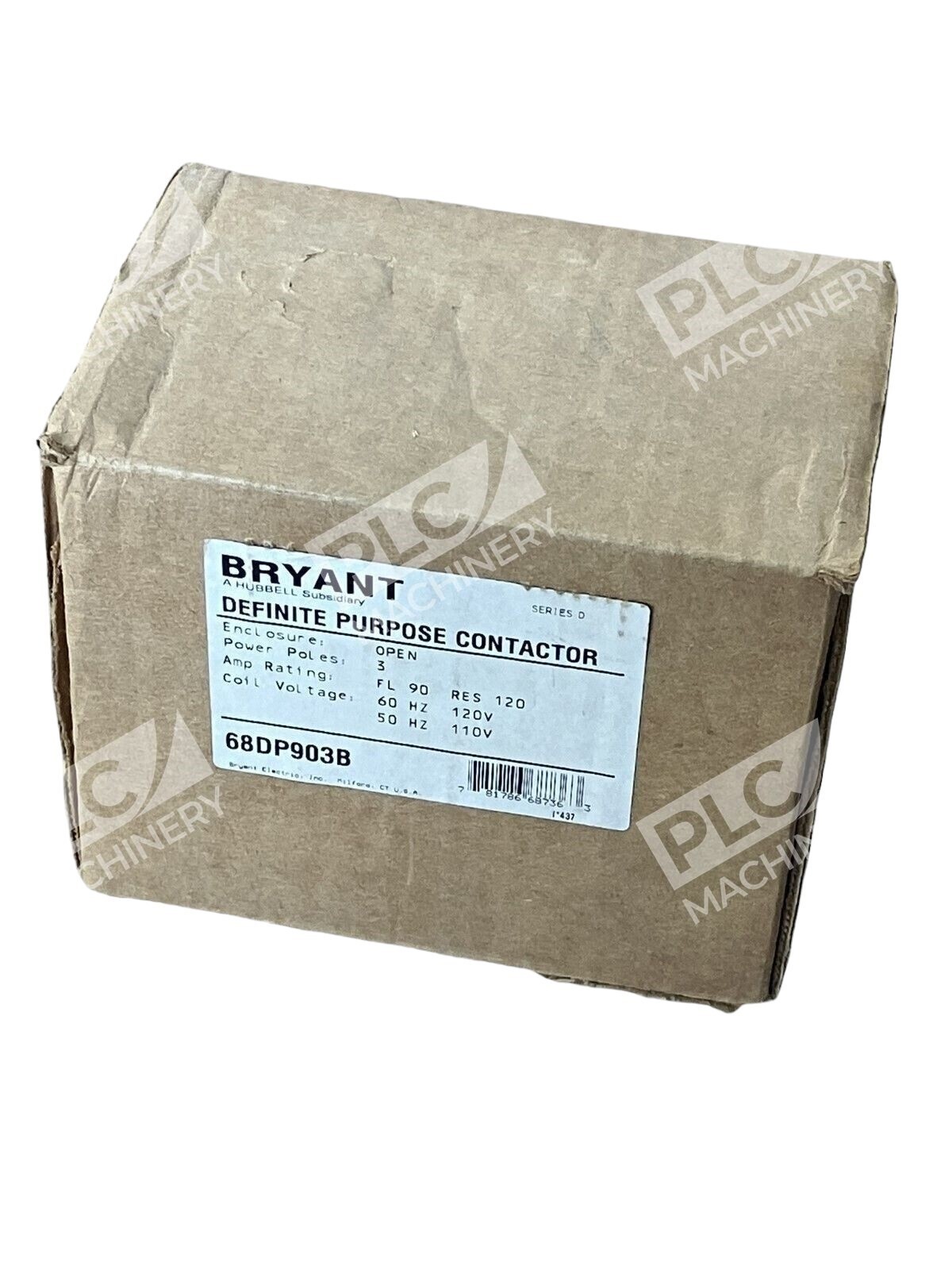

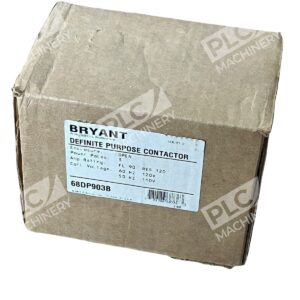

• Environmental Considerations: RoHS compliant with exemptions, mercury-free, and packaged using recycled cardboard without single-use plastics.

Physical Dimensions

• Width: 2.56 inches (65 mm)
• Height: 4.13 inches (105 mm)
• Depth: 3.67 inches (93 mm)
• Weight: 1.5 lbs (0.68 kg)

The Bryant 68DP903B/D definite purpose contactor is engineered for durability and efficiency, making it an excellent choice for controlling electric motors and other high-power loads in commercial and industrial settings.
