Overview

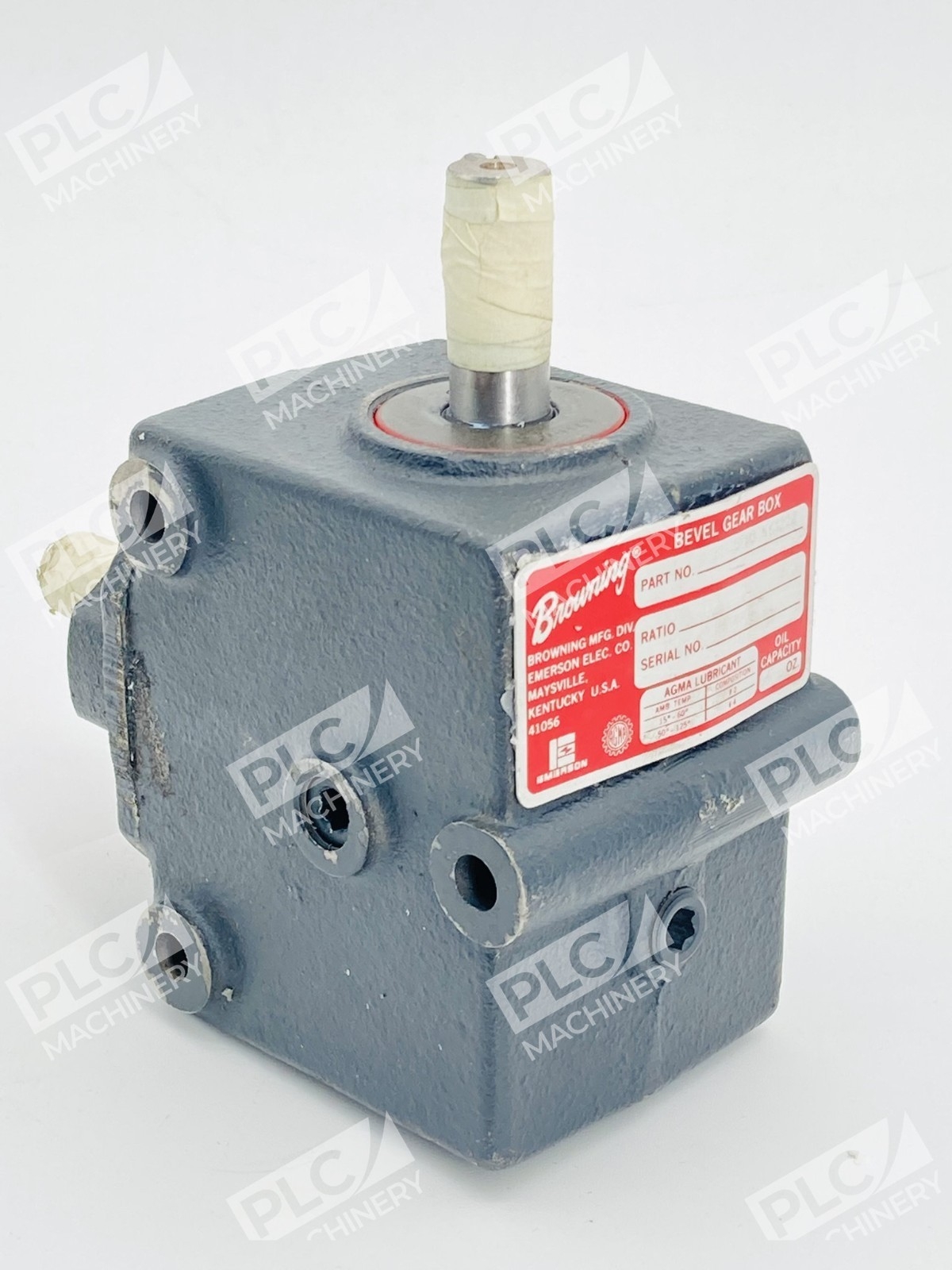

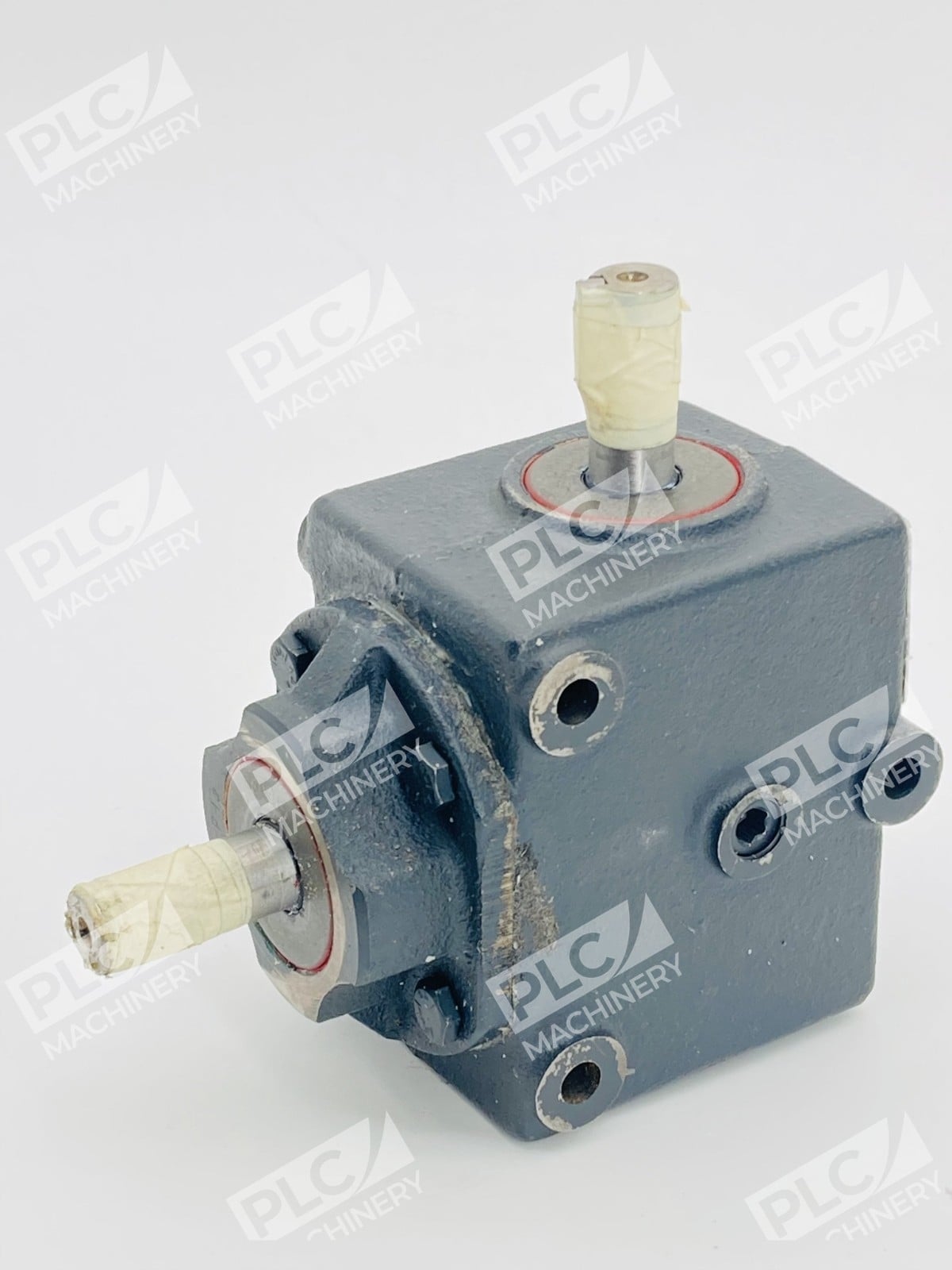

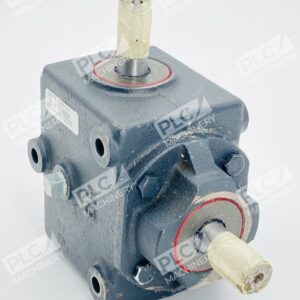

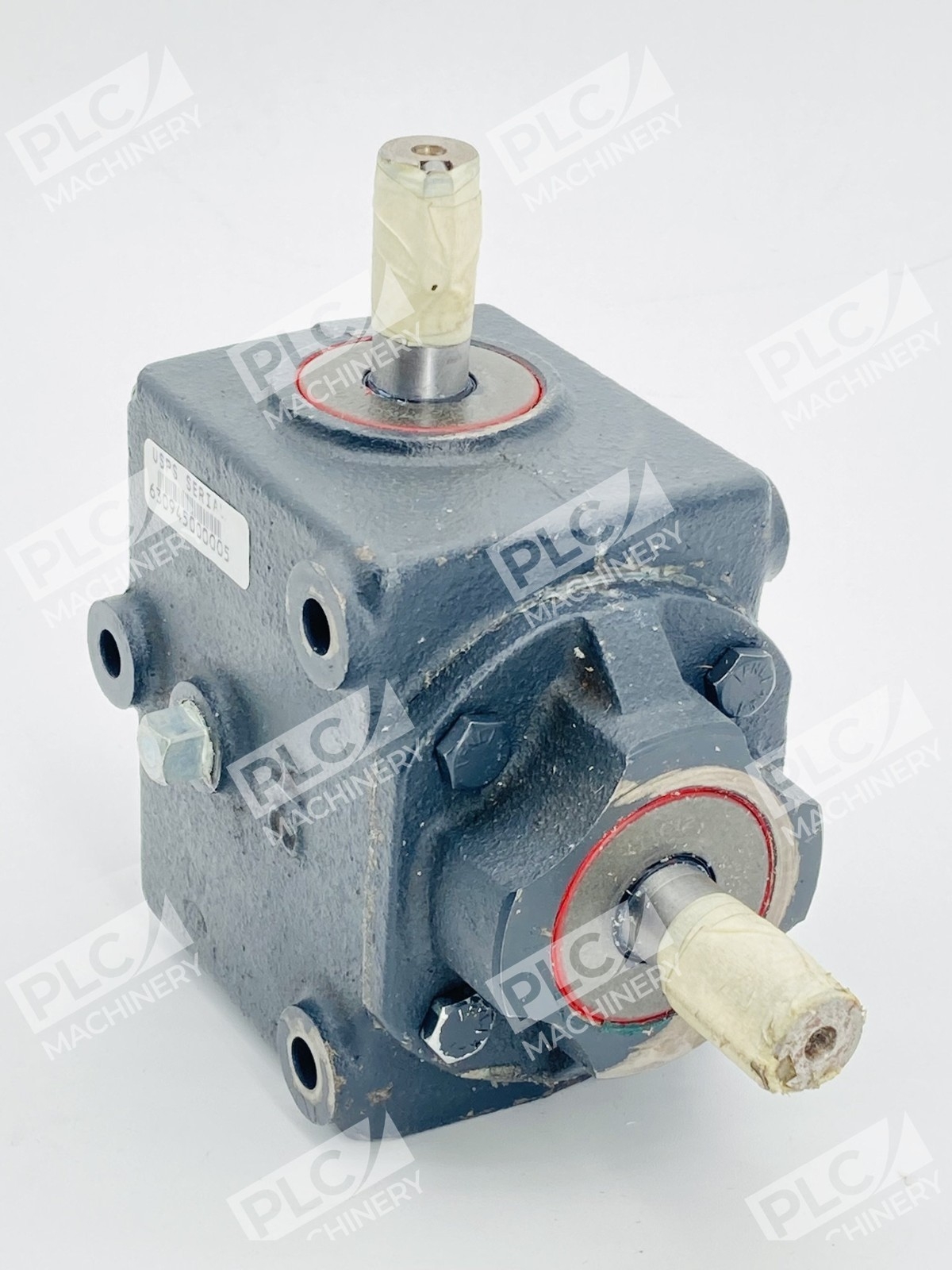

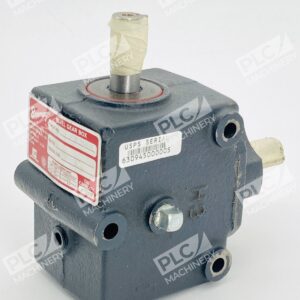

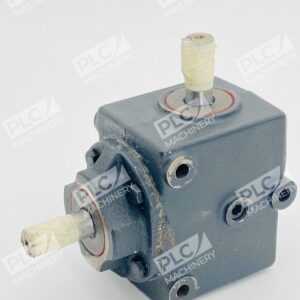

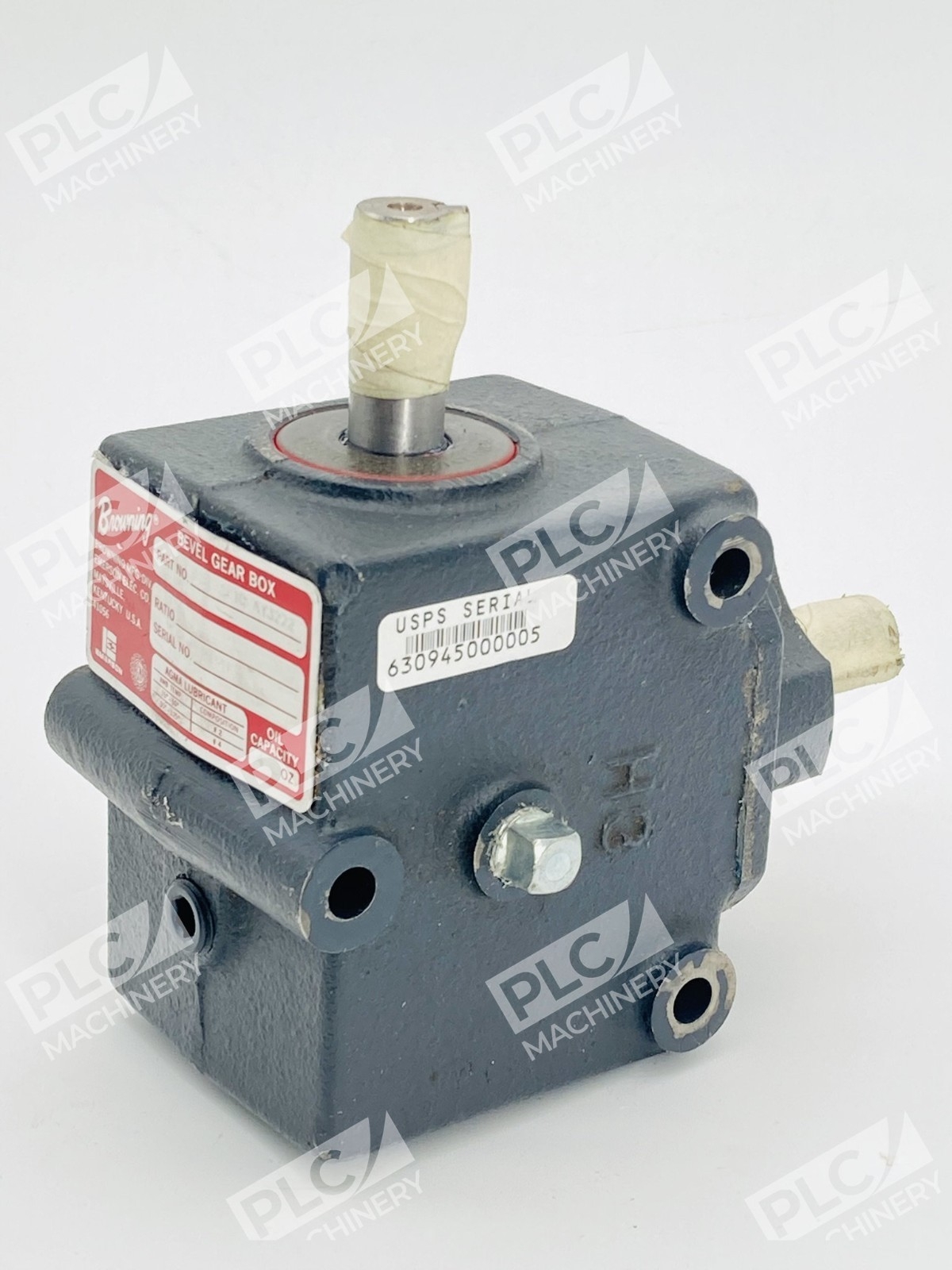

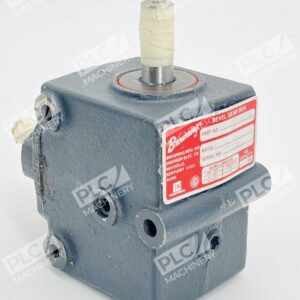

The Browning 3HB1-SF10 bevel gearbox is a precision right-angle speed reducer engineered for demanding industrial applications. With a 1:1 nominal gear ratio and straight bevel tooth design, this compact unit delivers efficient power transmission while solving critical space constraints in machinery layouts. The gearbox features direct-mounted configuration for simplified installation and reliable performance in automation, material handling, and general industrial drive systems.
Key Features
- Right-angle shaft orientation for compact installation in confined spaces
- 1:1 gear ratio maintains input/output speed equivalence
- Straight bevel gear design for smooth, efficient torque transmission
- 5/8″ input shaft diameter for standard motor coupling compatibility
- Shaft input and shaft output configuration for direct drive applications
- Cast iron construction for durability and long service life

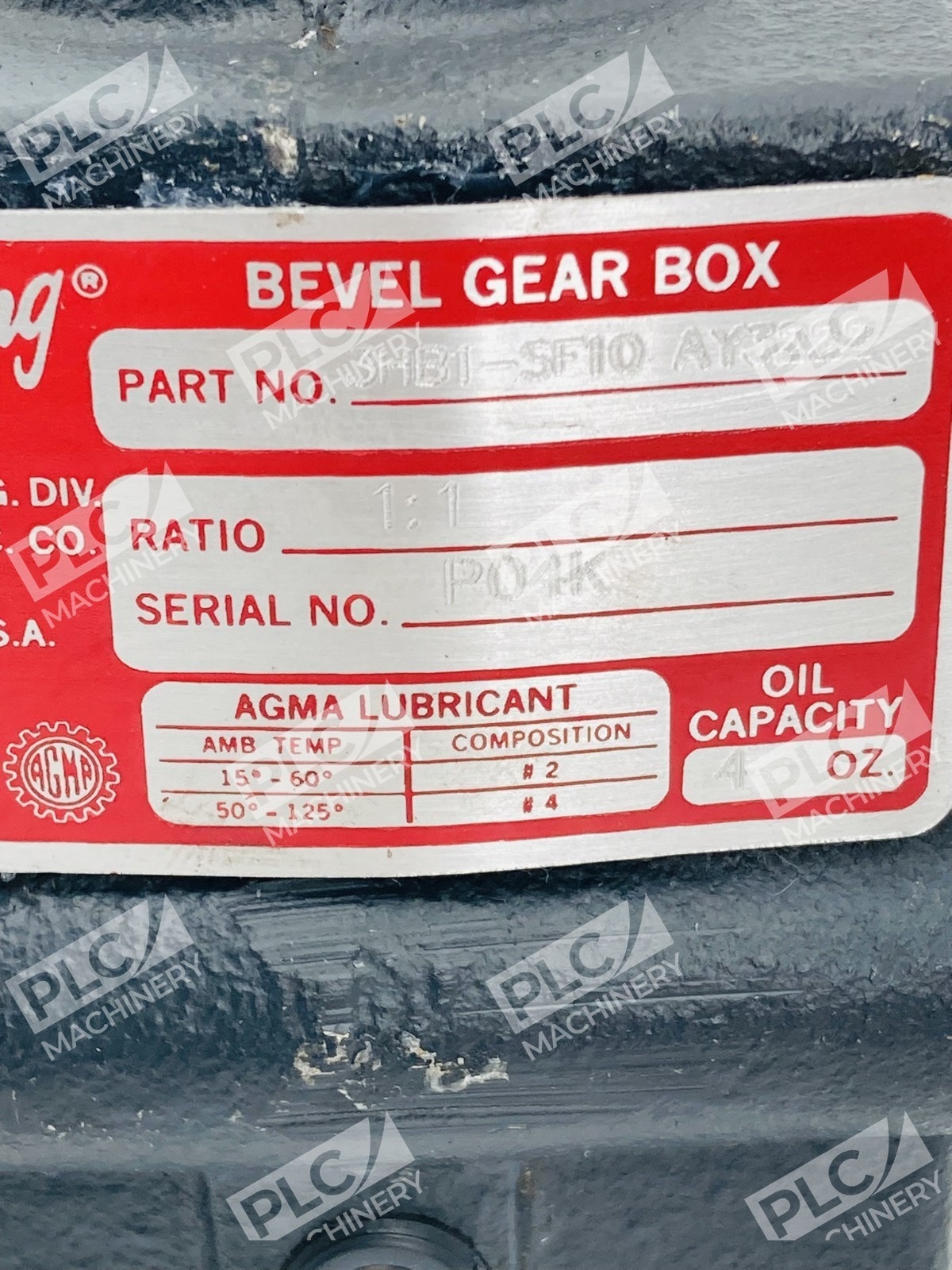

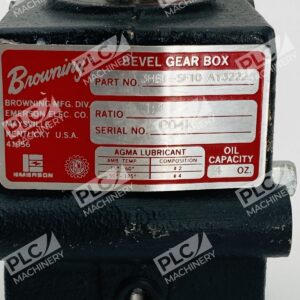

Technical Specifications
- Gear Type: Straight Bevel
- Reduction Ratio: 1:1
- Configuration: Right Angle / Direct Mounted
- Input Shaft Diameter: 5/8 inch
- Shaft Type: Shaft Input / Shaft Output
- Series: 3HB1
Typical Applications
The Browning 3HB1-SF10 is ideal for right-angle power transmission in pumping systems, conveyor drives, mixing equipment, and machine tool applications where space optimization and smooth motion control are essential. Its 1:1 ratio design maintains consistent speed ratios suitable for parallel-shaft reconfiguration in compact machinery designs.
Compatibility & Replacements
Compatible With
- Standard 5/8″ motor shafts and couplings
- Industrial electric motors (AC/DC single and three-phase)
- Direct-drive coupling systems
- Industrial automation machinery and equipment
Replaces / Drop-In Replacement For
Verify specific replacement applications with your supplier or system integrator, as gearbox compatibility depends on shaft sizing, torque requirements, and mounting configuration.
Works With
- Flexible and rigid shaft couplings
- Standard industrial motor mounting footprints
- Direct belt and chain drive systems
- Modular machinery and production lines
