Overview

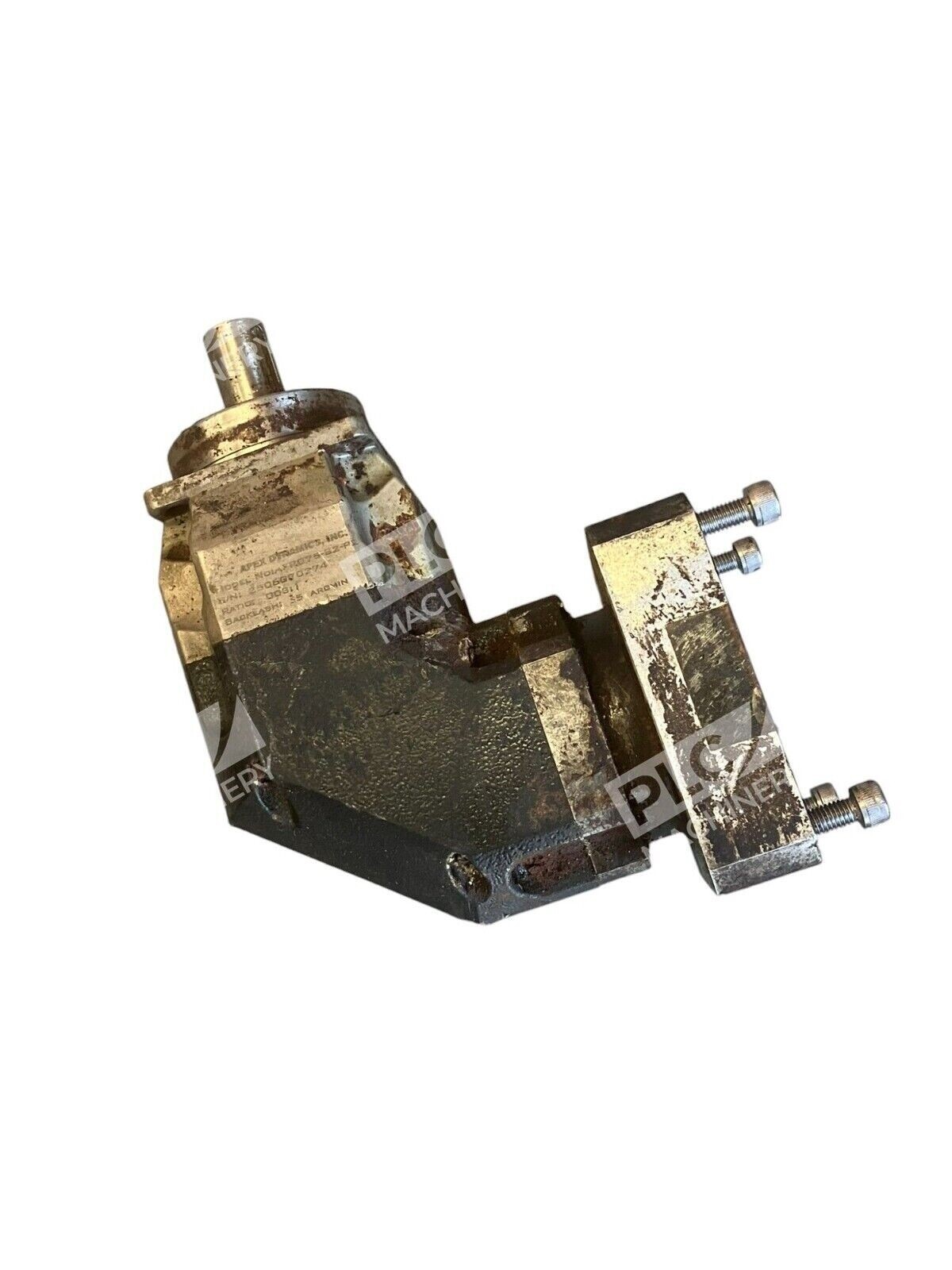

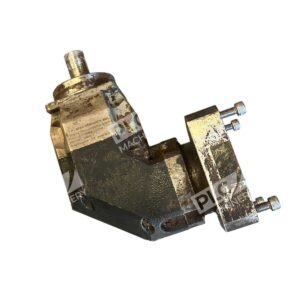

The Apex Dynamics AFR075-S2-P2 is a compact right-angle planetary gearbox engineered for high-precision servo and motion control applications. The AFR series delivers low-backlash performance in a right-angle configuration, making it ideal for space-constrained automation systems where orthogonal power transmission is required. Built with triple-split collet input and keyed output shaft, this 75mm flange-mount gearbox integrates seamlessly into existing servo motor installations.
Key Features
- Right-angle design for 90-degree power transmission with minimal footprint
- Standard backlash (P2) specification for cost-effective precision motion control
- Keyed output shaft ensures positive drive coupling without slippage
- Triple-split collet input for flexible motor coupling compatibility
- 75mm flange-mount housing for direct servo motor attachment
- Industrial-grade construction for heavy-duty cyclical loading
Technical Specifications
The AFR075-S2-P2 delivers consistent torque performance across servo and positioning applications. Apex Dynamics designs all AFR series units with precision-ground helical gears and tapered roller bearings for smooth, repeatable operation. Standard backlash of ≤5 arcmin ensures predictable load sharing in multi-axis control systems.
Typical Applications
- Packaging machinery requiring orthogonal drive axes
- Robotic arm joint drives needing compact right-angle transmission
- CNC and precision machining tool changers
- Conveyor and material handling turntables
- Industrial automation gantry systems with space constraints
- Servo-driven indexing tables and rotary positioners
Compatibility & Replacements
Compatible With
- AC servo motors with ISO 9090-2 flange compatibility
- DC servo motors with standard keyed input shafts
- Planetary gearbox servo drive systems and motion controllers
- Industrial automation networks (EtherCAT, PROFIBUS, EtherNet/IP compatible drives)
- Standard ISO 9090 mounting interfaces
Replaces / Drop-In Replacement For
Verify with your original equipment documentation or system integrator. AFR series 75mm units may be cross-referenced with comparable right-angle planetary gearboxes from competing manufacturers; however, flange bolt patterns and backlash ratings may vary. Confirm your current part number and performance requirements before ordering as a replacement.
Works With
- Standard servo control platforms (Allen-Bradley, Siemens, Beckhoff, ABB)
- Apex Dynamics AF, AFR, and AFH series ecosystems
- Industrial motion control software (Studio 5000, TIA Portal, Automation Studio)
- Condition monitoring and predictive maintenance systems
