Overview

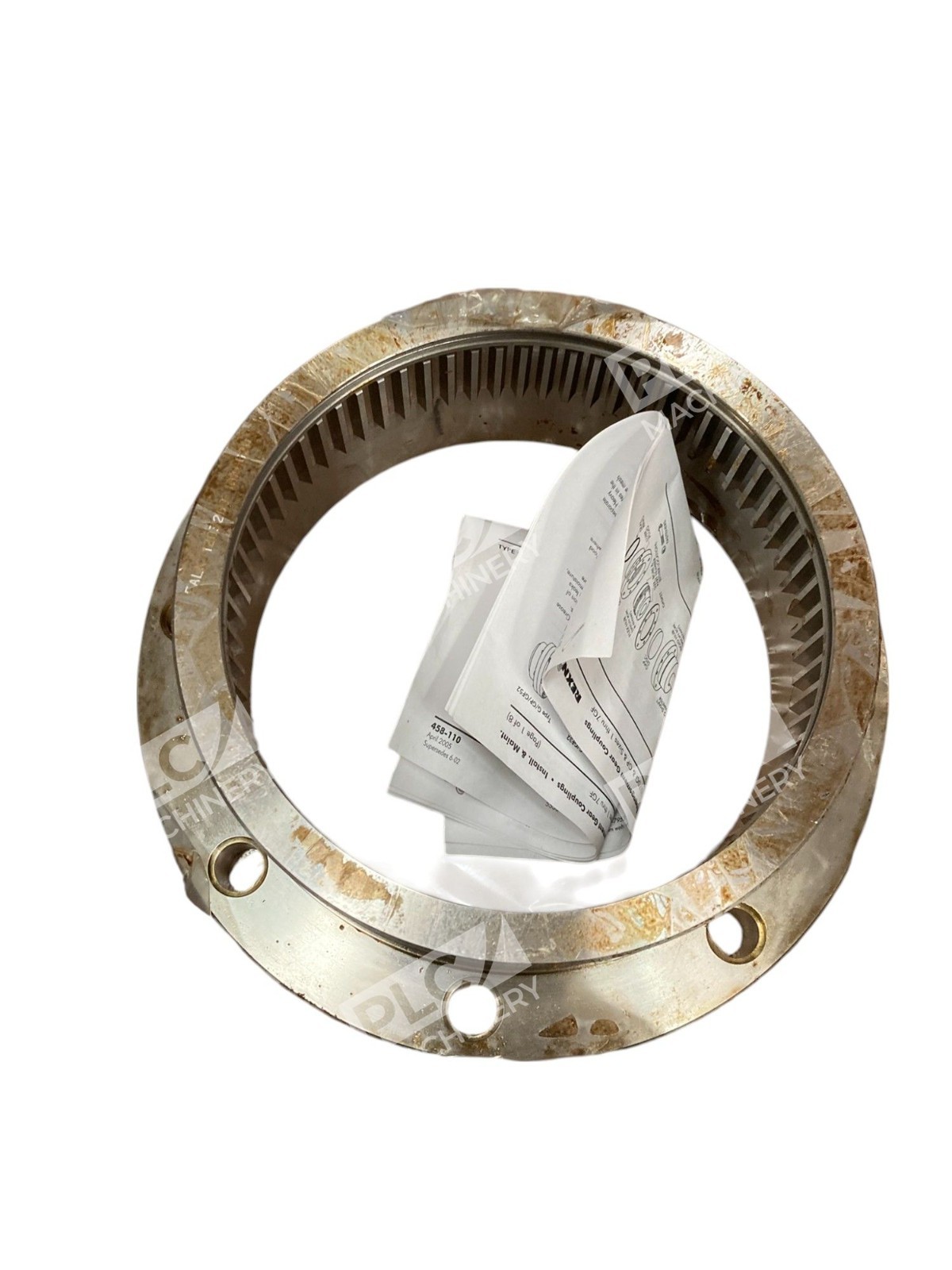

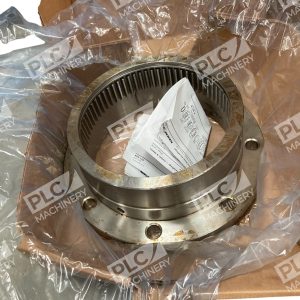

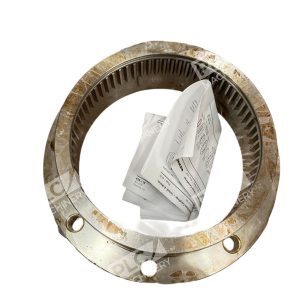

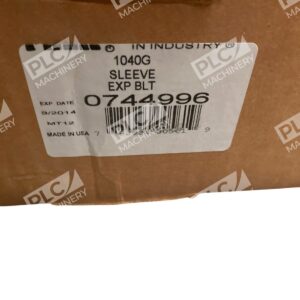

The Falk 0744996 1040G sleeve is a Lifelign G Series exposed bolt coupling sleeve manufactured by Rexnord for industrial mechanical power transmission. This flanged steel sleeve is designed to couple rotating shafts in pumps, motors, compressors, and other industrial equipment requiring reliable torque transmission and misalignment compensation.
Key Features
- Exposed bolt design with reduced head cap screws and non-turning locknut for one-wrench tightening
- AGMA bolt pattern ensures interchangeability with standard gear couplings
- Lubrication plug locations positioned for effective grease application
- Full flex coupling accommodates angular, radial, and axial misalignment
- Steel construction for durability in demanding industrial environments
- Includes gasket for sealed operation
Technical Specifications
Key performance and dimensional data for the Falk 0744996:
- Coupling Size Code: 1040G (1040G20 series)
- Torque Capacity: 270,900 in-lb
- Maximum RPM: 3,600 rpm
- Outside Diameter: 12.5 in (12-1/2 in)
- Overall Length: 18.0 in
- Half Sleeve Length: 4.38 in
- Operating Temperature Range: −30 to +200 °F
- Material: Steel
- Sleeve Type: Flanged
- Bolt Type: Exposed
- Coupling Type: Gear coupling
Typical Applications
The Falk 0744996 1040G sleeve is widely used in:
- Centrifugal and positive displacement pumps
- Electric motor-to-pump and motor-to-compressor connections
- Conveyor drive systems
- Industrial fan and blower applications
- Turbine and generator coupling sets
- Process equipment requiring moderate to high torque transmission with vibration damping
Compatibility & Replacements
Compatible With
- Falk Lifelign 1040G coupling hubs and hub kits
- 1040G20 SEAL & GASKET KIT EXP BLT (catalog 0785324) for seal replacement
- Standard AGMA gear coupling hubs and components
- Motor and pump shafts with compatible bore and keyway dimensions
Replaces / Drop-In Replacement For
- OEM 1040G20/52 sleeves from competing manufacturers using AGMA bolt pattern
- Direct replacement for worn or damaged 1040G Lifelign sleeves in existing installations
Works With
- Falk LTG Grease (recommended lubricant for three-year warranty compliance)
- All 1040G-size Lifelign coupling components and accessories
- Standard industrial lubrication and maintenance procedures
- Existing shaft alignment and installation tooling for 1040G couplings
