Overview

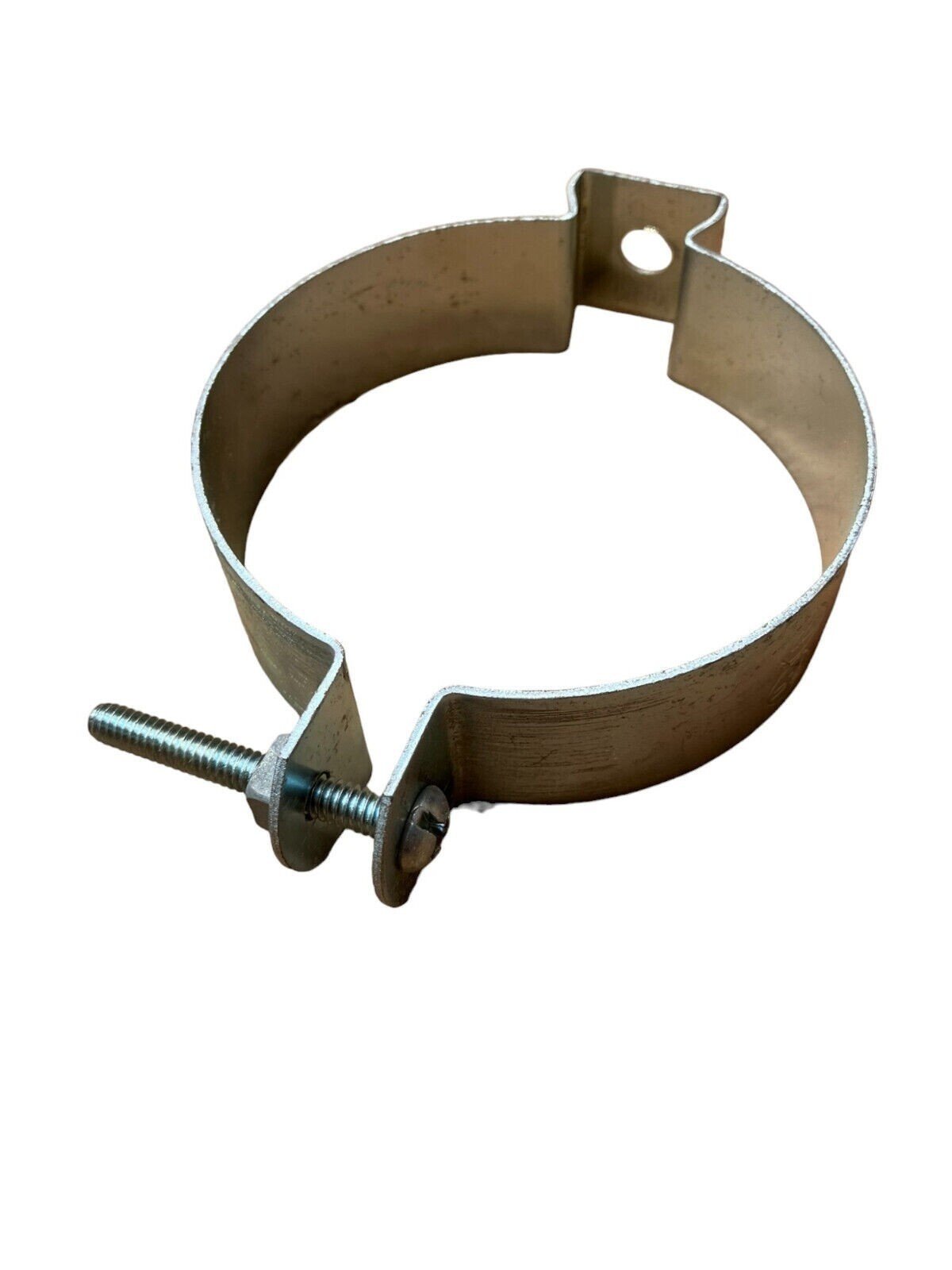

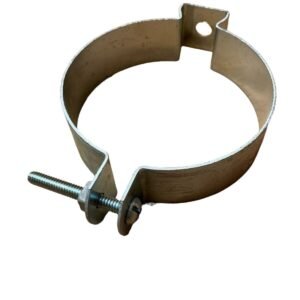

The Bridgeport 2180 is a steel conduit hanger engineered for securing 3-1/2″ electrical metallic tubing (EMT) and rigid conduit to threaded rod, insulator supports, or directly to mounting surfaces. This box contains 10 individually rated hangers, each furnished with a 2-way slotted/Phillips bolt with integral threads and a matching nut, ensuring quick and secure installation without additional fasteners.
Key Features
- 50 lb load rating per hanger for reliable conduit support
- Electro-plated zinc finish resists corrosion in indoor and outdoor applications
- 2-way slotted/Phillips bolt design accommodates both screw types
- Complete with nut and bolt included—no separate fasteners required
- UL (US and Canada) and CSA certified for code compliance
- RoHS compliant material composition
Technical Specifications
- Conduit Size: 3-1/2″ (Trade Size 8)
- Conduit Type: EMT and rigid conduit
- Material: Steel with electro-plated zinc coating
- Load Rating: 50 lbs per hanger
- Height: 5-7/16 inches
- Width: 1-1/4 inches
- Fastener: 2-way slotted/Phillips bolt with integral threads and nut
- Package Quantity: 10 hangers
- Certifications: UL (US/Canada), CSA, RoHS Compliant
Typical Applications
The Bridgeport 2180 is widely used in commercial and industrial electrical installations to secure large-diameter conduit runs. Common applications include:
- Factory and plant electrical distribution systems
- Outdoor conduit routing on structures
- High-capacity cable tray and conduit support
- HVAC and mechanical system conduit installation
- Retrofit and new construction projects requiring code-compliant support
Compatibility & Replacements
Compatible With
- 3-1/2″ EMT (electrical metallic tubing)
- 3-1/2″ rigid conduit
- Standard threaded rod support systems
- Insulator mounting posts and brackets
- Direct surface mounting (walls, beams, structural members)
Replaces / Drop-In Replacement For
- Earlier Bridgeport 2180 revisions (form fit and function)
- Generic #8 trade size conduit hangers meeting UL specifications
Works With
- UL-listed conduit and support systems
- Standard electrical code installations (NEC-compliant)
- CSA-certified conduit and mounting hardware
- RoHS-compliant building materials
