<h2>Overview</h2>

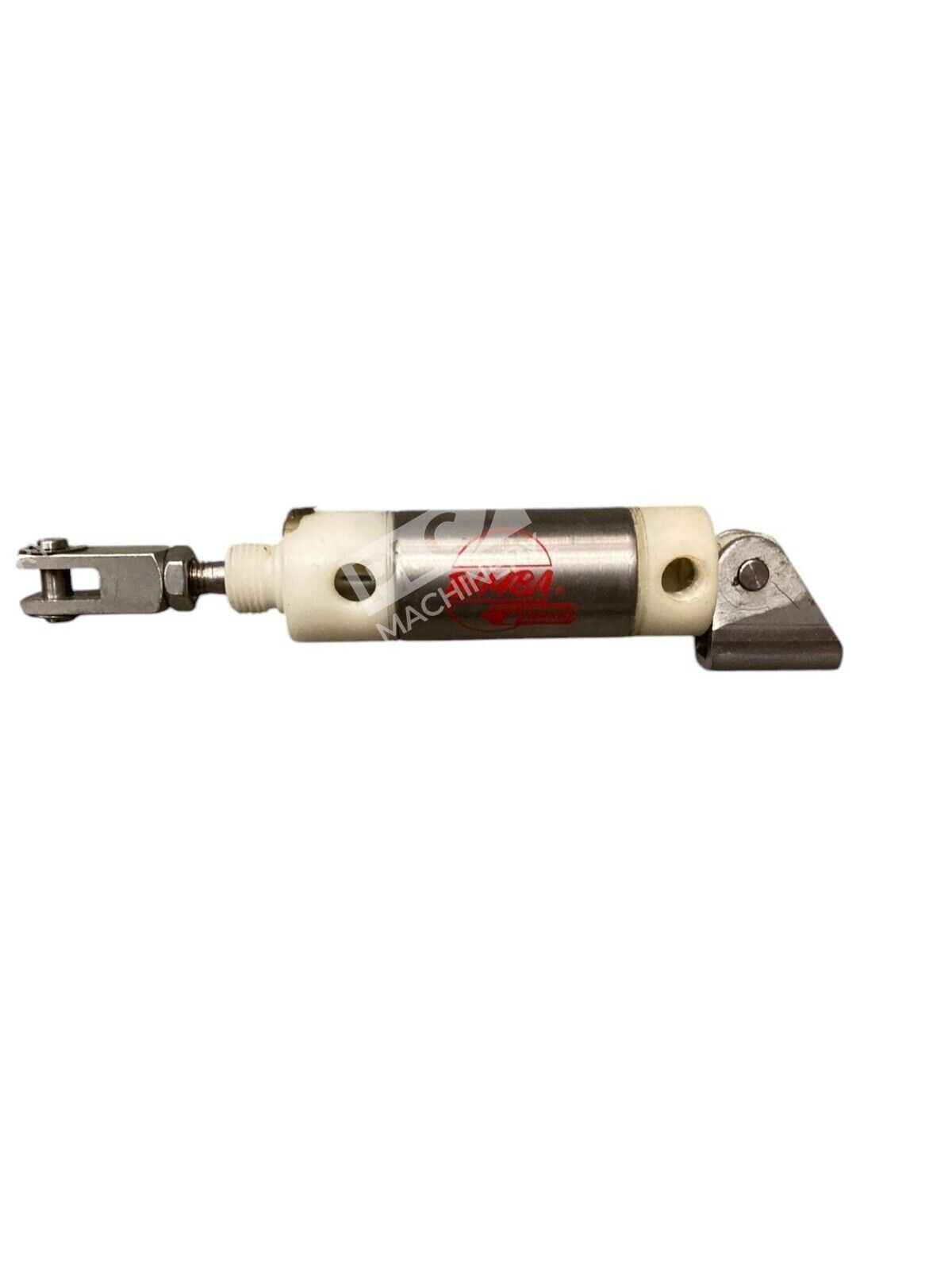

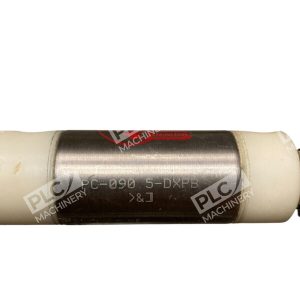

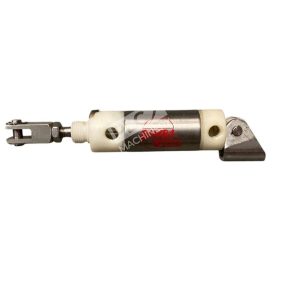

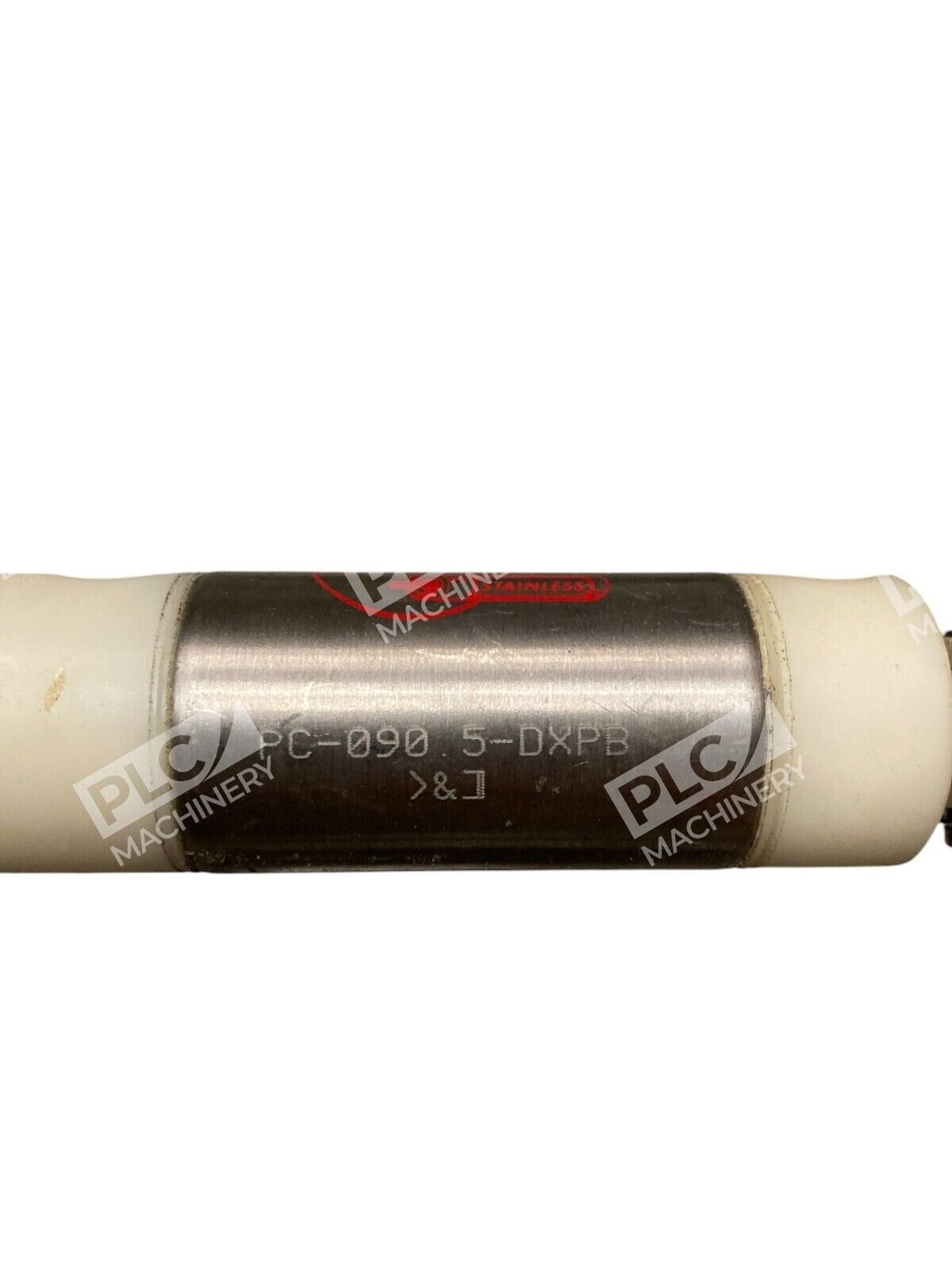

<p>The <strong>Bimba PC-090.5-DXPB</strong> is a compact double-acting pneumatic cylinder from Bimba’s Original Line series. This industrial-grade actuator is engineered for dependable performance in machine automation, material handling, and motion control systems. The PC-090.5-DXPB features stainless steel construction with plastic end caps and integrated bumpers for enhanced durability and impact protection.</p>
<h2>Key Features</h2>
<ul>
<li>Double-acting design for controlled extension and retraction</li>
<li>Stainless steel 303 rod and 304 body for corrosion resistance</li>
<li>Plastic end caps (acetal resin) with integrated bumpers for shock absorption</li>
<li>Universal mounting configuration for flexible installation</li>
<li>Permanent grease lubrication—no additional maintenance required during service</li>
<li>Buna-N seals for reliable pressure containment</li>
</ul>
<h2>Technical Specifications</h2>
<p>The PC-090.5-DXPB is engineered to meet industrial automation requirements with consistent pneumatic performance across standard operating pressures (typically 0–150 PSI for Bimba Original Line cylinders). The cylinder features a compact footprint suitable for space-constrained applications while maintaining full stroke authority and load-bearing capacity.</p>
<ul>
<li><strong>Cylinder Type:</strong> Double-acting pneumatic air cylinder</li>
<li><strong>Bore Size:</strong> 0.90 inches (approximately 23 mm)</li>
<li><strong>Stroke:</strong> 0.5 inches</li>
<li><strong>Rod Material:</strong> Stainless steel 303</li>
<li><strong>Body Material:</strong> Stainless steel 304</li>
<li><strong>End Caps:</strong> Acetal resin (plastic) with bumpers</li>
<li><strong>Pneumatic Ports:</strong> 2 × 1/8" NPT threaded (both ends)</li>
<li><strong>Seals:</strong> Buna-N (NBR)</li>
<li><strong>Mounting:</strong> Universal mounting capability</li>
<li><strong>Lubrication:</strong> Permanent semi-synthetic grease</li>
</ul>
<h2>Typical Applications</h2>
<p>The Bimba PC-090.5-DXPB is suited for:</p>
<ul>
<li>Machine tool clamping and work-holding fixtures</li>
<li>Conveyor system actuation and product diverters</li>
<li>Packaging and labeling machinery</li>
<li>Industrial assembly and automation lines</li>
<li>Pneumatic valve actuation and control systems</li>
<li>Light- to medium-duty linear motion applications</li>
</ul>
<h2>Compatibility & Replacements</h2>
<h3>Compatible With</h3>
<ul>
<li>Standard compressed air systems (0–150 PSI nominal)</li>
<li>ISO 4401 (CETOP-05) ported manifolds with 1/8″ NPT connections</li>
<li>Pneumatic solenoid valves and proportional control systems</li>
<li>PLC and motion control systems with pneumatic I/O modules</li>
<li>Standard industrial air preparation units and filters</li>
</ul>
<h3>Replaces / Drop-In Replacement For</h3>
<p>Verify compatibility with your system integrator before ordering. Replacement compatibility depends on exact bore, stroke, port location, and mounting configuration.</p>
<h3>Works With</h3>
<ul>
<li>Pneumatic control software and automation platforms</li>
<li>ISO 4401 valve interface standards</li>
<li>Industrial communication protocols for remote monitoring</li>
<li>Proportional and directional solenoid valve systems</li>
<li>End-of-stroke sensing (with optional magnetic piston option)</li>
</ul>
