Overview

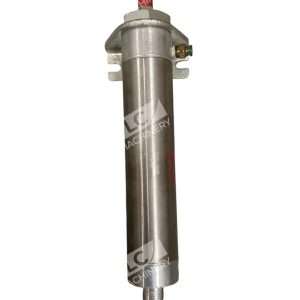

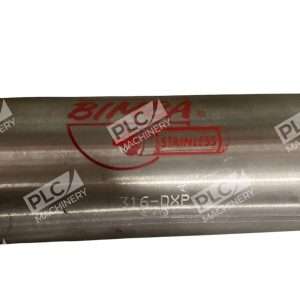

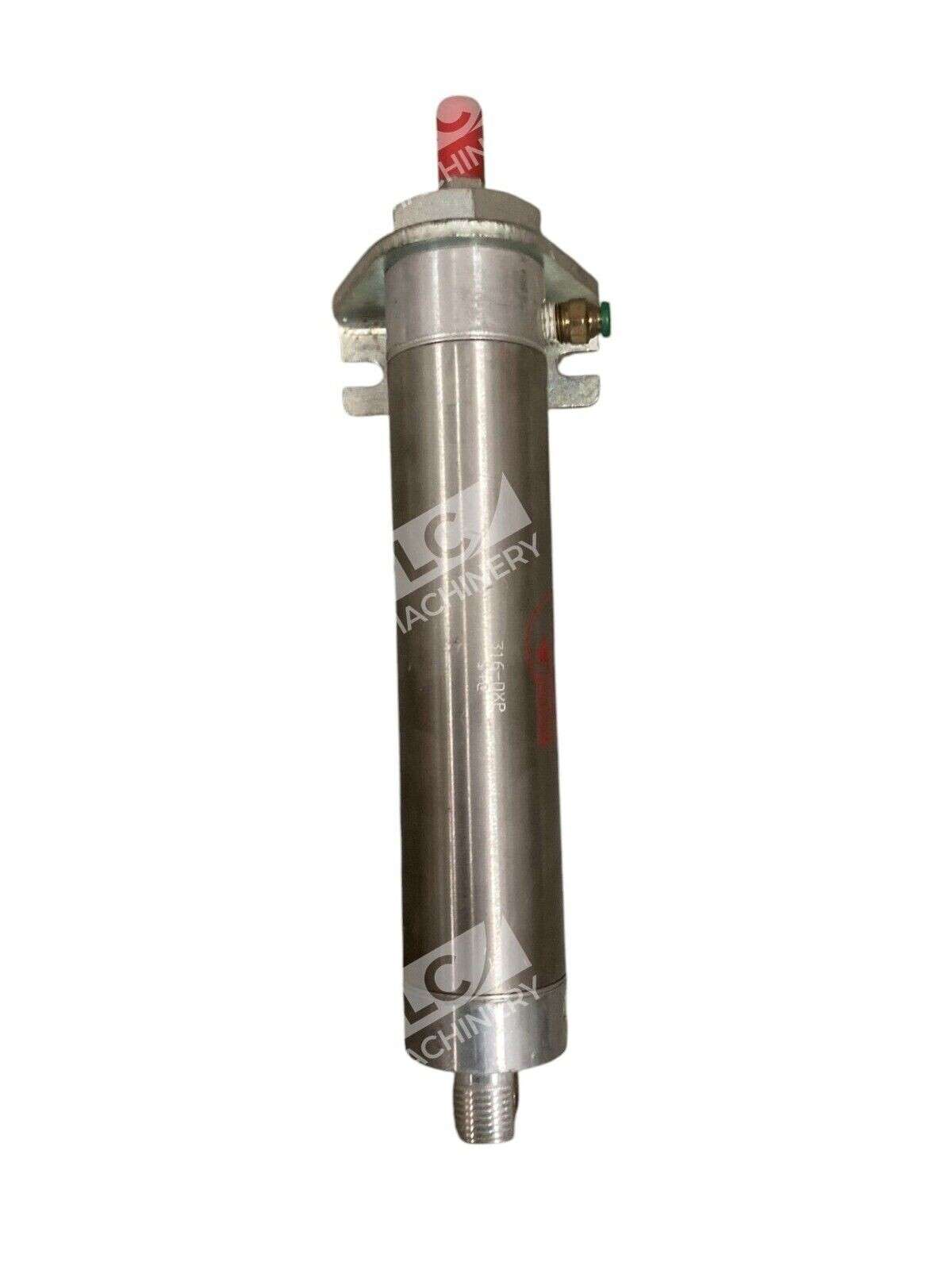

The Bimba 316-DXP is a double-acting pneumatic cylinder designed for industrial control systems and machinery automation. Part of Bimba’s proven Original line air cylinder series (31 series), this unit delivers dependable air power with a 2-inch bore and 6-inch stroke in a compact, lightweight package. The 316-DXP combines low breakaway friction and universal mounting flexibility, making it suitable for pivot or double-end applications in manufacturing, assembly, and process automation.
Key Features
- Double-Acting Operation: Air-return design with pilot port configuration for precise control in both directions
- Low Breakaway Friction: Less than 5 PSI pressure required to initiate motion, reducing energy consumption
- Extended Service Life: Blue Improved design doubles previous cylinder longevity
- Minimal Maintenance: Permanent grease lubricant eliminates need for continuous re-lubrication during service
- Flexible Mounting: Universal mount configuration supports pivot or double-end installation options
Technical Specifications
- Bore Diameter: 2 inches
- Stroke Length: 6 inches
- Function: Double-acting (air-return)
- Mounting: Universal (pivot or double-end)
- Rod Style: Round, 1/2-20 UNF-2A male threaded rod
- Threaded Port: 1-1/4 inch-12 UNF-2A (both ends)
- Pneumatic Ports: 2 × 1/4 inch NPT threaded (both ends)
- Cushioning: None
- Bumpers: No
- Magnetic Piston: No
- Weight: 2.65 lbs
- Seal Material: Buna-N U-Cup seals
- Rod Material: Stainless steel
Typical Applications
The Bimba 316-DXP is commonly deployed in:
- Assembly line automation and material handling
- Clamping and positioning mechanisms
- Industrial press and stamping equipment
- Packaging and labeling machinery
- Production line control systems requiring reliable linear actuation
Compatibility & Replacements
Compatible With
- Standard pneumatic control systems (80–250 PSI)
- Directional control valves with 1/4 inch NPT ports
- Manifold-mounted solenoid valves
- Pneumatic pressure regulators and flow control circuits
- PLC and relay-based automation controllers
- Universal pivot mount frames and industrial actuator brackets
Replaces / Drop-In Replacement For
- MRS-316-DXP: Variant with adjustable cushion (both ends)
- M-316-DXP: Stainless steel rod variant with universal mounting
- C-316-DXP: Adjustable cushion series (both ends)
Works With
- ANSI/NFPA B4.19 standard pneumatic directional control valves
- ISO 1219-1 pneumatic circuit diagrams and components
- Pneumatic timing circuits and sequence controls
- Industrial automation platforms using pneumatic actuation
