Overview

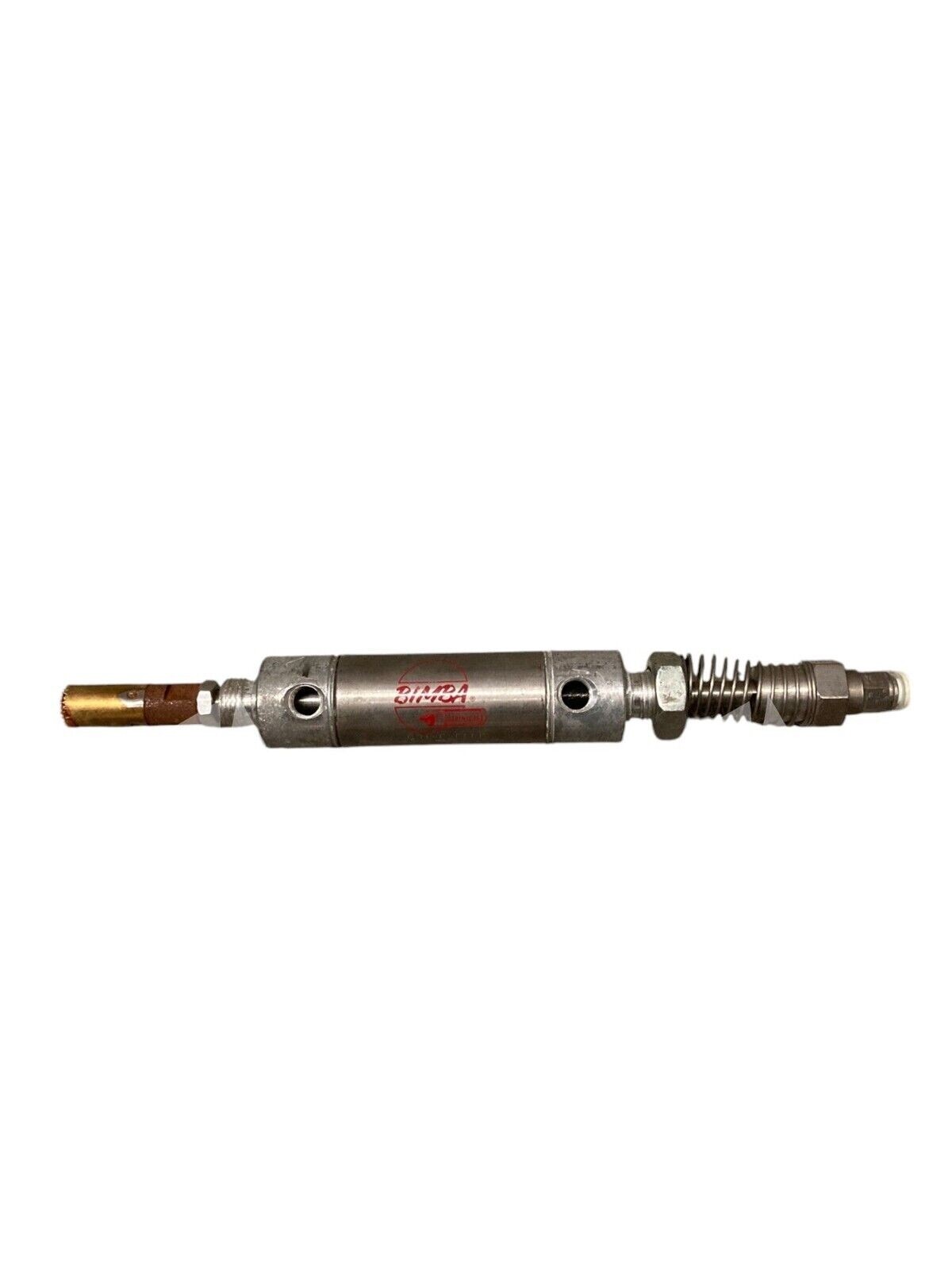

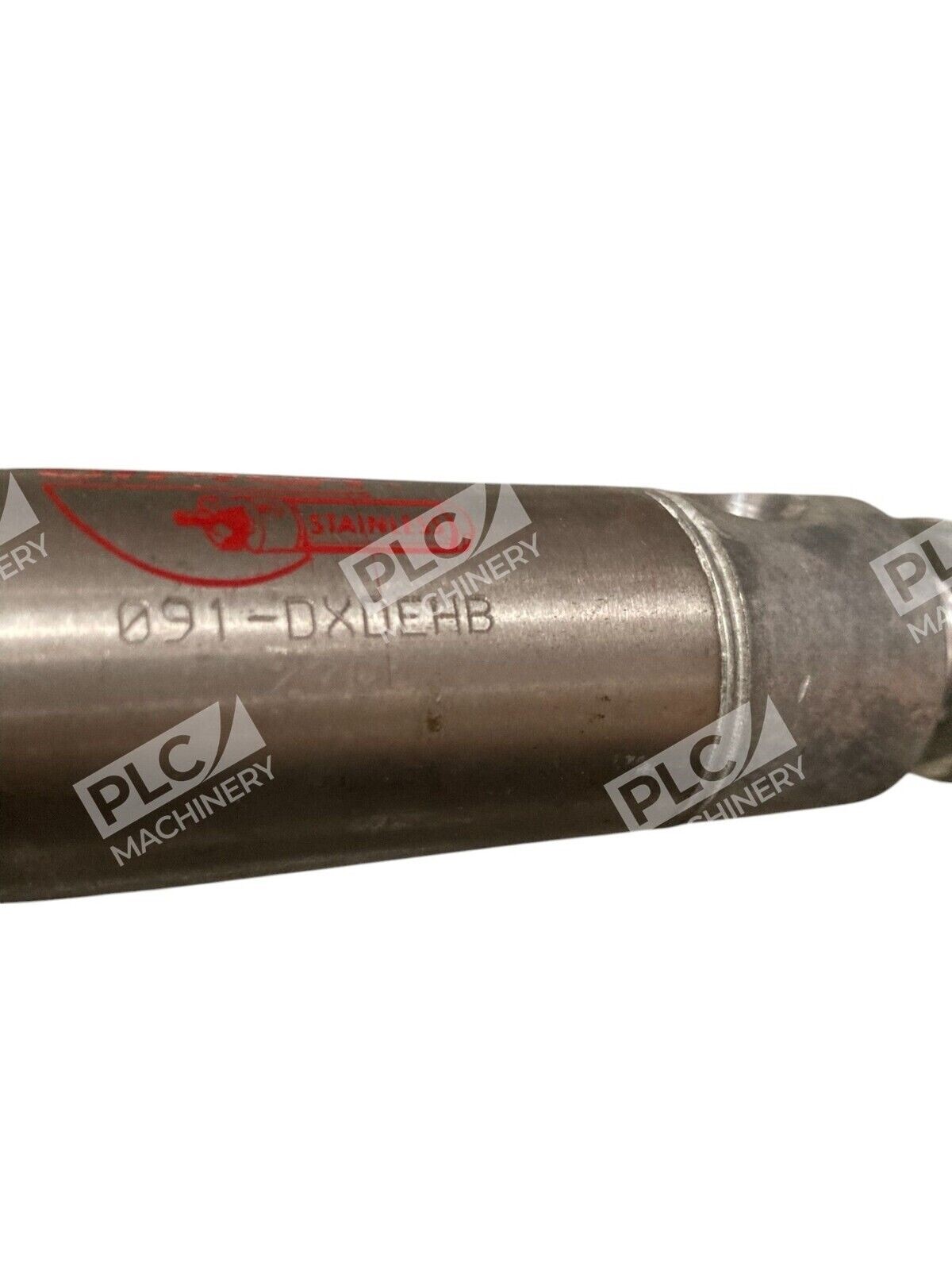

The Bimba 091-DXDEHB is a double-acting pneumatic cylinder from Bimba’s proven Original Line series. Double-end configuration with hollow rod design enables compact mounting and balanced load distribution in industrial automation, material handling, and motion control systems. Permanent grease lubrication eliminates the need for ongoing oil maintenance, reducing downtime and operational costs.
Key Features
- Double-acting operation — provides power in both extend and retract directions
- Hollow rod construction — enables compact mounting and through-rod accessibility
- Double-end threaded ports — flexible mounting and pneumatic connectivity options
- Permanent grease lubricant — no additional lubrication required during service life
- Proven Original Line design — over 150,000 units in inventory with 3000 mile life rating
- Threaded rod ends — 5/16-24 UNF-2A male threads for secure mounting
Technical Specifications
The Bimba 091-DXDEHB meets the following performance parameters:
- Bore Size: 1-1/16 inches
- Rod Configuration: Double-end hollow rod, 5/16-24 UNF-2A male threads
- Pneumatic Ports: 1/8" NPT (both ends)
- Mounting: Double-end with 5/8-18 threaded mounting nuts
- Lubrication: Permanent grease, no additional lubrication required
- Series: Original Line (Bimba 09 series)
- Type: Double-acting pneumatic cylinder
Typical Applications
The Bimba 091-DXDEHB pneumatic cylinder is suited for:
- Automated manufacturing and assembly line equipment
- Material handling and positioning systems
- Robotic end-effector actuation
- Industrial clamping and pressing operations
- Machine tool automation and fixture control
- Packaging and filling line systems
Compatibility & Replacements
Compatible With
- Standard pneumatic control systems operating at industrial duty pressures
- Systems using 1/8" NPT pneumatic port connections
- Machines requiring 1-1/16" bore double-end cylinders
- Double-end threaded rod mounting applications
Replaces / Drop-In Replacement For
The Bimba 091-DXDEHB is compatible with systems originally specified for Bimba Original Line 091 series double-acting cylinders with hollow rod and double-end port configuration. Verify compatibility with your system integrator before ordering.
Works With
- Standard pneumatic directional control valves (5/2, 4/3 solenoid and manual)
- Pneumatic pressure regulators and filters
- Industrial pneumatic tubing and fittings (1/8" NPT)
- Proximity sensors and end-of-stroke position switches
- Bimba Original Line accessory components
