Overview

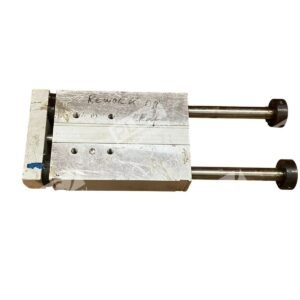

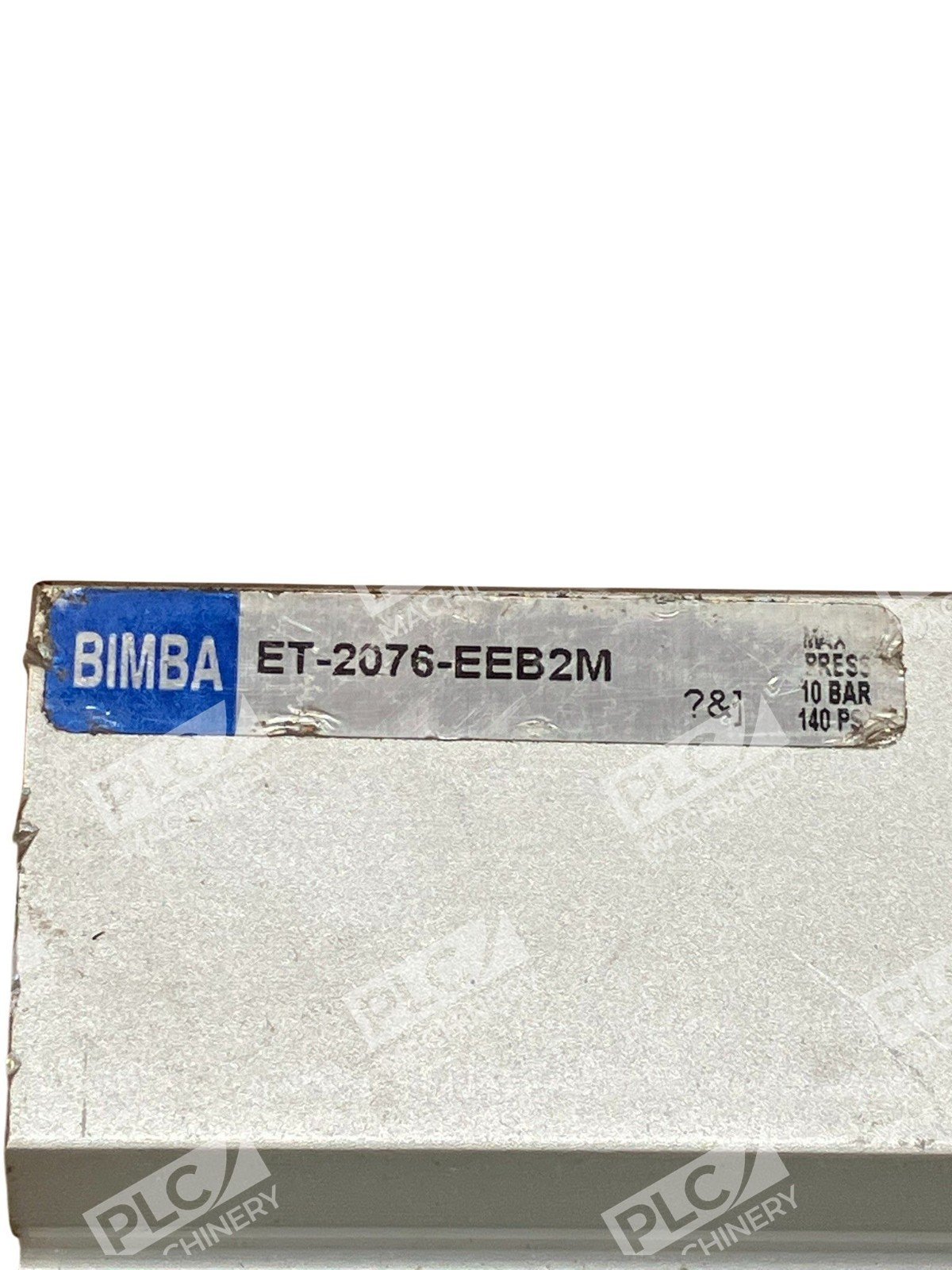

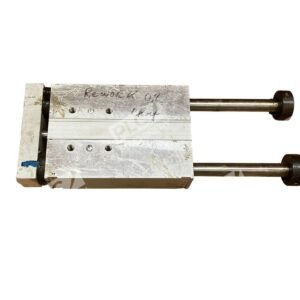

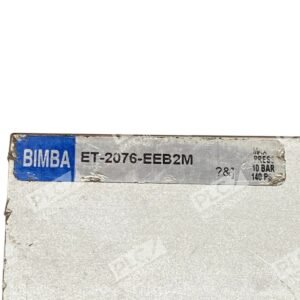

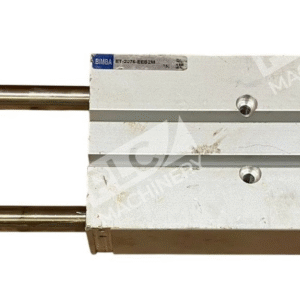

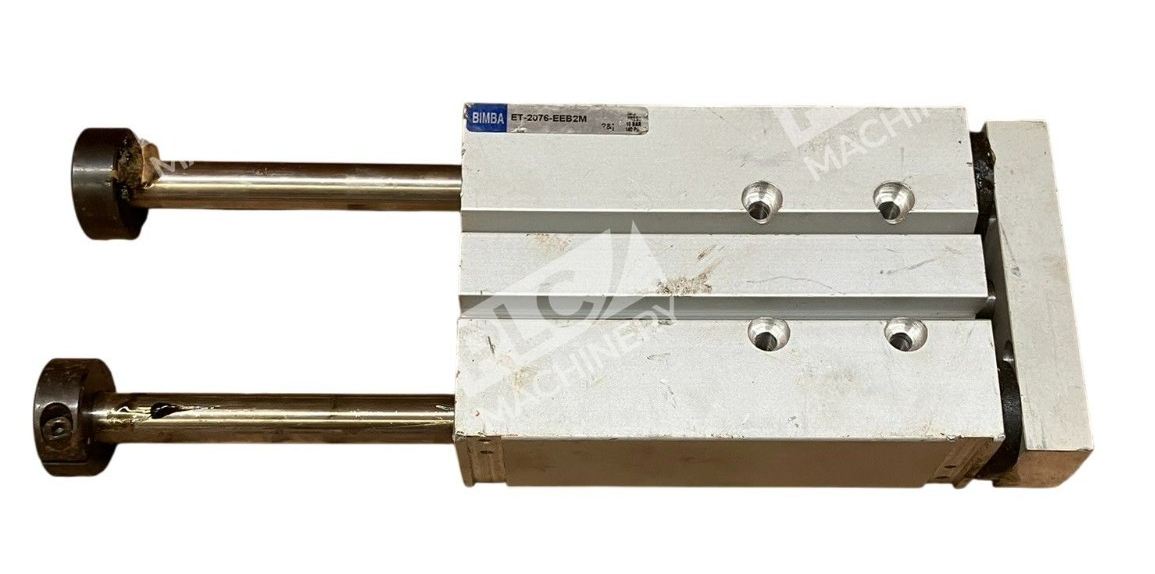

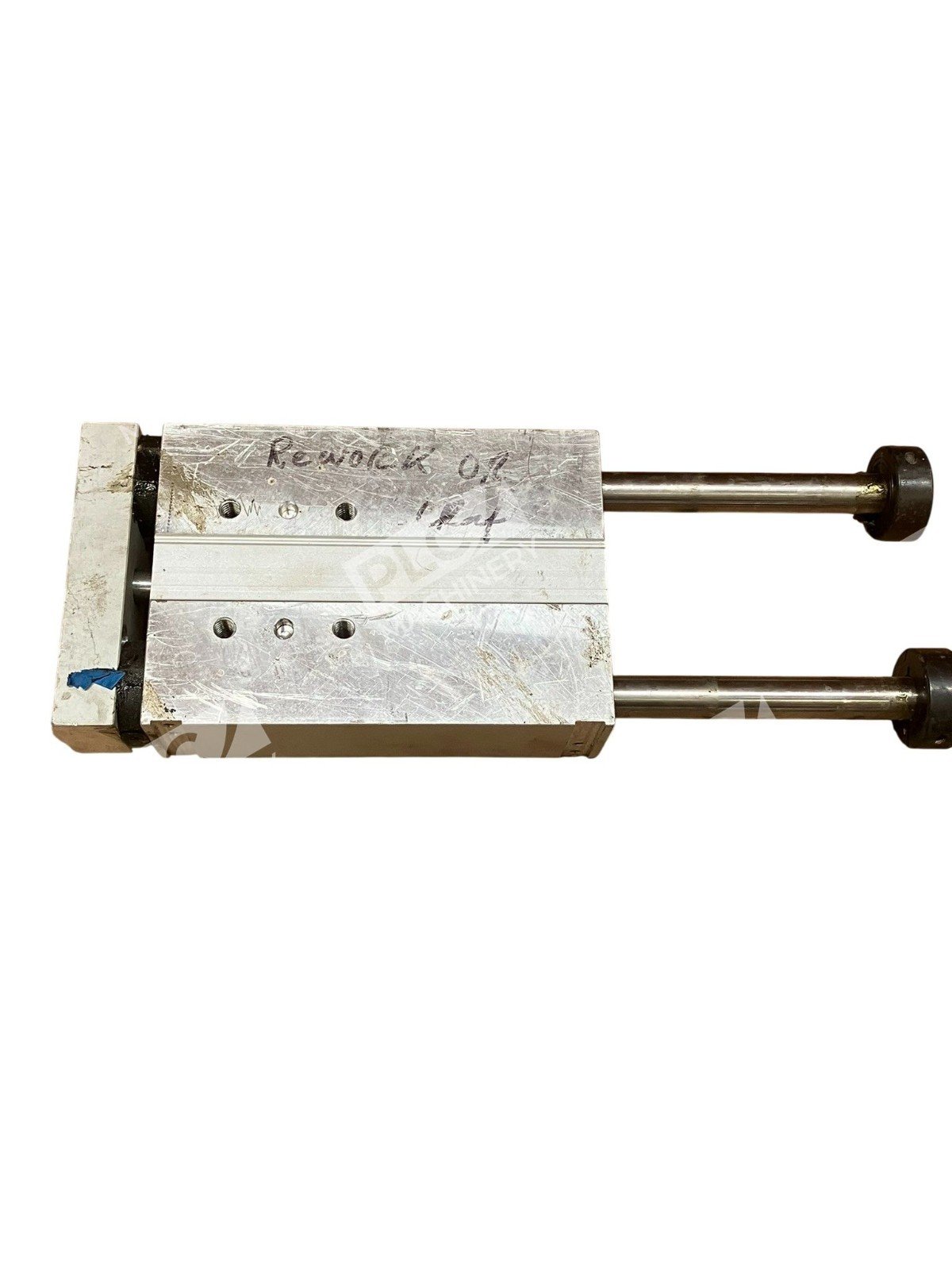

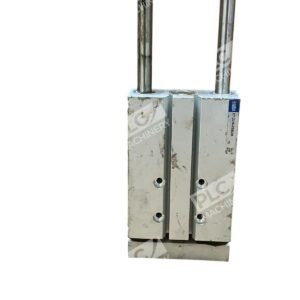

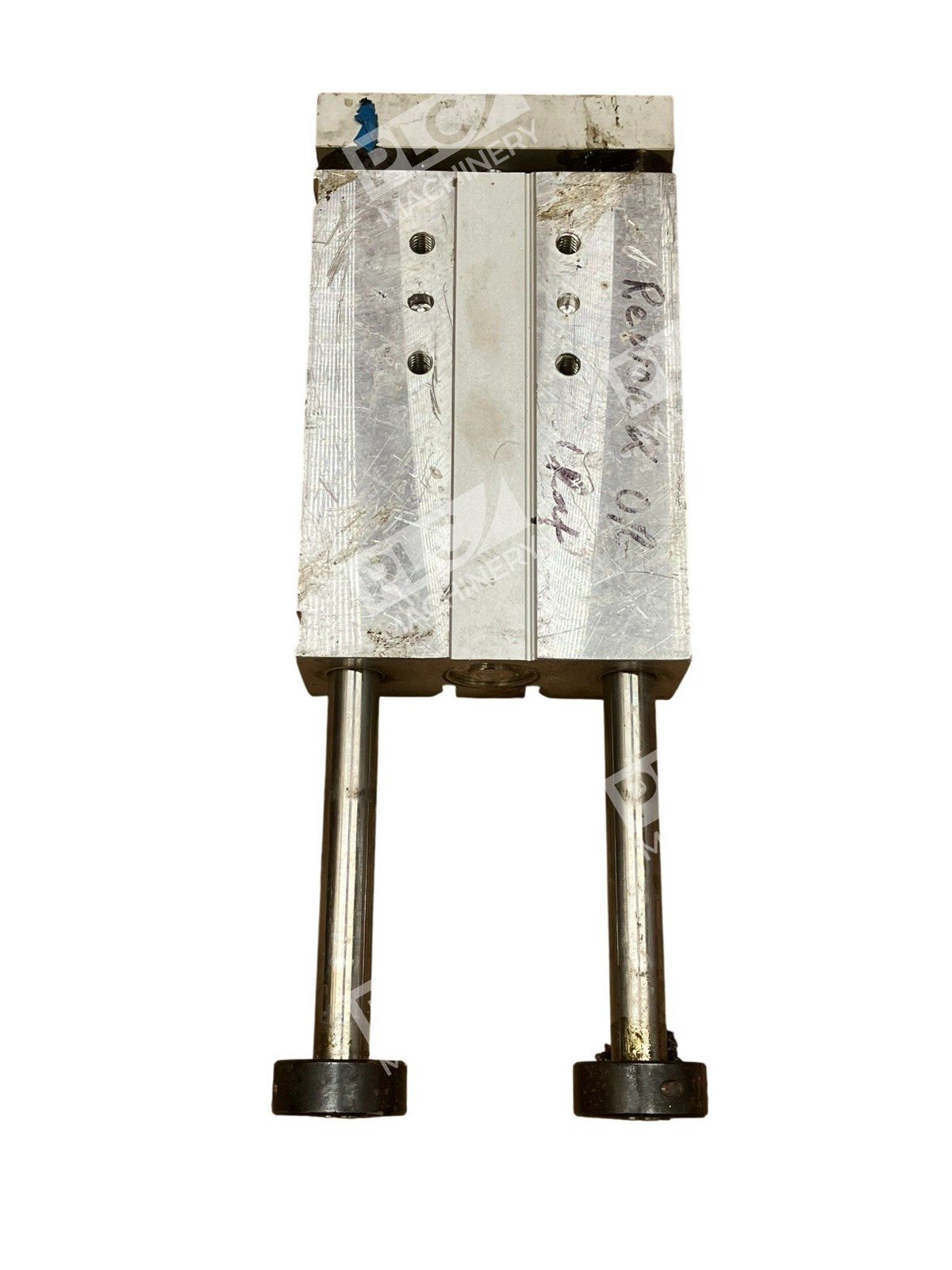

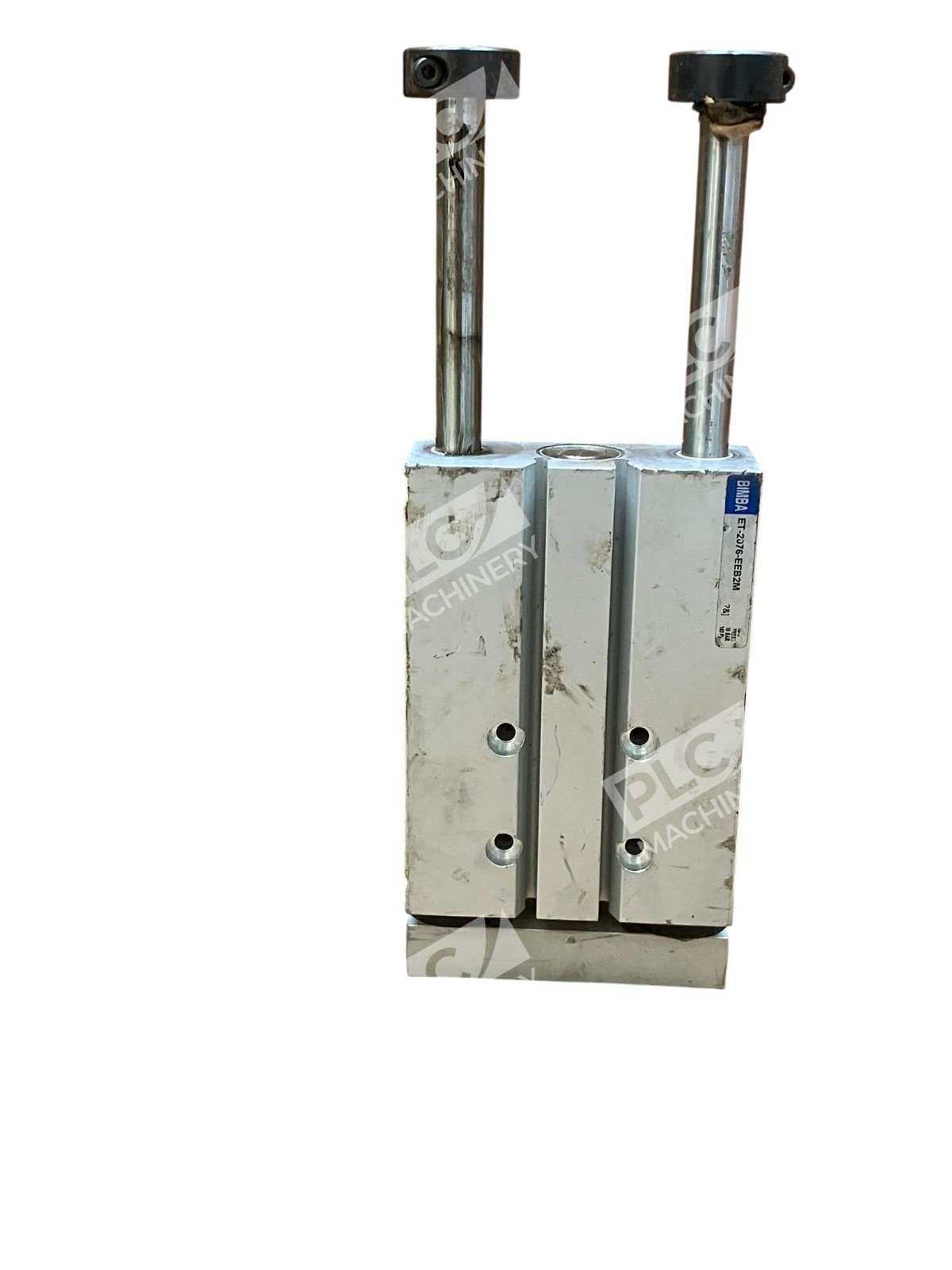

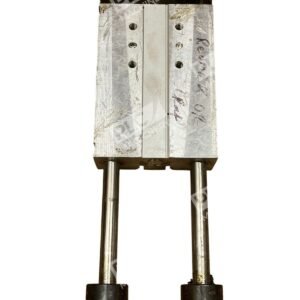

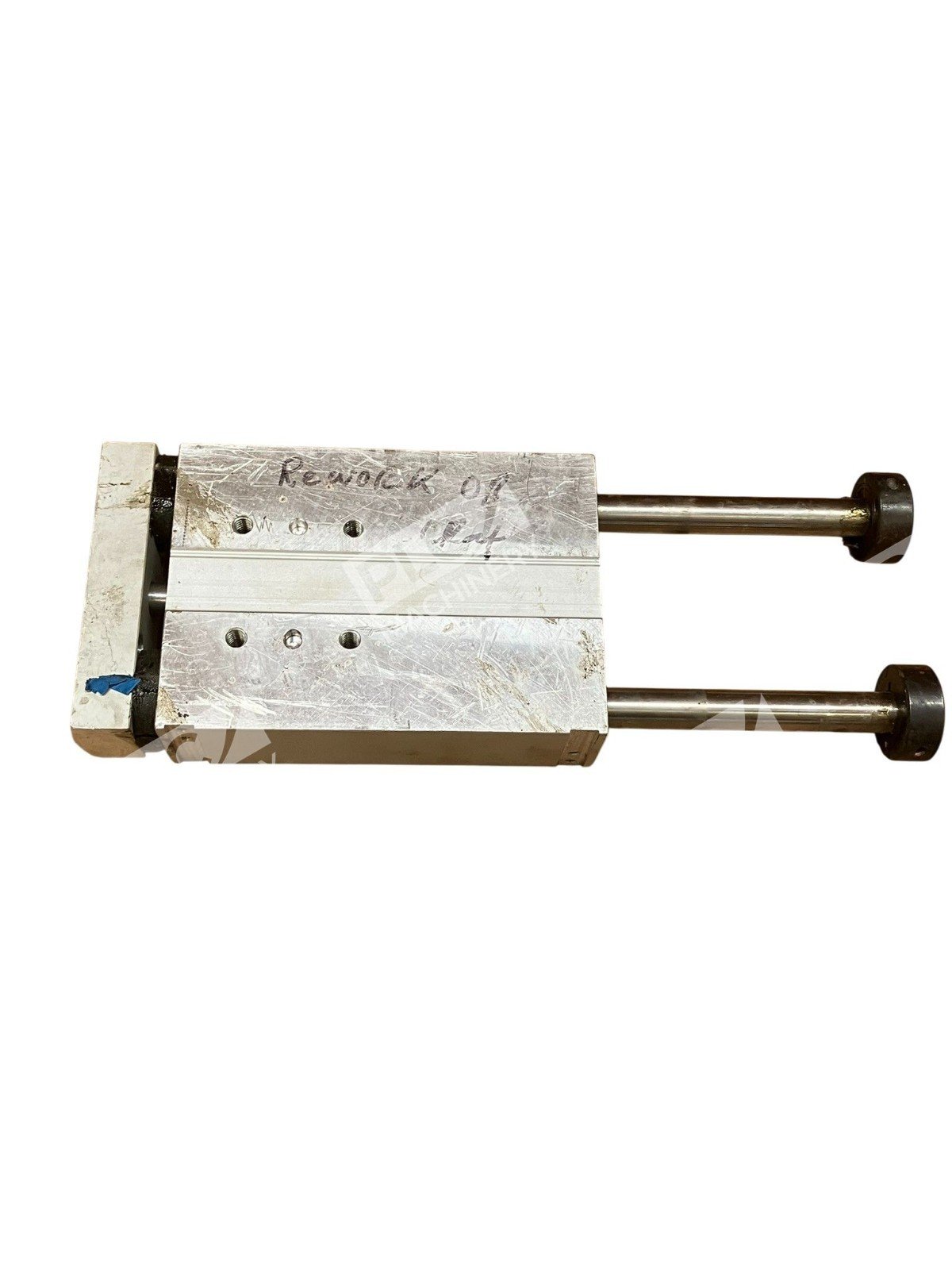

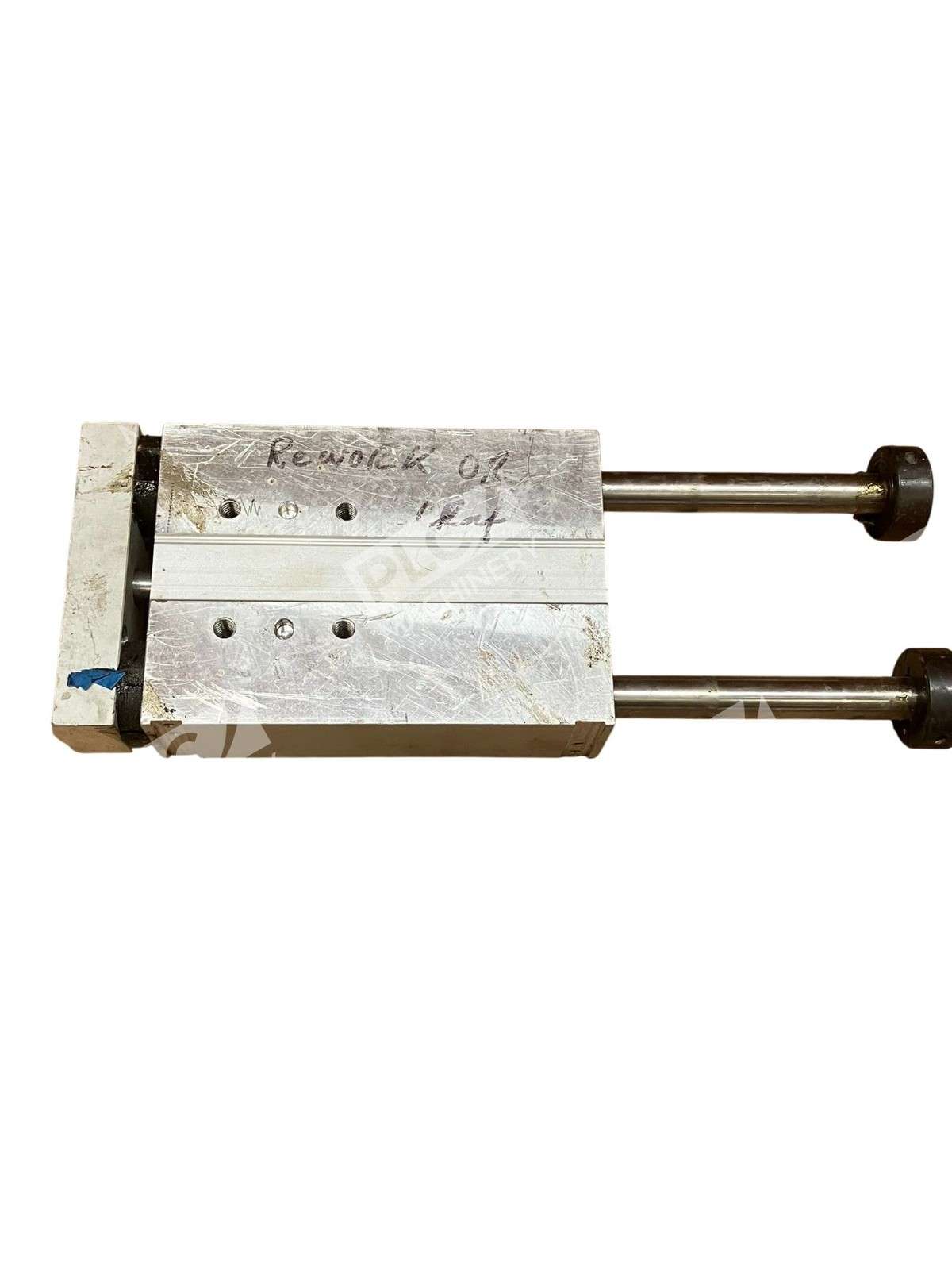

The Bimba ET-2076-EEB2M is an extruded linear thruster—a rugged, guided pneumatic actuator ideal for applications demanding smooth, non-rotational motion with integrated load-bearing geometry. Built with high-quality materials including a hard chrome-plated stainless steel rod and aluminium body, this 20mm bore × 76mm stroke cylinder delivers reliable performance in industrial automation, material handling, and precision positioning systems.
Key Features
- Integrated thruster block design with cylinder built into the actuator housing for space efficiency
- Smooth guided motion with self-lubricating nylon guide bushings and stainless steel guide shafts
- Double-acting configuration suitable for bidirectional control and positioning
- Hard chrome-plated rod resists corrosion and extends service life
- Low-deflection design with switch-mounting capability for clean, compact installations
- Standard U.S. customary (inch) threads for simplified port and mounting compatibility
Technical Specifications
The Bimba ET-2076-EEB2M delivers proven performance across demanding industrial environments:
- Bore Diameter: 20 mm
- Stroke Length: 76 mm
- Maximum Operating Pressure: 140 psi (10 bar)
- Expected Service Life: 1,500 miles (with filtered, lubricated air)
- Operating Temperature Range: 15°F to 160°F (−10°C to 70°C)
- Rod Material: Hard chrome-plated stainless steel
- Body Material: Aluminium
- Seals: Nitrile
- Guide Shafts: Stainless steel
- Mounting Plate: Aluminium tooling plate
- Port & Rod Threads: U.S. customary (inch)
- Lubrication: PTFE grease
Typical Applications
The ET-2076-EEB2M excels in:
- Automated assembly line positioning and part transfer
- Material handling systems requiring guided, non-rotational motion
- Packaging and labeling equipment
- Industrial clamping and holding fixtures
- Precision robotics and multi-axis motion control
- OEM equipment integration for repeatable, high-cycle-rate applications
Compatibility & Replacements
Compatible With
- Standard pneumatic control systems operating 80–140 psi
- Magnetic reed switch and Hall Effect position-sensing systems
- Industrial PLC and motion control interfaces
- Proportional directional control valves and solenoid directional control valves
- Air-supply systems with integral filtration and lubrication
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering to ensure proper mounting, port threads, and load requirements align with your application.
Works With
- Pneumatic solenoid and proportional valve networks
- Pressure-regulated and flow-controlled air systems
- ISO 4401 (cetop) mounting interfaces
- Allen-Bradley, Siemens, Omron, and Mitsubishi PLC control platforms
- SCADA and industrial automation software ecosystems
