<h2>Overview</h2>

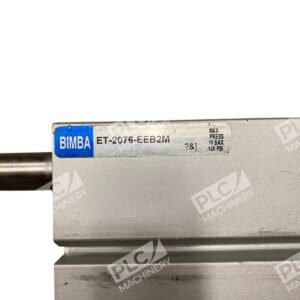

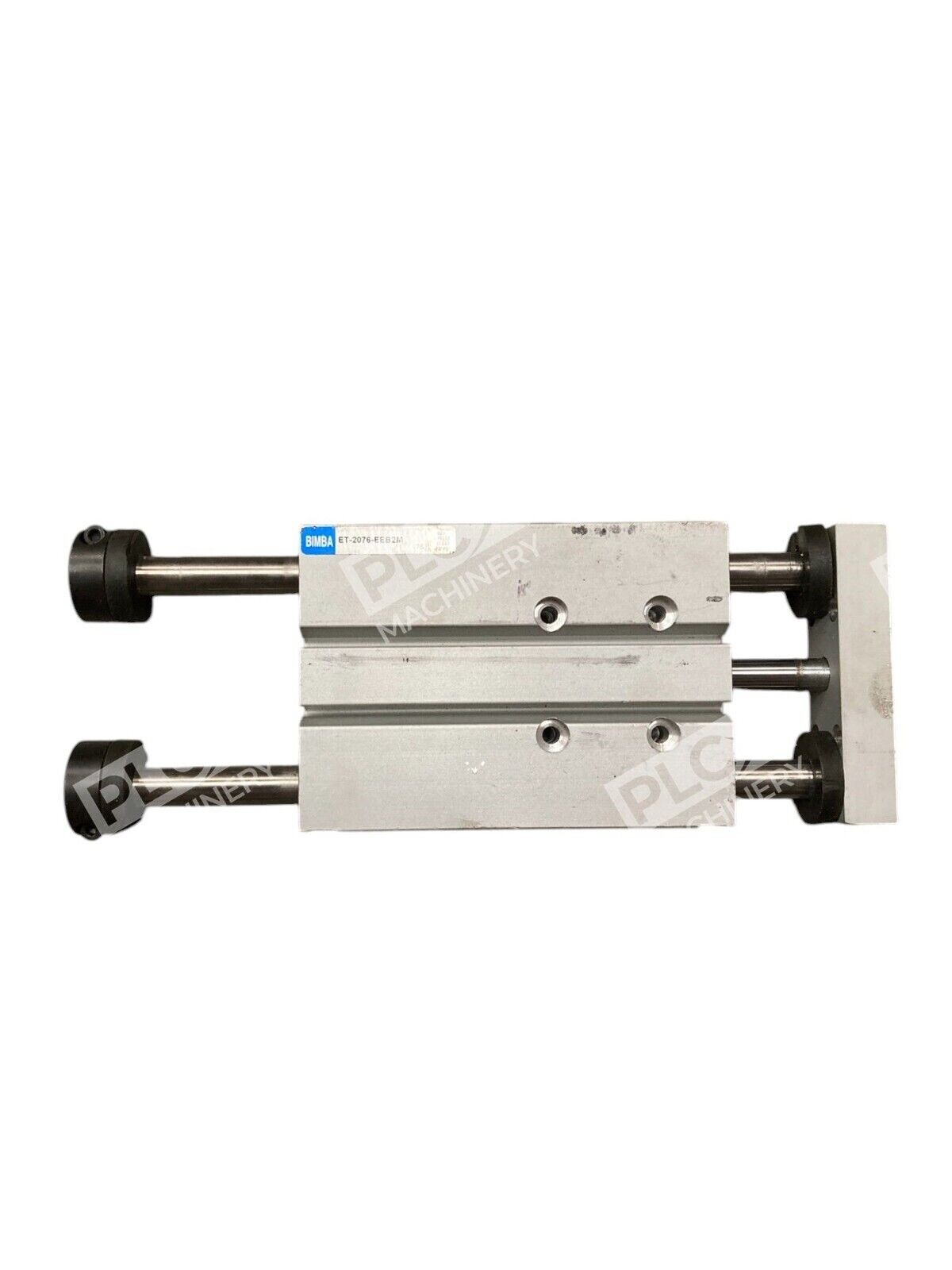

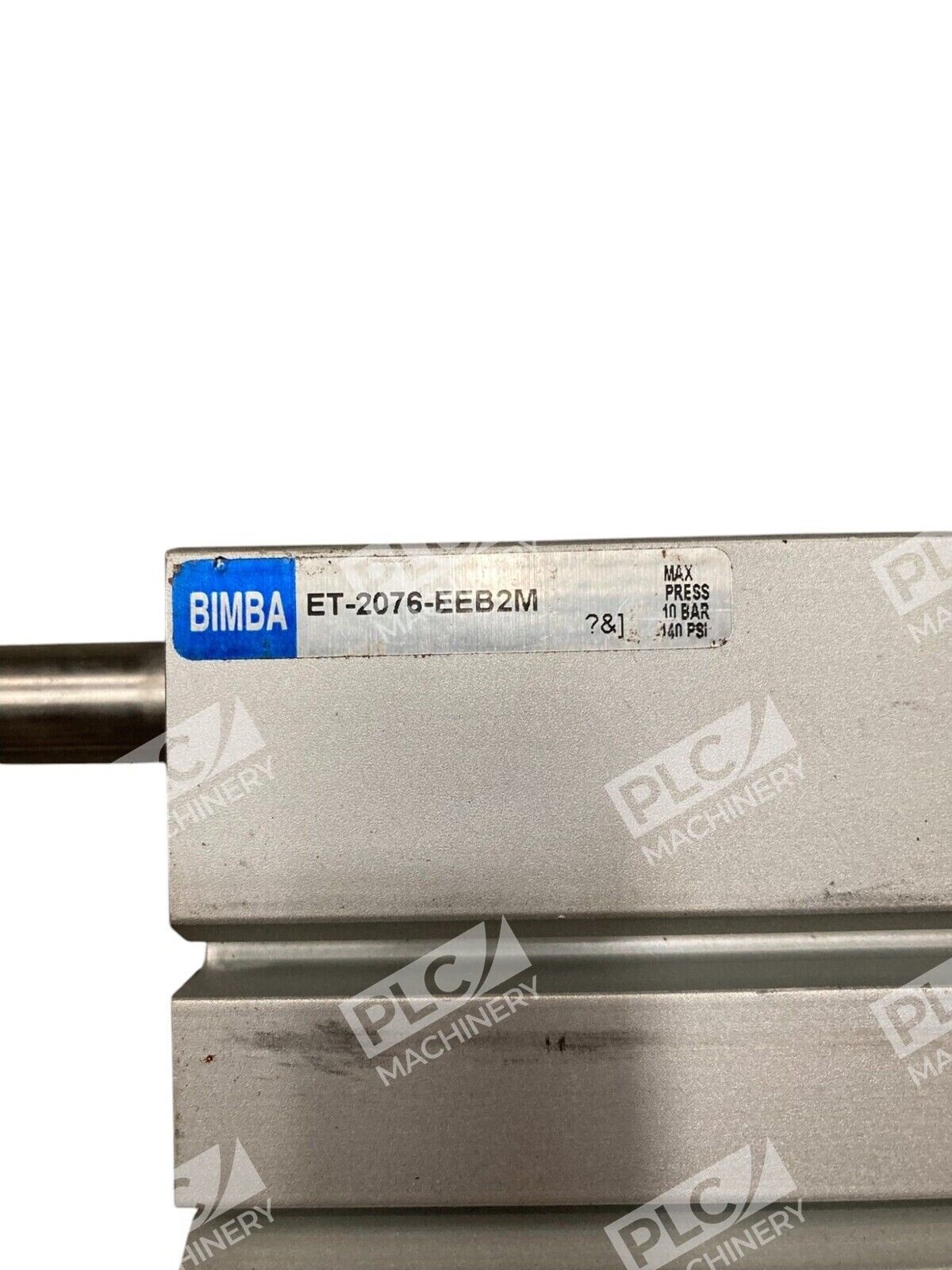

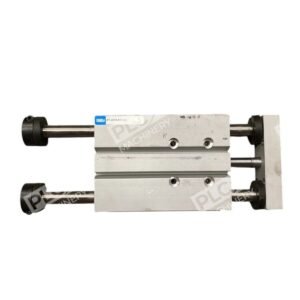

<p>The <strong>Bimba ET-2076-EEB2M</strong> is a double-acting extruded linear thruster guided cylinder designed for pneumatic-powered applications requiring precise, guided linear motion. <cite index=”3-1″>The Bimba Extruded Linear Thruster is a rugged, guided actuator with a cylinder integral to the thruster block.</cite> This compact, space-efficient design integrates the cylinder and guide assembly into a single body, eliminating external guide rails and simplifying system layout.</p>
<h2>Key Features</h2>
<ul>
<li><cite index=”3-1,3-2″>Rugged guided actuator with sleek body incorporating switch mounting for a clean, space-efficient package</cite></li>
<li>Double-acting cylinder suitable for compressed air systems</li>
<li>20 mm bore and 76 mm stroke for compact, proportionate motion output</li>
<li><cite index=”6-1″>Hard chrome-plated stainless steel rod, aluminium body, and nitrile seals</cite></li>
<li><cite index=”6-1″>Self-lubricating nylon guide bushing with stainless steel guide shaft</cite></li>
<li>External bumpers on both ends for impact protection</li>
</ul>
<h2>Technical Specifications</h2>
<ul>
<li><strong>Bore Diameter:</strong> 20 mm</li>
<li><strong>Stroke Length:</strong> 76 mm</li>
<li><strong>Acting Type:</strong> Double-acting</li>
<li><strong>Port Size:</strong> 1/8″ NPT (standard)</li>
<li><strong>Operating Pressure:</strong> <cite index=”6-1″>140 psi (10 bar) maximum</cite></li>
<li><strong>Operating Temperature:</strong> <cite index=”6-1″>15°F to 160°F (-10°C to 70°C)</cite></li>
<li><strong>Bearing Type:</strong> Composite bearing (self-lubricating nylon)</li>
<li><strong>Rod Material:</strong> Hard chrome-plated stainless steel</li>
<li><strong>Body Material:</strong> Aluminium</li>
<li><strong>Seals:</strong> Nitrile</li>
<li><strong>Service Life:</strong> <cite index=”6-1″>1500 miles (with filtered, lubricated air)</cite></li>
<li><strong>Series:</strong> ET (Extruded Linear Thruster)</li>
</ul>
<h2>Typical Applications</h2>
<p>The ET-2076-EEB2M is ideal for automation, handling, and material processing systems where guided linear motion, compact footprint, and low side-load deflection are critical. Common uses include:</p>
<ul>
<li>Assembly line transfer and clamping applications</li>
<li>Indexing tables and positioning mechanisms</li>
<li>Punch press and stamping die handling</li>
<li>Machine tool automation</li>
<li>Workpiece ejection and part removal systems</li>
</ul>
<h2>Compatibility & Replacements</h2>
<h3>Compatible With</h3>
<ul>
<li>Pneumatic / compressed air systems operating at 140 psi (10 bar) maximum</li>
<li>Standard 1/8″ NPT pneumatic hose and fittings</li>
<li>ISO pneumatic directional control valves</li>
<li>Pneumatic solenoid valve systems</li>
<li>PLC and automation control systems with pneumatic I/O</li>
<li>Industrial compressed air networks (filtered and lubricated)</li>
</ul>
<h3>Replaces / Drop-In Replacement For</h3>
<p>The ET-2076-EEB2M directly replaces other ET-20 series cylinders with identical bore (20 mm) and stroke (76 mm) specifications. Verify exact configuration codes (EEB2M suffix indicates double-acting, external bumpers, bore 20mm) before ordering. Consult Bimba or your distributor for interchangeability confirmation with legacy or OEM variants.</p>
<h3>Works With</h3>
<ul>
<li>Pneumatic schematic design and CAD software (AutoCAD, Visio)</li>
<li>Pneumatic simulation tools (FluidSIM, MATLAB Simulink)</li>
<li>Industrial automation platforms (Siemens, Allen-Bradley, Mitsubishi PLCs)</li>
<li>Standard 1/8″ NPT port interface with ISO NG6 valve manifolds</li>
<li>Pneumatic timing and logic control circuits</li>
</ul>
