Overview
The Philips 3186GH242T450APA9 is a Type 3186 aluminum electrolytic capacitor rated for 450VDC operation. With a 2400µF capacitance and surge rating of 525, this capacitor is engineered for demanding industrial power electronics applications. The -10% to +50% tolerance range accommodates typical power supply filtering, energy storage, and pulse correction circuits.
Key Features
- Voltage Rating: 450VDC nominal operating voltage
- High Capacitance: 2400µF for substantial energy storage
- Surge Capability: 525 rating for transient protection
- Capacitance Tolerance: -10% to +50% tolerance range

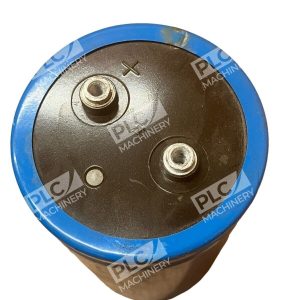

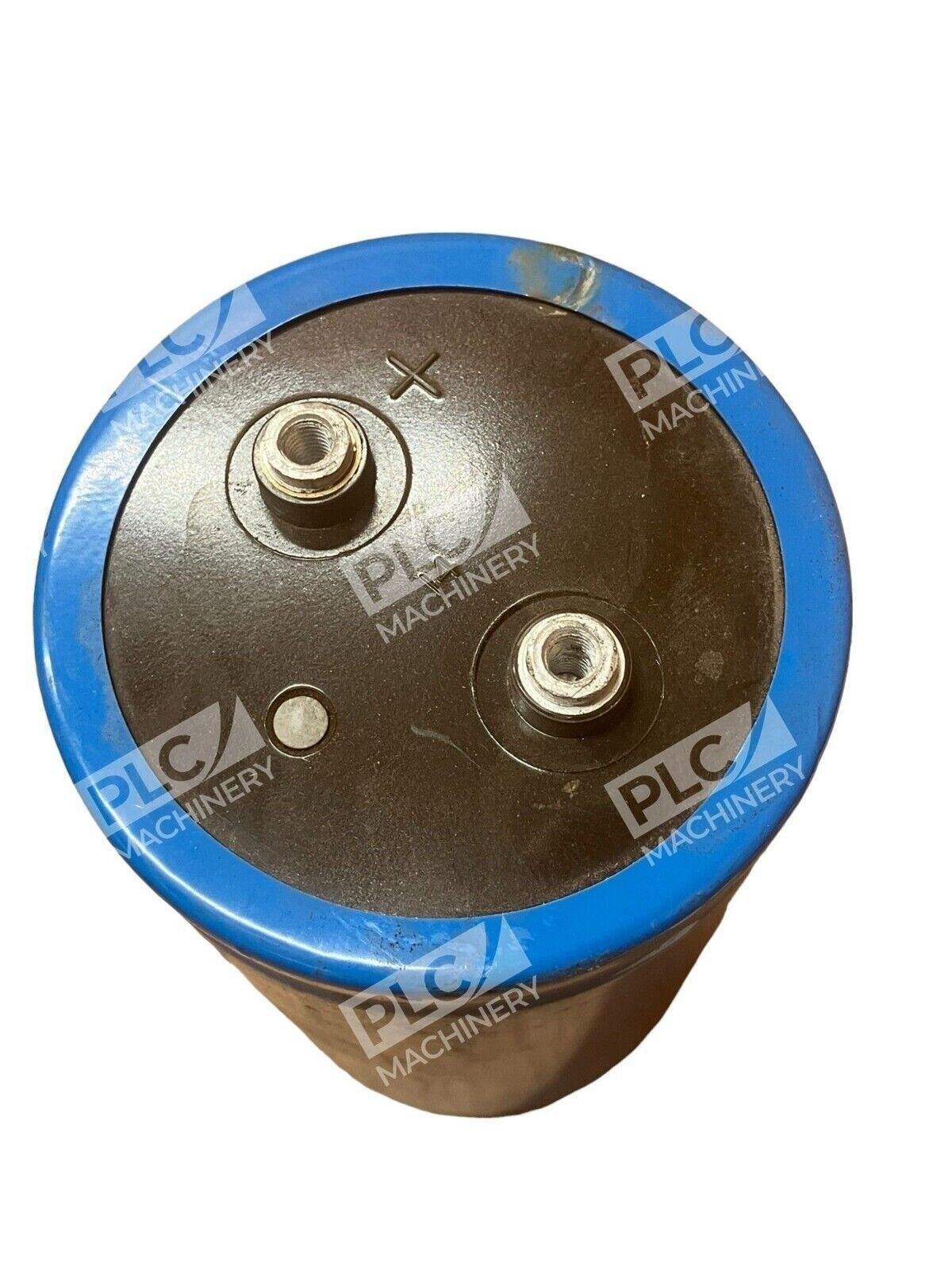

- Screw Terminal Design: Type 3186 with robust connection method for industrial mounting
- 85°C Rated: Suitable for moderate-temperature industrial environments
Technical Specifications

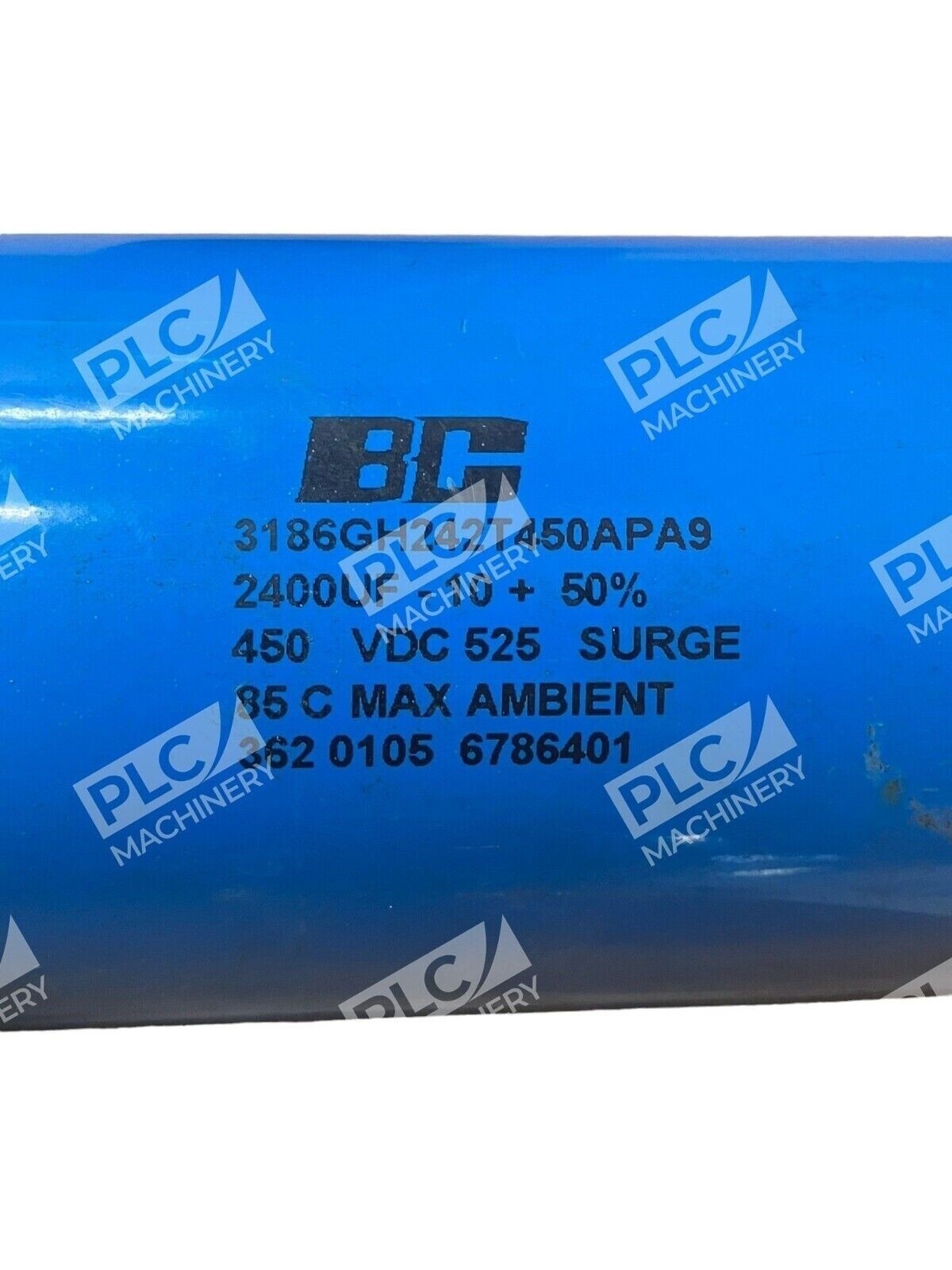

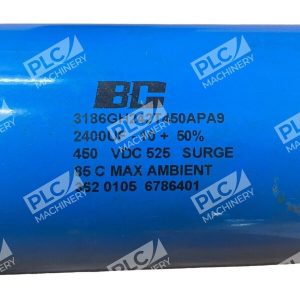

- Part Number: 3186GH242T450APA9
- Manufacturer: Philips
- Capacitance: 2400 µF
- Rated Voltage (DC): 450 V
- Surge Rating: 525
- Capacitance Tolerance: -10% to +50%
- Operating Temperature: 85°C (rated)
- Case Diameter: Type 3186 form factor
- Terminal Style: Screw terminal
- Application Class: Industrial power electronics
Typical Applications
- DC power supply filtering and smoothing in industrial equipment
- Energy storage for high-voltage pulse applications
- Surge protection and transient correction in power conversion circuits
- Motor starter circuits and industrial drives
- Welding equipment and power distribution systems
Compatibility & Replacements
Compatible With
- Industrial power supply designs operating at 450VDC
- High-voltage DC filtering circuits in power electronics
- Screw terminal mounting systems (M5, M6, or equivalent hardware)
- Heavy-duty capacitor banks and multi-capacitor assemblies
Replaces / Drop-In Replacement For
- Other Philips Type 3186 units with same voltage and capacitance ratings
- Compatible with legacy power supply designs specifying 450VDC / 2400µF aluminum electrolytic capacitors
- Verify exact mounting and terminal requirements with system documentation before installation
Works With
- Industrial rectifier and converter circuits
- DC bus architecture in factory automation systems
- Power electronics modules rated for 450VDC operation
- Standard industrial mounting and hardware (verify screw size and spacing)
