Overview

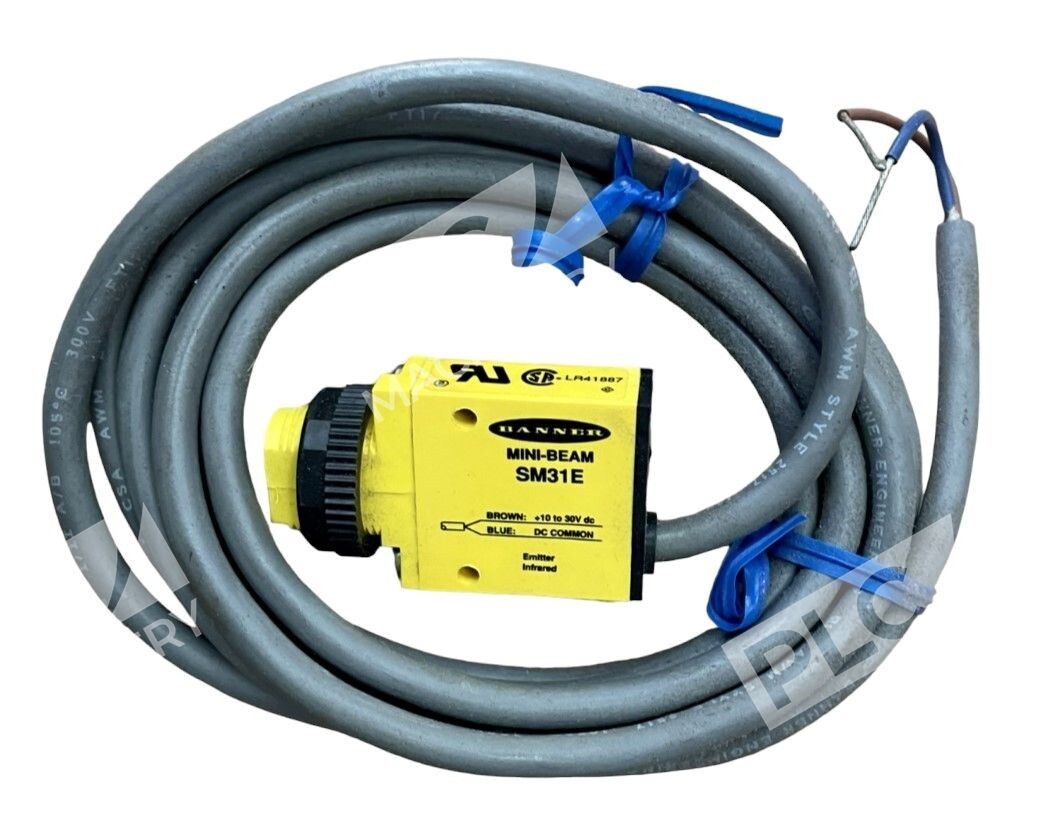

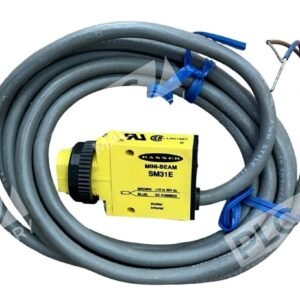

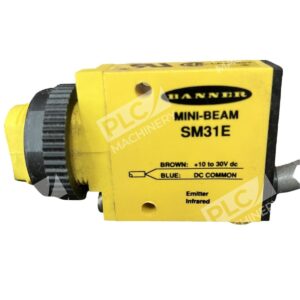

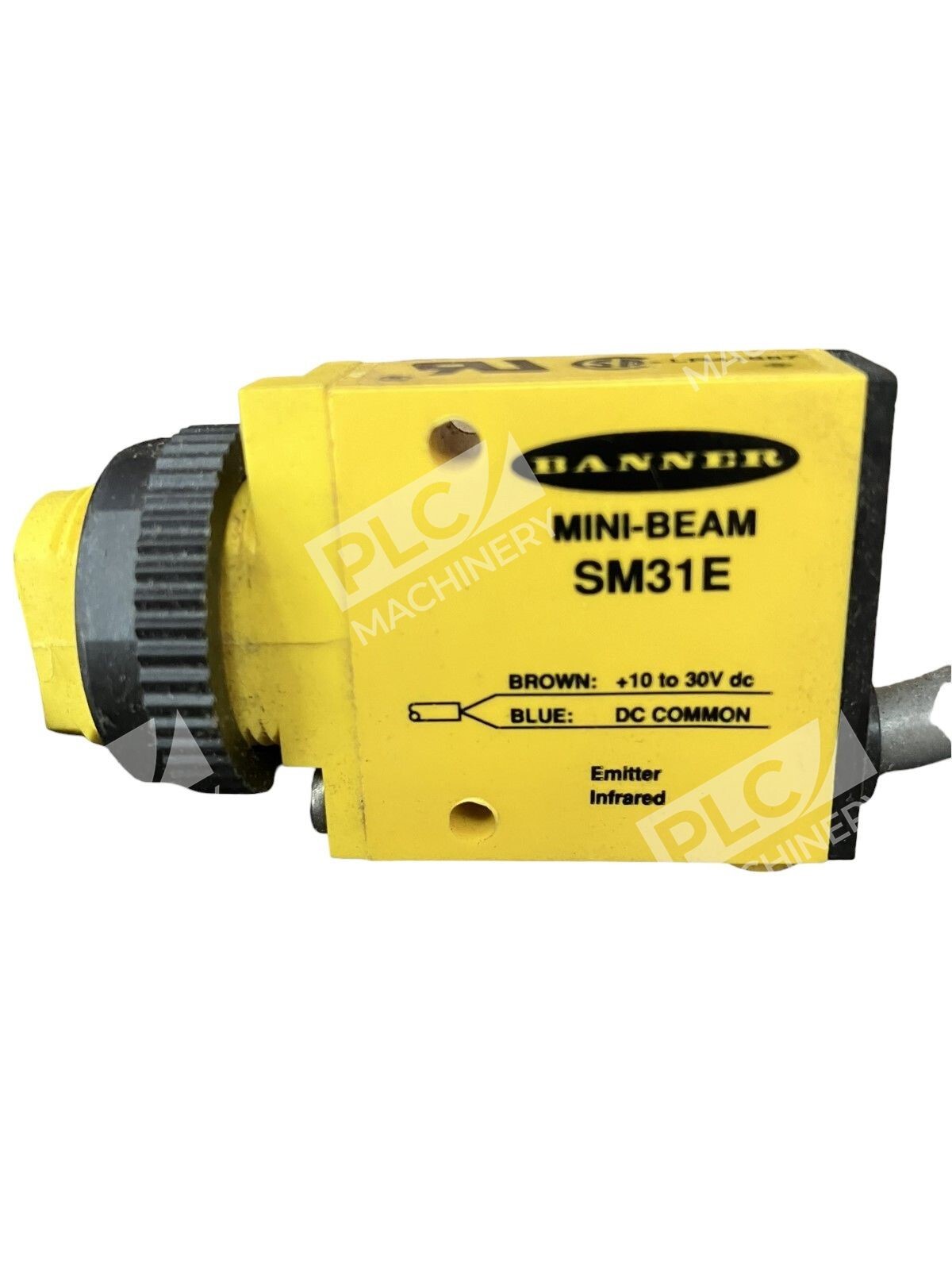

The Banner SM31E Mini-Beam is a compact infrared photoelectric sensor designed for opposed-mode (through-beam) detection in industrial automation. The Mini-Beam-DC-Voltage Series offers self-contained opposed mode modulated infrared sensor pairs for 10 to 30 V dc operations, with standard sensor pairs having 3 m (10 ft) range and long range sensor pairs having 30m (100ft) sensing range. The SM31E emitter unit pairs with the Banner SM31R receiver to create a complete opposed-mode sensing system.
Key Features
- Exclusive, patented Alignment Indicating Device system (AIDâ„¢) lights a rear-panel mounted red LED indicator whenever the sensor sees a “light” condition, with a superimposed pulse rate proportional to the light signal strength

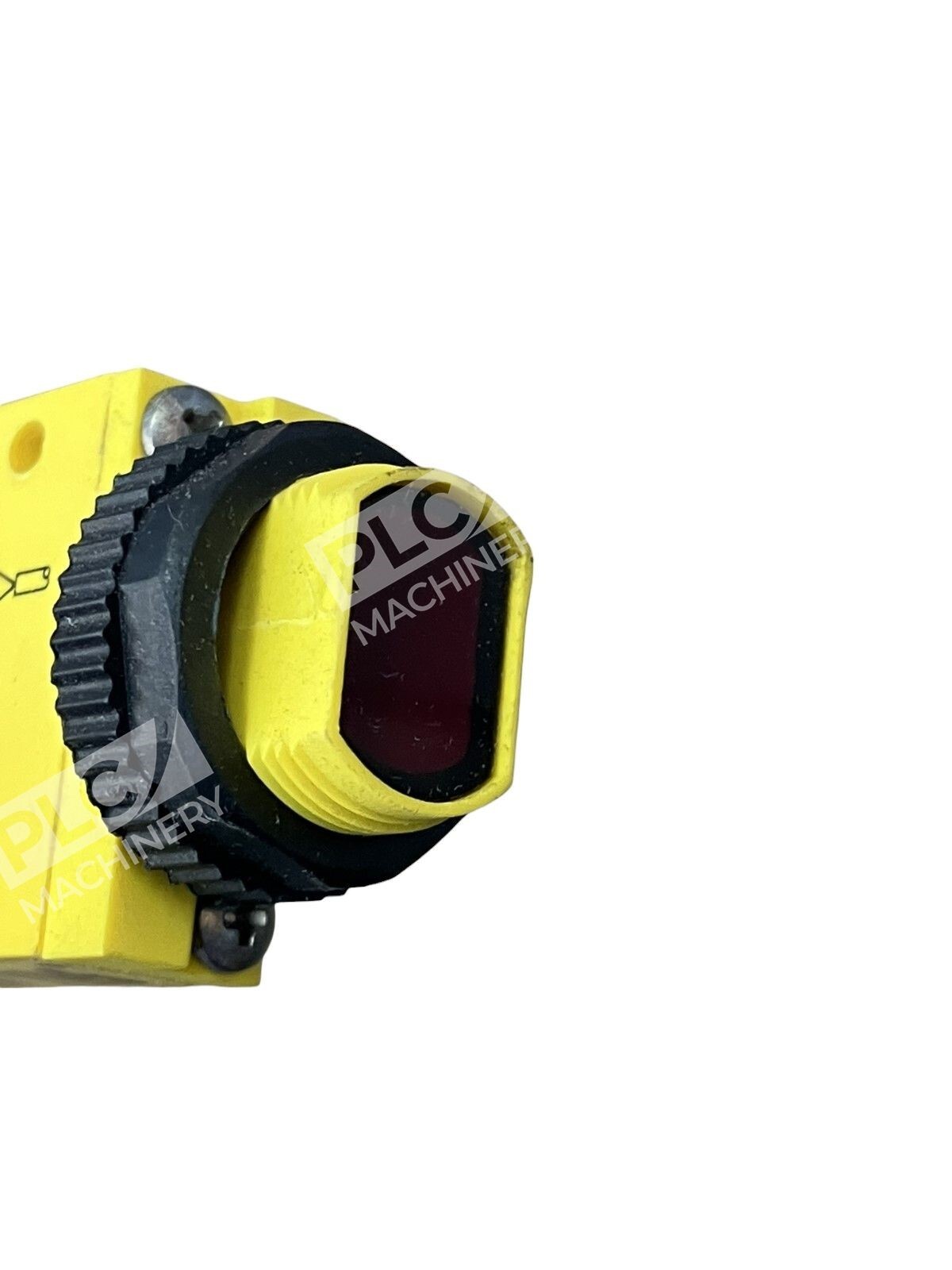

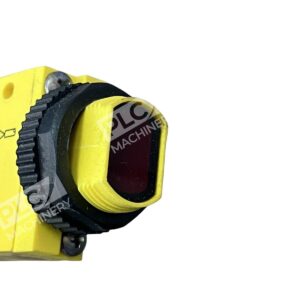

- Reinforced thermoplastic polyester housing, totally encapsulated, o-ring sealing, and acrylic lenses
- IP67-rated housing with NEMA 4X enclosure rating
- 18 mm threaded barrel or side mounting options for flexible installation
- TTL compatible output for direct interface with digital control systems
Technical Specifications
- Sensing Mode: Opposed (Through-Beam)
- Light Source: Infrared LED
- Operating Range: 3 m (10 ft)
- Supply Voltage: 10–30 V dc
- Output: No output (emitter only); pairs with SM31R receiver

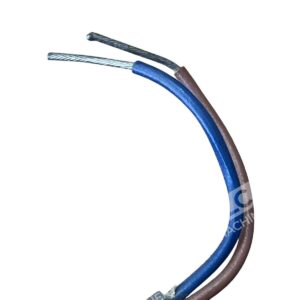

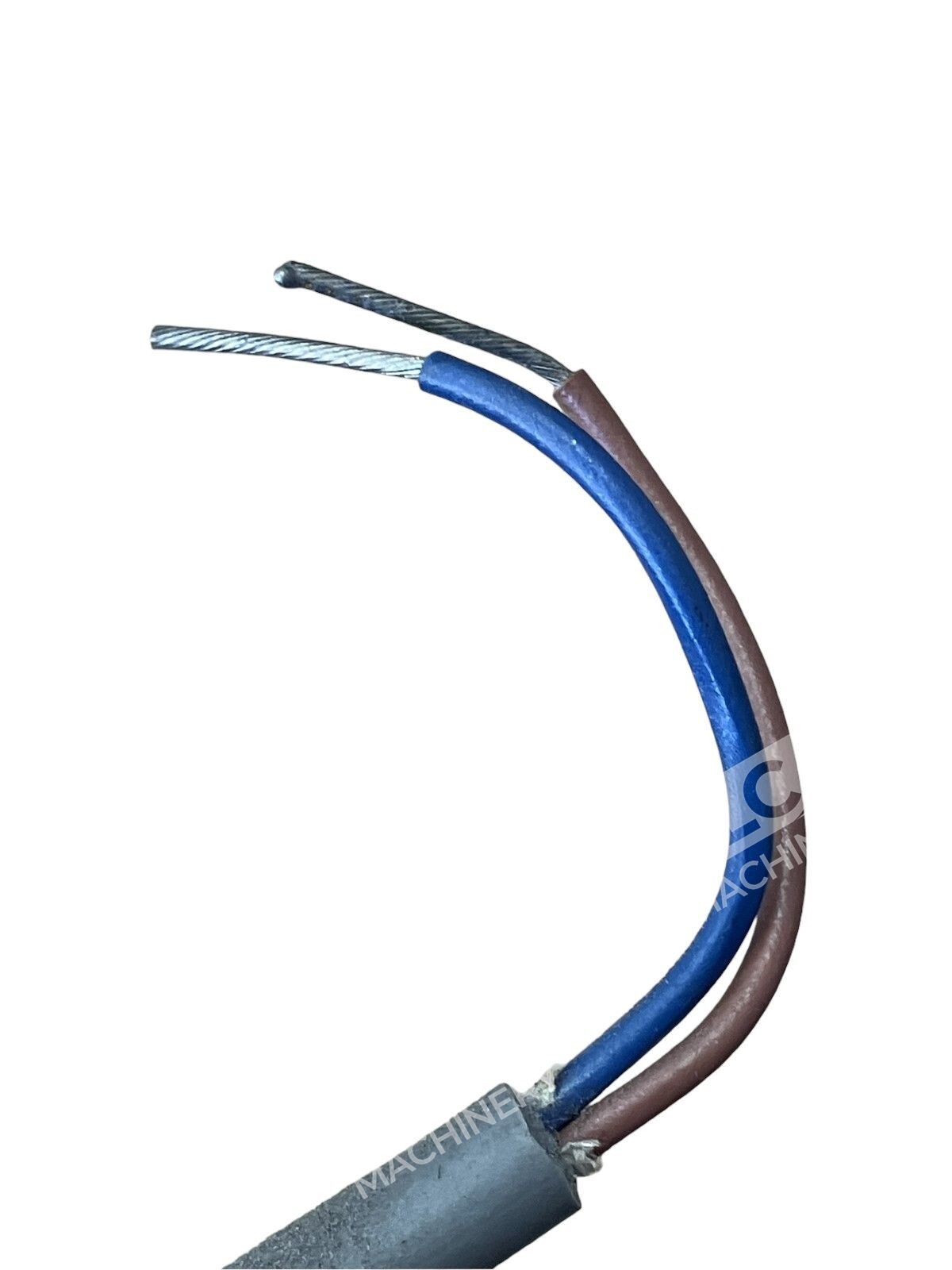

- Cable Length: 2 m (6.5 ft) with bare-end flying leads
- IP Rating: IP67
- NEMA Rating: NEMA 4X
- Operating Temperature: −20 to +70°C ambient
- Housing Material: Reinforced thermoplastic polyester
- Lens Material: Acrylic
- Mounting: M18 threaded barrel
- Manufacturer Part Number: 25623
Typical Applications
- Registration mark detection on moving webs and labels
- Carton and package detection on conveyors
- Clear film and plastic web-break detection
- Baggage handling and sort systems
- Bottle conveying and line control
- Part counting and position sensing
Compatibility & Replacements
Compatible With
- Banner SM31R Mini-Beam receiver (forms complete opposed-mode pair)
- Banner logic modules, including all non-amplified MAXI-AMP and MICRO-AMP modules
- TTL-compatible industrial control systems and PLCs
- DC voltage supplies rated 10–30 V
Replaces / Drop-In Replacement For
- Earlier Banner Mini-Beam opposed-mode emitter configurations
- Verify compatibility with your system integrator before ordering if replacing legacy sensors.
Works With
- Banner MAXI-AMP amplifier modules
- Banner MICRO-AMP amplifier modules
- Standard industrial PLC analog and digital input modules
- Opposed-mode receiver units (Banner SM31R or equivalent)
