Overview

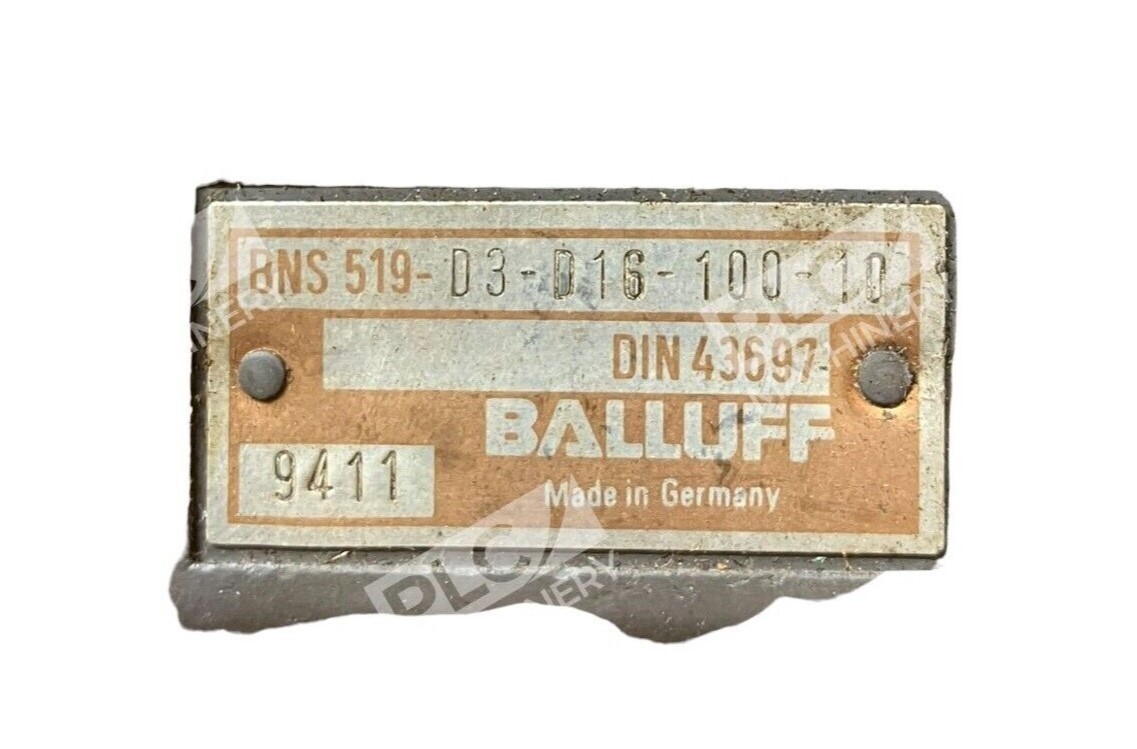

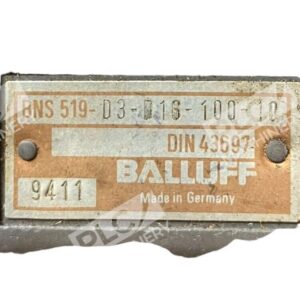

The Balluff BNS 519-D3-D16-100-10 is a robust electromechanical position/limit switch designed for industrial automation and machinery control applications. This switch combines proven snap-action technology with compact mechanics to provide reliable position detection and electrical switching in harsh manufacturing environments. The BNS 519 series is trusted across assembly lines, material handling systems, and production equipment for precise control and safety interlocking.
Key Features
- Electromechanical snap-action switching mechanism for reliable contact closure
- Rated 6A at 240VAC for standard industrial control circuits
- Compact DIN-style mounting configuration (D16 designation)
- Corrosion-resistant aluminum housing with anodized finish
- IP67-rated sealed enclosure for protection against moisture and dust ingress
- Screw terminal connection for secure wiring
Technical Specifications
- Contact Rating: 6A maximum
- Operating Voltage: 240VAC (rated)
- Switch Type: Single-pole snap-action
- Housing Material: Aluminum, anodized
- Enclosure Rating: IP67
- Connection: Screw terminal
- Operating Temperature: -5 to +85°C
- Cycle Life: >20 million operations
- Mounting Style: DIN 43697 standard
Typical Applications
- Position sensing in automated material handling equipment (conveyors, stackers, transfer systems)
- Machinery safety interlocks and limit detection
- Production line end-of-travel switching
- Door and guard position monitoring
- Equipment startup and shutdown control sequences
- PLC and relay-based automation circuits
Compatibility & Replacements
Compatible With
- Standard PLC 24VDC input modules (via relay interface)
- Industrial relay control circuits
- Conventional automation machinery and assembly equipment
- DIN-rail and panel-mount configurations
- Standard 240VAC single-phase industrial power supplies
Replaces / Drop-In Replacement For
- Balluff BNS 519-D3 variants with matching voltage and amperage ratings
- Similar DIN 43697 position switches with 6A 240VAC specification
Works With
- Siemens S7-1200, S7-1500 PLC controllers (via discrete input wiring)
- Allen-Bradley Compact/ControlLogix (via hardwired contact closure)
- Mitsubishi FX and Q-series PLCs with standard discrete inputs
- Omron CJ/CP-series controllers
- Any 240VAC relay logic or PLC input circuit with 6A switching capacity
