Overview

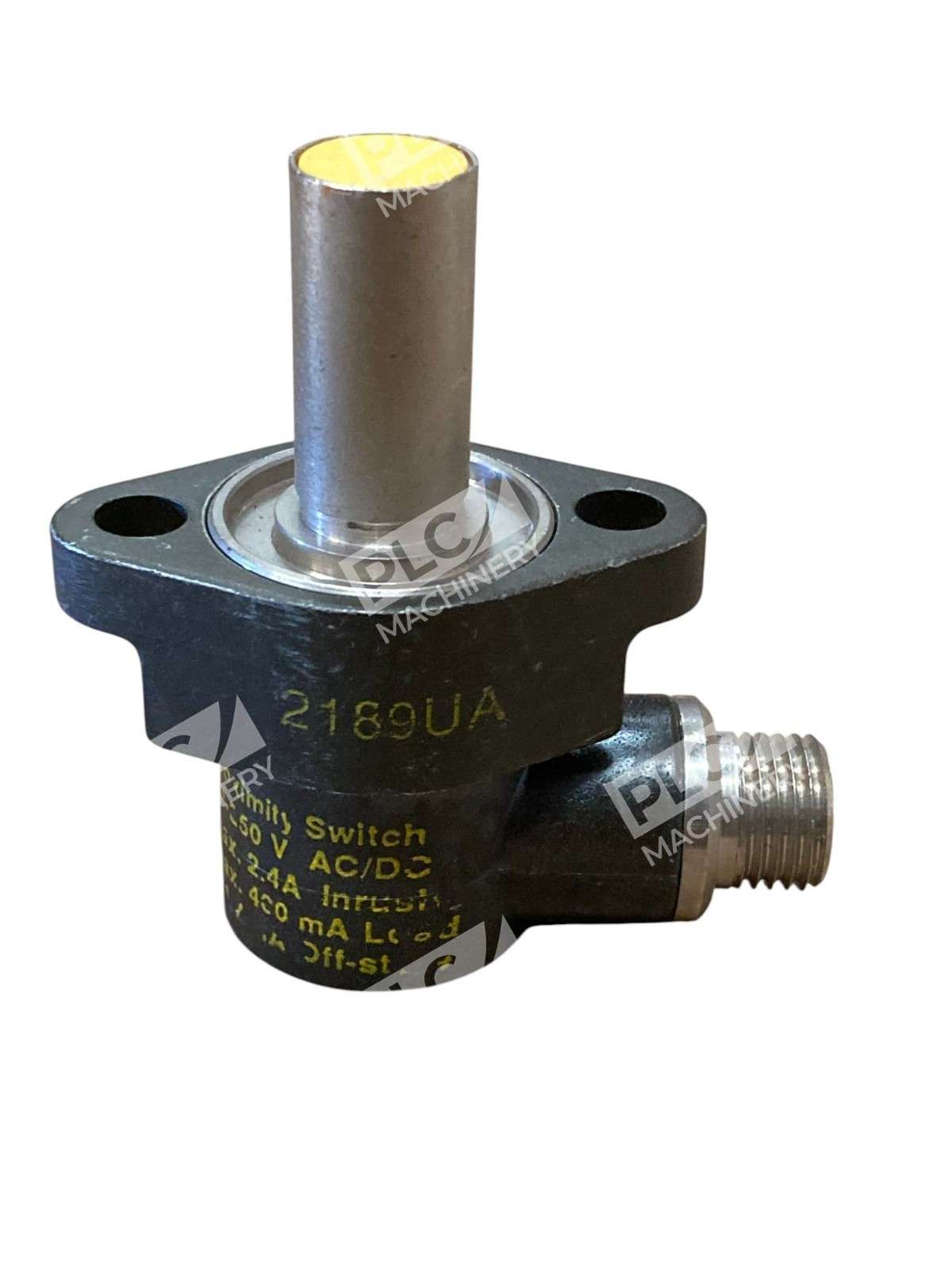

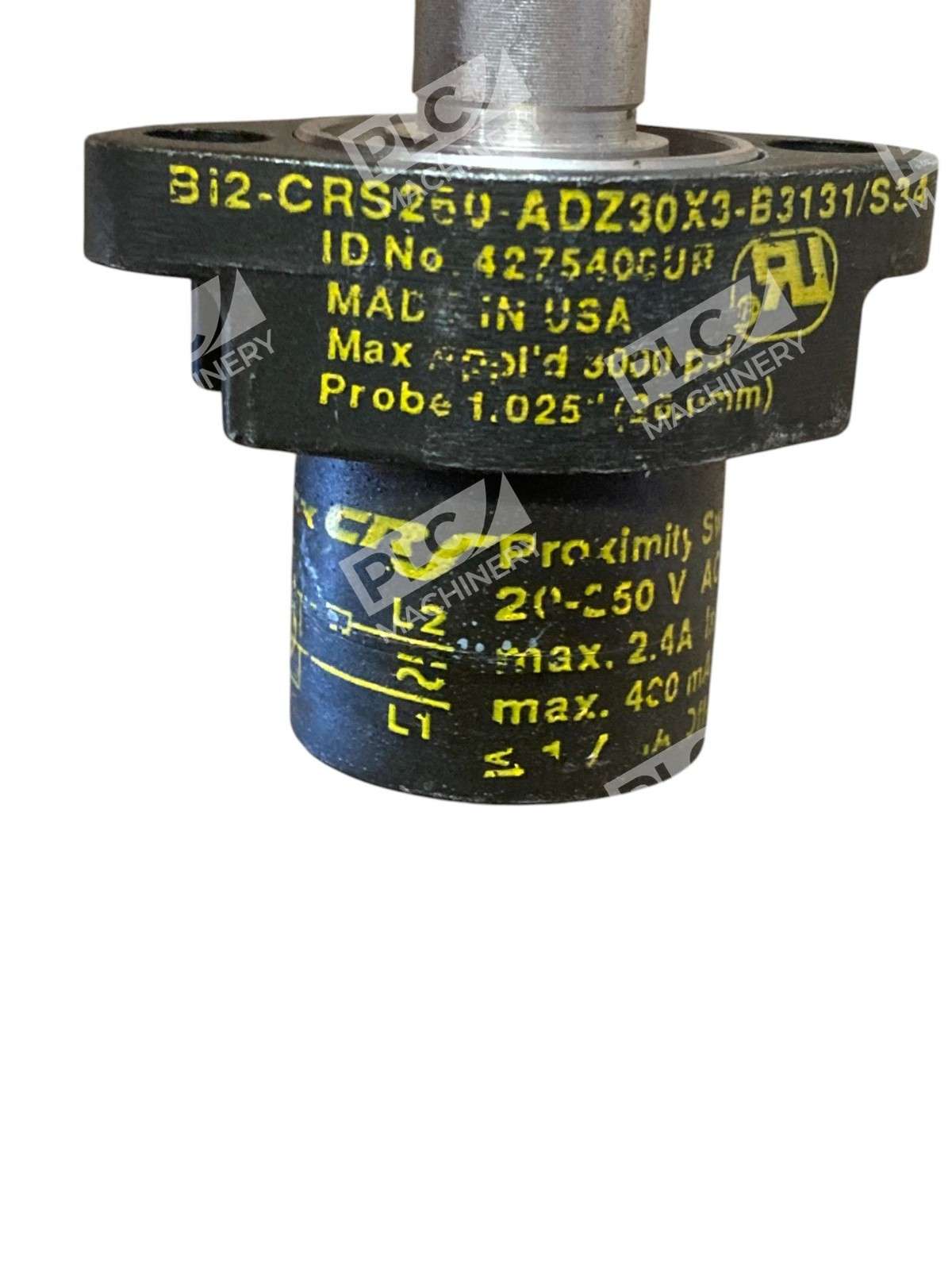

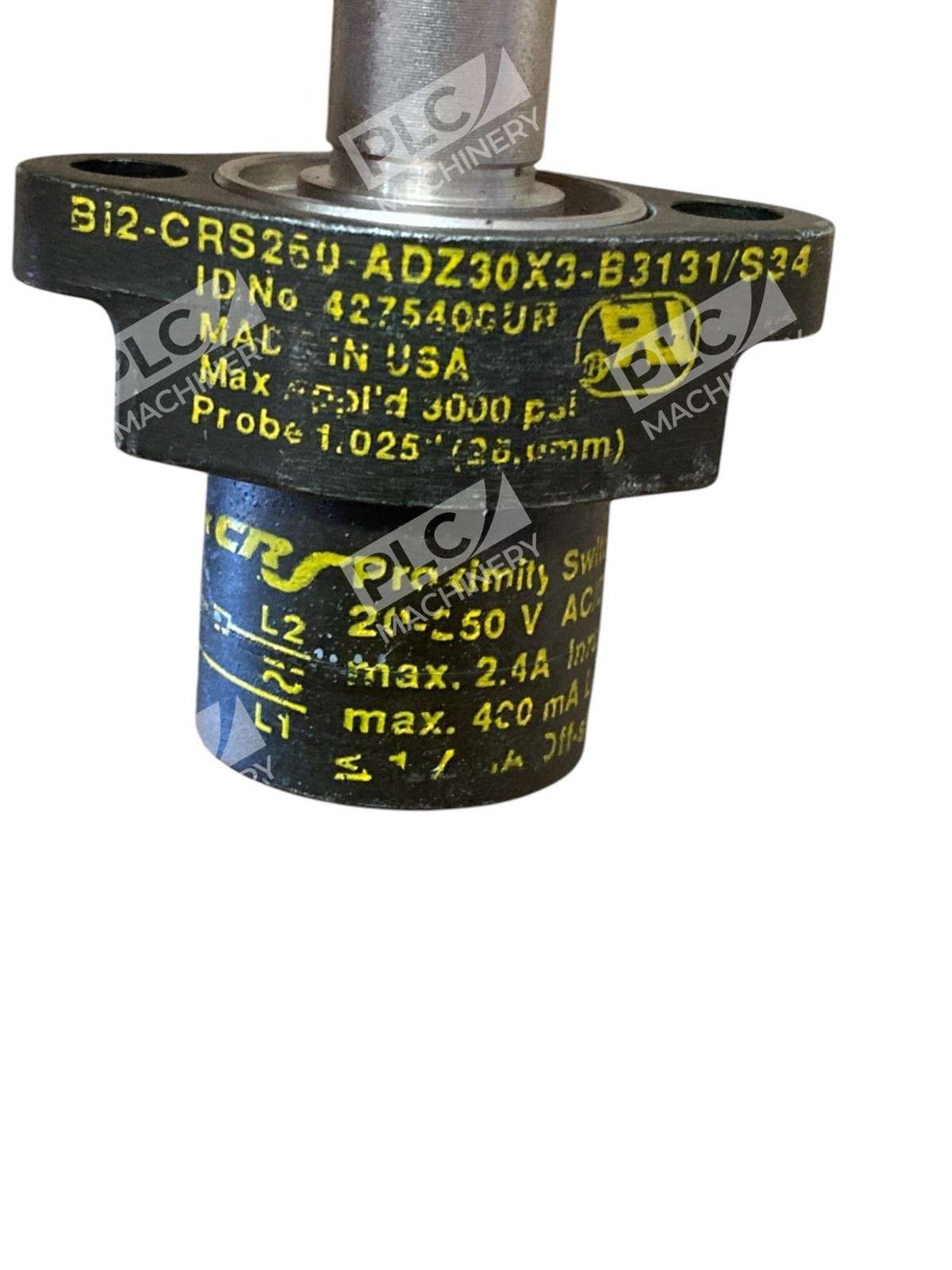

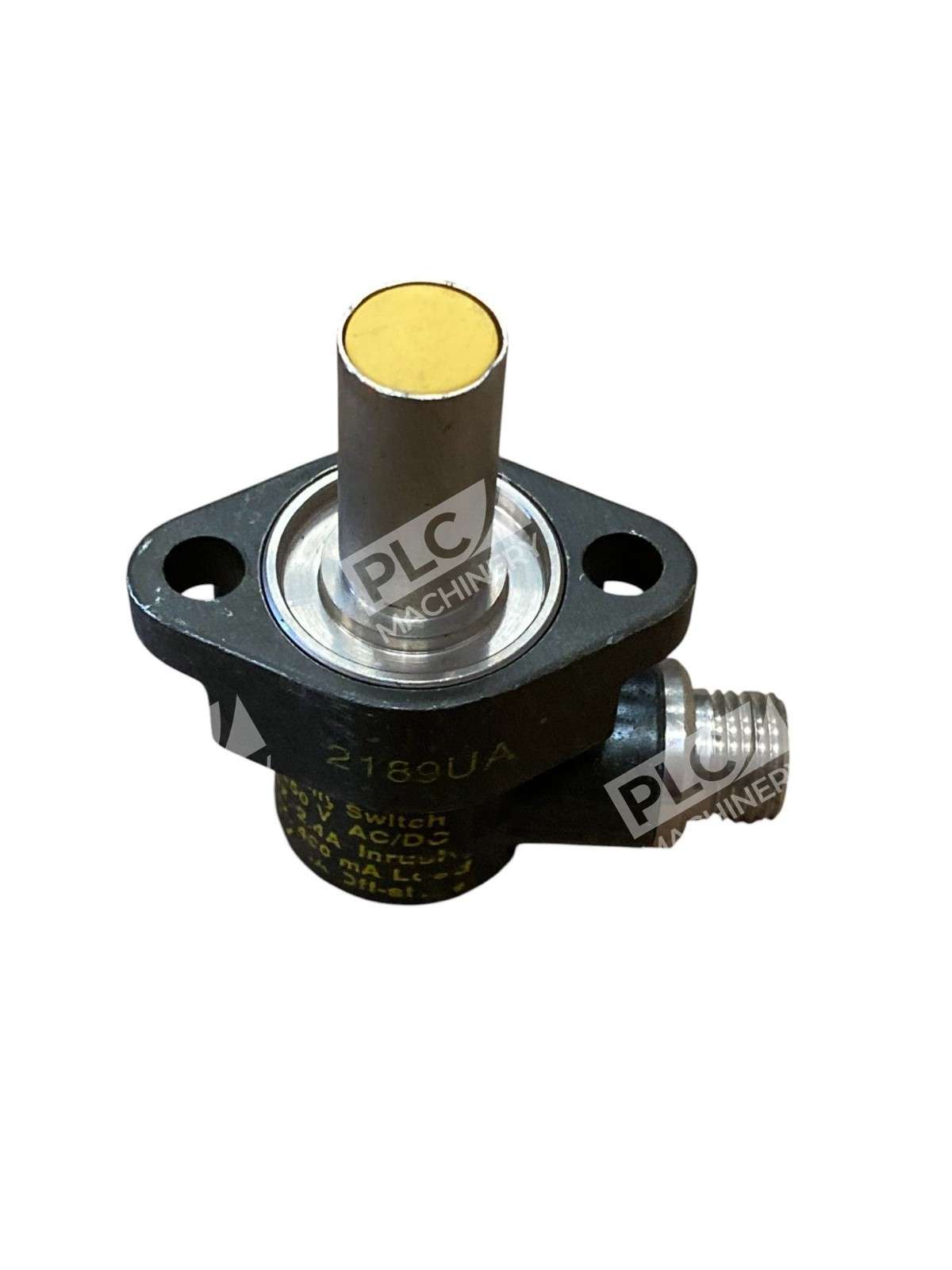

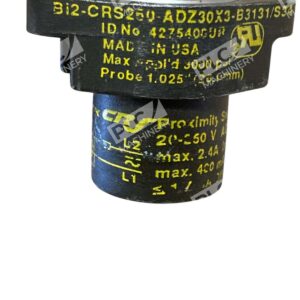

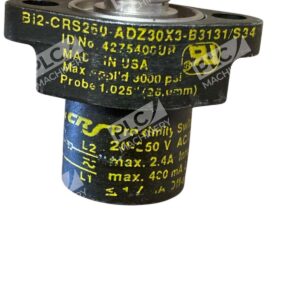

The Turck BI2-CRS260-ADZ30X3-B3131/S34 is an inductive proximity sensor engineered for reliable position sensing in industrial automation and motion control applications. This 26 mm probe-length sensor offers a compact cylindrical body with embeddable installation, making it suitable for direct mounting on pneumatic cylinders and linear actuators. The sensor operates on 2-wire AC/DC technology, eliminating the need for complex wiring in tight spaces.
Key Features
- 2-wire AC/DC operation (20–250 VAC / 10–300 VDC) for universal voltage compatibility
- 2 mm sensing range with normally open output configuration
- Weld-field immune technology for harsh industrial environments

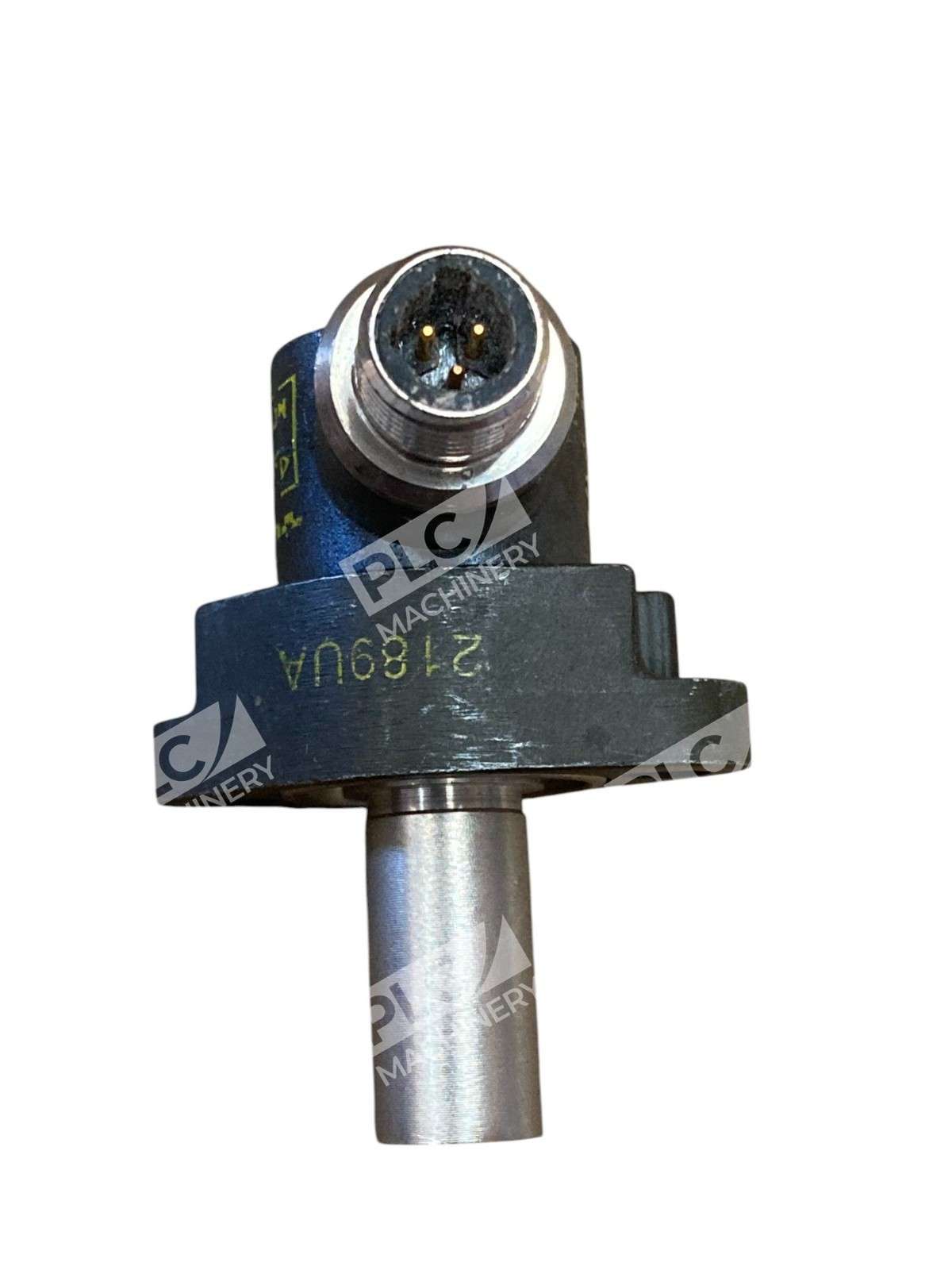

- Rotatable 3-pin 7/8″ MINIFAST connector for flexible orientation
- IP67 rated housing (zinc finish) for water and dust resistance

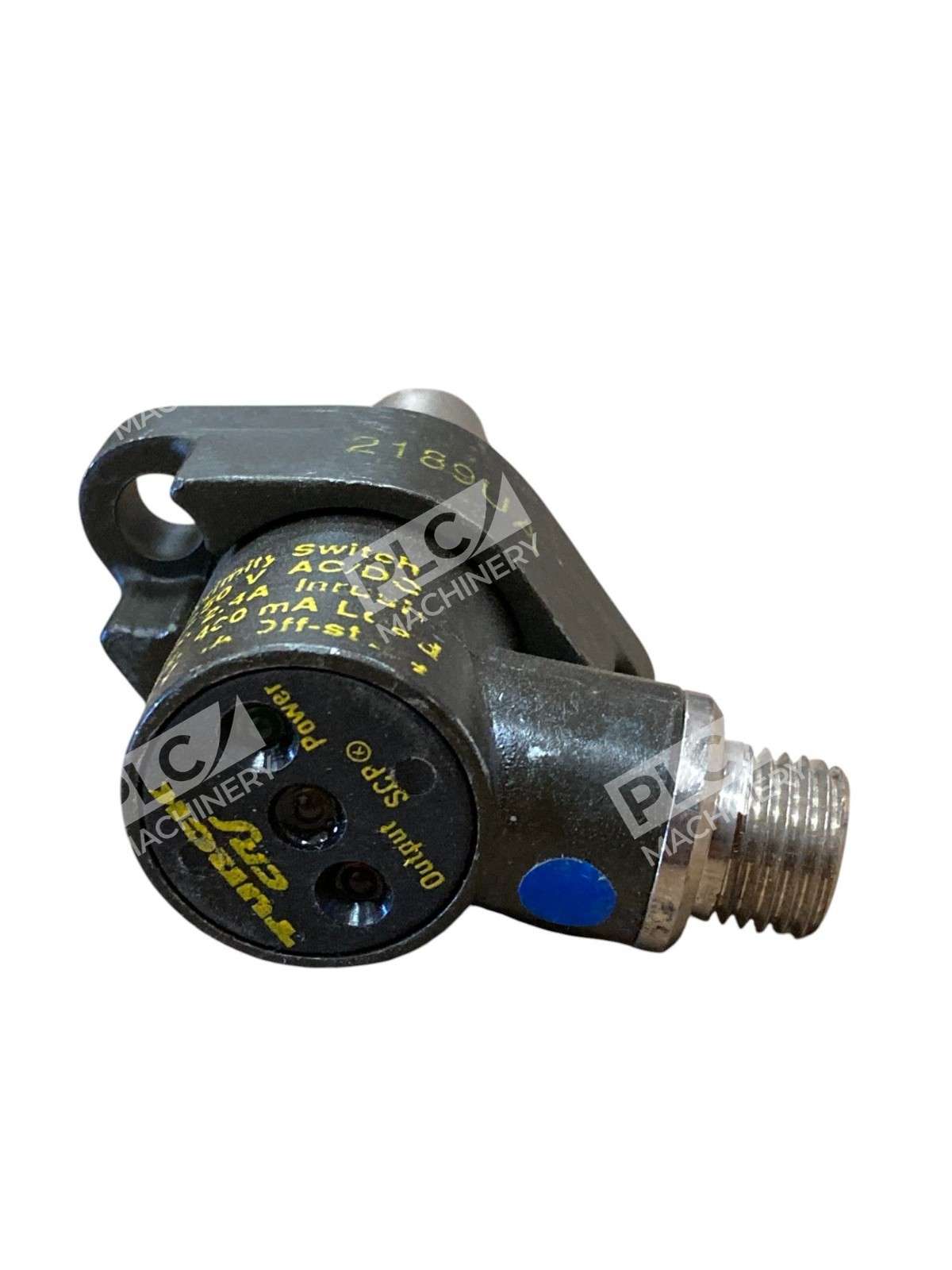

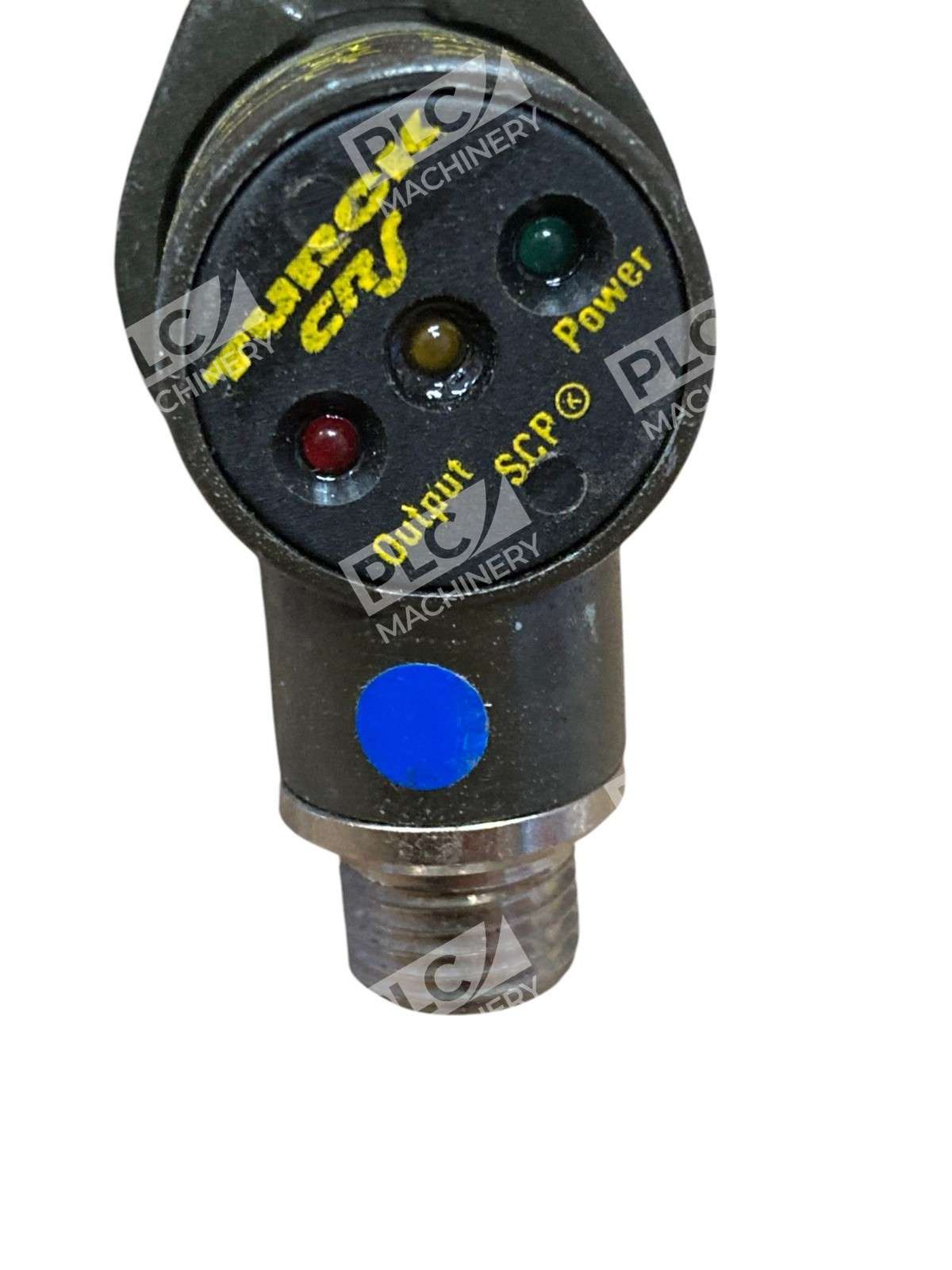

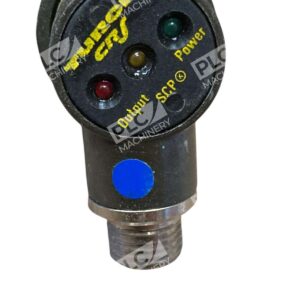

- Three indicator LEDs for visual status confirmation
- Operating temperature range: −25 to +70 °C
Technical Specifications
- Sensor Type: Inductive (cylindrical, normally open)
- Supply Voltage: 20–250 VAC / 10–300 VDC
- Sensing Range: 2 mm
- Probe Length: 26.0 mm (CRS260 designation)
- Output Current (max): 400 mA AC / 300 mA DC
- Connection: 3-pin 7/8″ MINIFAST connector
- Housing Material: Zinc-plated brass
- IP Rating: IP67
- Operating Temperature: −25 to +70 °C
- Mounting Style: Embeddable, rotatable
Typical Applications
- Pneumatic cylinder position sensing for stroke end detection
- Automated assembly line controls
- Packaging machinery piston location monitoring
- Robot arm and linear actuator positioning
- Material handling equipment
Compatibility & Replacements
Compatible With
- Turck TBEN gateways and I/O modules
- PLC and motion controller analog/digital inputs (DC/AC compatible)
- Pneumatic control systems and solenoid valve logic
- Industrial 24 VDC, 110 VAC, and 230 VAC control circuits
- Weld-field environments and high-interference areas
Replaces / Drop-In Replacement For
- Turck BI2-CRS260-ADZ30X2-B3131/S34 (earlier version; verify connector compatibility)
- Turck BI2-CRS260-ADZ30X2-B1131/S34 (2-output variant)
- Other 2 mm range, 26 mm probe-length inductive sensors with 7/8″ MINIFAST connectors
Works With
- AC and DC control system wiring (2-wire simplified installation)
- Turck IO-Link and PROFIBUS networks (via appropriate gateway)
- IP67 sealed connector systems
- Rotatable housing allows flexible mounting and orientation
