Overview

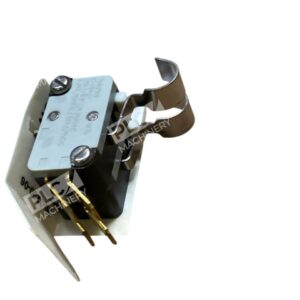

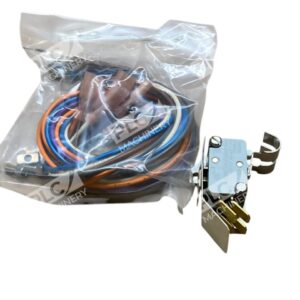

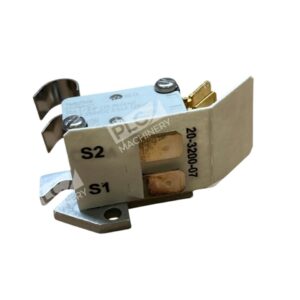

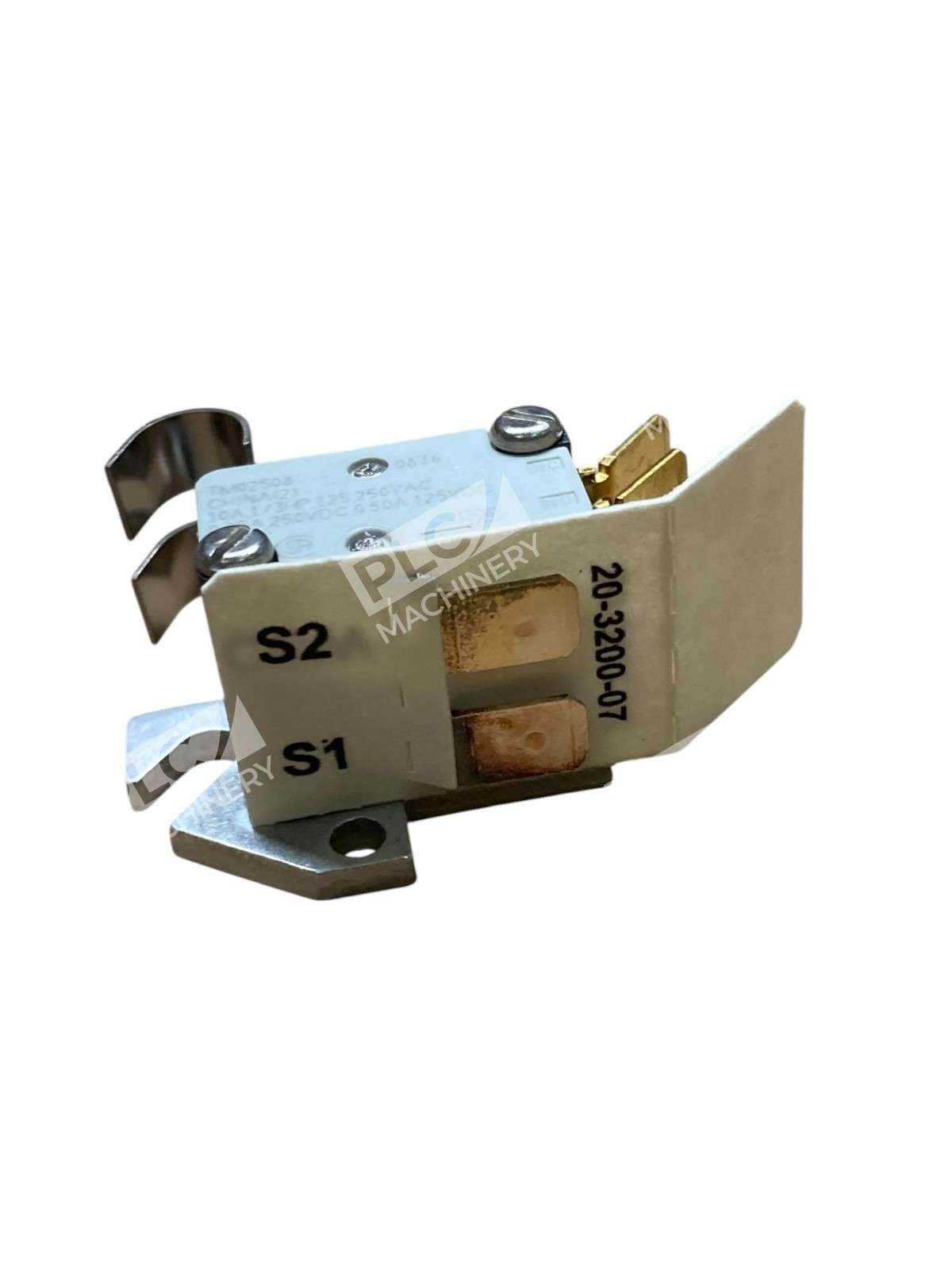

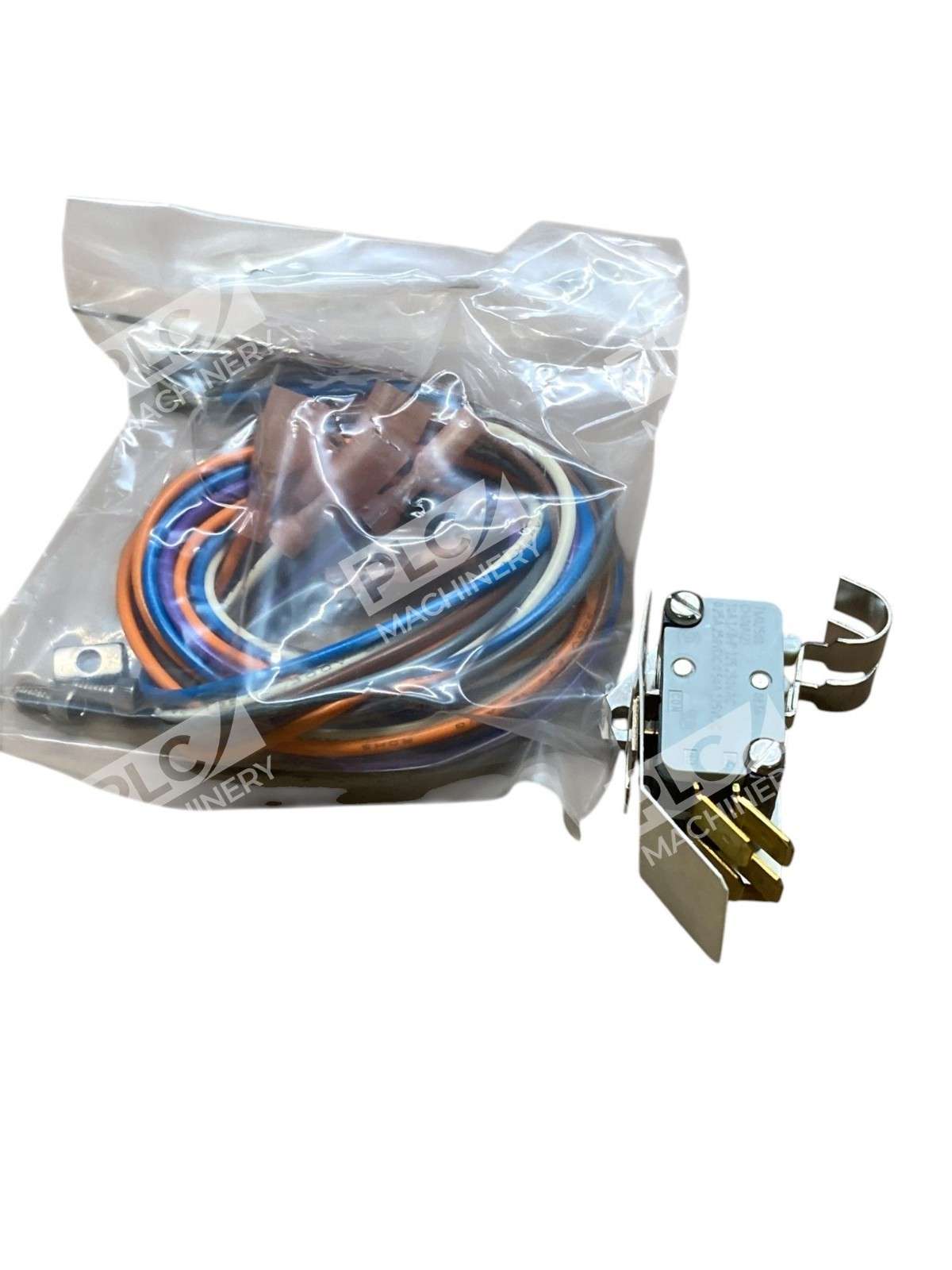

The BECK 20-3202-11 auxiliary switch assembly is a dual-channel control switch module engineered for Beck rotary electric actuators and industrial automation applications. Rated at 10A and suitable for both 125V and 250V operation, this switch assembly provides robust external signaling capabilities for machinery control, valve actuation, and position feedback systems. The unit is designed as a direct replacement component for Beck Group 31 and related actuator systems, ensuring compatibility with existing installations.
Key Features
- Dual auxiliary switches (2-channel configuration) for simultaneous signaling
- SPDT (Single Pole Double Throw) contact design for flexible switching logic
- 10A contact rating at 125/250V AC operation

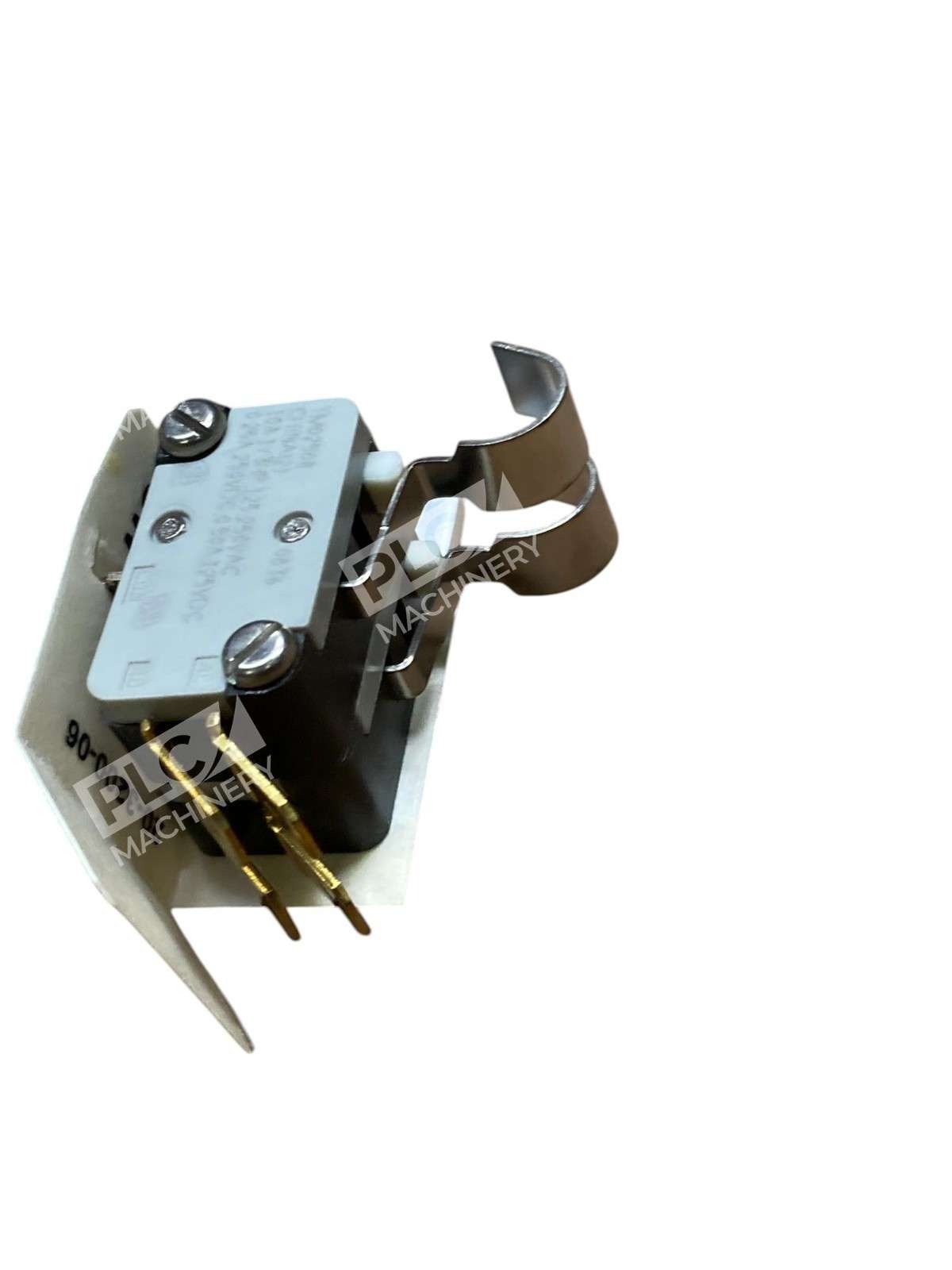

- Cam-operated mechanism driven directly by actuator output shaft
- Precision-engineered for millisecond response in control loops
- New in box condition—fully functional, ready for installation
Technical Specifications
- Contact Rating: 10A at 125/250V AC
- Contact Type: SPDT (Single Pole Double Throw)
- Channels: 2 auxiliary switches
- Actuation: Cam-operated (driven by actuator shaft)
- Response Time: Millisecond-level
- Construction: Industrial-grade polymer and metal components
- Mounting: Direct integration with Beck Group 31 and compatible actuators
- Operating Temperature: Standard industrial range
- New in Box Condition: Yes
Typical Applications
- Electric actuator external signaling and feedback in HVAC systems
- Industrial valve control and position confirmation
- Machinery motion control and end-of-travel indication
- Process automation systems requiring dual-channel status monitoring
- OEM equipment retrofit and maintenance replacements
- Control panels and electrical distribution systems
Compatibility & Replacements
Compatible With
- Beck Group 31 rotary electric actuators
- Beck Group 11 and Group 14 drive systems
- Beck modular actuator control platforms
- Industrial automation and motion control systems
- HVAC damper actuator applications
- Valve actuation and process control equipment
Replaces / Drop-In Replacement For
- BECK 20-3202-11 (current/legacy versions)
- Verify compatibility with your specific Beck actuator model before ordering
Works With
- Beck electric rotary actuators and control modules
- Standard industrial 125/250V AC control systems
- NEMA-rated automation enclosures and control panels
- Direct mechanical coupling to Beck actuator output shafts
