Overview

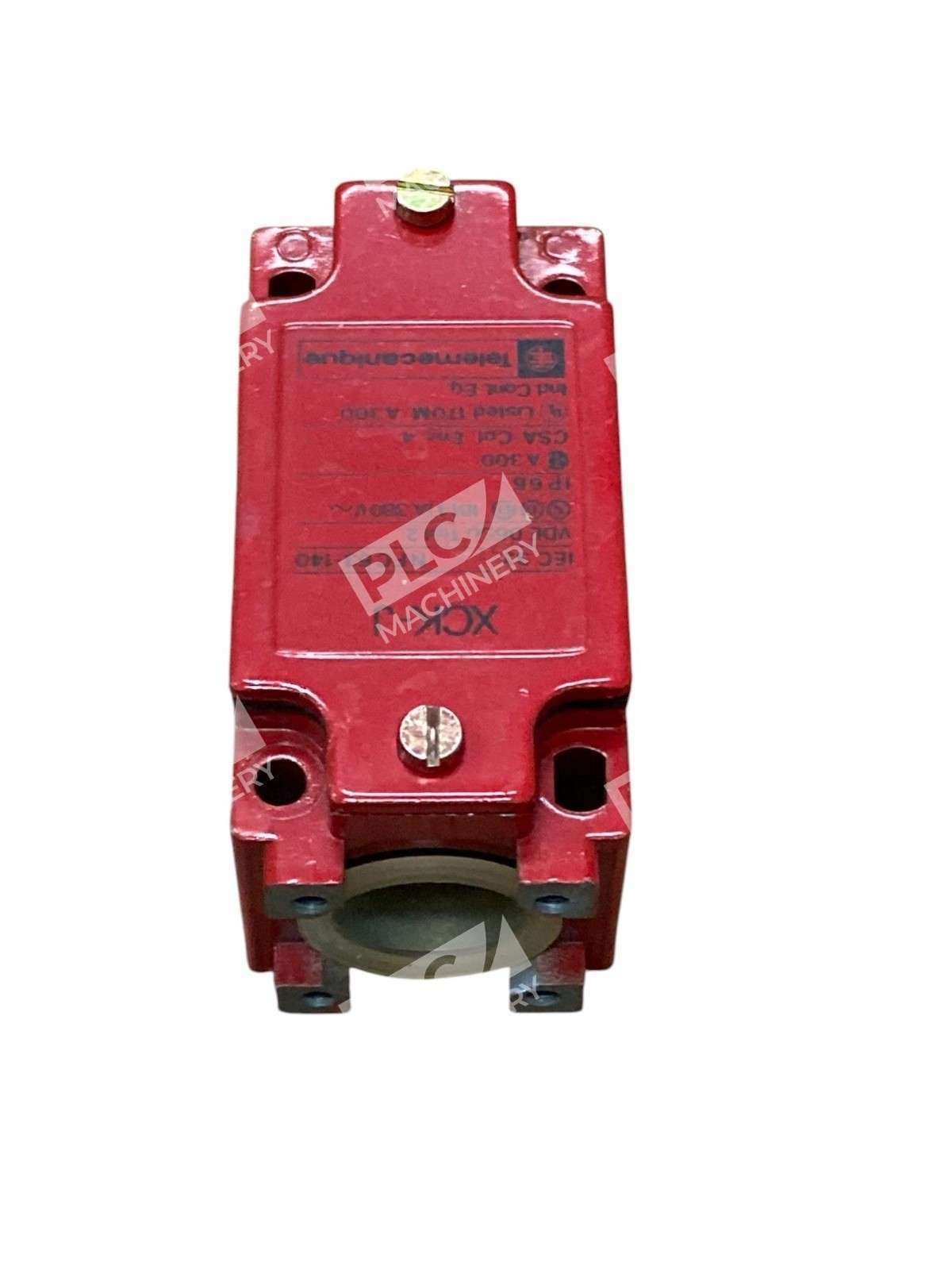

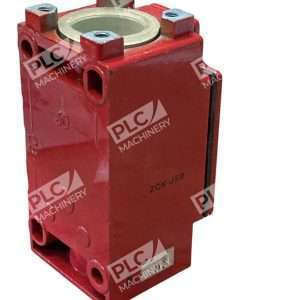

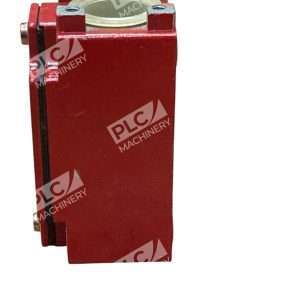

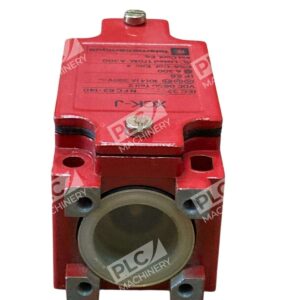

The Telemecanique XCK-J safety interlock switch is a heavy-duty mechanical safety switch designed for interior machine guarding and safety gate interlocking. Built with durable metal construction and stainless steel finish, the XCK-J features a rotary actuation design with reliable SPDT (Single Pole Double Throw) contact operation. This switch is manufactured in France and widely used in industrial automation for safety-critical door and gate monitoring applications.
Key Features
- SPDT contact configuration with isolated NO and NC contacts
- Slow break–before–make contact action for safe switching
- Bolt-on mounting for easy integration into machine frames
- Stainless steel finish for corrosion resistance
- Rotary actuator design with adjustable mounting
- IEC 947-5-1 / EN 60947-5-1 certified
Technical Specifications
- Rated Voltage: 240 VAC
- Contact Current Rating: 3 A
- Contact Configuration: SPDT (1 NO + 1 NC)
- Contact Action: Slow break–before–make
- Operating Voltage (Ui): 500 V
- Impulse Withstand (Uimp): 6 kV
- Category: AC15
- Mounting Style: Bolt-on
- Finish: Stainless steel with blue housing
- Certifications: IEC 947-5-1, EN 60947-5-1
- Manufacturer: Telemecanique (Schneider Electric)
- Origin: France
Typical Applications
- Safety interlock for machine guard doors and access gates
- Emergency stop circuit monitoring
- Industrial automation safety circuits
- Conveyor and material handling equipment guarding
- Packaging machinery safety interlocks
- Press machine and injection molding safety control
Compatibility & Replacements
Compatible With
- AC 240V control circuits rated up to 3A
- DC 110V coil modules and relay circuits
- IEC 60947-5-1 compliant safety systems
- Schneider Electric safety control architecture
Replaces / Drop-In Replacement For
- Telemecanique XCK-J H7 variants
- Similar-spec Telemecanique rotary safety interlock switches
- Other 240V, 3A SPDT safety interlocks in equivalent mechanical form factors
Works With
- AC15 safety relay circuits
- Hardwired safety control panels
- Safety-rated PLC input modules with 240V circuits
- Interlocking solenoid coils (115V, 230V options available separately)
