Overview

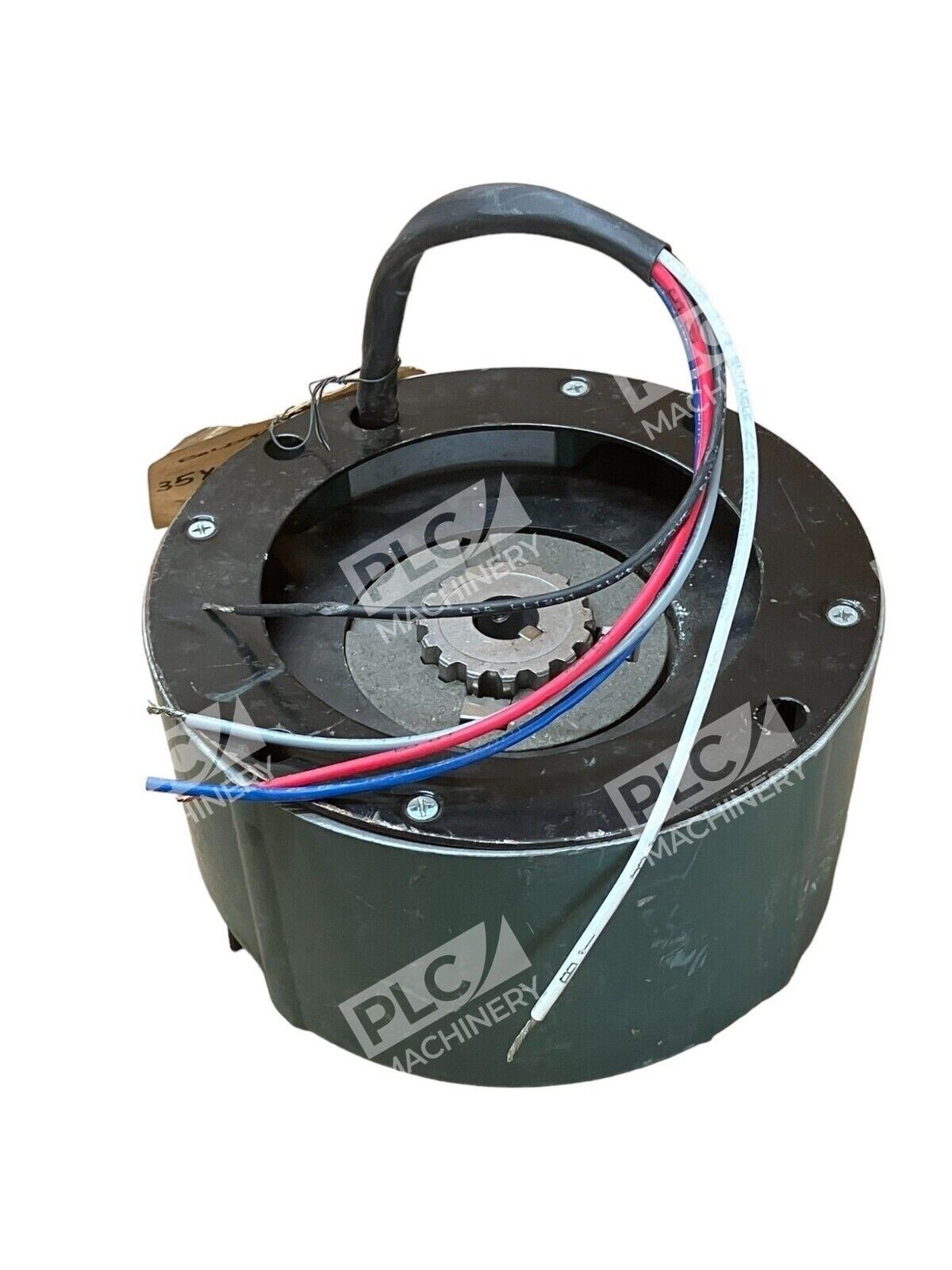

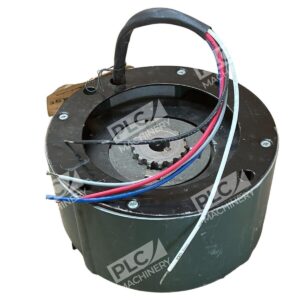

The Baldor Electric 025632 motor brake is an electrically-released, spring-set brake designed for holding and stopping applications in industrial equipment. Baldor-Reliance brake motors are engineered for applications requiring quick stops and positive holds across a wide range of industrial machinery. This unit features a mechanical spring-set design with manual release capability, making it suitable for conveyors, hoists, machine tools, speed reducers, and door operators.
Key Features
- Spring-set, electrically released brake design for fail-safe holding
- Manual release option for emergency or maintenance procedures
- Continuous-duty rated for reliable performance in demanding applications
- Compatible with motor mounting configurations and flexible speed drive integration
- Industrial-grade construction for long-term reliability
Technical Specifications
- Manufacturer: Baldor Electric (Dodge Division)

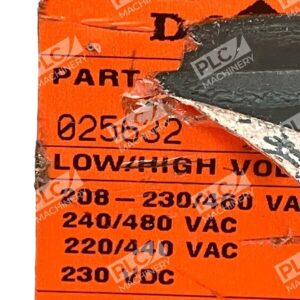

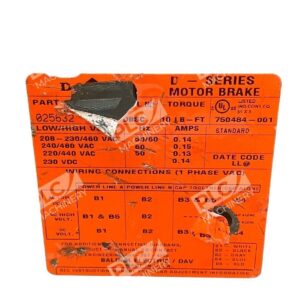

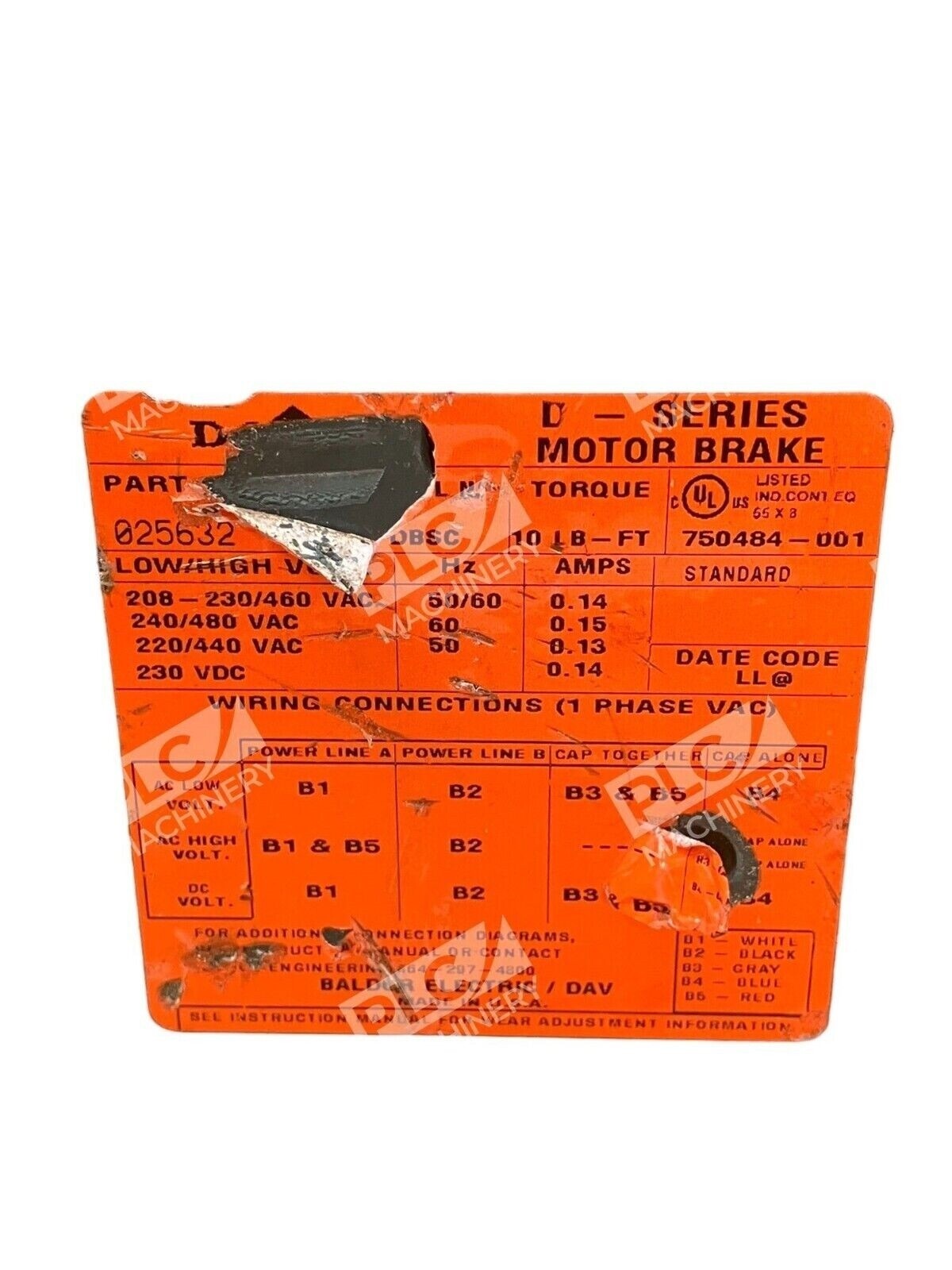

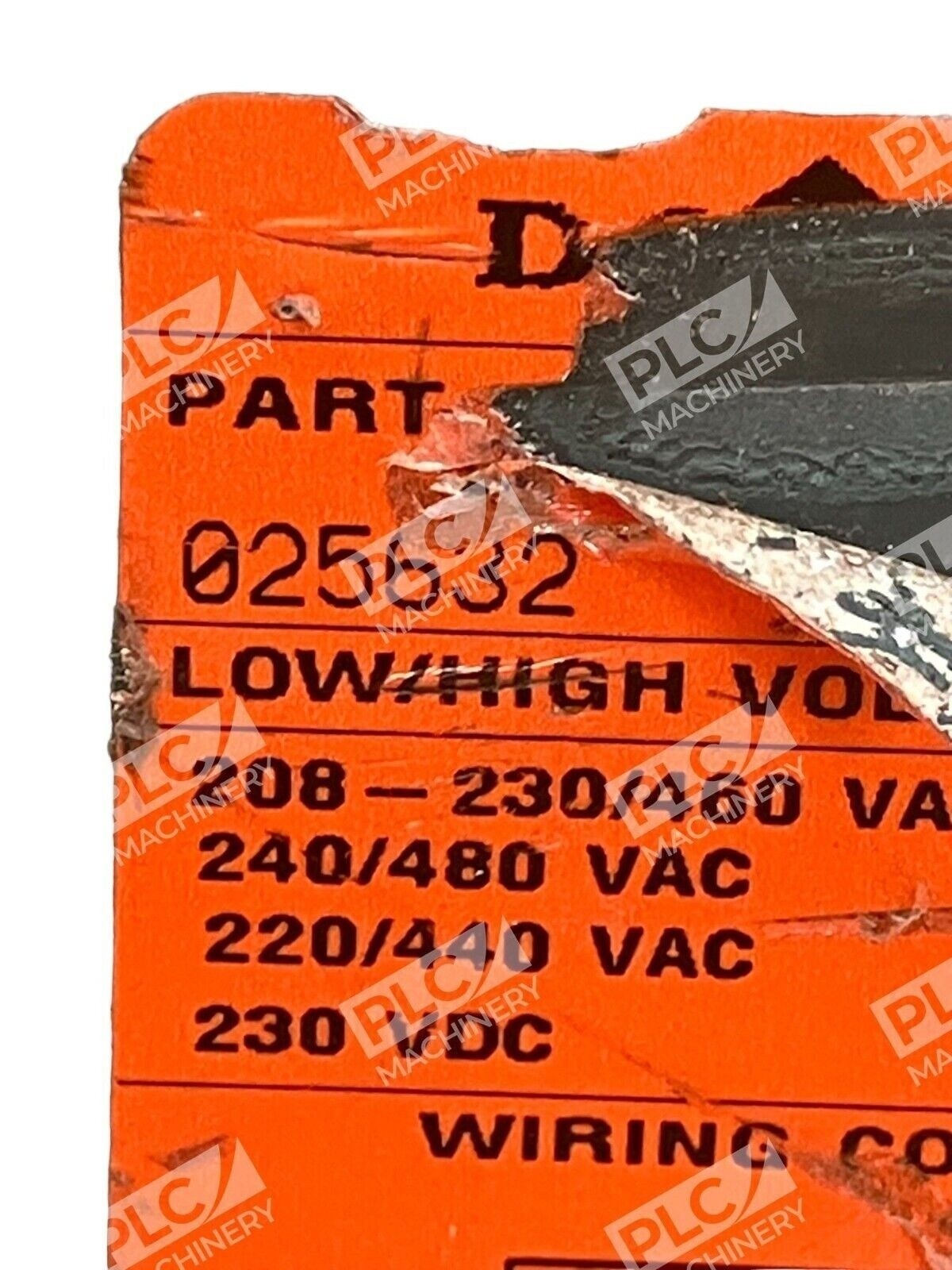

- Part Number: 025632
- Brake Type: Spring-set, electrically released
- Control Type: Manual release standard
- Duty Rating: Continuous-duty rated
- Mounting: Accessory mounting face
- Application: Holding and stopping rated
- Industry Standards: Designed to NEMA specifications
Typical Applications
The Baldor Electric 025632 brake is ideal for use in:
- Machine tools requiring positive mechanical stops
- Conveyor systems with load-holding requirements
- Hoist and lift equipment applications
- Speed reducer and gearbox mounting
- Door operators and access control systems
- Any industrial application requiring fail-safe mechanical braking
Compatibility & Replacements
Compatible With
- Baldor-Reliance integral horsepower motors (1/4 HP through 30 HP)
- Standard NEMA-frame electric motors
- Variable speed AC drives with external brake control
- Baldor brake motor assemblies and motor-brake combinations
Replaces / Drop-In Replacement For
Verify specific brake replacement compatibility with your system integrator before ordering. This unit may be compatible with equivalent Baldor or Dodge brake models of the same series, but direct model-for-model confirmation is required.
Works With
- NEMA-standard motor mounting configurations

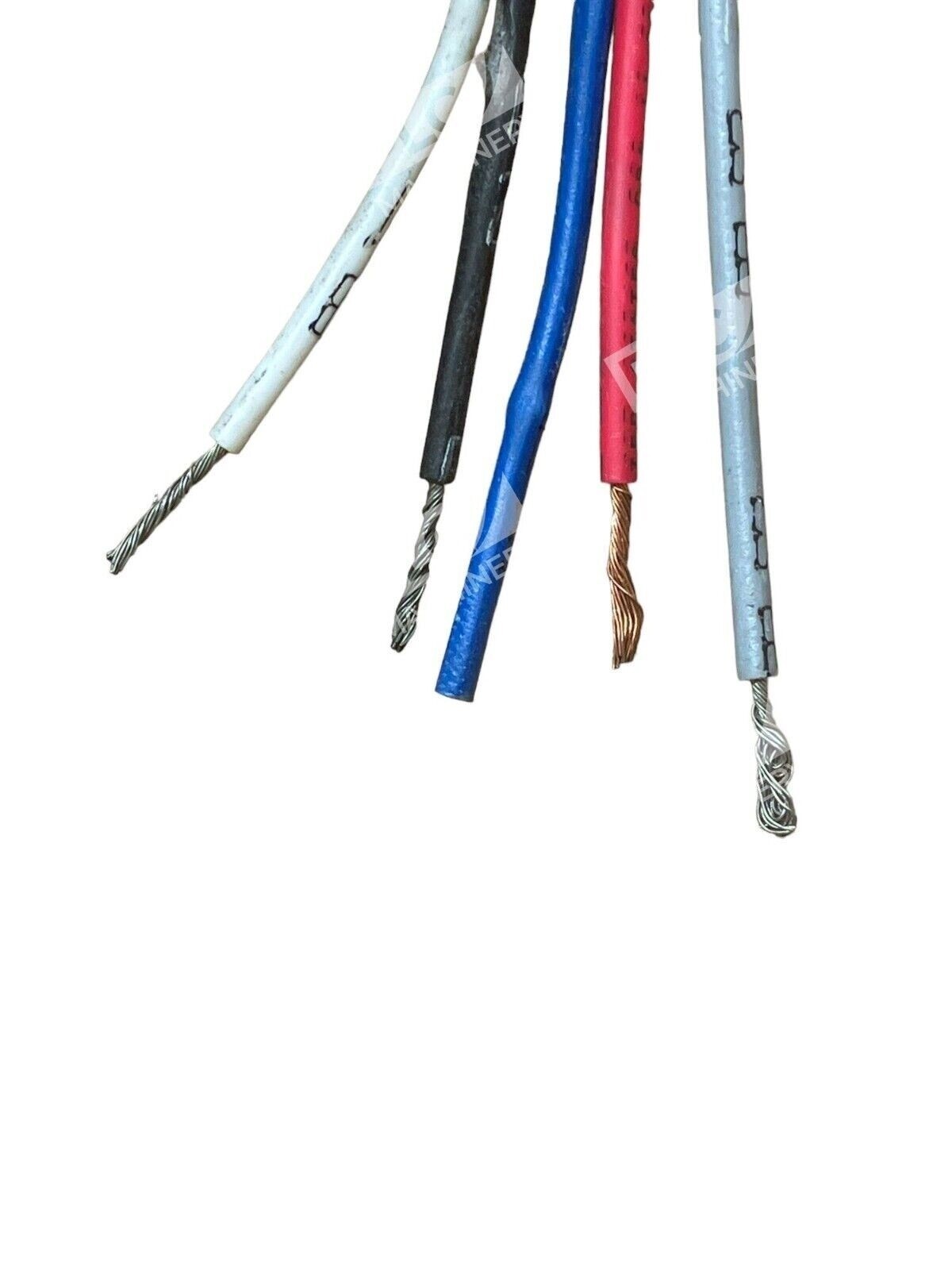

- Spring-set brake standard coil circuits

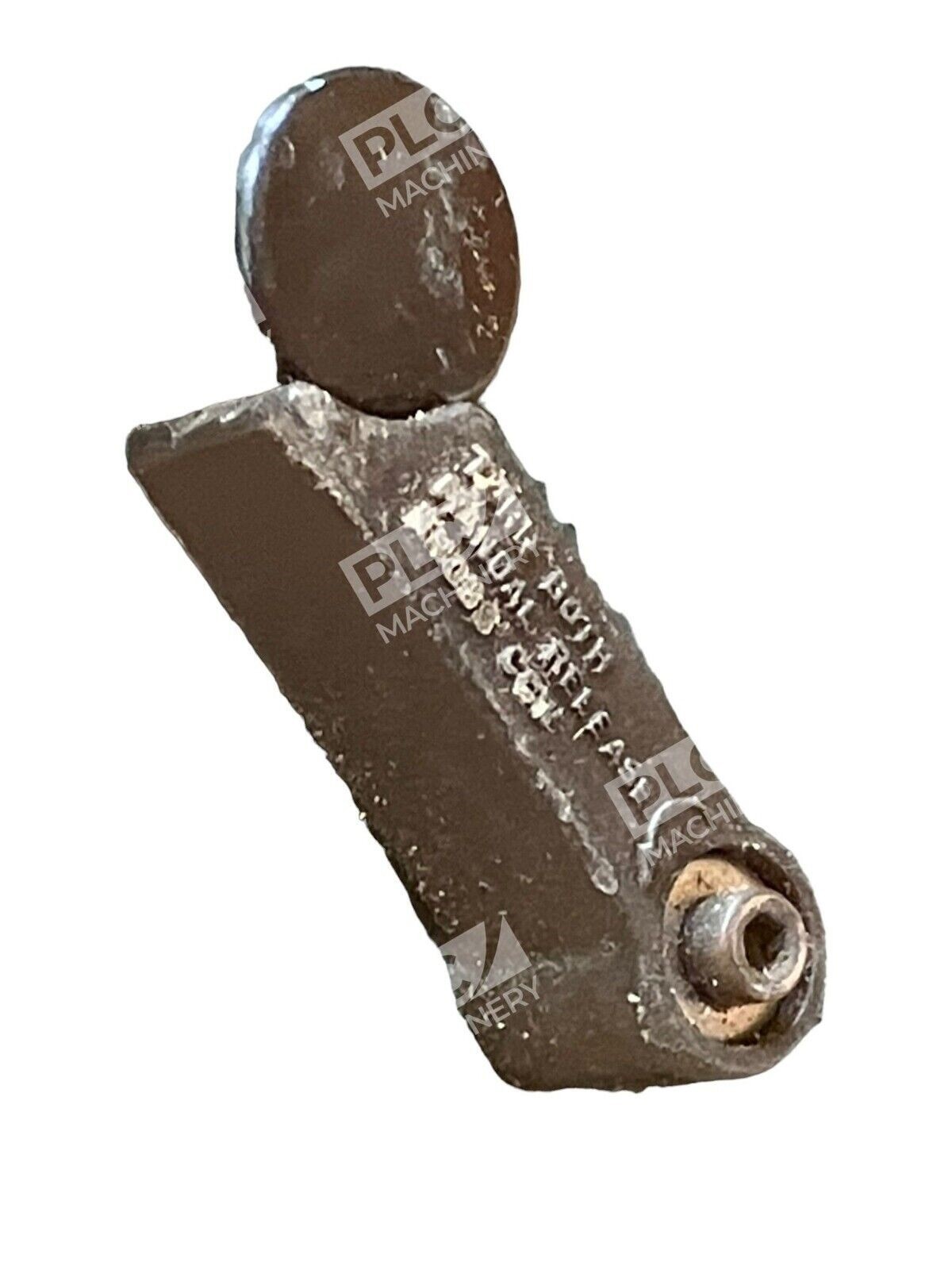

- Manual release lever mechanisms
- AC and DC brake control systems
- Industrial variable frequency drives (VFD) with external brake output
