Overview

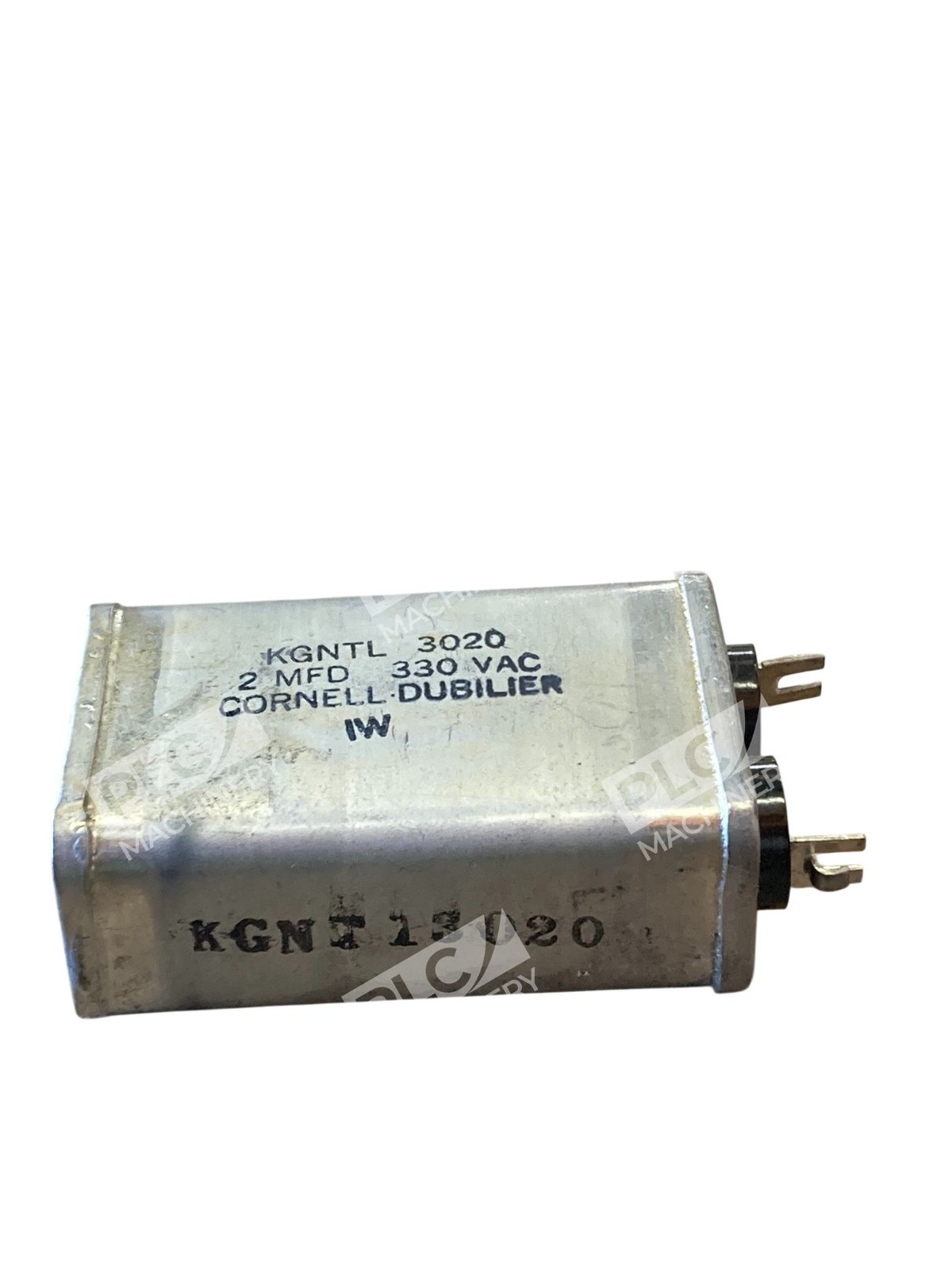

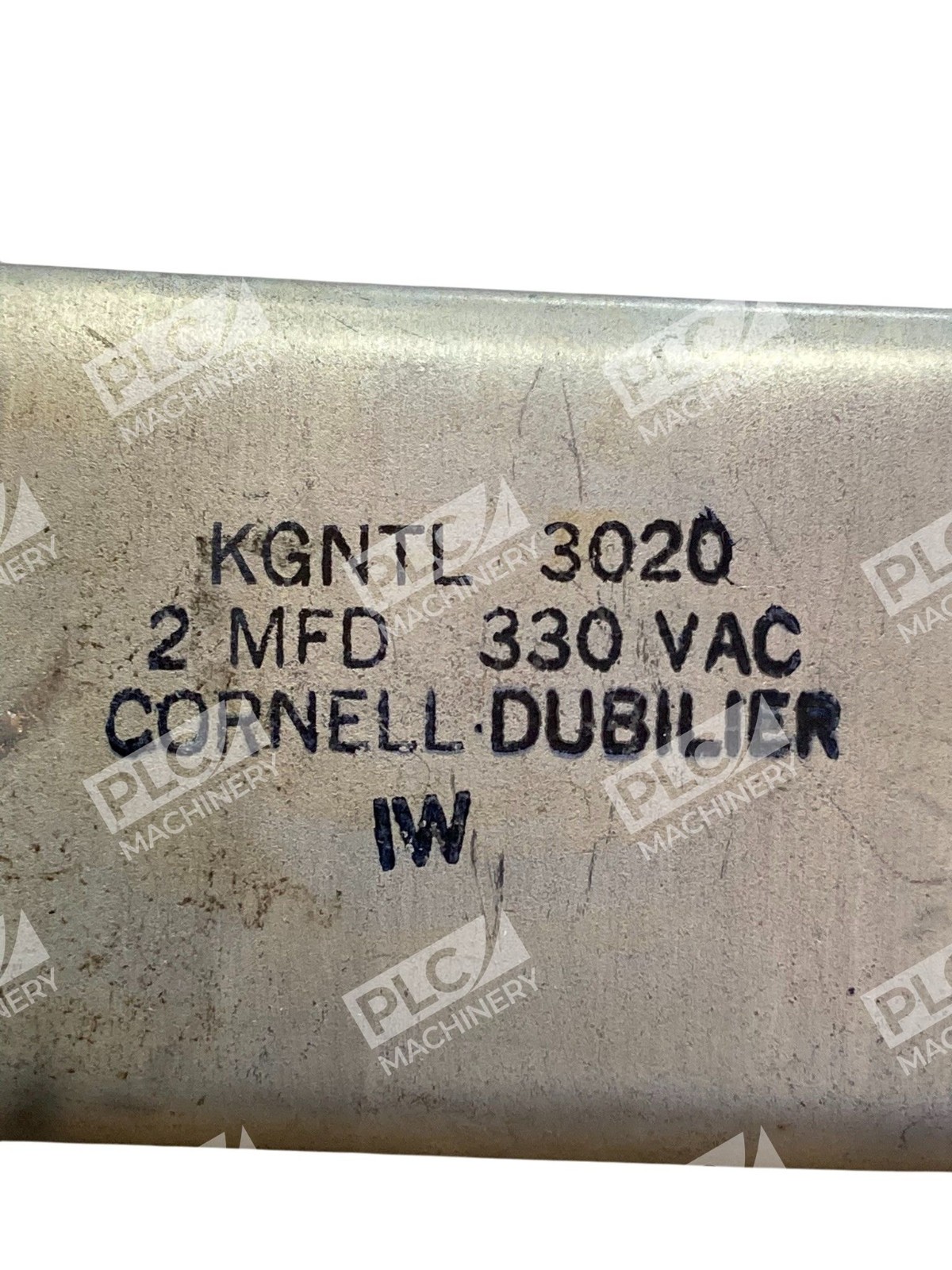

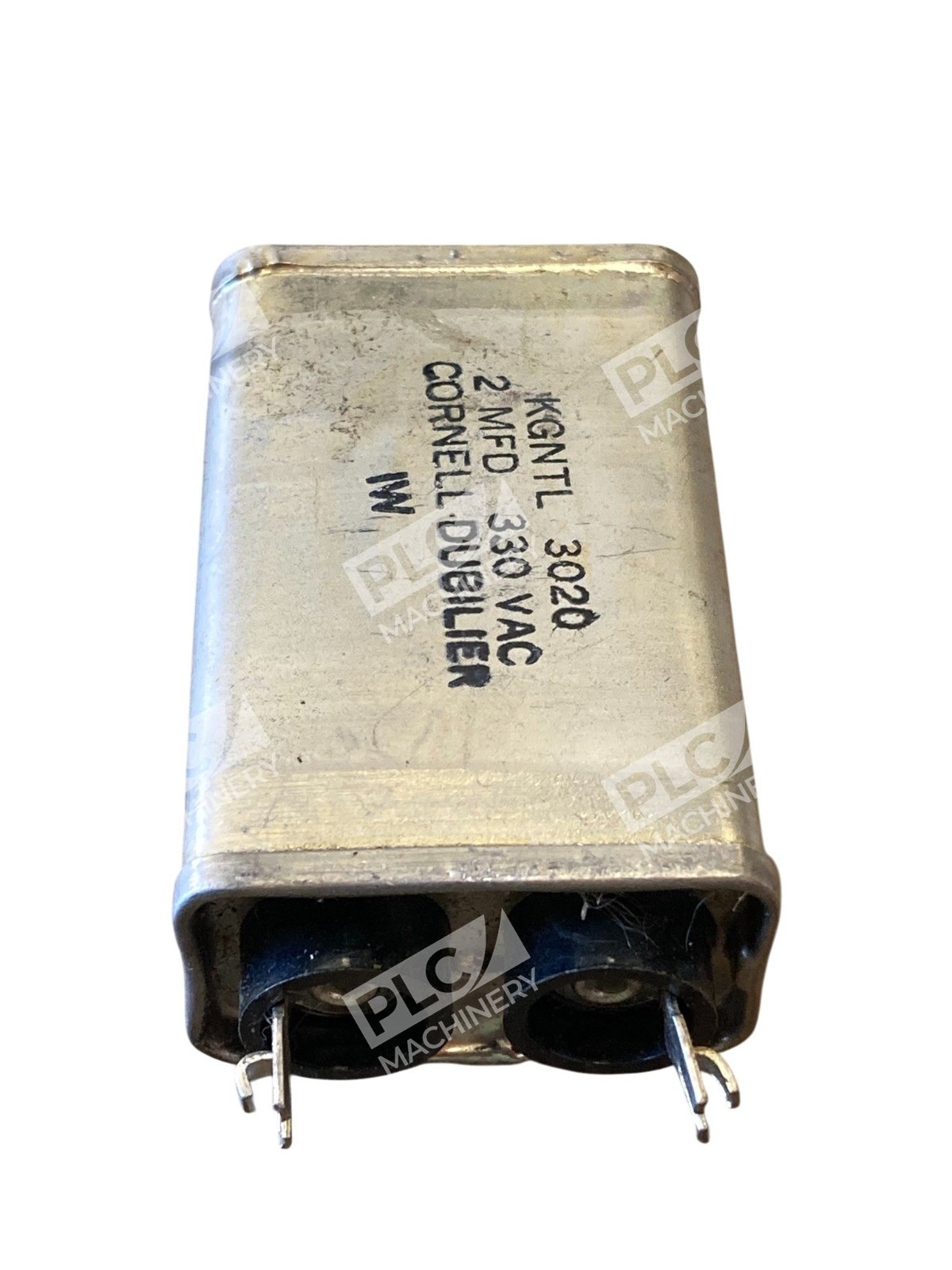

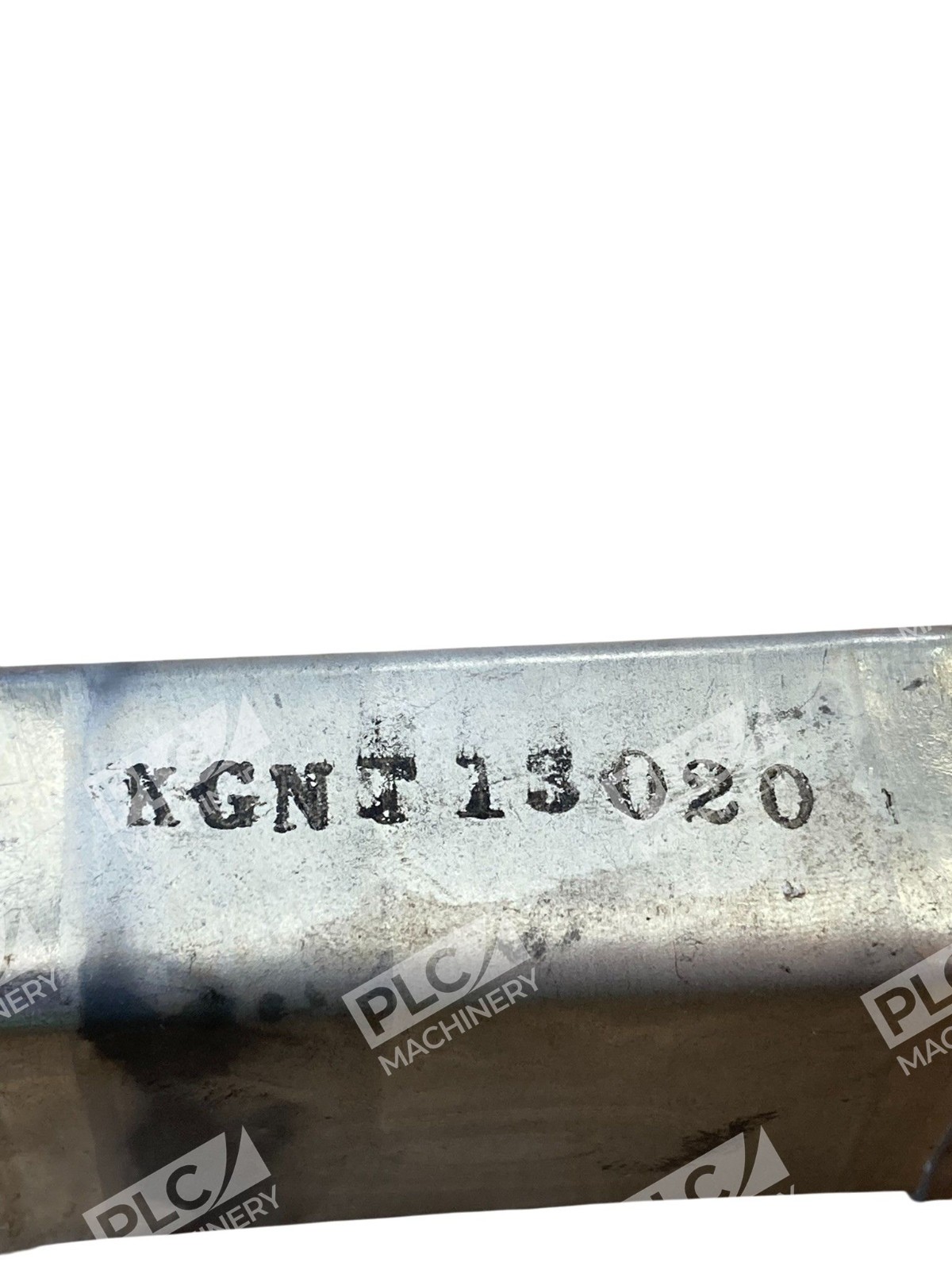

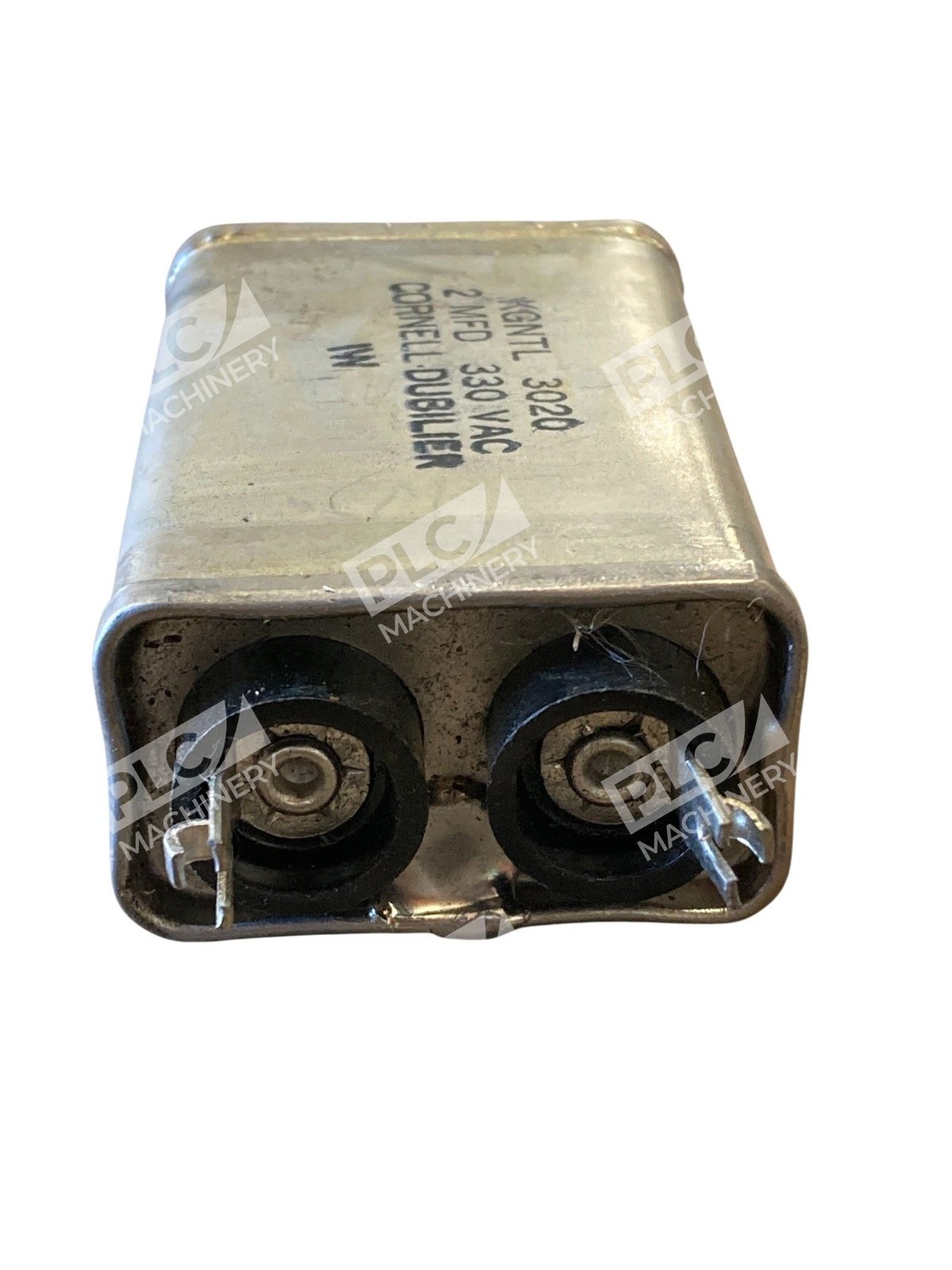

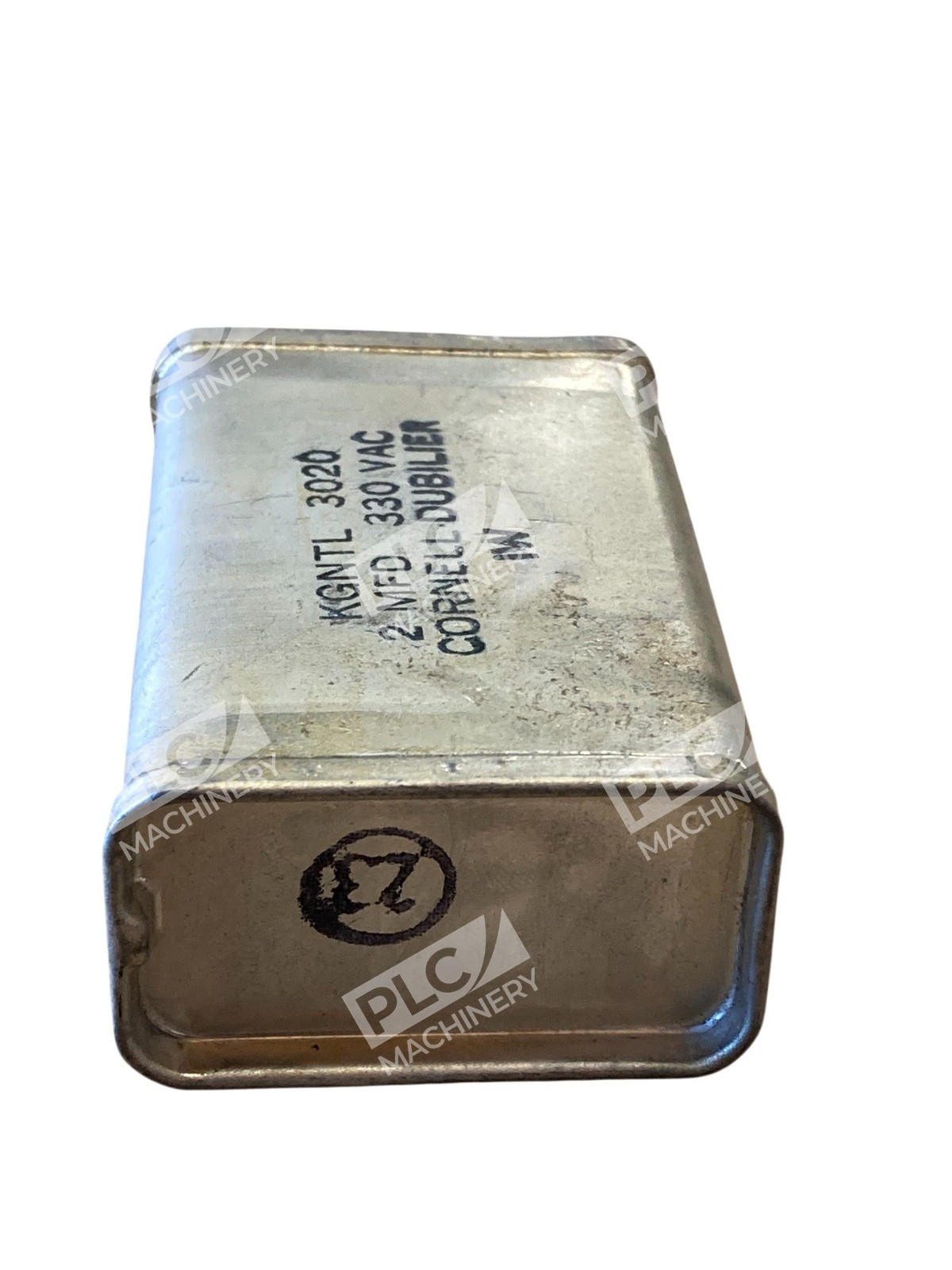

The Cornell Dubilier KGNTL3020 is a proven, oil-filled motor run capacitor rated for 2µF at 330VAC. This compact, industrial-grade capacitor is designed to deliver consistent performance in motor starting and run circuits. The KGNTL3020 meets OEM specifications for general-purpose AC motor applications and is recognized across service and retrofit markets for its reliability and durability.
Key Features
- 2µF capacitance rating with 330VAC working voltage
- Oil-filled construction for enhanced dielectric strength and longevity
- Compact, direct-replacement design for OEM motor applications
- Suitable for single-phase and three-phase motor circuits
- Wide operating temperature range for industrial environments
Technical Specifications
The KGNTL3020 capacitor operates within standard AC motor run parameters. Oil-filled construction provides superior moisture resistance and thermal performance compared to dry-type alternatives, extending service life in harsh environments. Designed for continuous duty in motor circuits, this capacitor handles inrush currents typical of AC motor starting sequences.
Typical Applications
- General-purpose AC motor start and run circuits
- Pump motor capacitor replacement
- HVAC system compressor motors
- Industrial fan and blower motors
- Agricultural equipment motor circuits
- Commercial and light industrial machinery
Compatibility & Replacements
Compatible With
- Single-phase AC motor systems (200–330VAC)
- Three-phase motor auxiliary circuits
- General-purpose motor applications rated 2µF
- OEM motor original equipment specifications
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering. The KGNTL3020 is engineered as a direct replacement for OEM motor run capacitors with equivalent 2µF / 330VAC ratings. Confirm the mounting configuration and terminal type match your original equipment before installation.
Works With
- AC induction motors (single-phase and three-phase)
- Standard motor soft-start circuits
- Variable frequency drive (VFD) motor systems (verify capacitor suitability)
- Pump, fan, and compressor motor assemblies
