Overview
The AVX 08055C102KAT2A is a surface-mount multilayer ceramic capacitor (MLCC) designed for high-reliability applications in industrial automation, consumer electronics, and control systems. With a capacitance of 1000pF and rated voltage of 50V DC, this component delivers stable performance across a wide operating temperature range.
Key Features
- Capacitance: 1000pF (0.001µF) with ±10% tolerance
- Voltage rating: 50V DC maximum
- X7R dielectric for temperature stability and reliability
- 0805 (2012 metric) package for standard PCB layouts
- Surface-mount (SMD) design for automated assembly
- Operating temperature range: -55°C to +125°C
- Supplied on standard reel of 4000 units for production efficiency
Technical Specifications
- Capacitance: 1000 pF
- Voltage Rating: 50V DC
- Tolerance: ±10%
- Dielectric Type: X7R
- Case Code: 0805 (2012 Metric)
- Package Dimensions: 2.01mm x 1.25mm
- Mounting Style: Surface Mount (SMD)
- Temperature Range: -55°C to +125°C

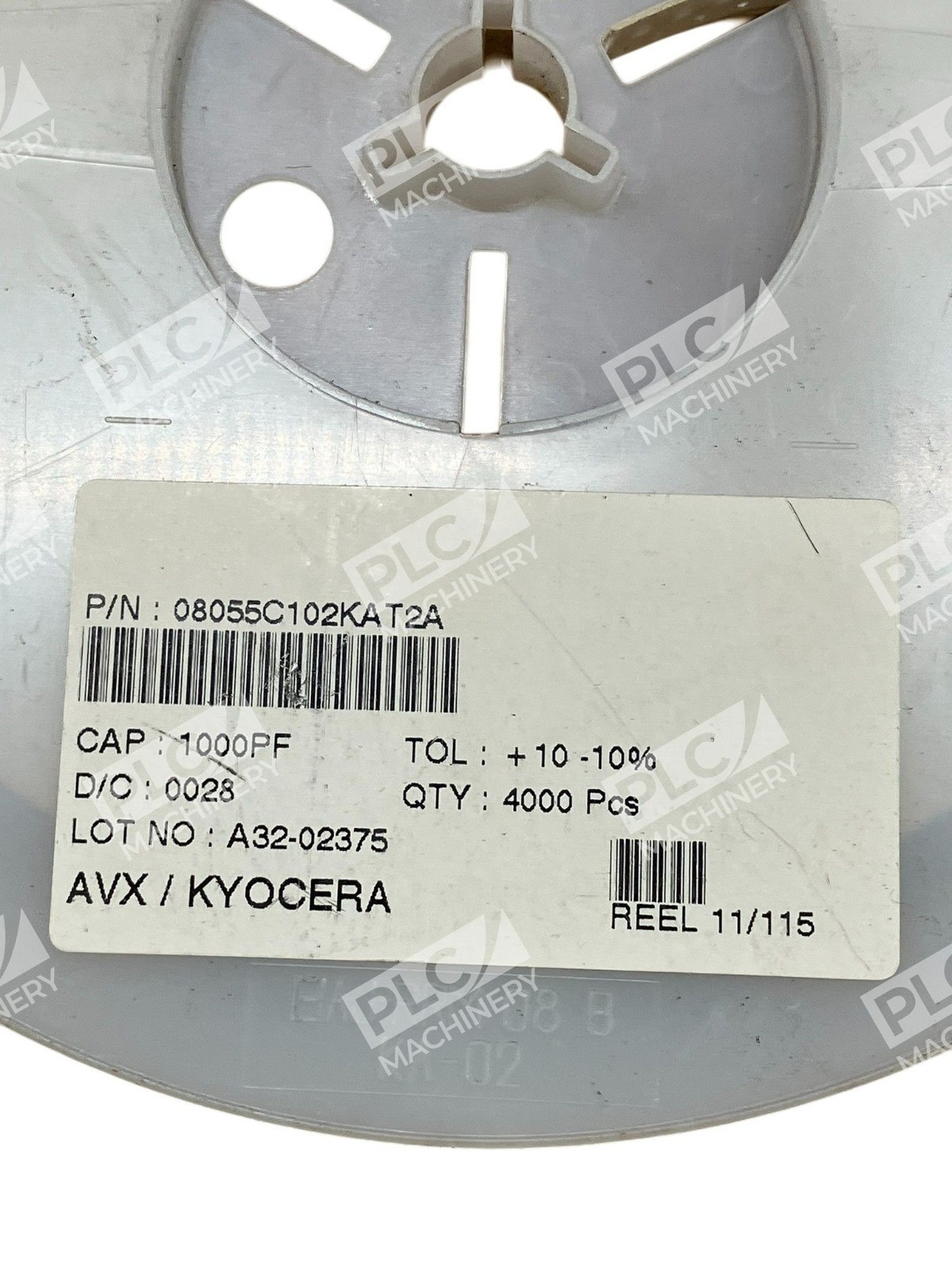

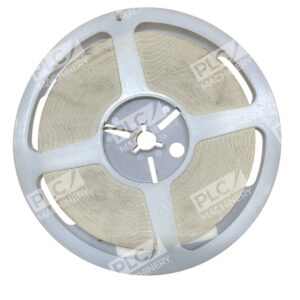

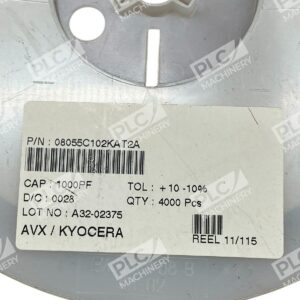

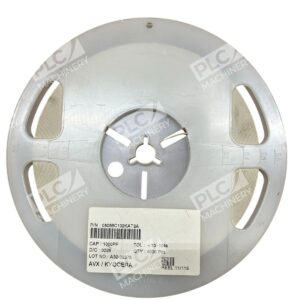

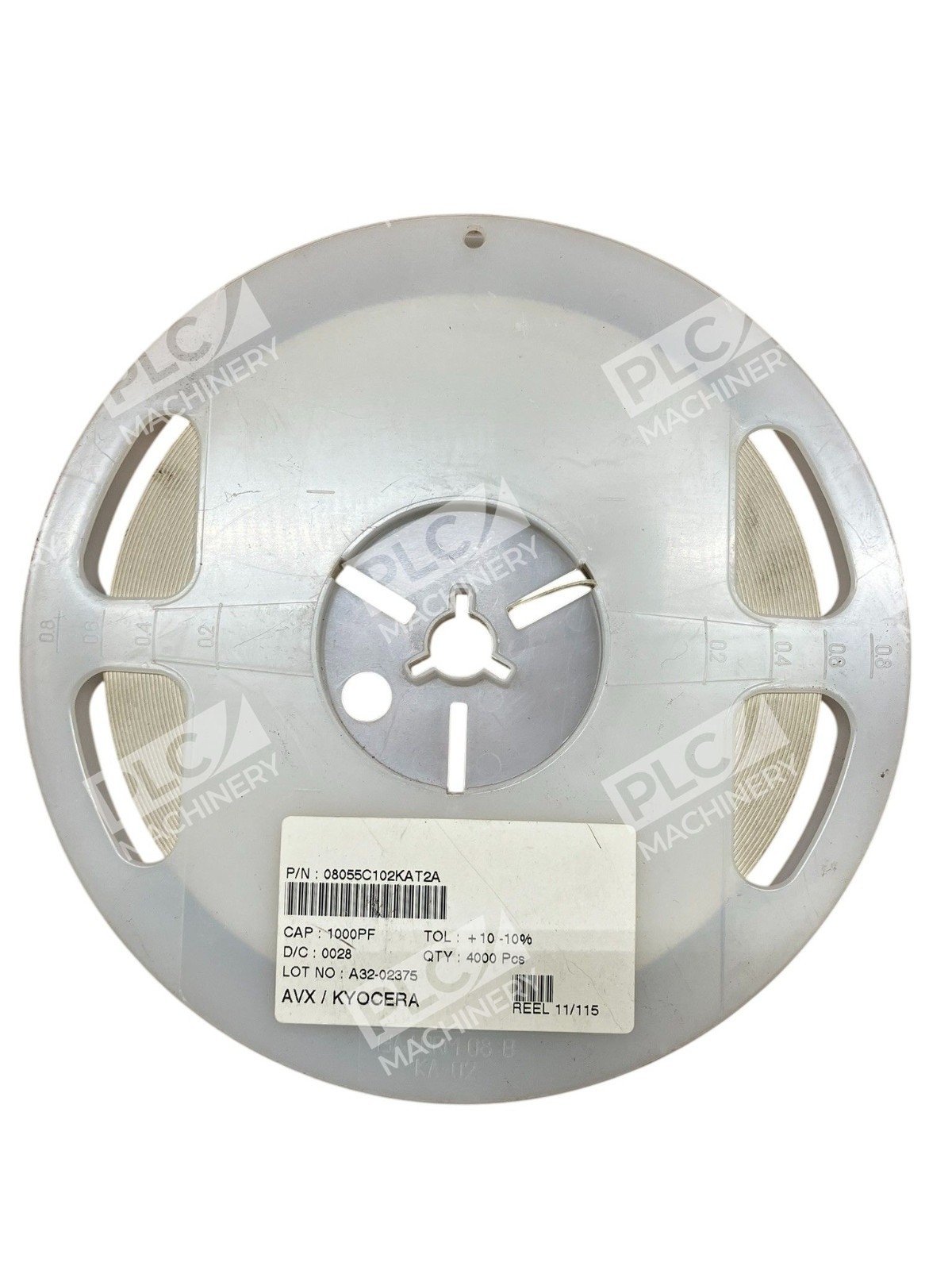

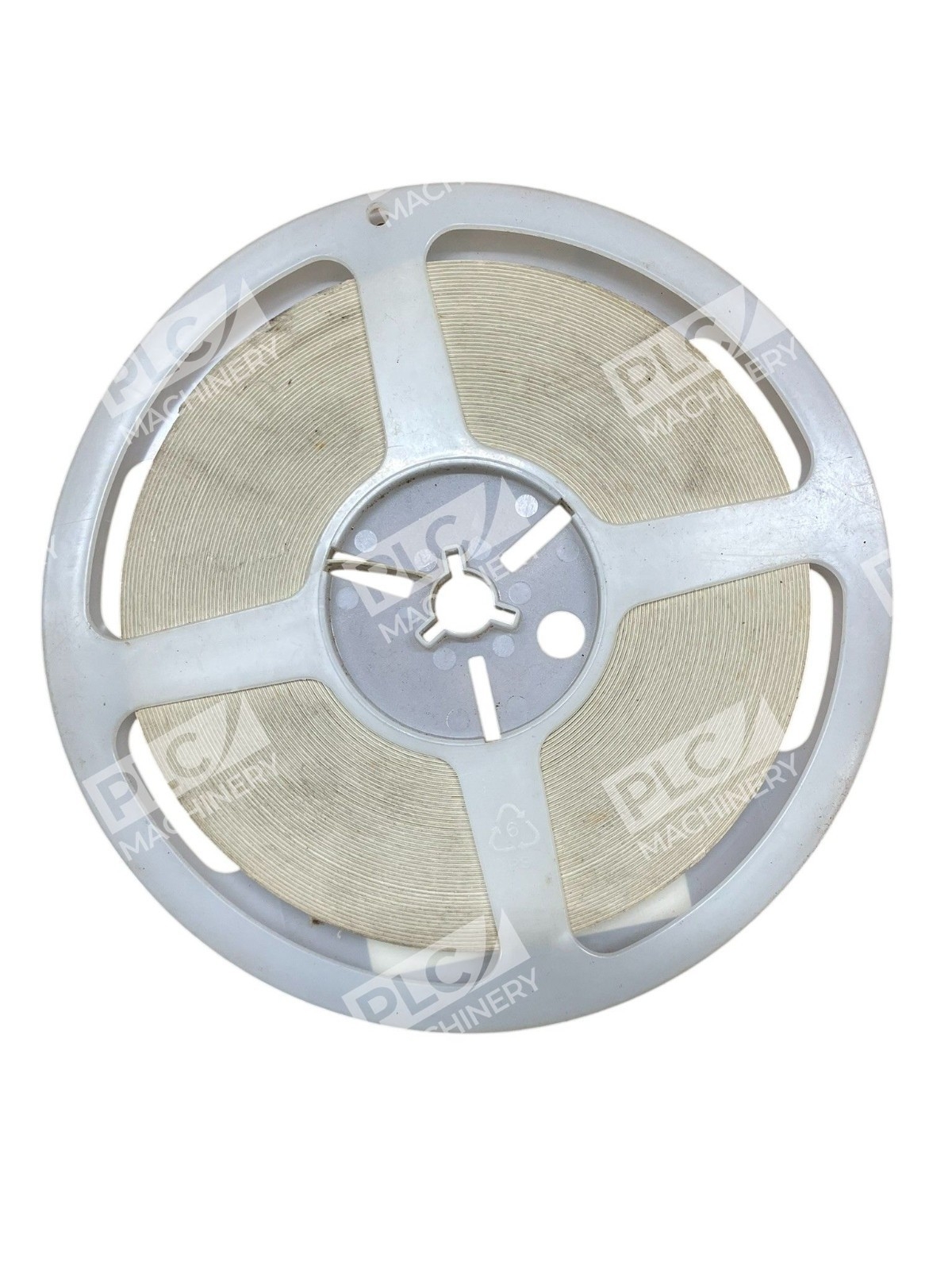

- Packaging: Tape and Reel, 4000 pieces
- RoHS Compliant: Yes
- Manufacturer: KYOCERA AVX
Typical Applications
- Decoupling and bypass filtering in digital logic circuits
- Power supply filtering and noise suppression
- Precision timing and oscillator circuits
- Industrial control board design and PCB assembly
- Consumer electronics and general-purpose circuit design
- Automotive and industrial sensor interfaces
Compatibility & Replacements
Compatible With
- Standard 0805 footprint PCB designs
- Automated pick-and-place assembly equipment
- Reflow and wave soldering processes
- RoHS-compliant manufacturing environments
- Industrial control systems and automation platforms
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator or design engineer before ordering. The AVX 08055C102KAT2A is a standard 0805 MLCC that may be interchangeable with other 1000pF/50V X7R capacitors meeting IEC specifications. Consult manufacturer documentation for exact cross-references.
Works With
- Standard ANSI/IPC PCB design standards
- Lead-free solder (RoHS-compliant) assembly
- Automated test equipment (ATE) for high-volume production
- EDA tools and component libraries supporting 0805 packages
- Industrial-grade reflow ovens and soldering systems
