Overview
The Athena 2000-T-0-0-08F-000 is a 1/4 DIN panel-mounted analog temperature controller engineered for precise proportional control across HVAC, refrigeration, and industrial heating applications. With a 0-800°F sensor range and single-pole double-throw relay output rated at 2A, this controller delivers reliable on-off or proportional temperature management with 50/60Hz input compatibility. The metal-case enclosed design ensures durability in demanding environments while maintaining compact footprint efficiency.
Key Features
- 1/4 DIN panel mount form factor for standard control enclosures
- Thermocouple or RTD input with sensor break protection
- Adjustable control mode from hysteresis to proportional band (5–25°F range)
- Dual meter dial display for visual process and setpoint indication
- 120/240 Vac single-phase control power input
- 2A SPDT relay output for heating/cooling load switching
Technical Specifications
| Temperature Range | 0–800°F |
| Output Type | SPDT Relay, 2A @ 120/240V |
| Control Power | 120/240 Vac ±10%, 50/60Hz |
| Input Compatibility | Thermocouple (Type J) or RTD |
| Control Mode | Adjustable Hysteresis to Proportional (5–25°F band) |
| Mounting | Panel Mount (1/4 DIN) |
| Ambient Temperature | 32–150°F (0–66°C) |
| Humidity Rating | 5–95% non-condensing |
| Cold Junction Compensation | Internal electrical bridge |

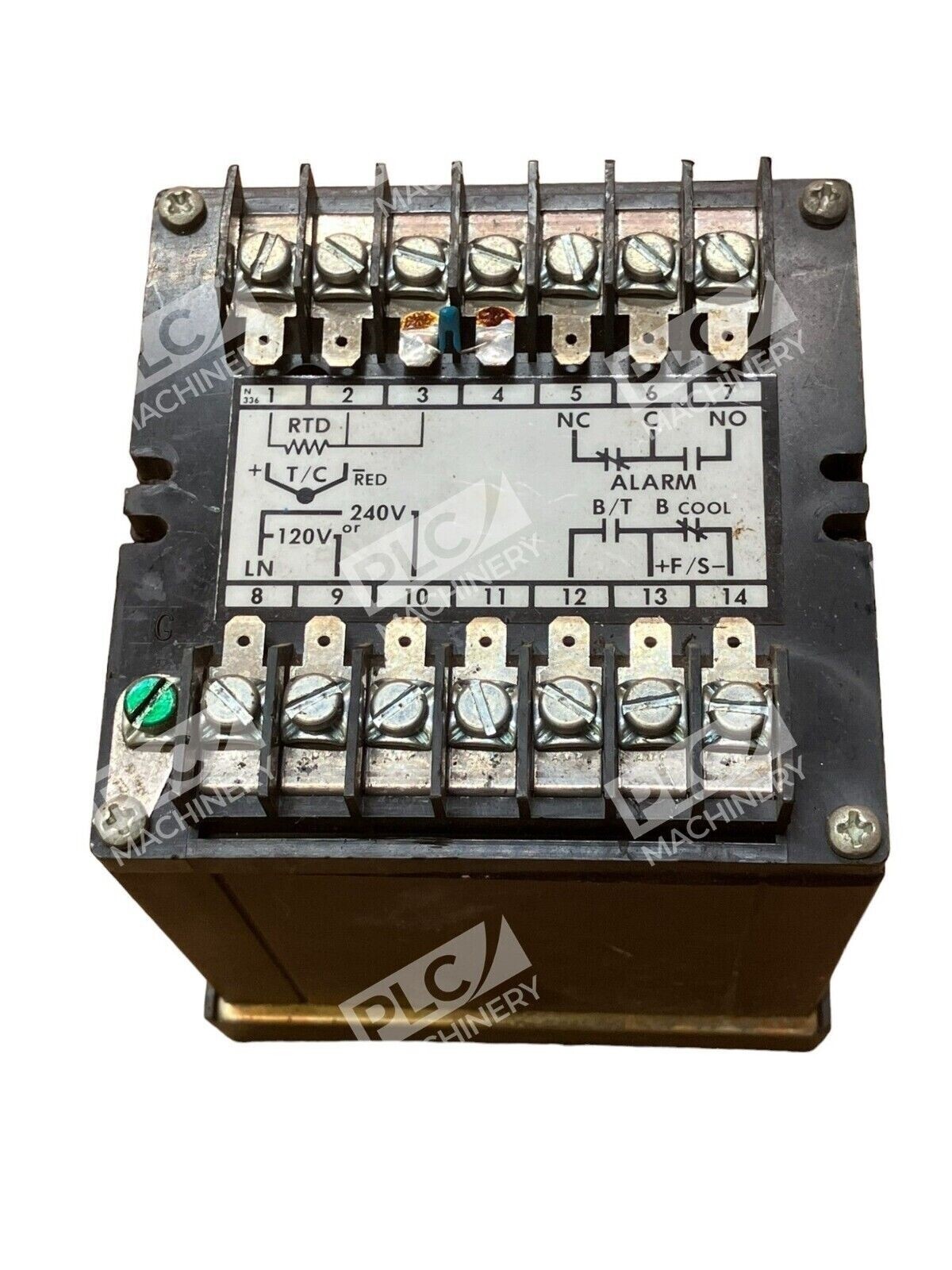

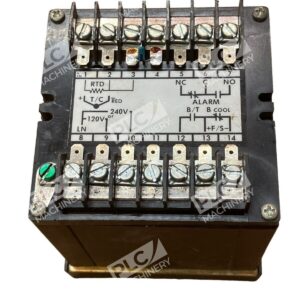

| Connections | Fast-on lugs |
| Sensor Break Protection | Output de-energizes on sensor fault |
Typical Applications
- HVAC system heating and cooling stage control
- Refrigeration setpoint regulation and compressor cycling
- Industrial oven and furnace temperature control
- Process tank heating and thermal management
- Proportional comfort heating in commercial buildings
Compatibility & Replacements
Compatible With
- Standard enclosure-mounted thermostat installations
- Thermocouple sensor systems (Type J and equivalent)
- RTD-based temperature sensing networks
- 120V and 240V single-phase control circuits
- Heating and cooling relay coil loads rated 2A or less
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering. This unit is compatible with legacy HVAC thermostat installations and process control systems requiring proportional control in the 0–800°F range. Confirm mounting footprint and sensor input type match your existing application.
Works With
- Manual proportional band adjustment—no external software required
- Thermocouple (Type J) and RTD sensor input networks
- Standard 120/240V single-phase power distribution
- Heating and cooling relay circuits with contactor or solenoid coil loads
- HVAC and refrigeration control systems using analog sensor feedback
