Overview

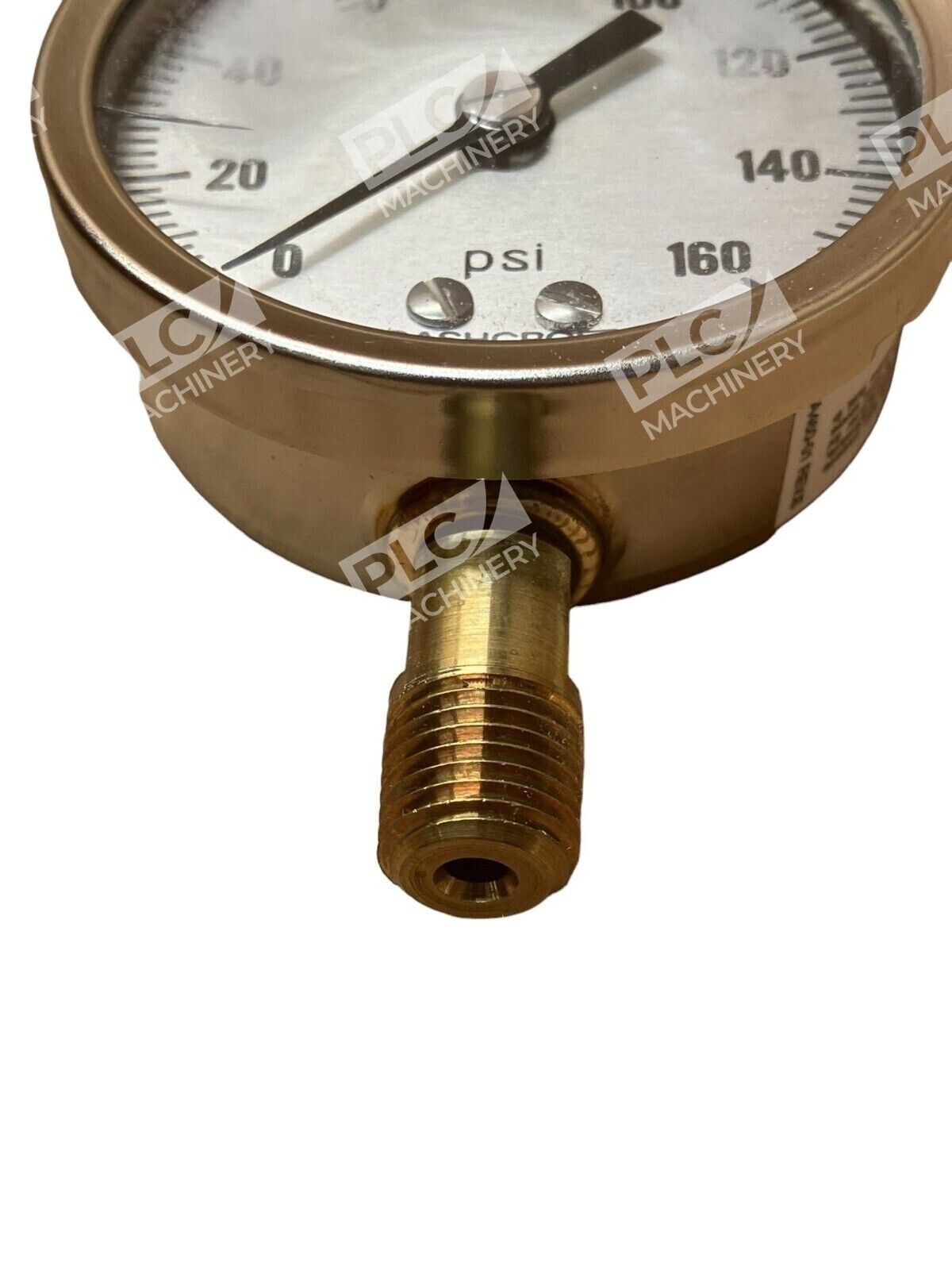

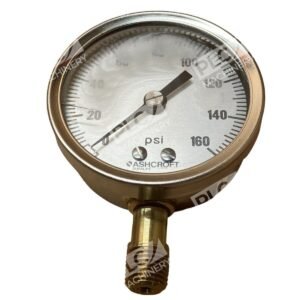

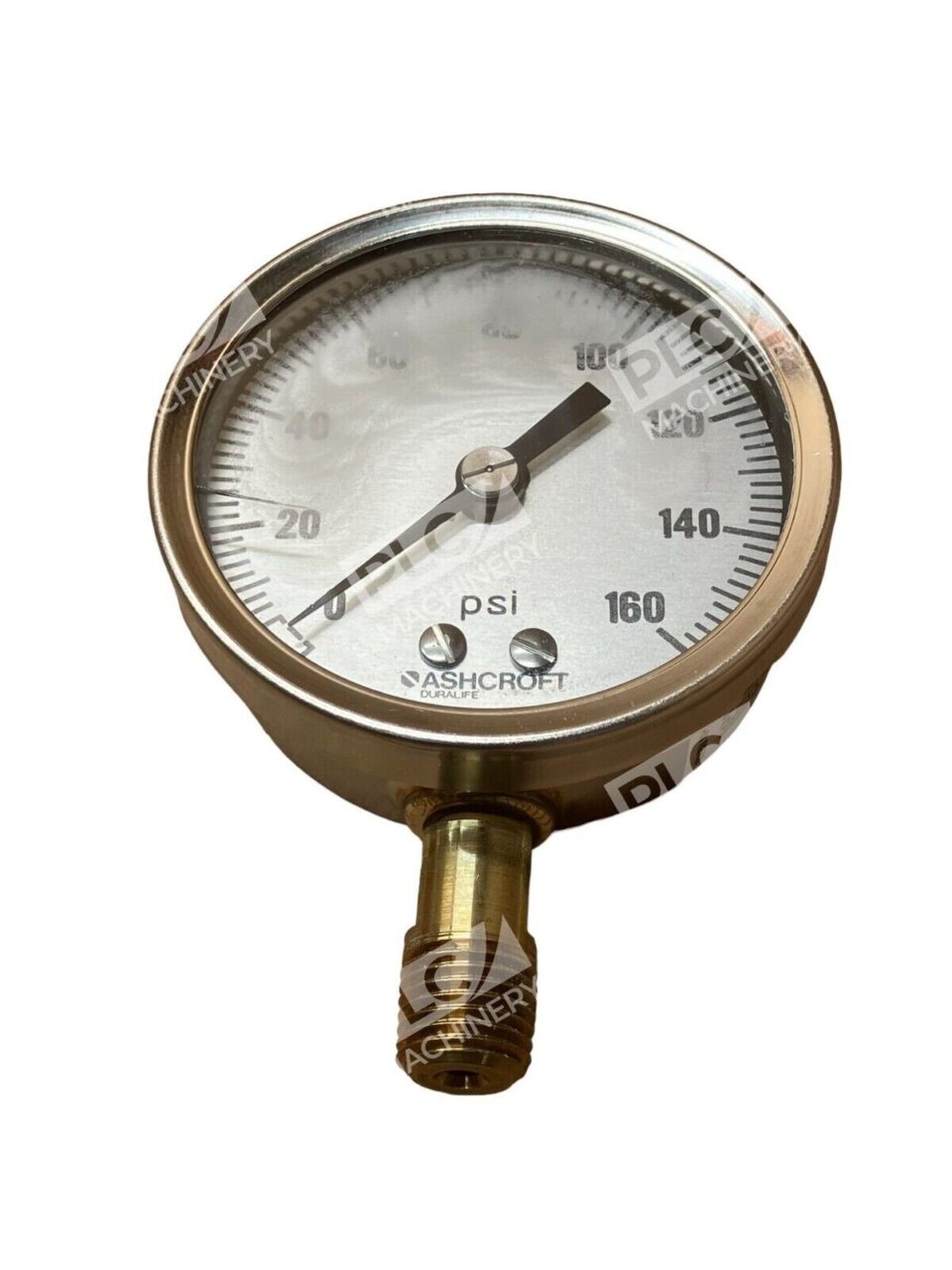

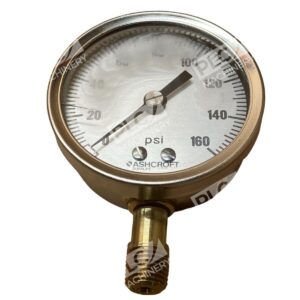

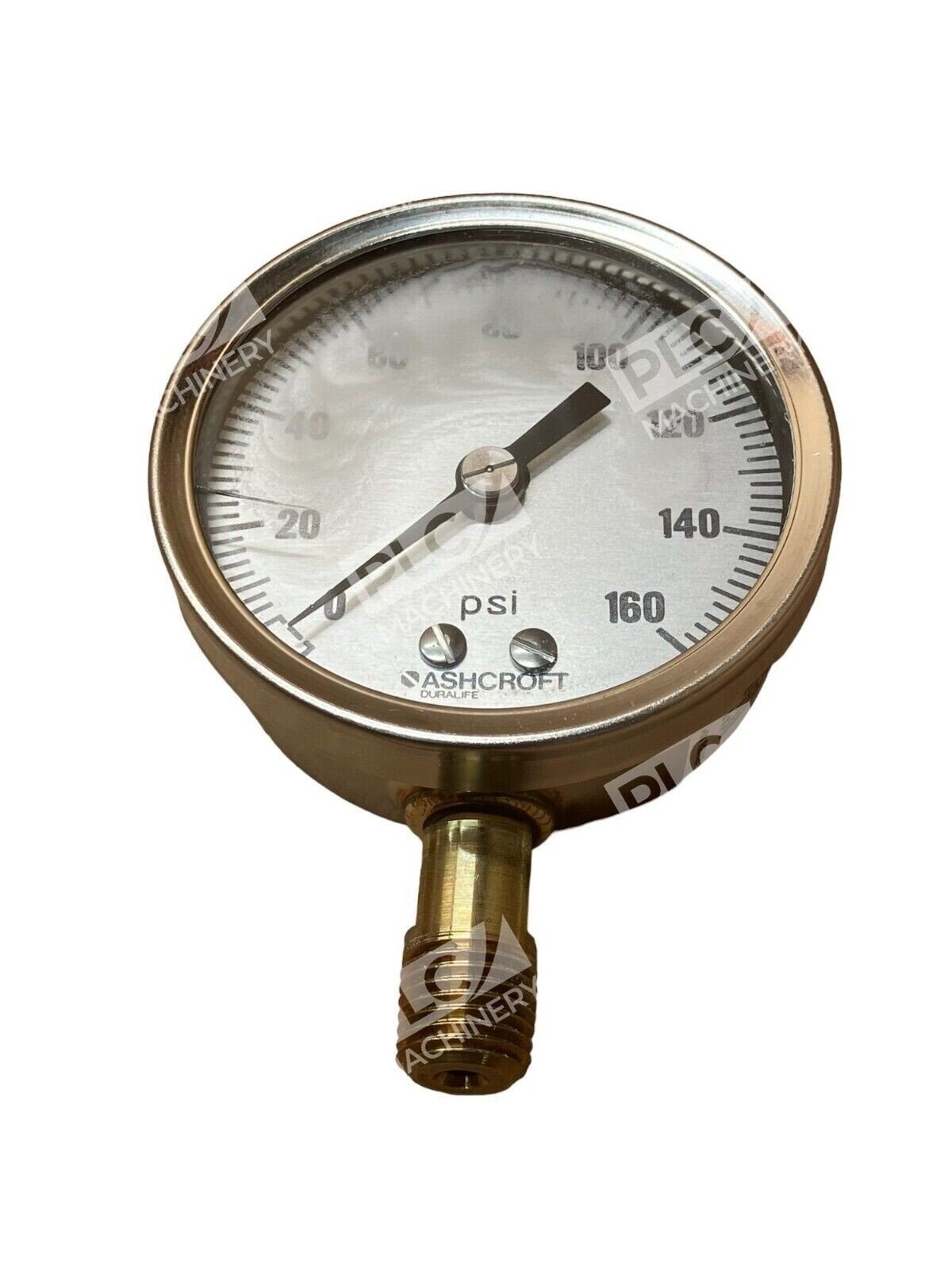

The Ashcroft 25-1009-AW-02L-160 is a Type 1009 industrial pressure gauge engineered for demanding hydraulic, pneumatic, and compressed air systems. Featuring a stainless steel 316L tube with aluminum bronze connection, this gauge combines proven reliability with durable construction. The 0–160 PSI range and 2.5″ dial size make it ideal for equipment monitoring, system troubleshooting, and general-purpose pressure measurement in workshops, plants, and field applications.
Key Features
- PowerFlex Movement: Superior resistance to shock, vibration, and pulsation; extends product life and reduces maintenance costs
- True Zero Technology: Reduces reading errors using a “zero box” instead of conventional dial pins, ensuring product safety and system control
- Removable Bayonet Ring: Allows easy access for minor calibration adjustments and dial replacement without special tools
- Stainless Steel Housing: 316L SS tube with aluminum bronze connection (rated to 1,000 PSI max) for corrosion resistance
- ASME B40.100 Compliance: Accuracy certified and traceable to NIST standards for confidence in critical measurements
Technical Specifications

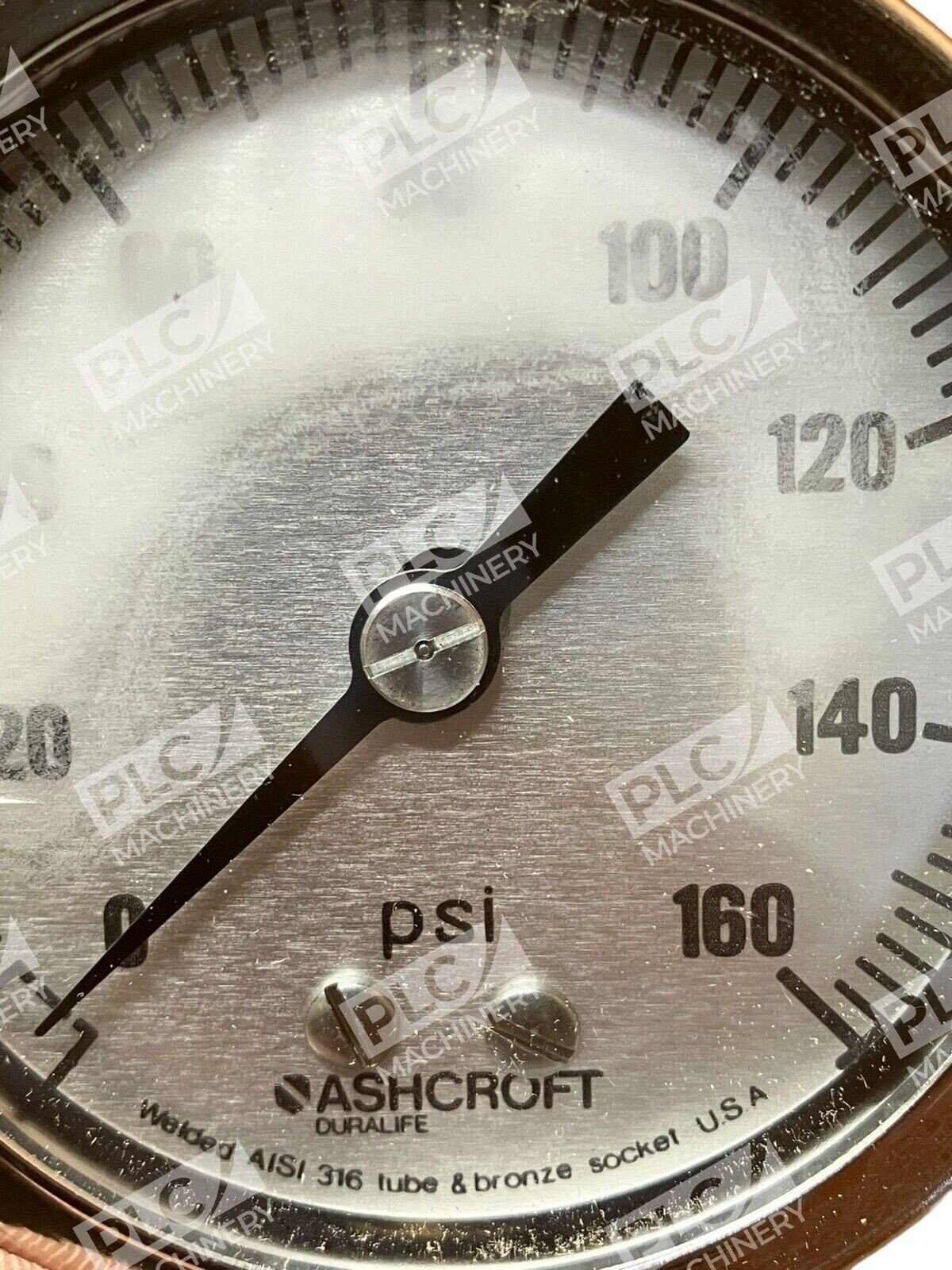

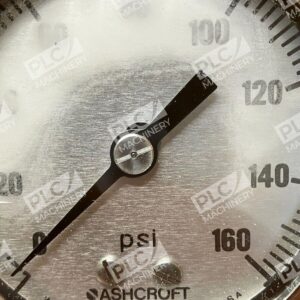

- Pressure Range: 0–160 PSI
- Dial Size: 2-1/2 inch (2.5″)

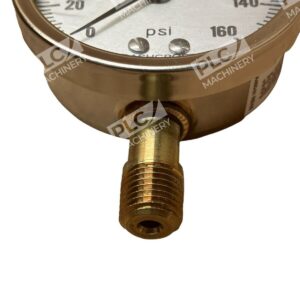

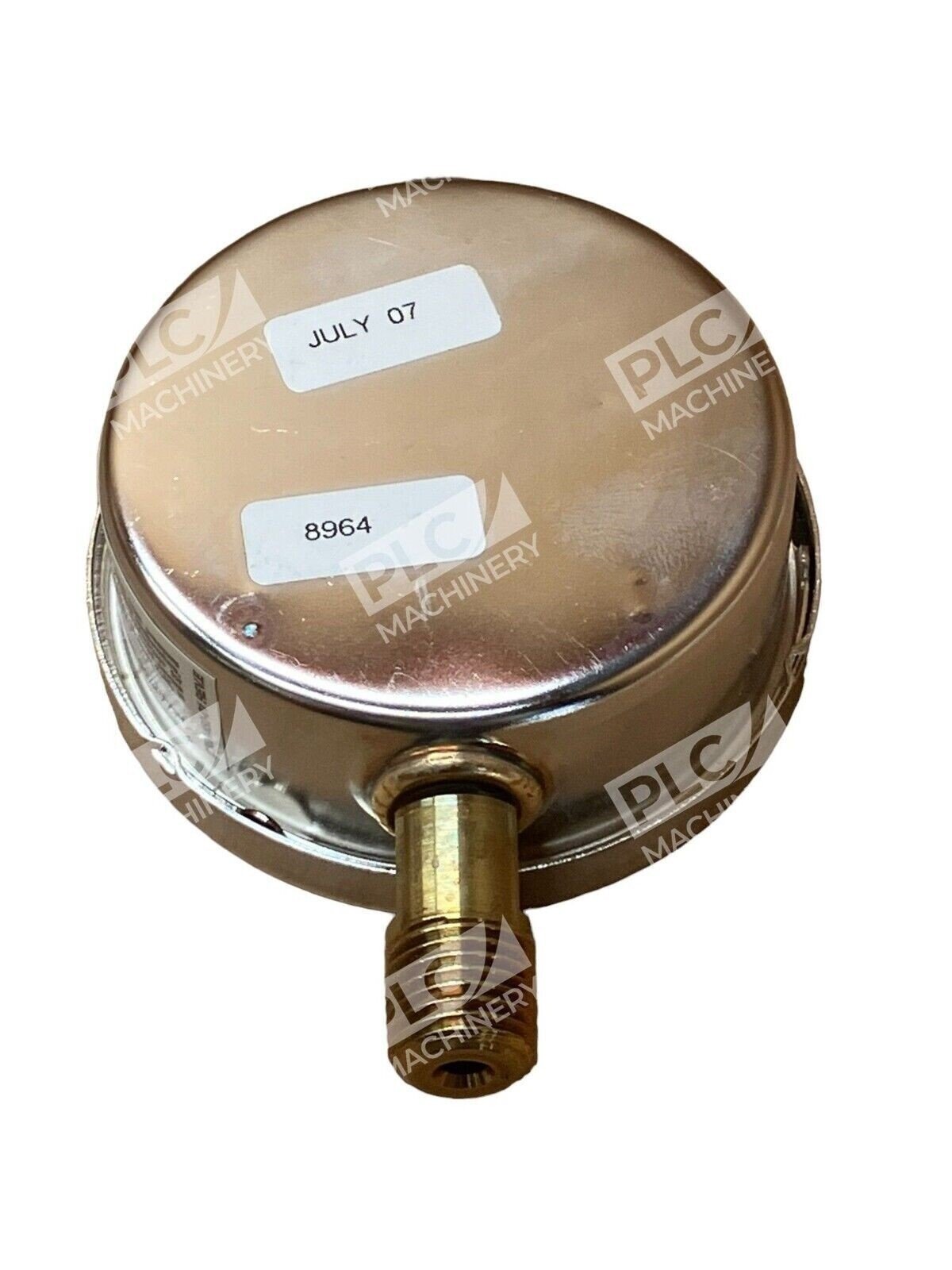

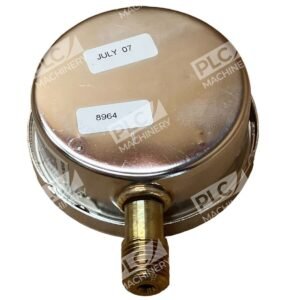

- Connection: 1/4″ NPT male lower
- Case Material: Stainless Steel 316L tube / Aluminum bronze connection
- Maximum Pressure Rating: 1,000 PSI

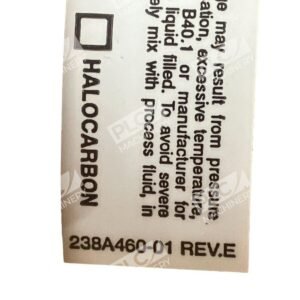

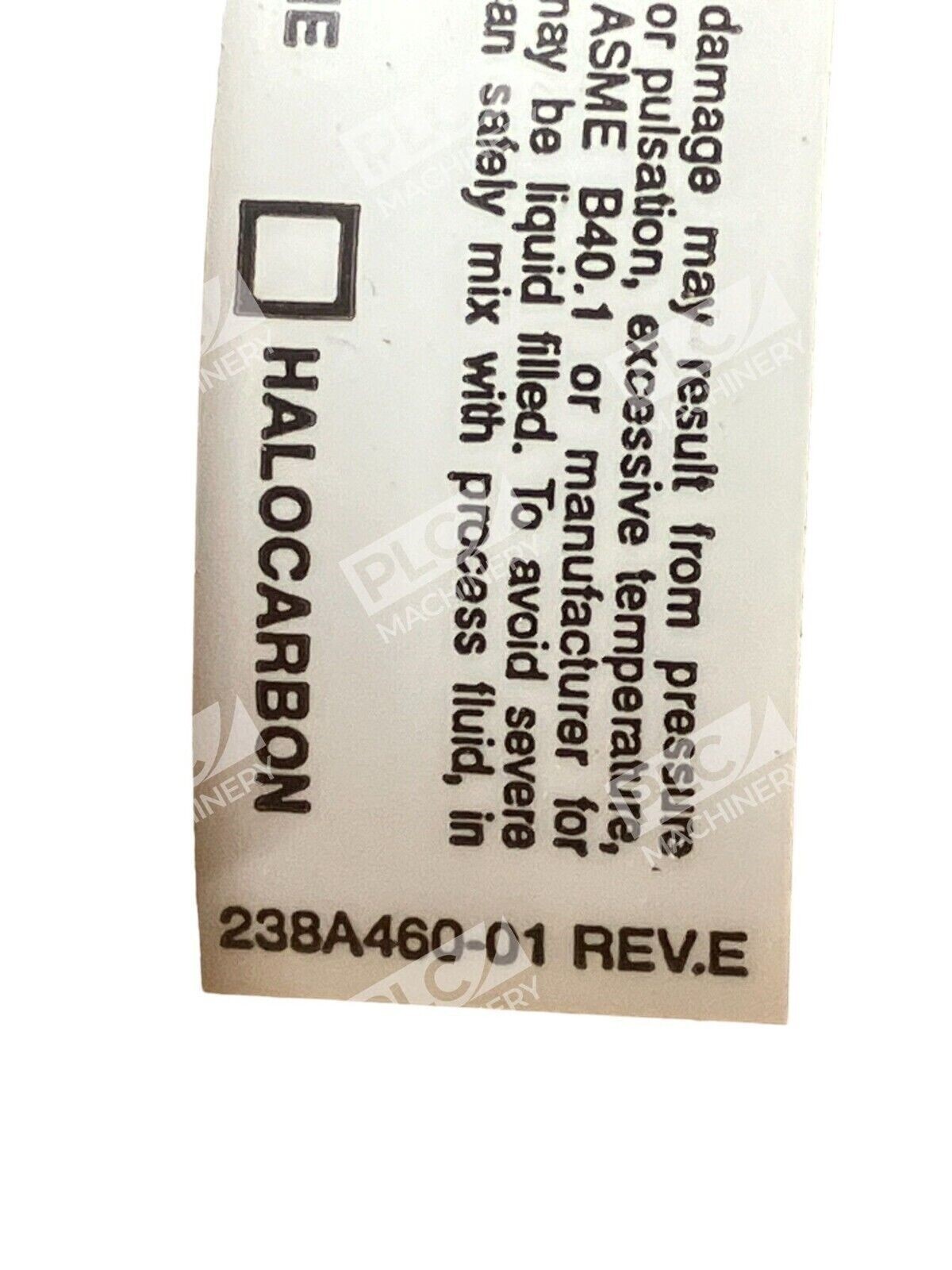

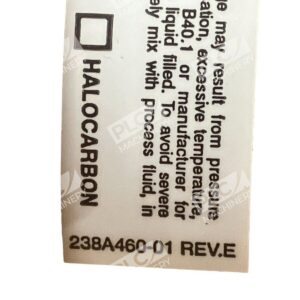

- Case Fill: Glycerin (standard); also available with Silicone (XGV), Halocarbon (XGX), or PLUS! Performance (XLL)
- Accuracy Class: 2.5% (ASME B40.100:2013)
- Calibration: Individual calibration chart available; traceable to NIST
- Operating Temperature Range: Standard dry case suitable for weather-protected environments
Typical Applications
- Hydraulic and pneumatic system monitoring in industrial equipment
- Pump, compressor, and boiler pressure monitoring
- Air-line pressure measurement for shop tools and compressed-air systems
- Equipment skids and specialized OEM machinery
- Refrigeration and ammonia system pressure indication
- General industrial process monitoring and troubleshooting
Compatibility & Replacements
Compatible With
- Hydraulic fluid systems (mineral oil, fire-resistant fluids)
- Compressed air and pneumatic systems
- Water, steam, and refrigeration applications
- Most standard industrial pump, compressor, and boiler installations
- Diaphragm seals and isolation rings (refer to Ashcroft Min/Max Guide for compatibility)
Replaces / Drop-In Replacement For
- Ashcroft 1009 gauges in equivalent pressure ratings and connection styles
- Standard industrial 2.5″ dial pressure gauges with 1/4″ NPT connection and 0–160 PSI range
- Verify exact replacement compatibility with system integrator before ordering
Works With
- Diaphragm seals (Ashcroft standard designs)
- Snubbers and isolation valves for pulsating pressure systems
- Gauge adapters and manifolds with 1/4″ NPT female ports
- Calibration and testing equipment (ASME B40.100 certified)
