Overview

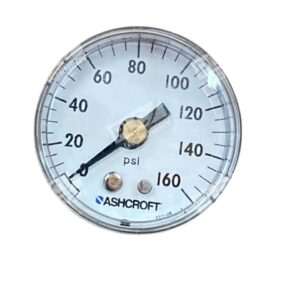

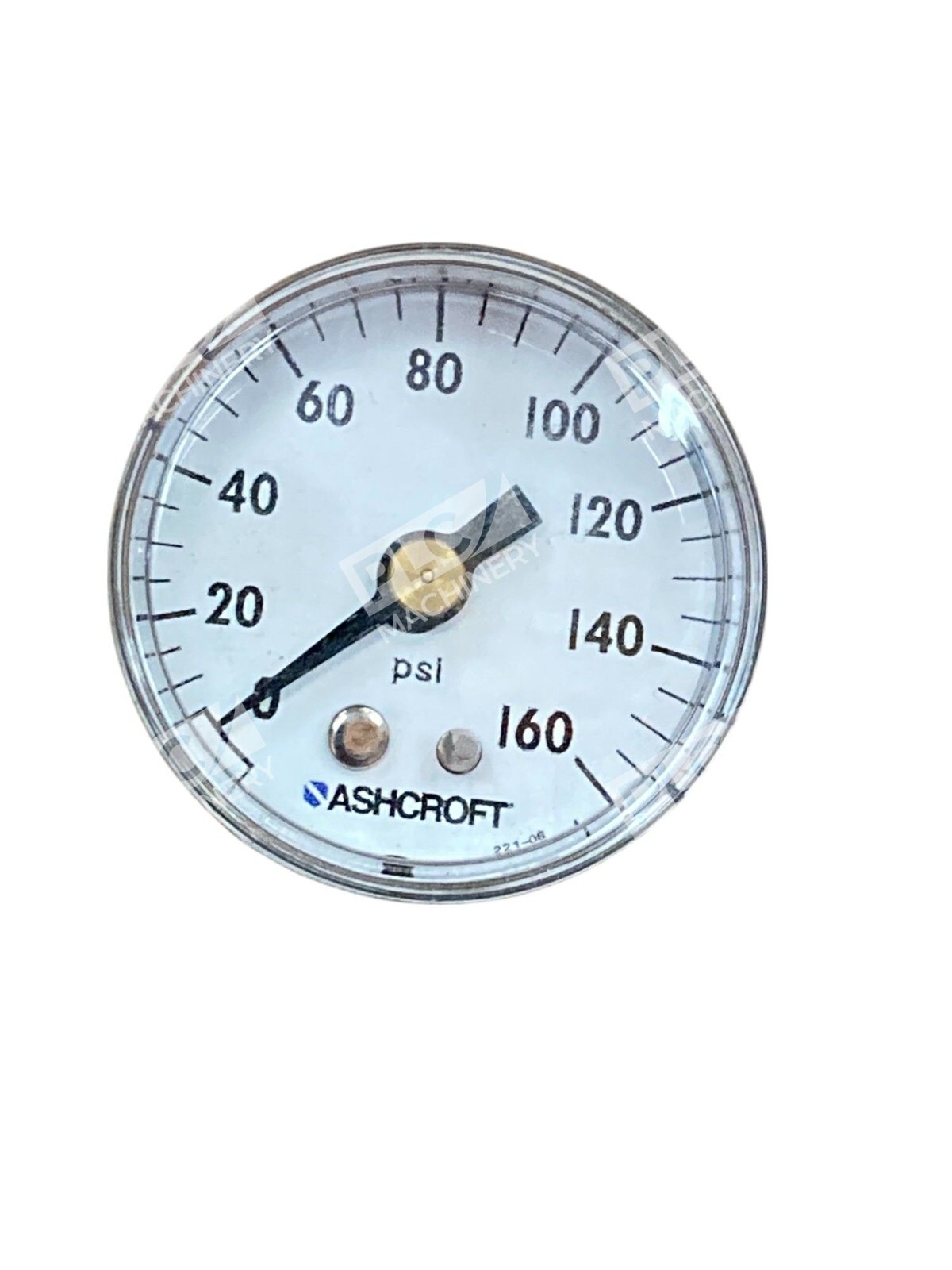

The Ashcroft 15W1005 H 01B 160# is a Type 1005 commercial pressure gauge designed for reliable pressure monitoring in industrial and commercial applications. With a 1.5-inch dial face and 0-160 PSI measurement range, this gauge delivers clear, accurate readings. The center back mount configuration with 1/8″ NPT connection allows flexible installation in tight spaces and on various system types.
Key Features
- 1.5-inch dial size — easily readable pressure scale
- 0-160 PSI range — suitable for moderate to moderately high-pressure applications
- 1/8″ NPT center back connection — standard industrial mount point
- Brass socket material — corrosion resistant wetted parts
- Steel case — durable, long-lasting construction
- Type 1005 series — proven design used across industries
Technical Specifications
- Dial Size: 1-1/2 inches
- Pressure Range: 0–160 PSI
- Connection Size: 1/8″ NPT
- Connection Location: Center Back
- Socket Material: Brass
- Case Material: Steel
- Window Material: Polycarbonate (standard)
- Series: Type 1005
Typical Applications
Ashcroft Type 1005 gauges are commonly used in:
- Air compressor systems and pressure vessels
- Filter regulators and water pumps
- Beverage-dispensing equipment
- Paint sprayers and pneumatic tools
- HVAC and refrigeration systems
- Industrial process monitoring
Compatibility & Replacements
Compatible With
- Standard 1/8″ NPT threaded ports on industrial pressure systems
- Center back mount configuration on manifolds and filter regulators
- Systems rated for 160 PSI maximum working pressure
- General industrial and commercial pneumatic/hydraulic circuits
Replaces / Drop-In Replacement For
- Other Ashcroft 1005 series gauges with matching 0-160 PSI, 1-1/2″ dial, 1/8″ NPT specifications
- Verify compatibility with your system integrator before ordering.
Works With
- Standard 1/8″ NPT end connections on compressors, pumps, and regulators
- Any system requiring direct pressure gauge mounting with center back connection
- Industrial maintenance and troubleshooting applications
