Overview
The Ashcroft 15W1005 H 01B 30# pressure gauge is a Type 1005 commercial gauge built for dependable performance in industrial measurement applications. Combining a steel case with a heat-resistant polycarbonate window, this 1.5-inch dial gauge offers clear visibility of pressure readings from 0 to 30 PSI. The back mount 1/8 NPT connection integrates seamlessly into pneumatic, hydraulic, and pump systems where accurate, at-a-glance pressure monitoring is essential.
Key Features
- 1.5-inch dial face for easy pressure reading visibility
- Heat-resistant push-in polycarbonate window prevents fogging and extends service life
- Steel case construction for durability in demanding industrial environments

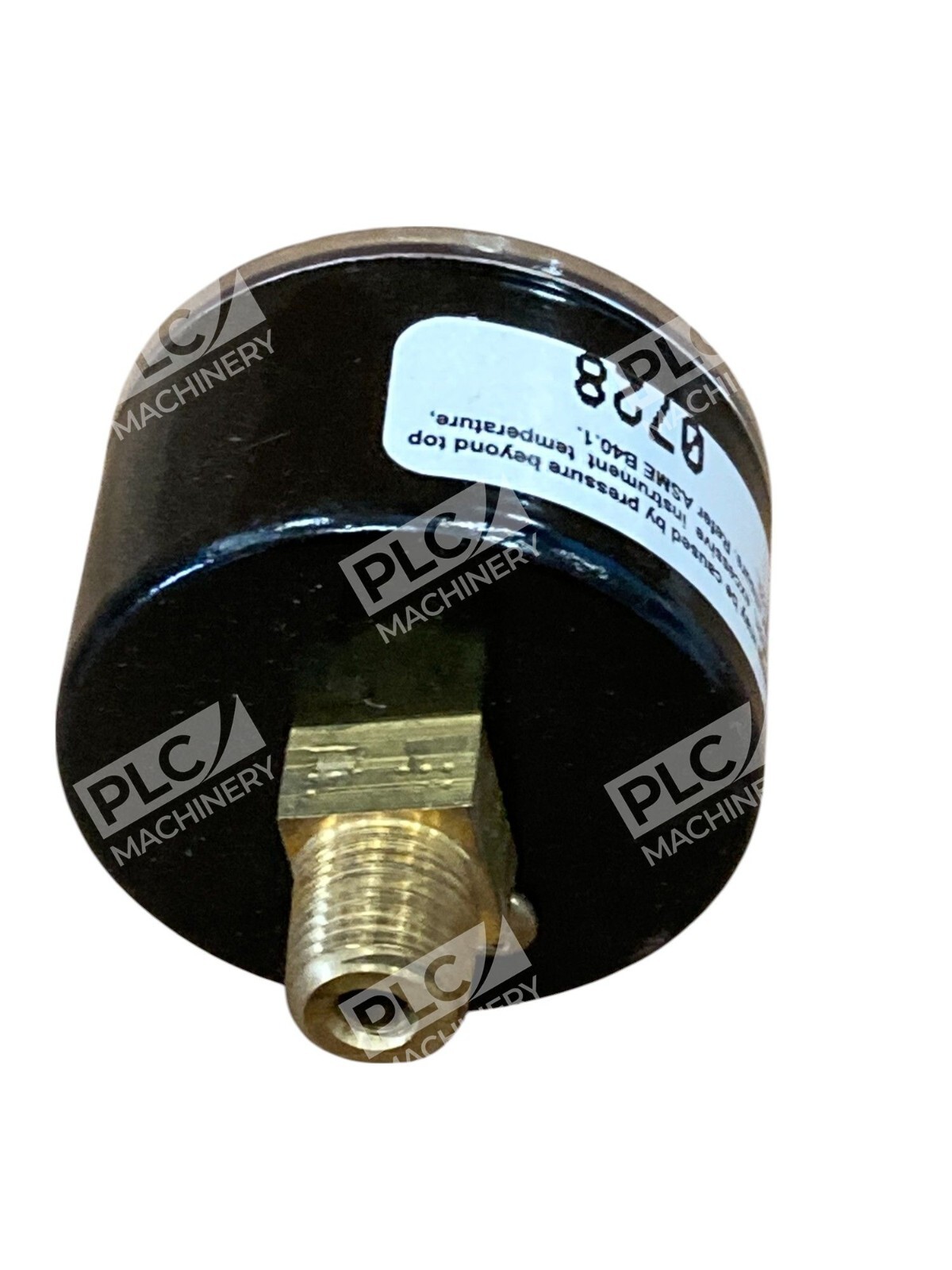

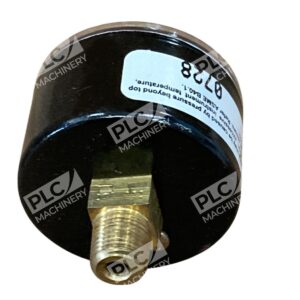

- Brass socket with 1/8 NPT back mount connection for straightforward installation
- 0-30 PSI range suitable for low-pressure pneumatic and compressed air systems
- Reliable accuracy and performance across HVAC, plumbing, and general pneumatics applications

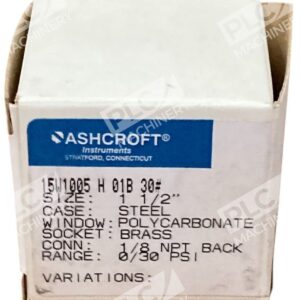

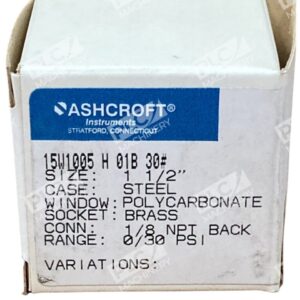

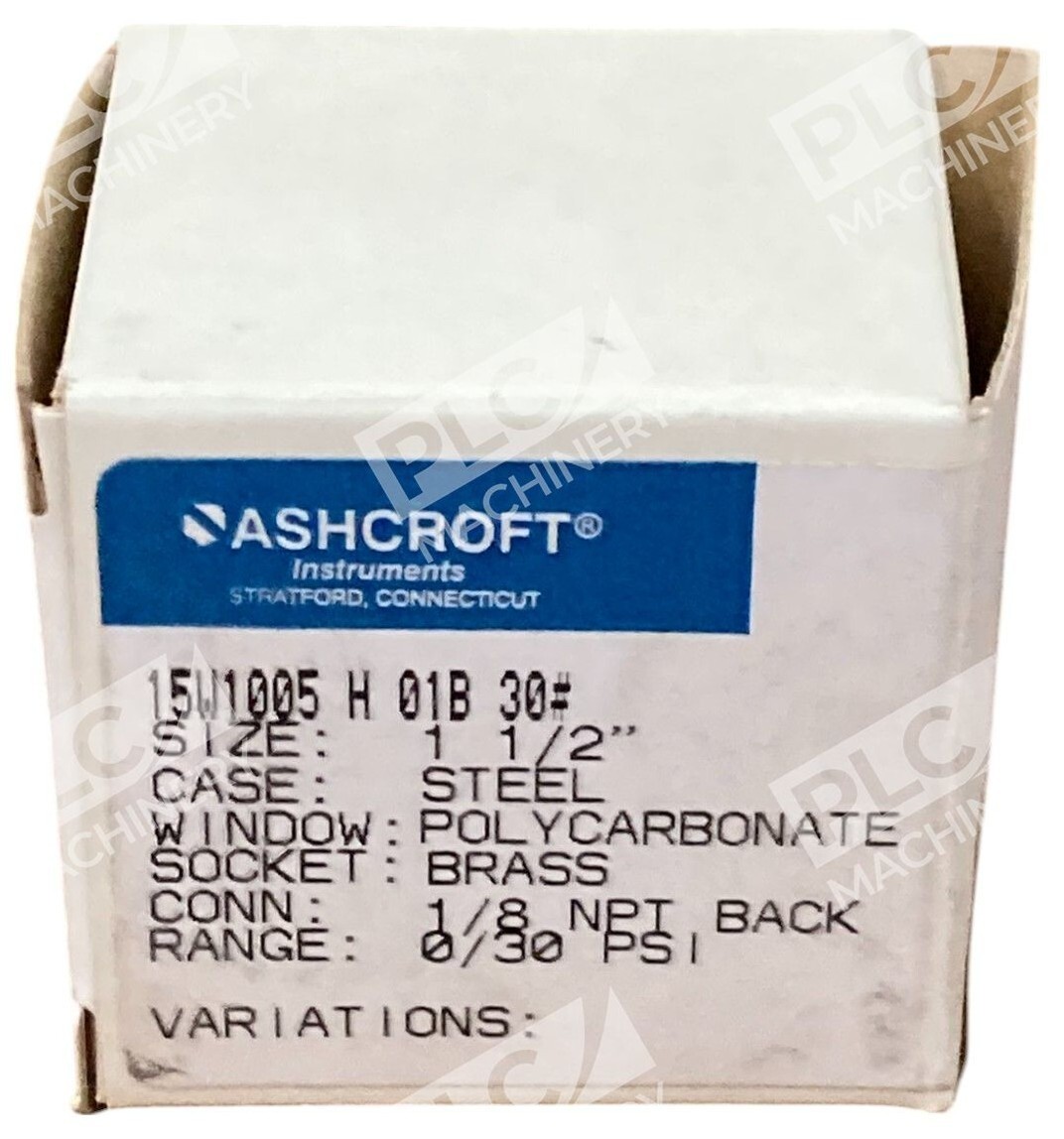

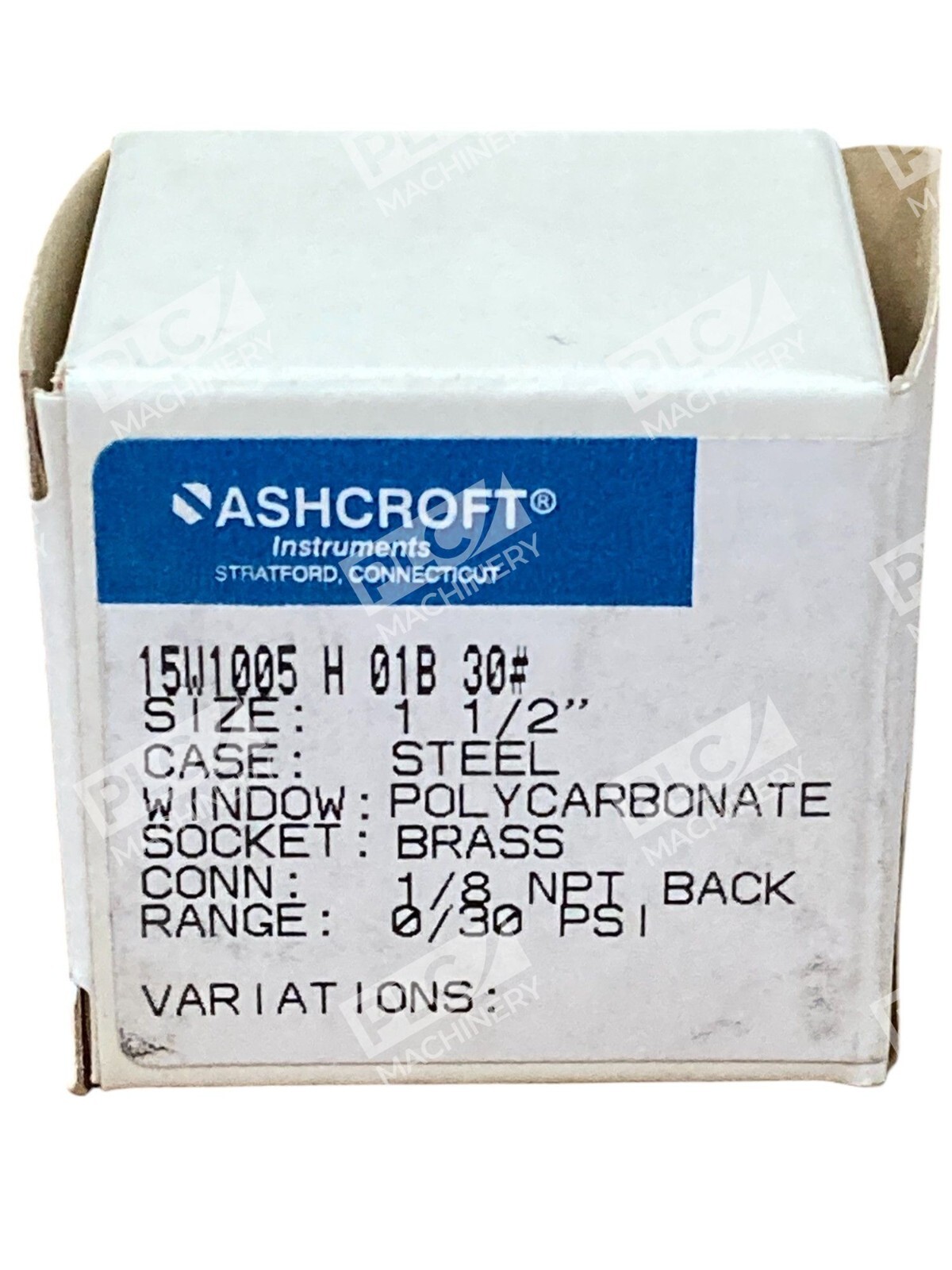

Technical Specifications
- Pressure Range: 0-30 PSI
- Dial Size: 1.5 inches
- Connection Type: 1/8 NPT back mount
- Case Material: Steel
- Window Material: Polycarbonate
- Socket Material: Brass
- Series: Ashcroft Type 1005
Typical Applications
The Ashcroft 15W1005 H 01B 30# is commonly used in:
- Compressed air systems and pneumatic tools
- Hydraulic equipment and pump discharge lines
- HVAC and refrigeration units
- Plumbing and water pressure monitoring
- Industrial automation and process control systems
- OEM equipment requiring reliable pressure indication
Compatibility & Replacements
Compatible With
- Standard 1/8 NPT back-mount pneumatic and hydraulic systems
- Compressed air distribution networks
- Pump and compressor discharge lines
- Industrial control and monitoring installations
- HVAC and refrigeration circuits
Replaces / Drop-In Replacement For
The Ashcroft 15W1005 H 01B 30# is a direct replacement for other Ashcroft Type 1005 pressure gauges with matching 0-30 PSI range, 1.5-inch dial, and 1/8 NPT back mount configuration. Verify your exact model suffix (H 01B vs. alternatives) before ordering to ensure proper fit and functionality.
Works With
- Standard industrial pneumatic hose and tube fittings (1/8 NPT male threads)
- Air compressors and pump systems with back-mount gauge ports
- Industrial pressure regulation and control panels
- Pneumatic and hydraulic component ecosystems
