Overview

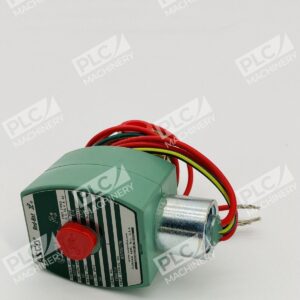

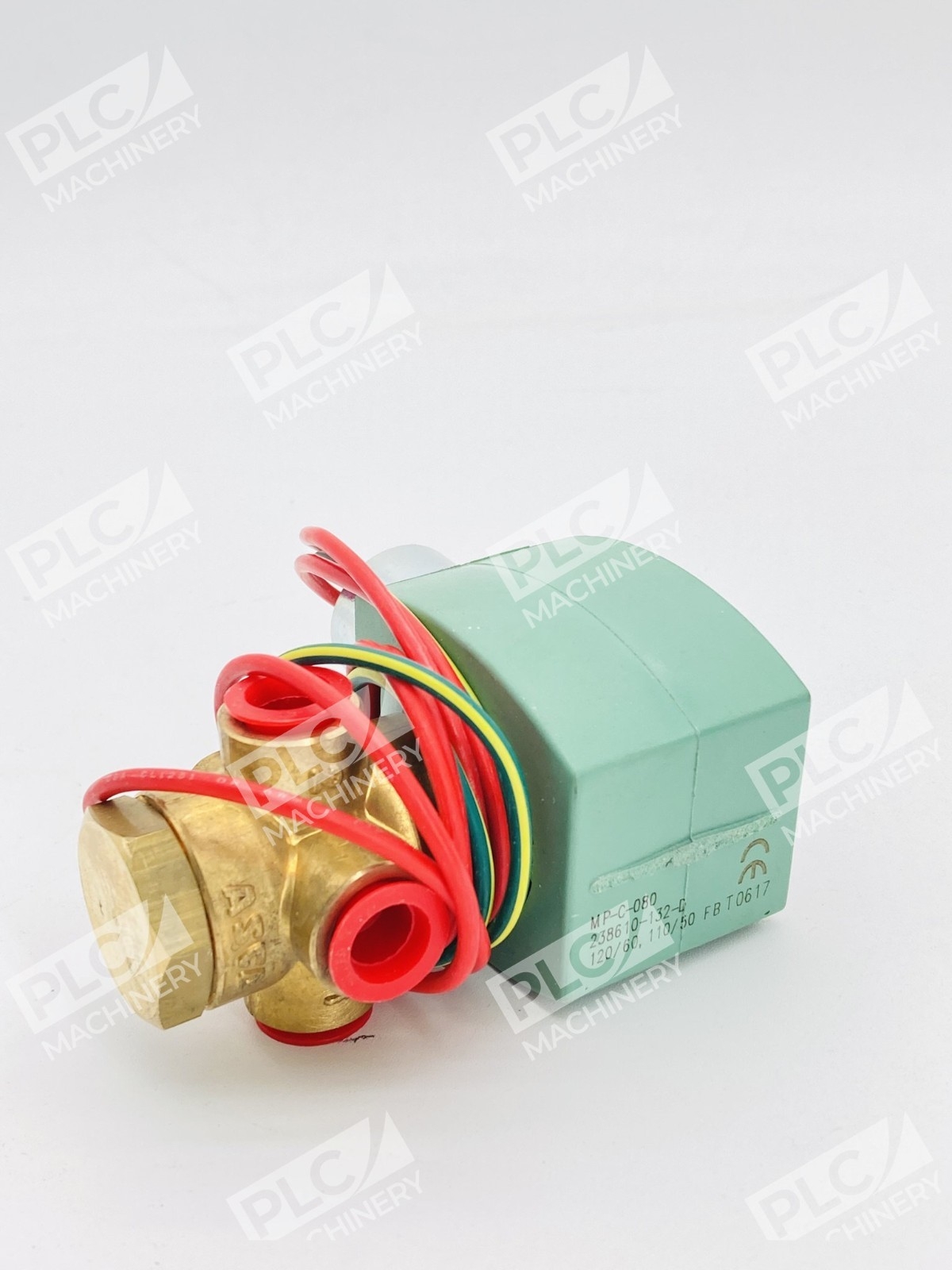

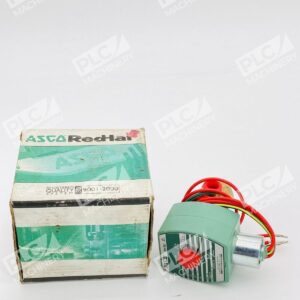

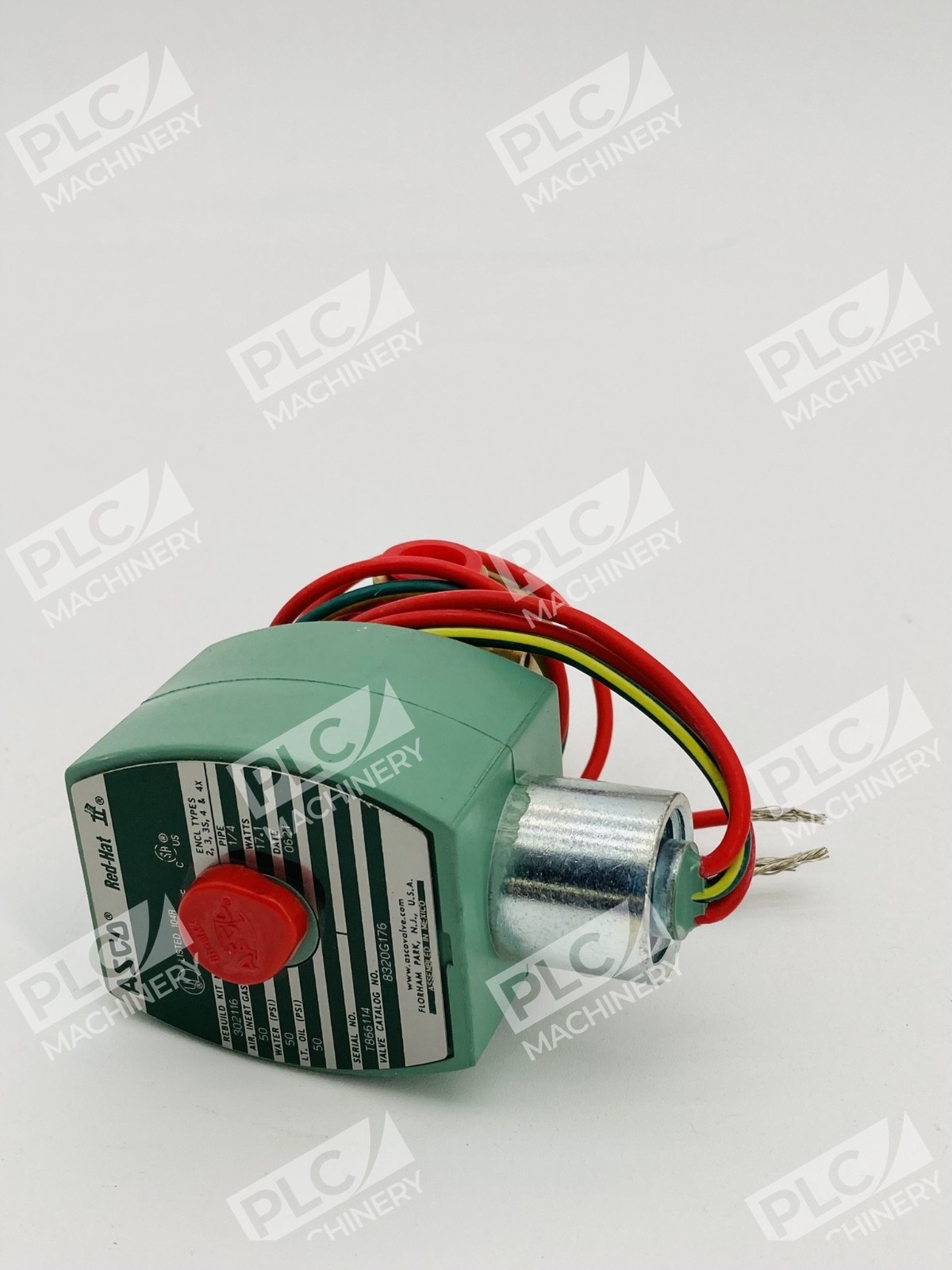

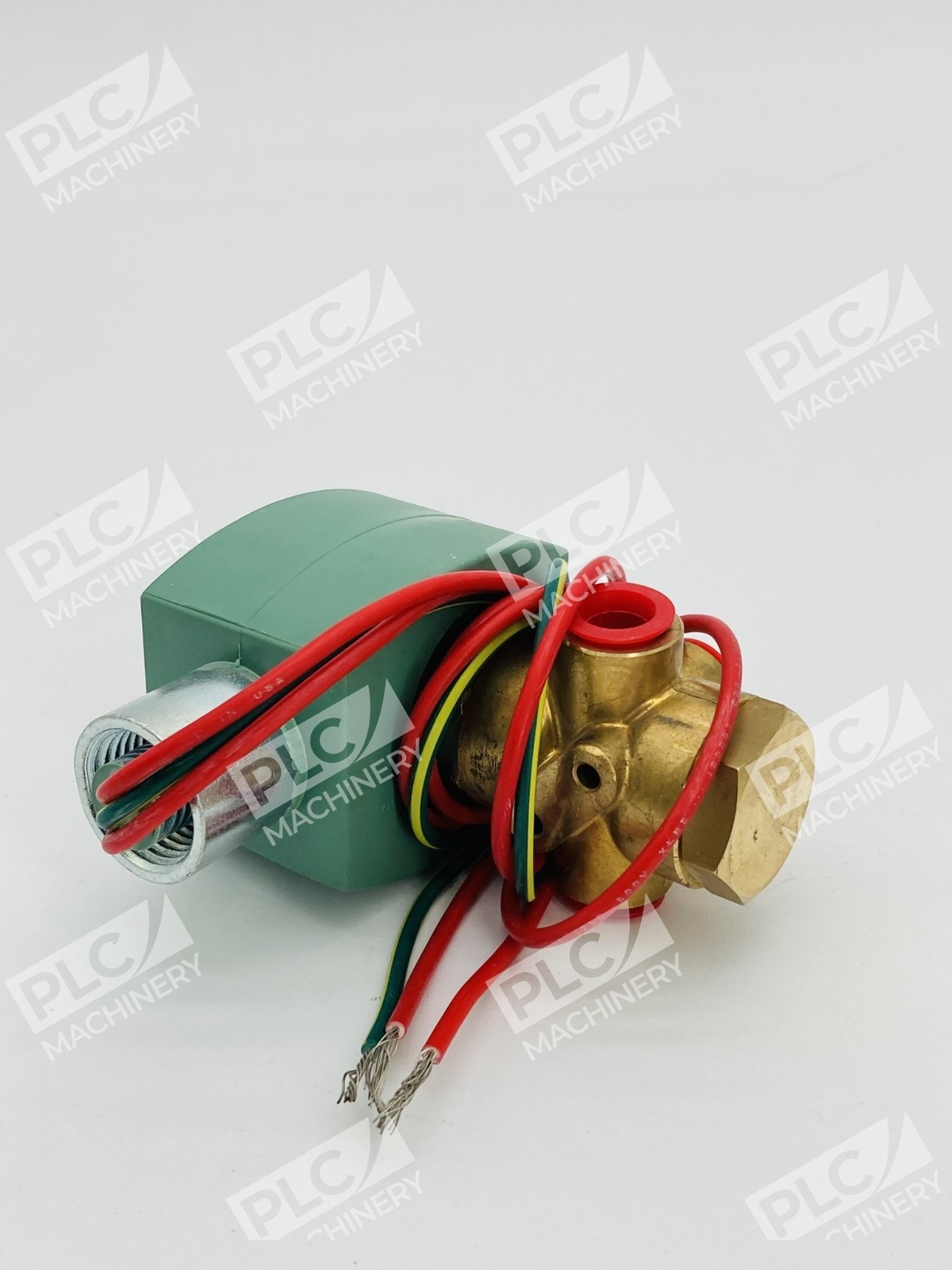

The Asco 8320G176 is a direct-acting, 3-way solenoid valve from the Series 8320 general service line. This universal brass-body valve operates in normally-open or normally-closed configurations and handles air, water, and light oil fluids. Rated for 50 psig maximum pressure and 200°F maximum fluid temperature, the 8320G176 delivers reliable performance in pneumatic control, irrigation, fluid transfer, and industrial automation applications.
Key Features
- Direct-acting solenoid operation for fast, repeatable switching
- Universal brass body compatible with 1/4 NPT female pipe threads
- 3-way, 2-position valve design (normally open or closed)
- Low power consumption (17.1W Class F coil) reduces energy draw

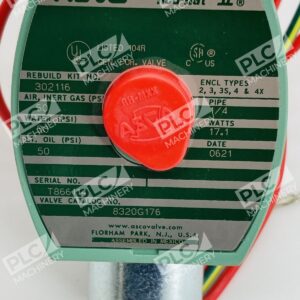

- Serviceable design with available rebuild kits (e.g., 302116-ASCO)
- Handles air, water, and light mineral oil with Buna-N seals

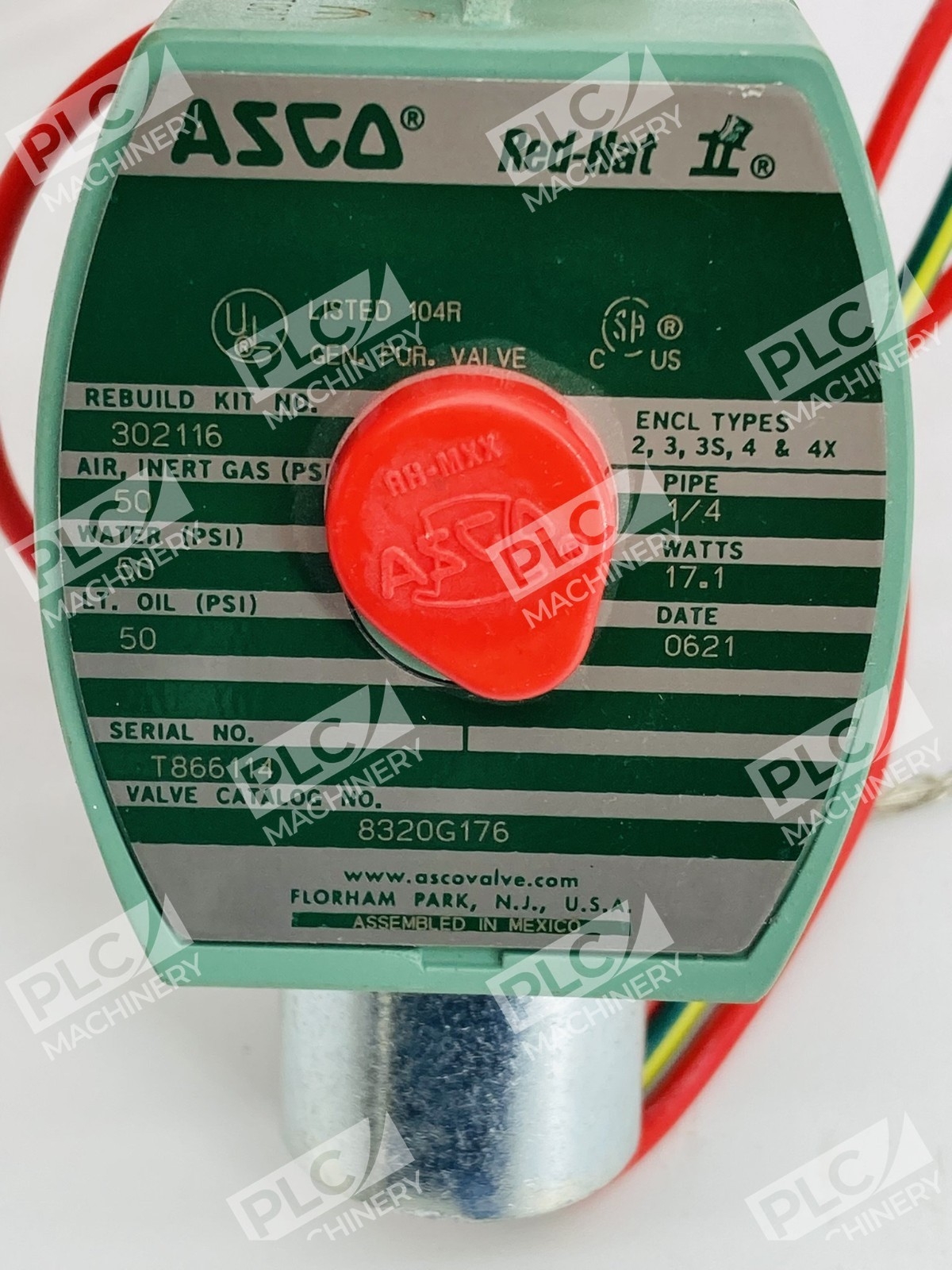

Technical Specifications
- Part Number: 8320G176
- Valve Type: 3-way, 2-position direct-acting solenoid
- Port Size: 1/4 NPT female
- Orifice Size: 11/64 inch (4.4 mm)
- Flow Capacity (Cv): 0.35
- Maximum Pressure: 50 psig (345 kPa) at 200°F
- Maximum Temperature: 200°F (93°C)
- Body Material: Brass
- Seal Material: Buna-N
- Power Consumption: 17.1W (Class F coil)
- Voltage Options: Available in AC and DC ratings
- Compatible Media: Air, water, light oil
Typical Applications
The Asco 8320G176 is widely used in:
- Pneumatic circuit control and automation systems
- Water and fluid transfer systems
- Industrial process automation and machine control
- Irrigation and landscape irrigation controls
- HVAC systems and climate control applications
- General-purpose on/off valve switching
Compatibility & Replacements
Compatible With
- Pneumatic and hydraulic systems rated 50 psig and below
- Industrial automation controllers and PLCs (24V DC and 120V AC systems)
- Standard 1/4 NPT pneumatic manifolds and fittings
- Air, water, and light mineral oil media systems
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering. The Asco 8320G176 is a standard Series 8320 3-way valve; related models include 8320G136MS, 8320G178, 8320G201, and 8320G215, though direct interchangeability depends on your exact voltage, pressure, and flow requirements.
Works With
- 24V AC/DC solenoid coils (standard ASCO wound options)
- 120V AC solenoid coils
- PLC and automation control systems with solenoid valve outputs
- Standard 1/4 NPT male-threaded pneumatic hoses and fittings
- Rebuild Kit 302116-ASCO for field service and maintenance
