Overview

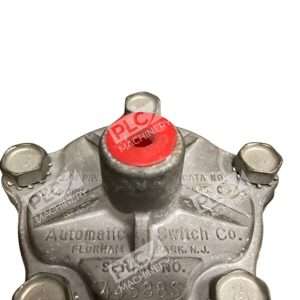

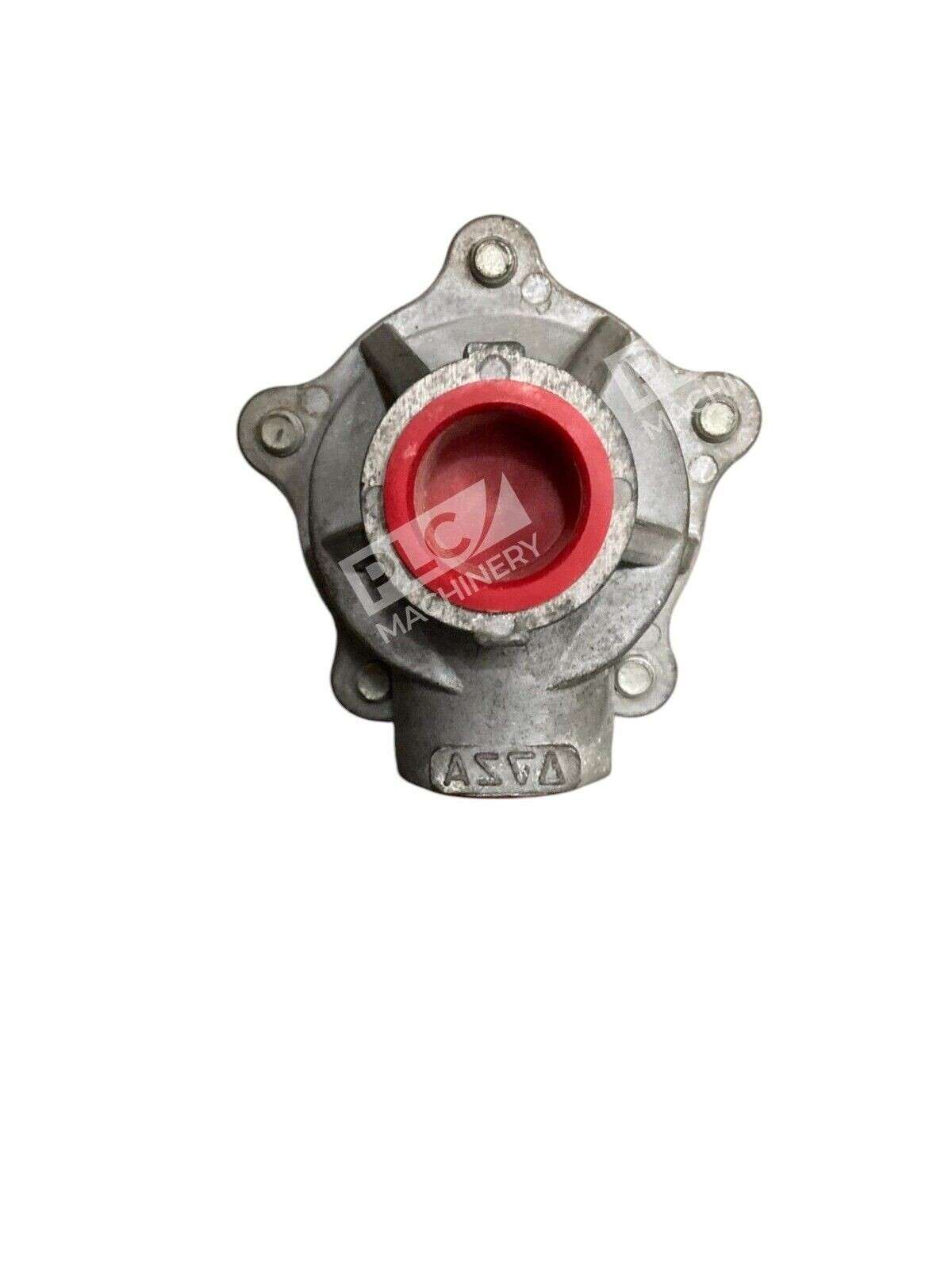

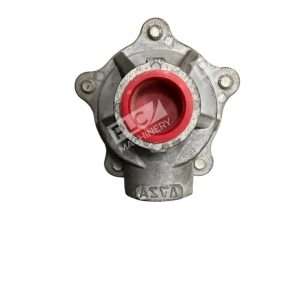

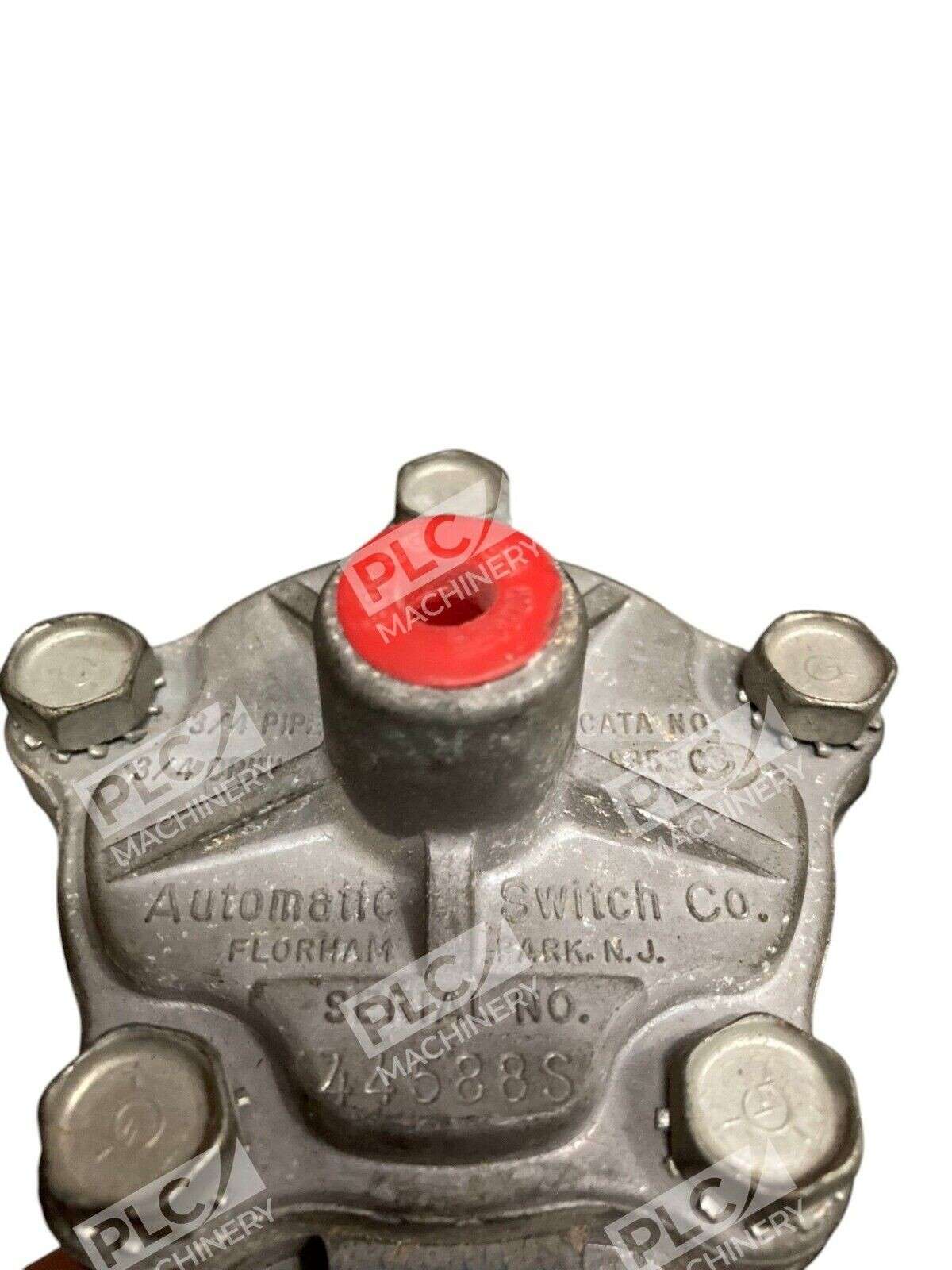

The ASCO 8353C3 solenoid valve is a dependable 2-port, normally-closed pulse valve designed for dust collector and pneumatic filtration systems. Operating between 5–125 PSI with a 3/4″ NPT port size and aluminum body construction, this valve delivers reliable high-flow switching for reverse-jet dust collection applications. The 120V solenoid coil provides prompt and repeatable opening and closing action essential for efficient bag-cleaning cycles in industrial settings.
Key Features
- Operating Pressure Range: 5–125 PSI, suitable for air and inert gas media
- Normally Closed (NC) Design: Valve remains sealed until solenoid energizes, ensuring fail-safe operation
- High Flow Capacity: 10.50 Cv rating enables rapid pressure equalization and effective dust collector pulses
- Aluminum Body: Lightweight yet durable construction resistant to corrosion in pneumatic environments
- 3/4″ NPT Connections: Standard pipe thread ports for straightforward integration into pneumatic manifolds
- 120V AC Solenoid: Factory-configured for North American electrical standards
Technical Specifications
- Part Number: 8353C3
- Valve Function: 2-way, normally closed solenoid valve
- Operating Pressure (Air): 5–125 PSI
- Port Size: 3/4″ NPT
- Port Configuration: Right angle
- Flow Coefficient (Cv): 10.50
- Body Material: Aluminum
- Seating Material: NBR (Nitrile Butylene)
- Electrical Rating: 120V AC
- Weight: 1.34 lbs
- Media: Air, inert gas
- Operating Temperature: 0°F to 185°F (−18°C to 85°C)
Typical Applications
The ASCO 8353C3 is engineered for reverse-jet dust collector systems where controlled compressed air pulses activate bag cleaning cycles. Its high flow capacity and rapid response make it ideal for:
- Industrial dust collection and air filtration systems
- Pneumatic pulse valve stations in fabric filter housings
- Cement, pharmaceutical, food processing, and chemical powder handling
- Any system requiring dependable normally-closed solenoid switching in the 5–125 PSI range
Compatibility & Replacements
Compatible With
- ASCO pneumatic systems and manifold assemblies
- Standard 3/4″ NPT dust collector pulse train networks
- 120V AC pneumatic control circuits and PLC-triggered solenoid coil systems
- Reverse-jet dust collection equipment from major industrial manufacturers
- Compressed air supply systems rated 5–125 PSI
Replaces / Drop-In Replacement For
- Earlier ASCO 8353 series models with identical 2-port, 5-125 PSI, 3/4″ NPT specifications
- Legacy dust collector solenoid valves of equivalent port size and pressure rating
- Verify exact compatibility with your system integrator before ordering to confirm coil voltage and electrical configuration match.
Works With
- ASCO solenoid coil assemblies and replacement coil options
- Pneumatic timers and PLC modules for pulsing control
- Standard compressed air supply networks and regulators
- ASCO valve accessories including solenoid enclosures (NEMA 1, 4, 7, or 9 available)
- Industrial automation systems utilizing 120V AC control voltage
