Overview

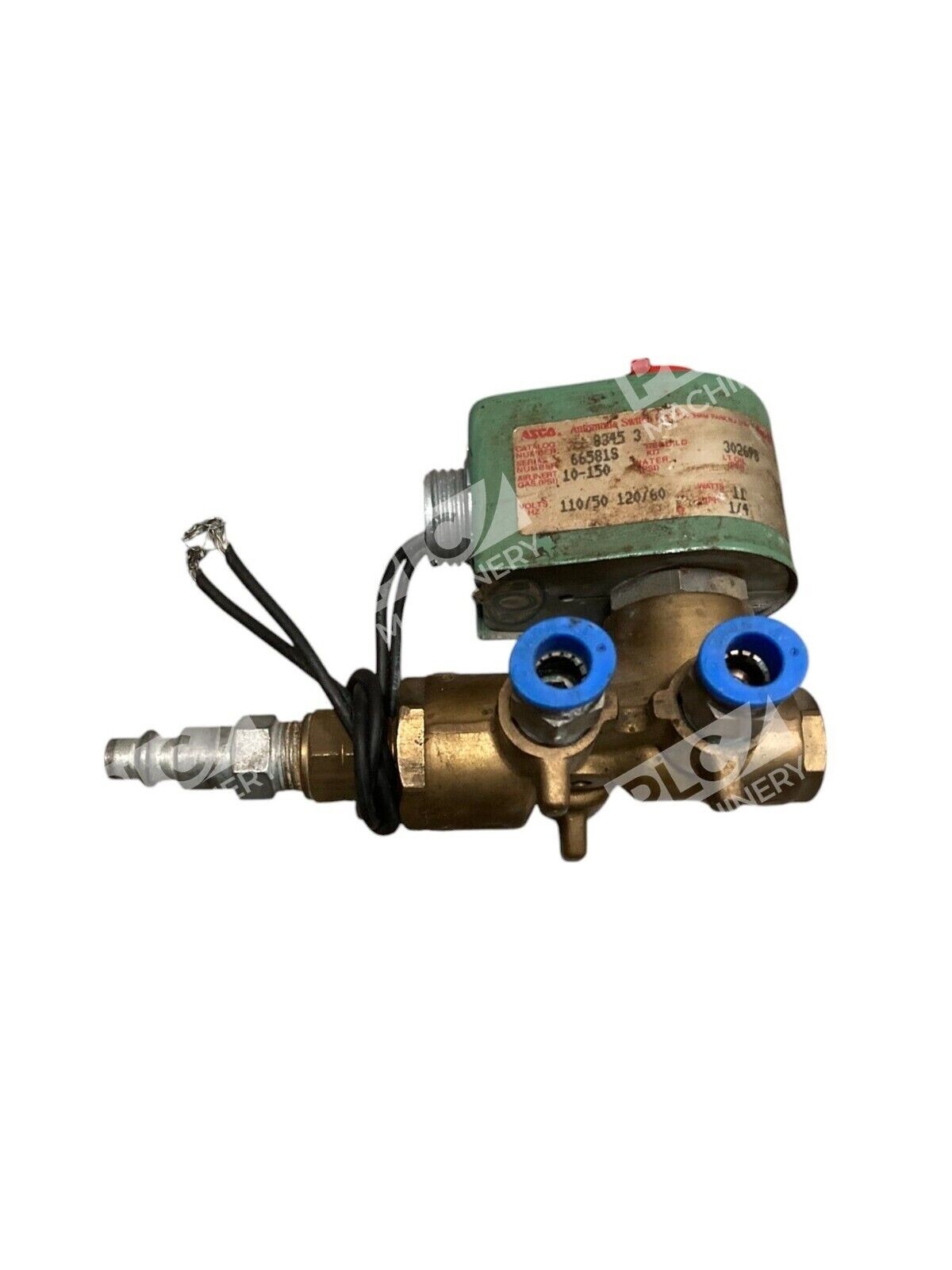

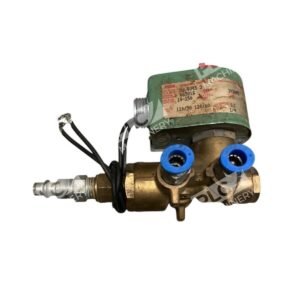

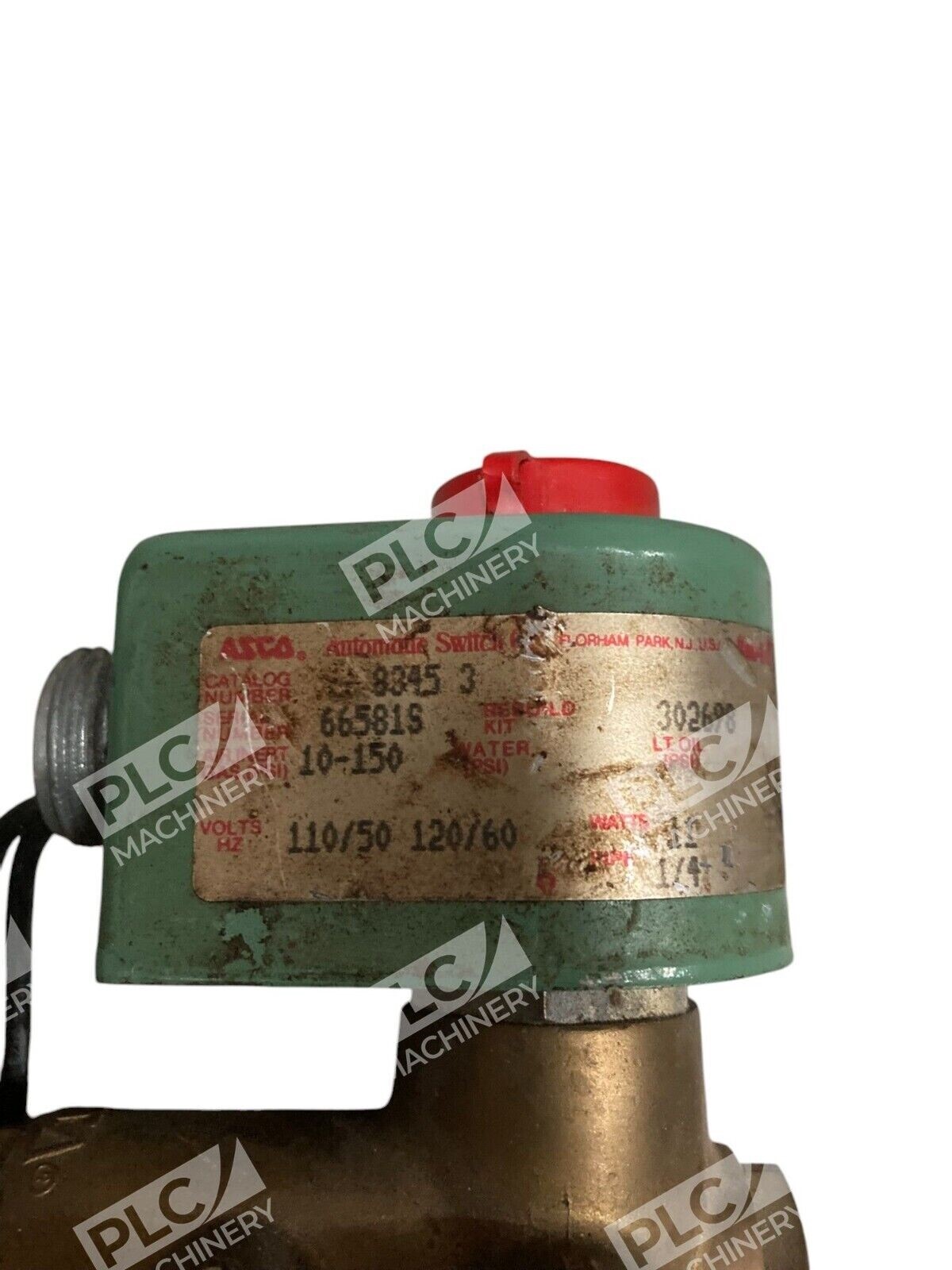

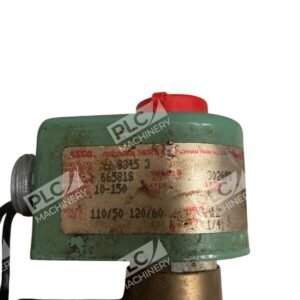

The ASCO 8345-03-01 is a compact, 4-way pilot-operated solenoid valve engineered for general service applications requiring low-flow control across pressurized systems. This model features 10-150 PSI operating range and is commonly deployed in pneumatic control circuits, hydraulic valve manifolds, and low-flow fluid distribution systems. The valve delivers dependable on-off or proportional flow control in analytical equipment, heating systems, and process automation.
Key Features
- 4-way, 2-position pilot-operated design for reliable flow direction control
- Pressure range: 10–150 PSI (brass body version); rated for air, inert gas, water, and light oil
- 1/4″ NPT female threaded ports (4 connections)
- Watertight solenoid enclosure; NEMA Type 1, 2, 3, 3S, 4, 4X rated
- Mountable in any position; low watt rating for minimal electrical draw
- Available in multiple voltage options: 24 VDC, 120 VAC, 240 VAC, 480 VAC (standard)
Technical Specifications
- Port Size: 1/4″ NPT female thread (all four ports)
- Valve Type: 4-Way, 2-Position, Pilot Operated
- Operating Pressure: 10–150 PSI (10 bar minimum)
- Maximum Fluid Temperature: 180°F (82°C) for brass body, 104°F (40°C) ambient for DC coils
- Flow Factor (Cv): 0.09
- Orifice Size: 1/16″ x 3/32″
- Power Consumption: 10.1 W (AC), 11.6 W (DC); Class F coil insulation
- Body Material: Brass (standard); 316 stainless steel optional
- Sealing: Buna-N (NBR) seals; UR/PA disc materials
- Certifications: UL approved; meets applicable CE directives
- Fluid Media: Air, inert gas, water, light oil (not gas applications)
Typical Applications
The ASCO 8345-03-01 is ideal for:
- Analytical and diagnostic laboratory equipment
- Biofuel and heating system valve control
- Pneumatic actuator switching in automated machinery
- Refineries and petrochemical process control
- Industrial valve manifold integration
- Flow distribution in low-pressure hydraulic systems
Compatibility & Replacements
Compatible With
- Pneumatic control systems and circuitry
- Hydraulic and pneumatic manifold assemblies
- Industrial 24 VDC and 120/240 VAC power supplies
- Pressure relief and flow control valve networks
- ASCO RedHat valve accessory lines
Replaces / Drop-In Replacement For
- ASCO 8345G001 (DC variant)
- ASCO 8345H003 (air-only exhaust model)
- Other pilot-operated 1/4″ 4-way solenoid valves in equivalent pressure class
Works With
- ASCO RedHat solenoid valve accessories and rebuild kits (Kit 314453-ASCO)
- Pneumatic and hydraulic tubing (1/4″ port SAE or ISO thread)
- Industrial process control logic and PLC outputs
- Manual and proportional valve manifold assemblies
