Overview

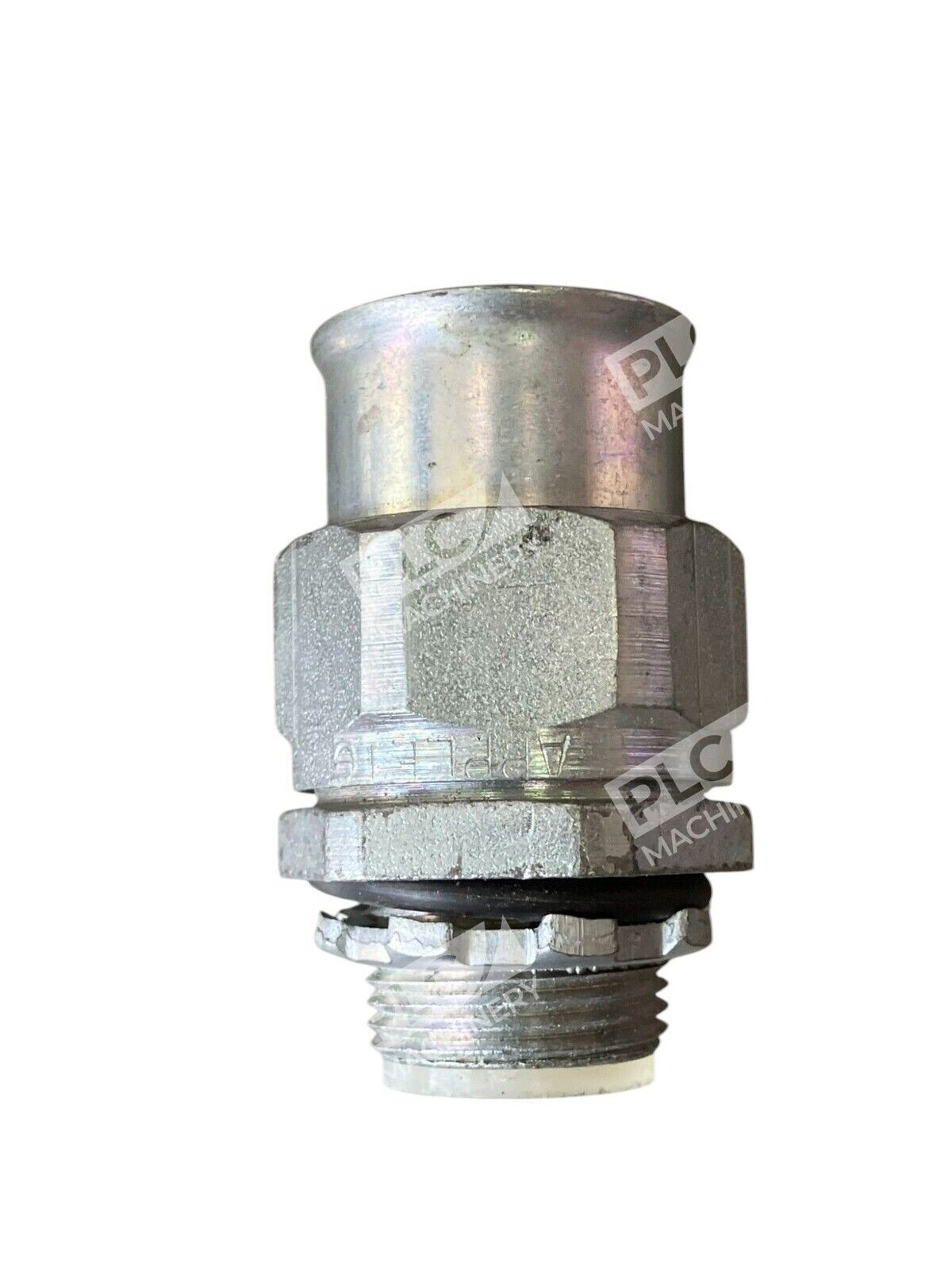

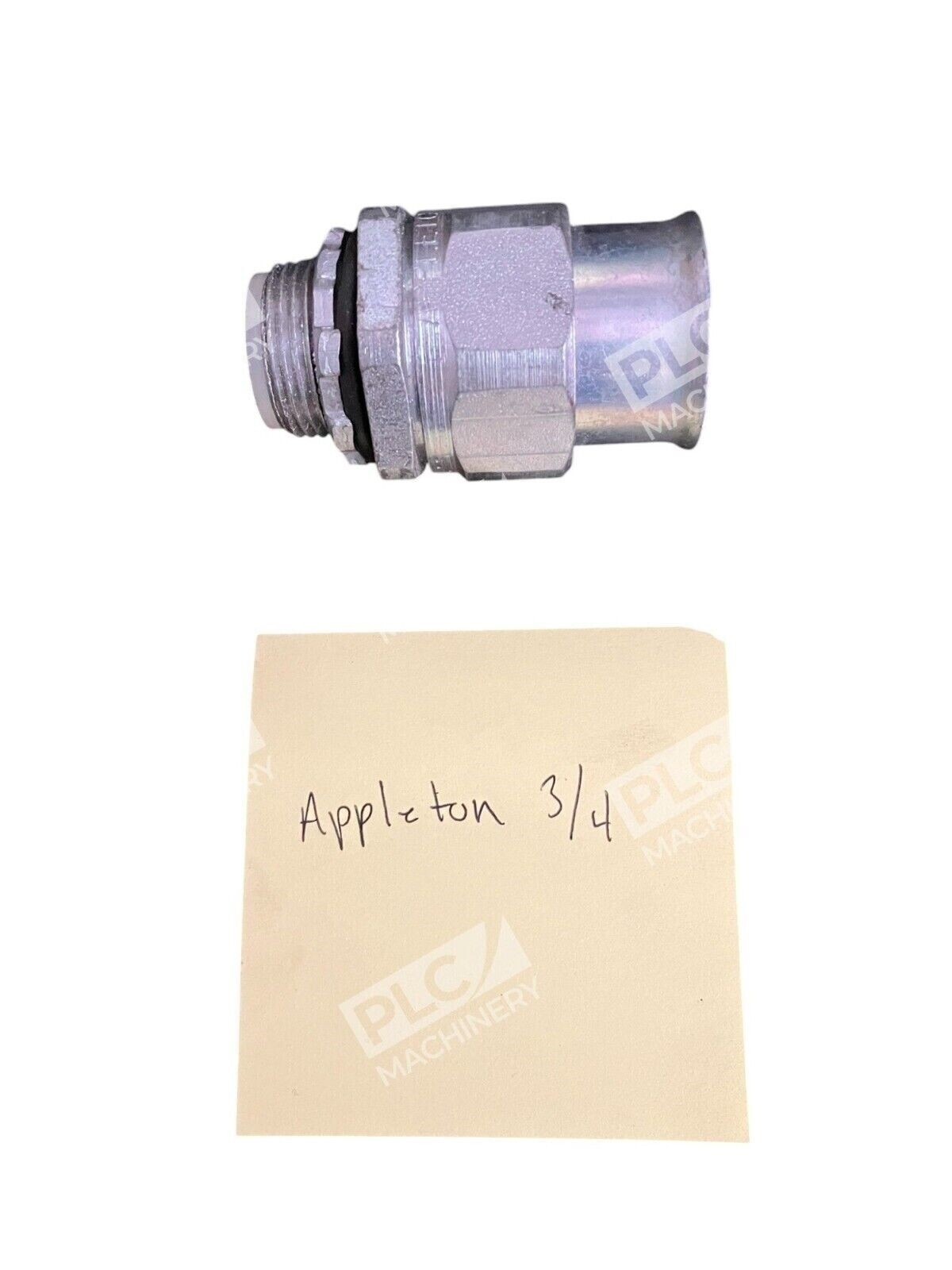

The Appleton straight connector 3/4″ is a liquidtight connector designed to join liquidtight flexible metal conduit to knockout openings in enclosures and junction boxes. Built with zinc-plated steel construction, this straight connector provides a reliable, watertight seal suitable for food processing, machinery enclosures, industrial control panels, and other demanding applications where moisture and contamination must be excluded.
Key Features
- Zinc-plated steel construction resists corrosion in moist environments
- Liquidtight seal protects connections from oil, water, dirt, dust, and fumes
- Straight-through design for easy axial insertion into conduit
- UL-listed for industrial and commercial installations
- Metallic connectors held tight to more than 4× UL pull-out requirement
- Neoprene sealing grommet provides strain relief on flexible conduit
Technical Specifications
- Size: 3/4 inch hub
- Material: Zinc-plated steel
- Connection Type: Straight (not angled)
- Conduit Type: Liquidtight flexible metal (LFMC)
- Sealing: Liquidtight grommet seal
- Standards: UL 514B, designed for hazardous and non-hazardous locations
- Temperature Range: Standard industrial range per UL 514B
Typical Applications
- Food processing machinery and conveyors
- Industrial motor control centers and variable frequency drives
- Wet-location cable entries and enclosures
- Machinery requiring vibration-resistant flexible conduit routing
- Environmental applications with exposure to oils or chemical splash
- Commercial HVAC and refrigeration systems
Compatibility & Replacements
Compatible With
- 3/4″ liquidtight flexible metal conduit (LFMC)
- Standard knockout box openings (3/4″ hub)
- Control enclosures and motor control centers
- UL-listed industrial electrical systems
Replaces / Drop-In Replacement For
- Appleton ST-75 and ST-75AL models
- Standard 3/4″ liquidtight straight connectors from other manufacturers
Works With
- Liquidtight flexible metal conduit (trade size 3/4″)
- Standard electrical knockout systems
- Industrial control panel wiring per NEC Article 350
- Hazardous location wiring per applicable standards
