Overview

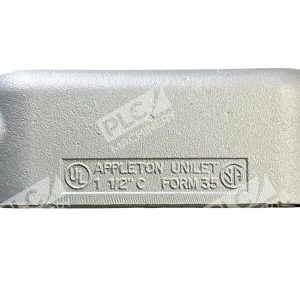

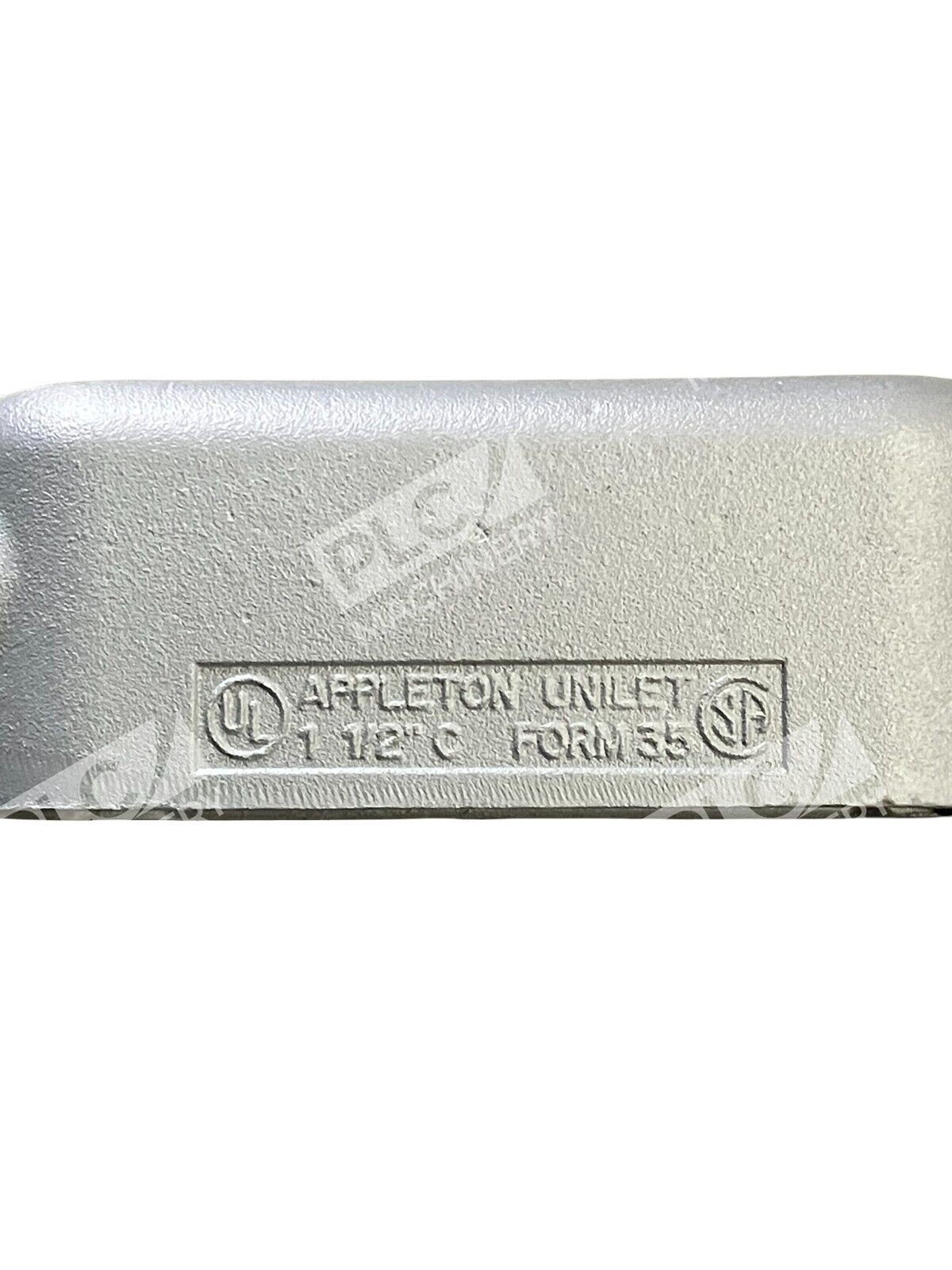

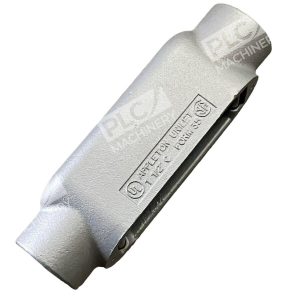

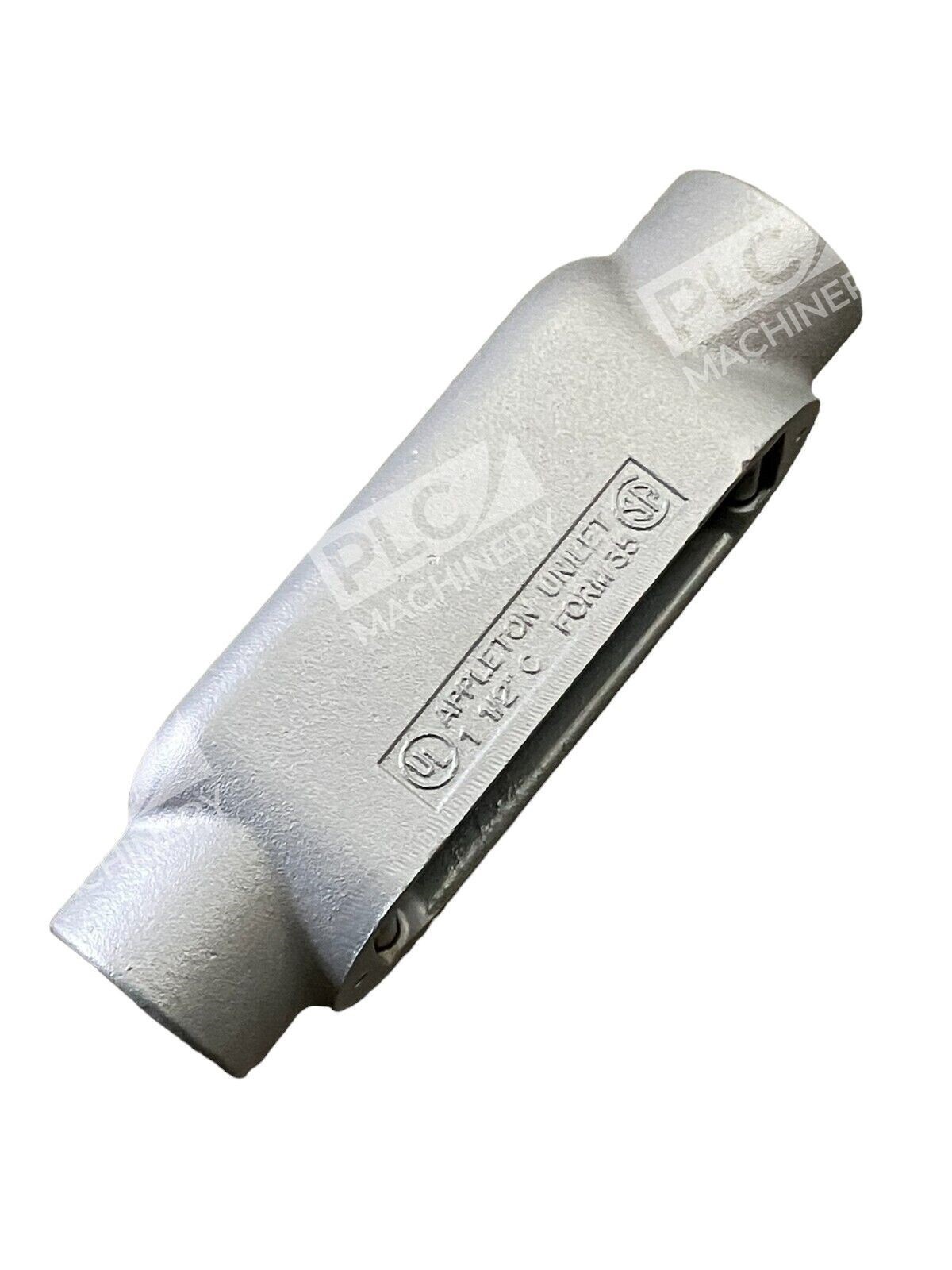

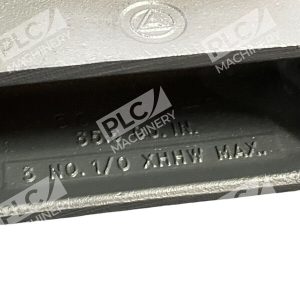

The Appleton C150-M Form 35 conduit outlet body is a malleable iron Type C unilet designed for use with rigid steel, rigid aluminum, IMC, and EMT conduit systems. This lot includes two units, each rated at 35.3 cubic inches capacity with 1-1/2″ hub threads. The Form 35 designation indicates malleable iron construction with high tensile strength and ductility, making these conduit bodies ideal for standard industrial conduit applications requiring secure connections and reliable conductor access.
Key Features
- Type C Configuration: Serves as pulling fittings, allows bends in conduit systems, provides openings for splicing, connects and changes direction of conduit runs, allows connections for branch runs, and permits access to conductors for maintenance
- Malleable Iron Construction: Form 35 malleable iron with high tensile strength and ductility

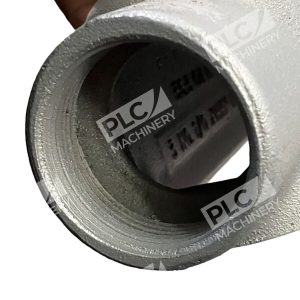

- Smooth Bushings: Smooth, rounded integral bushings in hubs protect conductor insulation

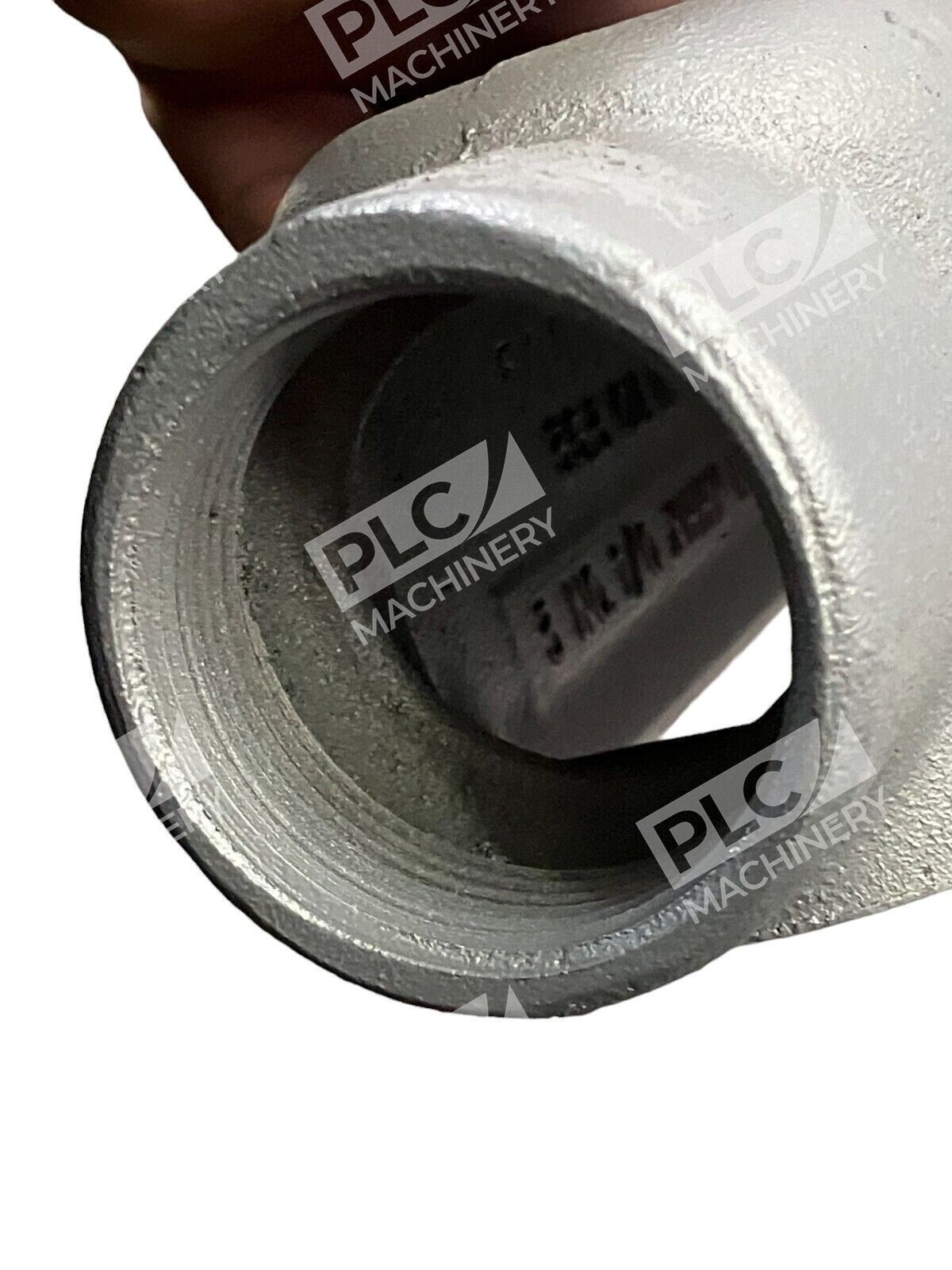

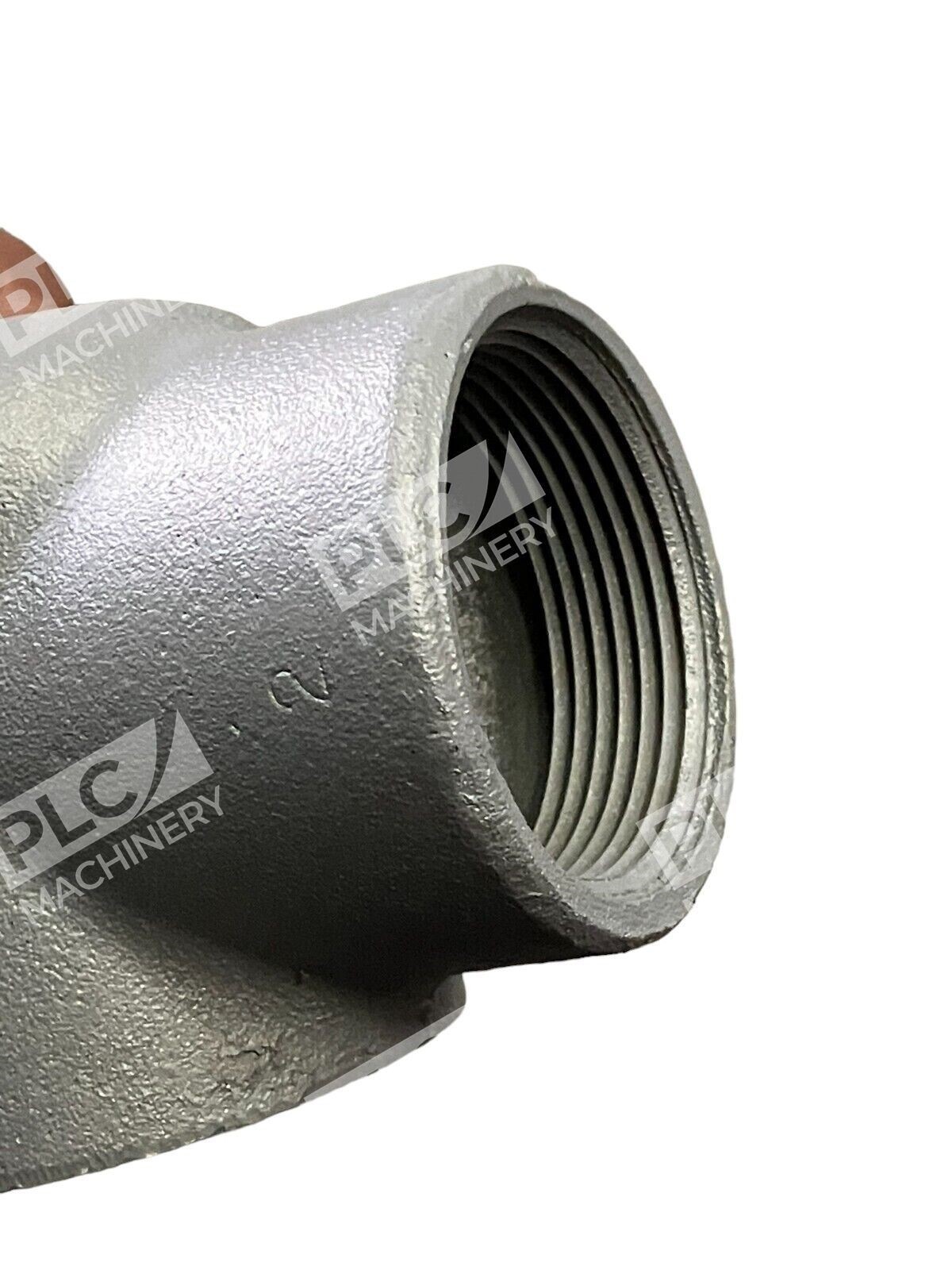

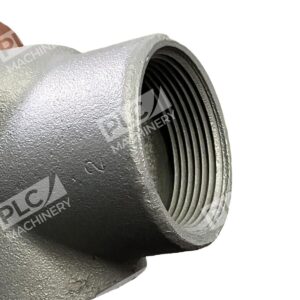

- Tight Thread Connections: Accurately tapped, tapered threads for tight, rigid joints and excellent ground continuity
- Triple-Coated Finish: Triple coated for high corrosion resistance, high impact and shock resistance
- NEMA FB-1 Enclosure: Meets NEMA standards for electrical enclosures and outlet bodies
Technical Specifications

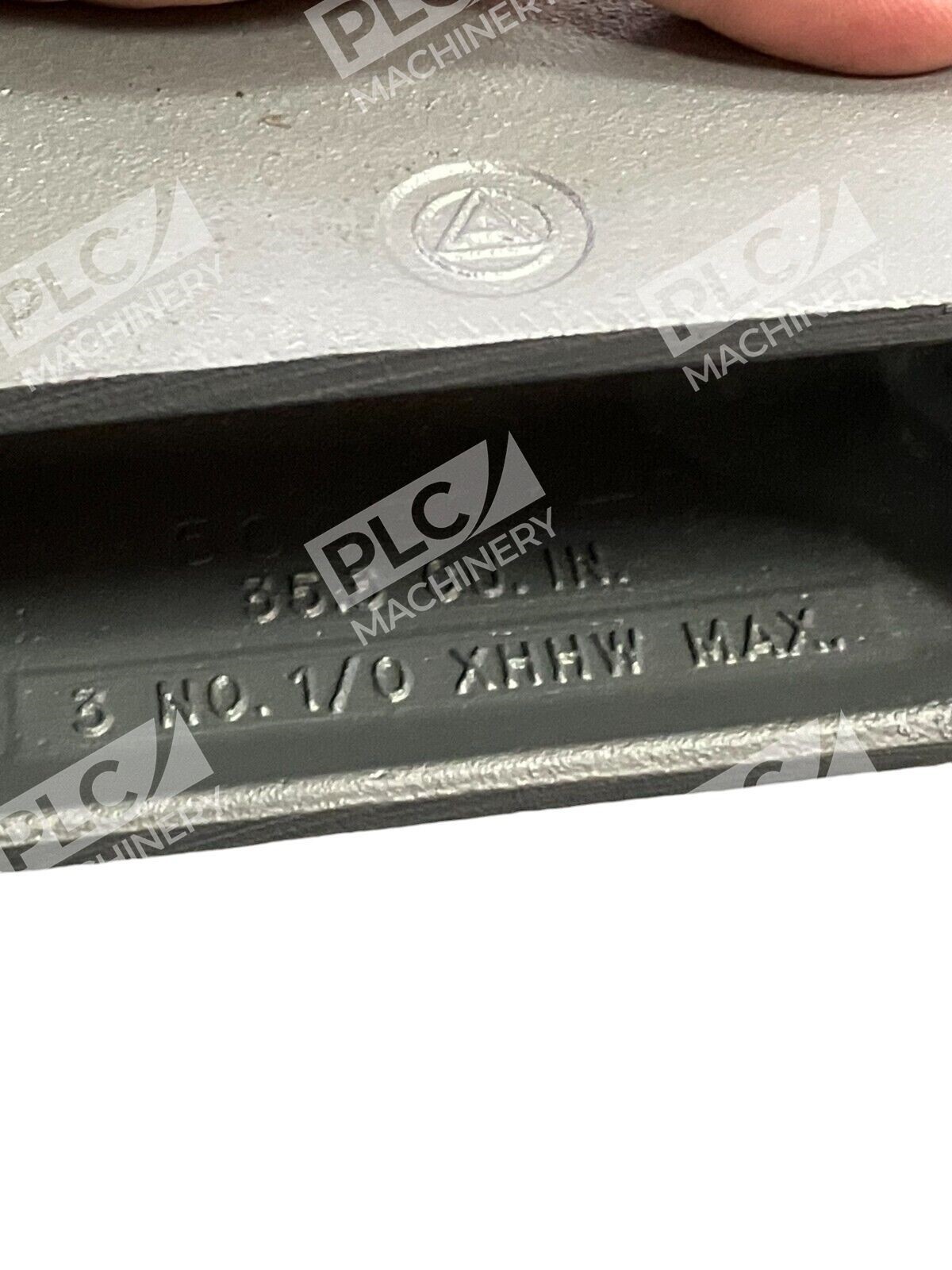

- Capacity: 35.3 cubic inches
- Hub Size: 1-1/2 inches
- Number of Hubs: 2
- Form Type: Form 35
- Material: Malleable Iron
- Finish: Triple Coated
- Connection Type: Tapered FNPT (Female National Pipe Thread)
- Mounting: Surface Mount (Flat Back Design)
- Standards/Approvals: UL 514B File No. E2527, C22.2 No., NEMA FB-1
- Dimensions: 9.19″ L x 2.38″ W x 2.56″ H
- Conduit Type Compatibility: For use with Rigid Steel, Rigid Aluminum, IMC, and EMT Conduit
Typical Applications
Form 35 Appleton C150 conduit outlet bodies are commonly used in:
- Industrial facility conduit installations requiring pulling points and directional changes
- Conduit splicing and junction locations in commercial electrical systems
- Branch run connections in rigid conduit systems
- Maintenance access points for conductor inspection and modification
- Standard-duty electrical installations in non-hazardous locations
Compatibility & Replacements
Compatible With
- Rigid steel conduit systems
- Rigid aluminum conduit
- Intermediate metal conduit (IMC)
- Electrical metallic tubing (EMT)
- 1-1/2″ threaded conduit fittings (FNPT)
- Standard conduit covers and plugs (with stainless steel fasteners)
Replaces / Drop-In Replacement For
The Appleton C150-M (model C150-M) directly replaces equivalent Form 35 Type C outlet bodies from competing manufacturers when matching 1-1/2″ hub size, 35.3 cu-in capacity, and malleable iron construction. Verify compatibility with your system integrator before ordering.
Works With
- Rigid metal conduit (RMC) installations
- IMC and EMT conduit branch connections
- Standard electrical conduit fittings and adapters
- NEC/CEC compliant electrical systems
- NEMA FB-1 enclosure standards
